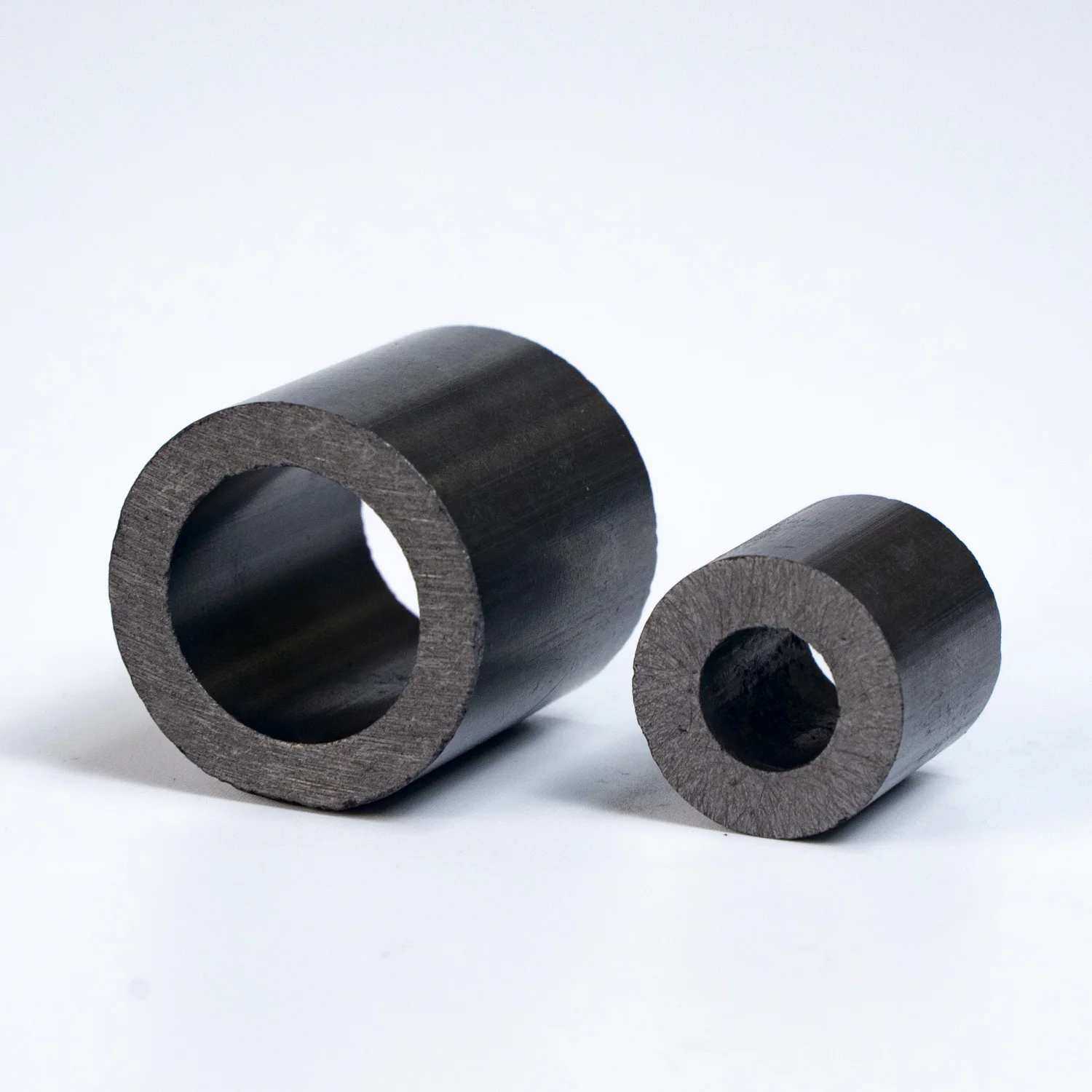

19mm 25mm 38mm 50mm 80mm Graphite Raschig Ring Random Tower Packing Carbon Rasching Ring
- Category: >>>
- Supplier: Jiangxi Kelley Chemical Packing Co. Ltd.
Share on (1600768149898):
Product Overview
Description
Products Description
Carbon/Graphite Raschig Ring Features：
with low pressure drop, large flux, uniform liquid distribution, high mass transfer efficiency, absorption of a variety of tail gas or used in washing,gas separation, etc.It instead of a large number of black metal and various non-ferrous metals, is a kind of excellent corrosion resistance of non-metallic materials.
Application:
Carbon / Graphite raschig ring packing main gas absorption, acidic gas desorption, washing and chemical fertilizer production, the actual application occasions, also as a filler in propane stripping tower and acid gas used in the absorber, such as ammonium, reforming furnace, the tower of petrochemical equipment, purification of the corrosive materials, absorption, condensation, distillation, evaporation, filtration, washing device used in industries such as strong corrosion.
with low pressure drop, large flux, uniform liquid distribution, high mass transfer efficiency, absorption of a variety of tail gas or used in washing,gas separation, etc.It instead of a large number of black metal and various non-ferrous metals, is a kind of excellent corrosion resistance of non-metallic materials.
Application:
Carbon / Graphite raschig ring packing main gas absorption, acidic gas desorption, washing and chemical fertilizer production, the actual application occasions, also as a filler in propane stripping tower and acid gas used in the absorber, such as ammonium, reforming furnace, the tower of petrochemical equipment, purification of the corrosive materials, absorption, condensation, distillation, evaporation, filtration, washing device used in industries such as strong corrosion.
Technical Parameter
Size (mm) | D*H*T (mm) | Bulk Density （KG/M3) | Surface Area （m2/m3) | Voidage （%) | Number per m3 (Pcs/M3) |
Φ19 | 19×19×3 | 650 | 220 | 73 | 109122 |
Φ25 | 25×25×4.5 | 650 | 160 | 70 | 47675 |
Φ38 | 38×38×6 | 640 | 115 | 69 | 13700 |
Φ40 | 40×40×6 | 600 | 107 | 68 | 12700 |
Φ50 | 50×50×6 | 580 | 100 | 74 | 6000 |
Φ80 | 80×80×8 | / | 60 | 75 | 1910 |
Φ100 | 100×100×10 | / | 55 | 78 | 1000 |

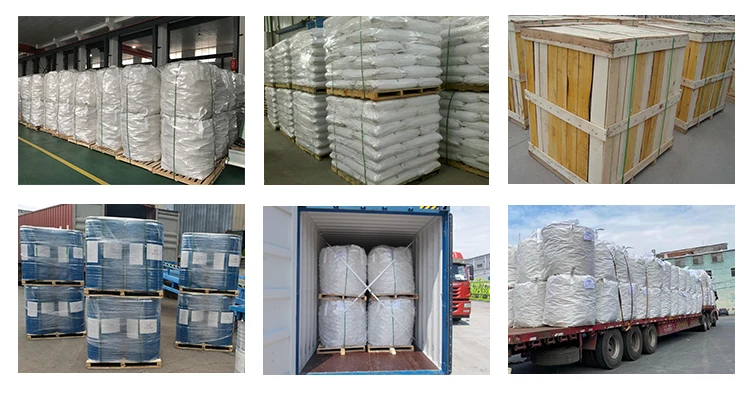

Packing & Shipping
Our Factory
ceramic packing workshop
carbon raschig ring in stock
graphite raschig ring in wooden box
CONTACT US
FAQ
Q: How do I pay for my purchase order? A: T/T, Irrevocable L/C at sight, Paypal,Western Union, etc... Q:What’s your company Production Capacity? A:More than 2000cubic meter/Month. Q: What's the MOQ? A: Our MOQ is 1cubic meter. If the quantity less than 1cubic meter,the price will be higher. Q: What's the delivery time for MOQ? A: It will takes about 3 days. But the exact time is according to actual situation. Q: Can I have my own customized product? A: Yes, your customized requirements are welcome. Q: Do you have quality control? A: Yes, we have ISO, SGS, some other third party certificate and our company’s QC depart can do the regular test . Q:Which countries and the main Clients your company export the goods to? A: UK, USA, France, Kazakhstan, Japan, Korea, Singapore, Belgium, Russia, Netherland , Middle East etc. | ||||||||
