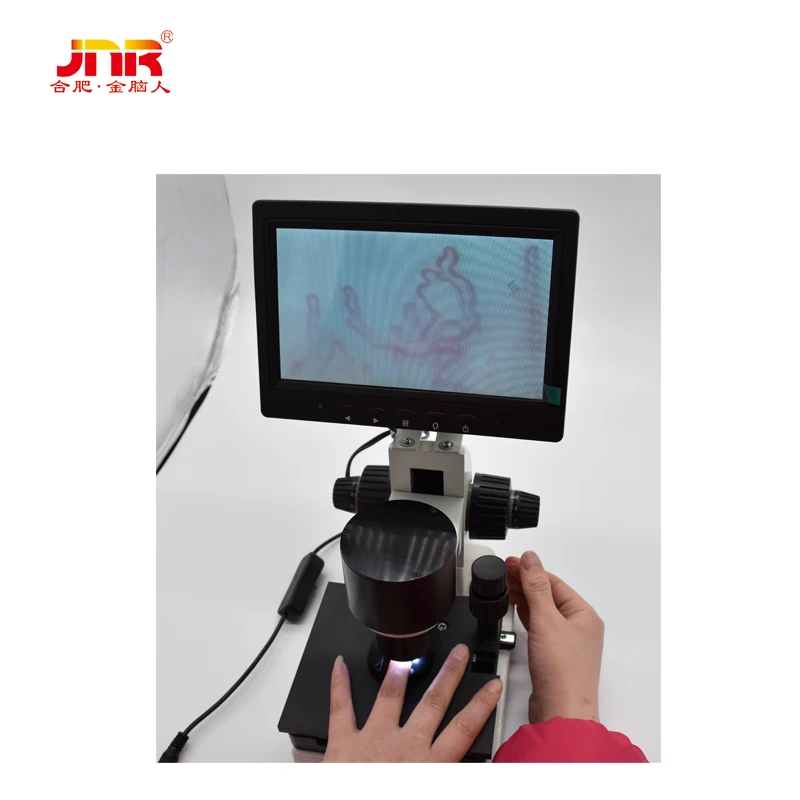

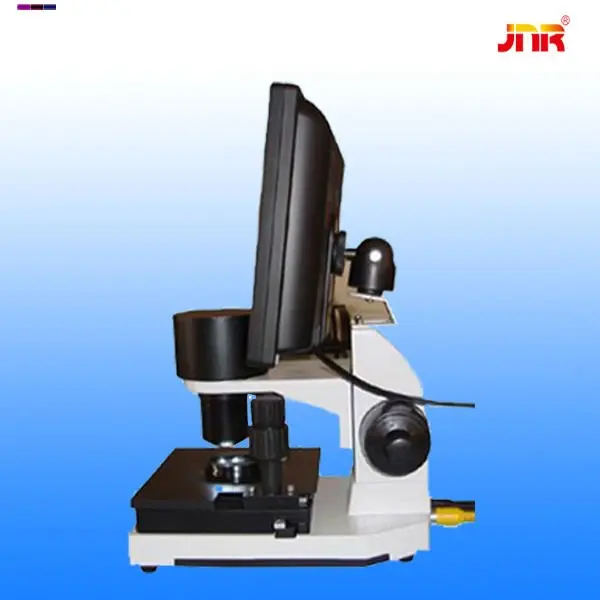

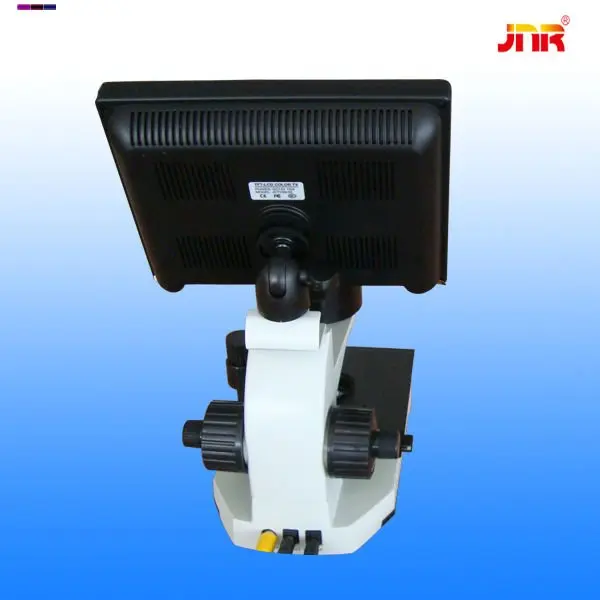

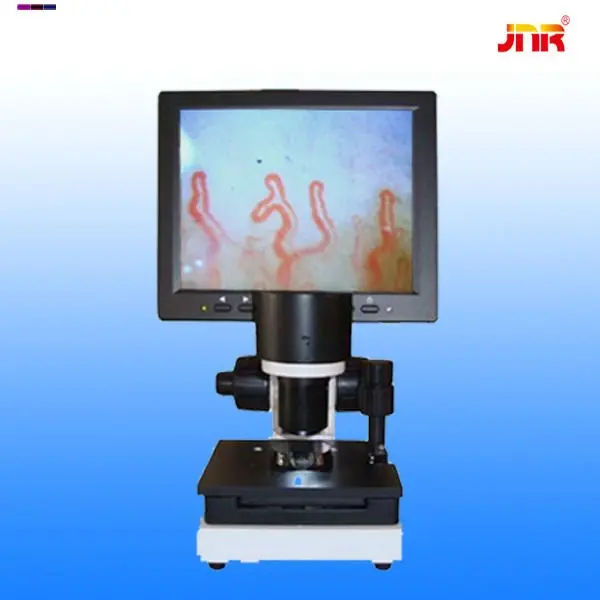

LCD Digital Microscope Microcirculation Biological microscope for Blood display Nailfold Capillary XW880

Product Overview

Description

Color Microcirculation Detector



At present, discovered the micro circulation the main method is with the micro circulation micro inspection for metal defectse meter, but general like CT, the magnetic resonance, X light, B high grade all cannot discover, therefore the clinical micro circulation has compared to the macroscopic inspection comparatively early discovered comparatively early diagnoses function.



the micro circulation is a domain which current multi-disciplinary studies together, the micro circulation research concrete question is various, induces mainly has following several aspects:

1st, studying  the micro circulation in the blood vessel, the blood mobile general rule, as well as the pipe wall and the body fluid reciprocity.

2nd, studying  various internal organs (organization) the micro circulation characteristic, as well as with the internal organs special function with metabolism relations

3, studying each kind of disease occurs when the micro circulation change and its at the diagnosis disease, the judgement condition, the determination treatment policy, the choice treats and cures in the measure the vital significance.

4th, the micro circulation change is in many pathology processes ,as the most basic change, the clinical micro circulation research goal is for the thorough exploration disease occurrence, the development mechanism, for clinical guards against, examines, governs provides the important basis evidence.

5th, especially to the present universal popular heart blood vessel of brain disease, through the micro circulation examination, early discovers the disease, early treats and the prevention has the vital significance.

6th, proved each kind improving the micro circulation for the product special curative effect.



advantage of this color circulation microcirculation detector

1,in 5 seconds can be observed in the microvascular circulation, simple operation and fast

2,the microscopic image is stable, clear, do not shake

3, 400 times the microcirculation of a dedicated high-resolution lens of the microscope

4,handheld ultra-lightweight design, so that the observation of more mobility

5,with micro-focus wheel, free to adjust the focus length, the use of more convenience

6,lens built-in LED cold light source, accurate projection illumination on an object

7,using non-invasive way, to observe the microcirculation of human body in time

8 ,observing the microcirculation for any part of human body















 Common solution for malfunction



Malfunctions	reasons	solutions
The source light does not work	the plug of the power source is not correctly plugged	plug the power source plug again
	the bulb is aging	change the bulb
the is no picture on the screen	Display video are not converted	AV / TV conversion
	12V steady source short-circuit	change the 12V power source
	The screen display is broken	change the 8 inch screen

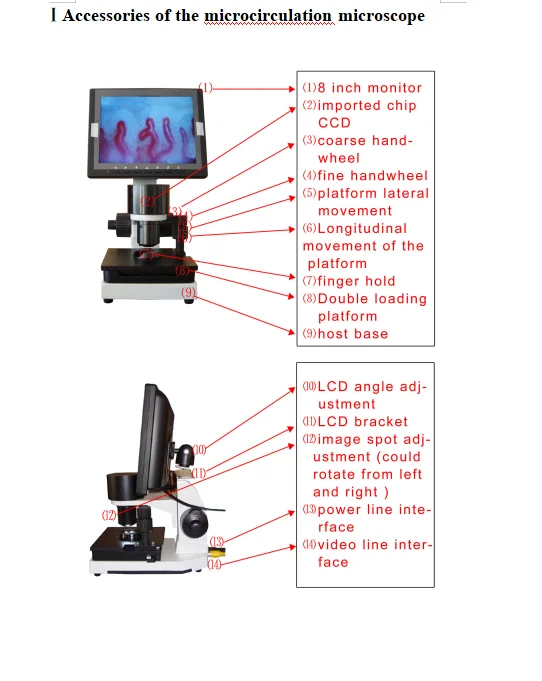

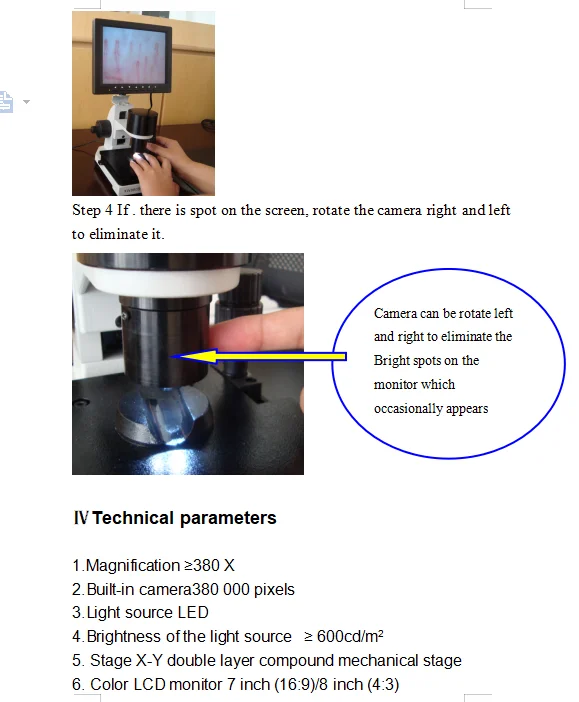

there is spots on the picture	The light irradiation angle not right	rotate the Part (12) to change the angel of light irradiation



Testing conditions



1) Check the room temperature and humidity. Room temperature and humidity should be kept relatively constant. room temperature should be maintained in the 22-24 ° C, relative humidity about 70%

2) the patient generally take seats, keep the height of the hand the same with heart

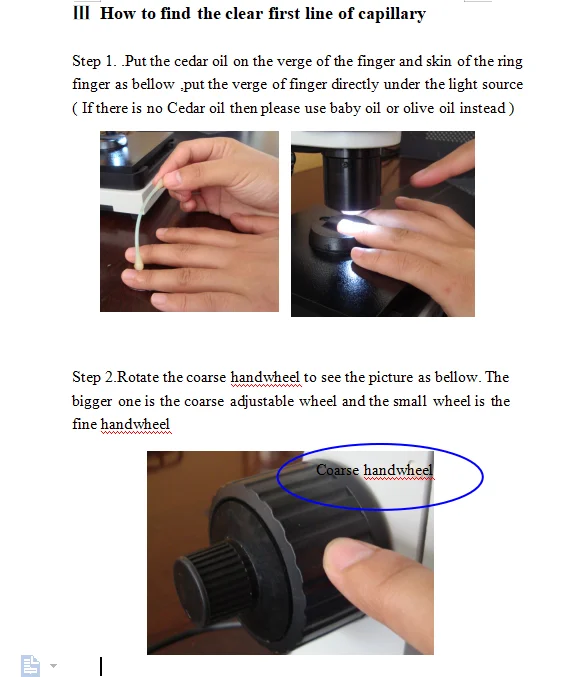

3) Preparation of paraffin oil or cedar oil.Drop 2 drops in the nailfold skin. (Purpose prove light transmission, and reduce skin scattering)

4)Testing generally be in the morning or afternoon, and review should at the same time every day .

5)       the patient should

a    .Avoiding intense activity or manual labor within one hour before testing

b.      Take a rest about 15-30 minutes before testing

c   .Can not take any drug which will affect the cardiovascular vessels before testing

d.      Does not smoke , wash hands or eat within an hour before testing

e.      Pay attention to the influence of the Female menstruals
