2023 New High Speed Automatic Paper Cup Making Machine
US $5500-$7800
50 230 шт./мин, новый продукт, 2023 Высококачественная автоматическая линия производства бумажных чайных чашек
- Category: Paper Product Making Machinery >>>
- Supplier: Zhejiang,Ruida,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Paper Cup Machine Customized
Model | RD-230A |
Cups Specifications | 3-40 oz Paper cups |
Forming size | Top: 60-100mm, Bottom: 40-75mm, Height: 60-180mm |
Paper Specifications | 170-350g/㎡ |
Paper material | Single/double PE/PLA coating |
Production rate | 200-230 cup/min |
Power supply | 380V 50Hz |
General Power | 50Kw |
Gas source | 0.6m³/min |
Machine Weight | 7500Kg |
Production Flow

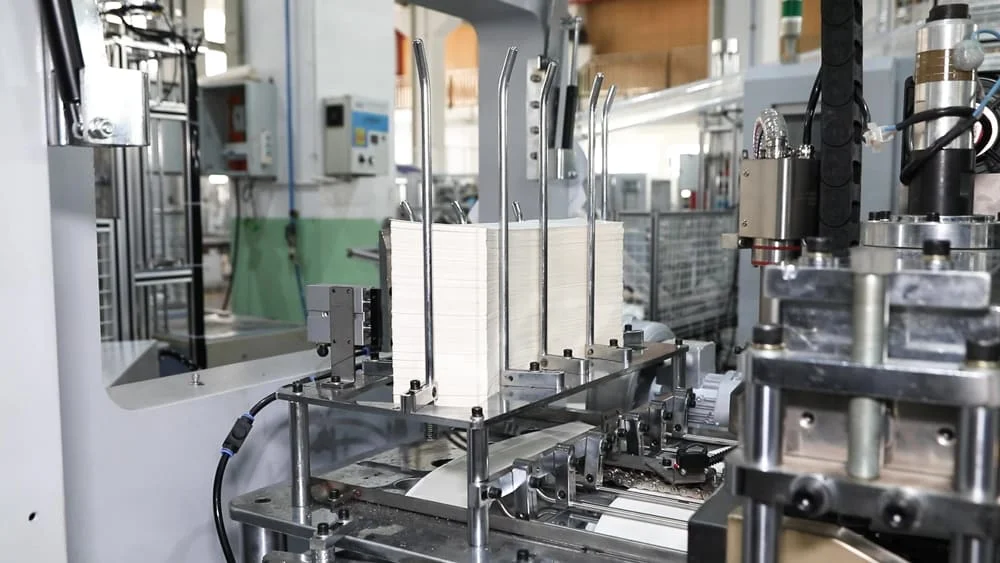

① Paper fan feeding

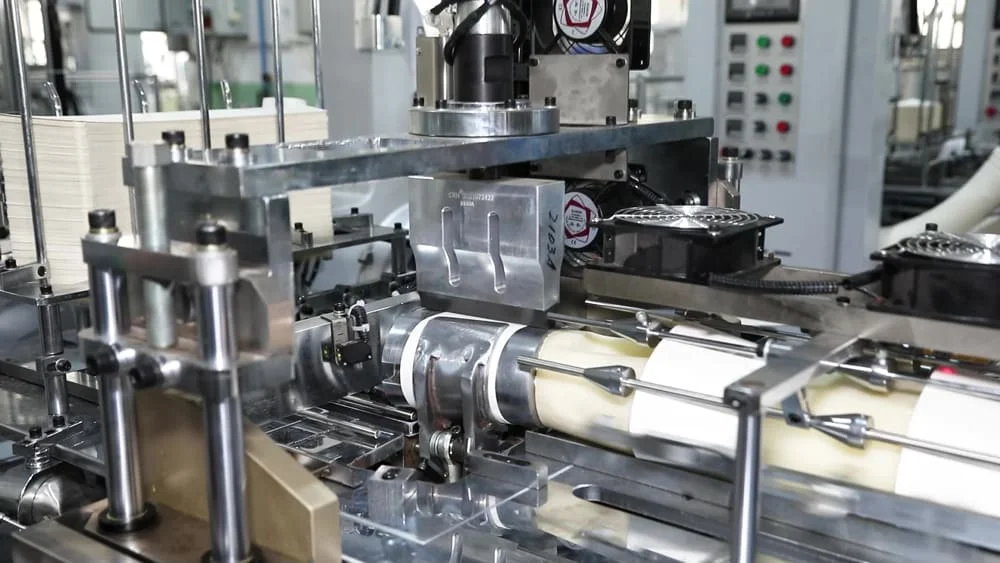

② Ultrasonic side sealing

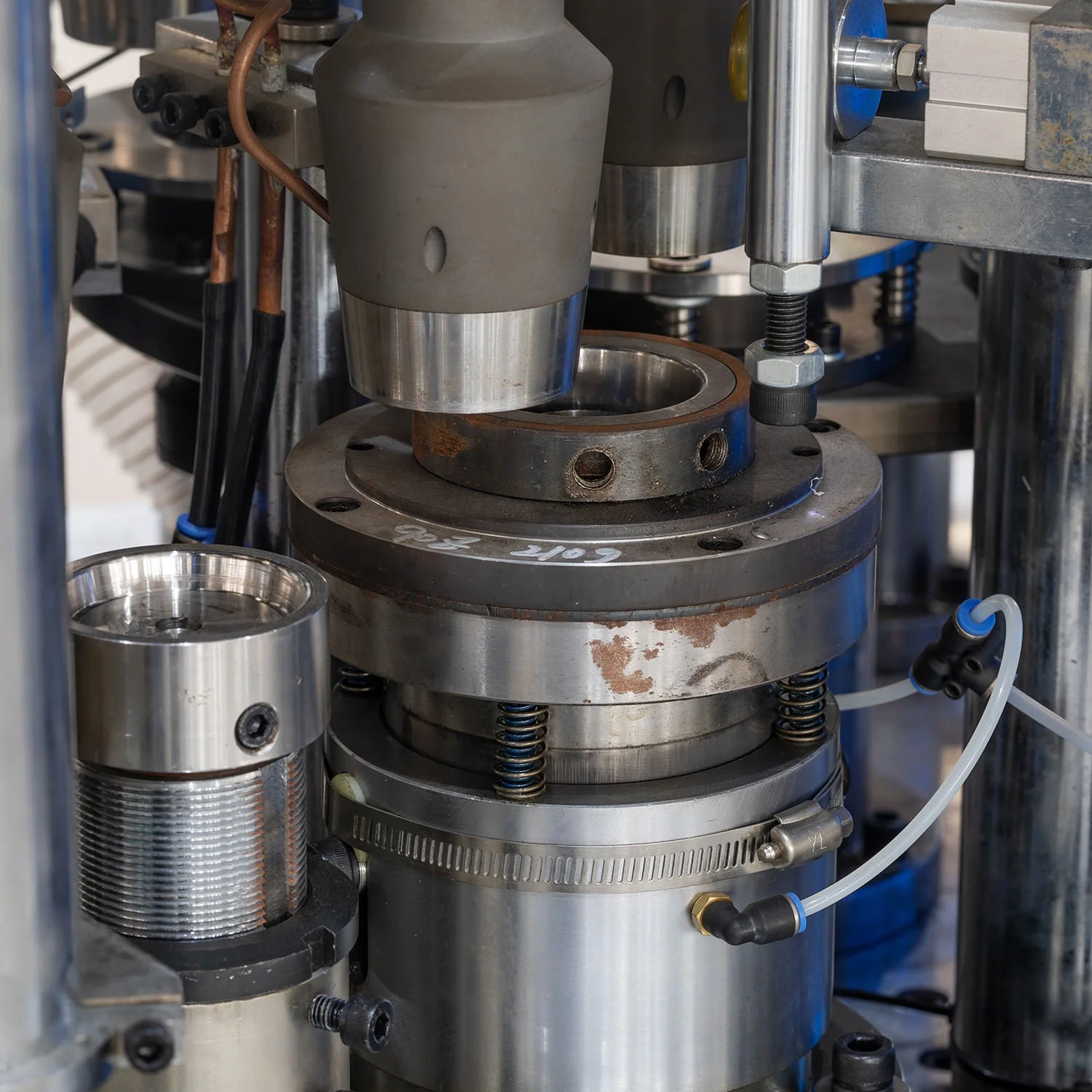

③ Cup bottom forming & knurling
④ Acrylic pipeline transportation
⑤ Detecting cup quality
⑥ Finished cup collecting

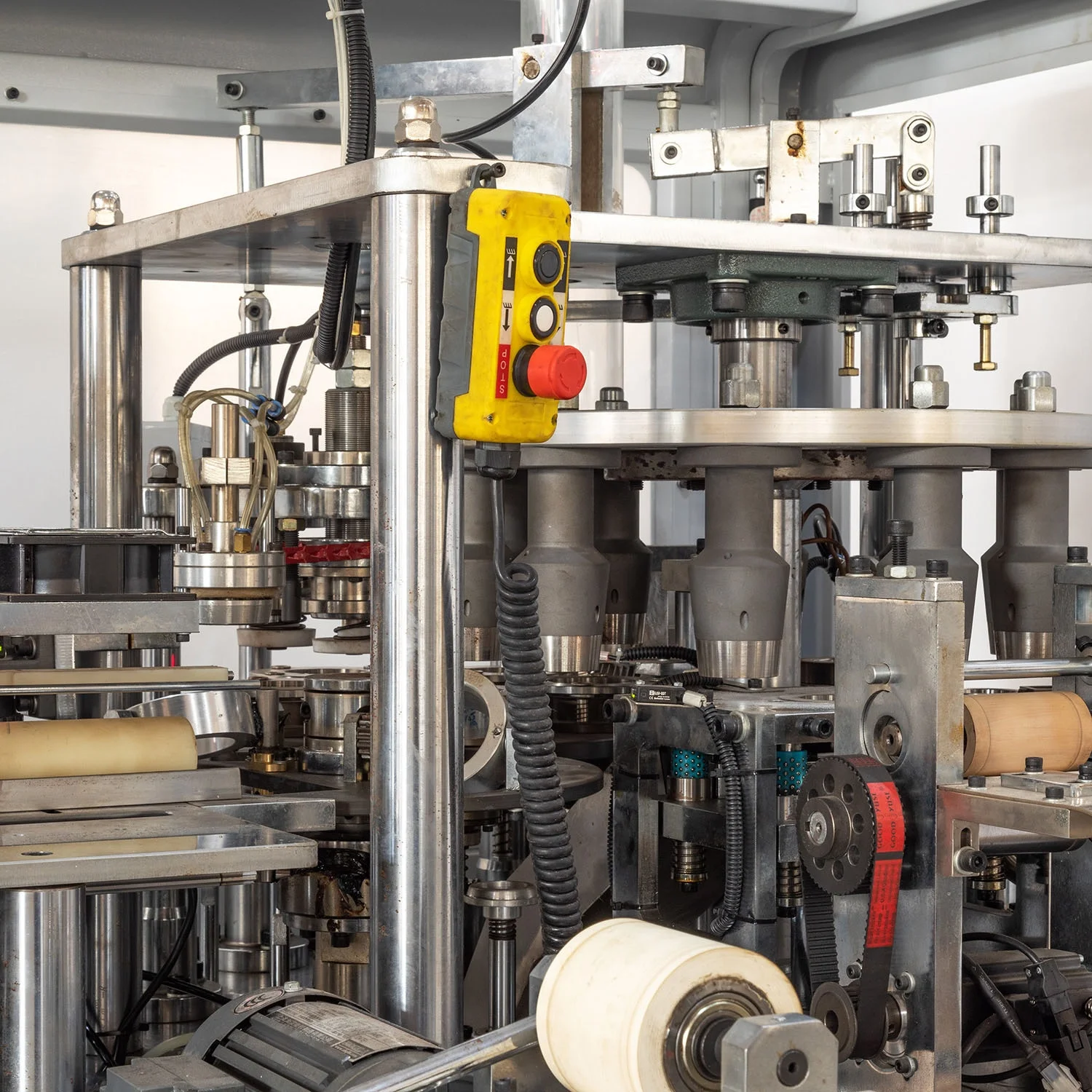

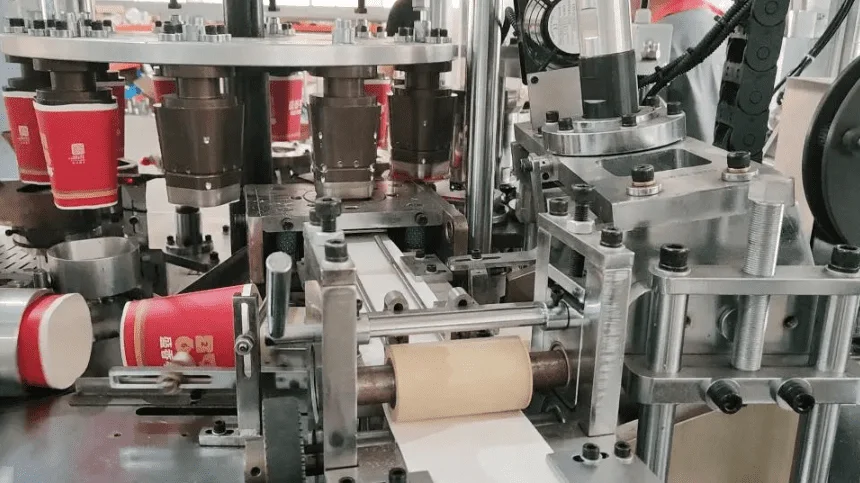

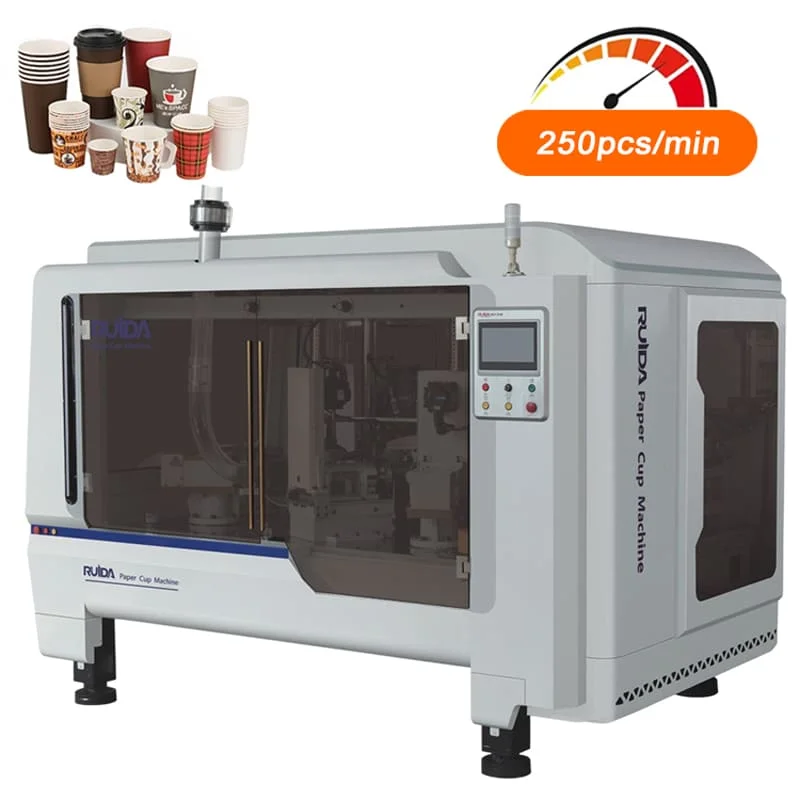

Model: RD-230A High Speed Paper Cup Forming Machine Customized 200-230 pcs/min 3-40oz
RD-230A Horizontal high-speed paper cup forming machine islatest products, developed by Zhejiang Ruida Machinery Co., Ltd.

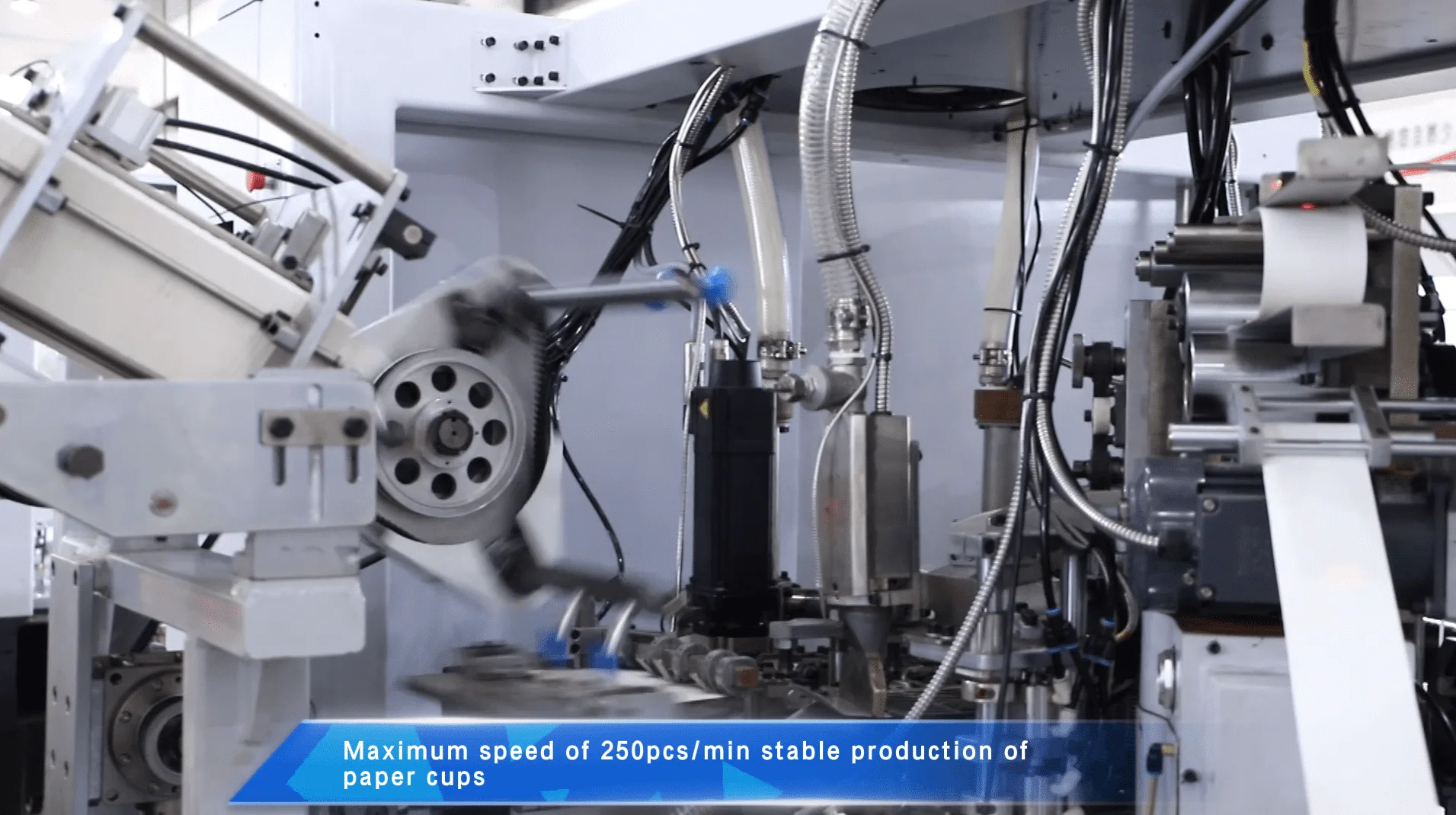

The RD-230A paper cup forming machine is at speed of 230 cupsper minute. The whole machine is controlled by PLC and
servo.photoelectric tracking monitoring, and paper blank feeding controlby servo.
The machine can be produced the size of cup from 6ounces to 22 ounces by changing molds.RD-230A high speed automatic paper cup machine adopts advancedhorizontal structure to improve production stability and output.
The RD-230A paper cup forming machine is at speed of 230 cupsper minute. The whole machine is controlled by PLC and
servo.photoelectric tracking monitoring, and paper blank feeding controlby servo.
The machine can be produced the size of cup from 6ounces to 22 ounces by changing molds.RD-230A high speed automatic paper cup machine adopts advancedhorizontal structure to improve production stability and output.
Website: paper-cup-machinery.com
______________________________________________________________________________________________________________________
Model | RD-12/22-100A |
Cups Specifications | 4-22 oz Paper cups |
Cups material | Single or double PE Coated Paper |
Production rate | 120-160 pcs/min |
Paper Specifications | 190-380g/㎡ |
Electricity Supply | 380V/220V 50Hz |
General Power | 10 Kw |
Gas Source | 0.4m³/min |
Weight | 3000 Kg |
Packing Dimensions | 2750x1720x1800mm |
Model: RD-12/22-100A Automatic High Speed Paper Cup Forming Machine Customized 120-160 pcs/min 4-22oz
RD-12/22-100A high speed paper cup forming machine comeswith two turnplate, open intermittent indexing cam mechanismand gear transmission,longitudinal axis structures. The wholemachine adopts automatic lubrication system,which makes allmechanical parts working much more smoothly. Cup side sealingis done by Switzerland Leister Heater to ensure side sealingstability, bottom sealing by Switzerland Leister hot air device.Cuptop curling has two steps, rotary curling and healing figuration.which makes the curling more stable and better appearance.
Themachine comes with PLC control system, sensorfailure detecting.and can stop working automatically if the machine has anyproblem,it can greatly improve operation safety and reducinglabor cost. The machine can finish the whole process in cludingpaper feeding，side sealing, cup bottom punching &feeding.heating, knurling, cup-top curling, cup Stacker. lt is the bestchoice for making paper cups.
Website: paper-cup-machinery.com
______________________________________________________________________________________________________________________
Model | RD-12/22-100B | ||
Cups Specifications | 2.5-22 oz Paper cups | 24-40 oz Paper bowls | |
Paper material | 190-500g/㎡ | 190-500g/㎡ | |
Speed | 80-100 pcs/min | 80-90 pcs/min | |
Total power | 380V 50Hz 10Kw | 380V 50Hz 12Kw | |
Air consumption | 0.4m³/min | 0.5m³/min | |
Weight | 3500kg | 4000kg | |
Packing Dimensions | 2720x1660x1900 mm | 2900*1860*2000 mm | |

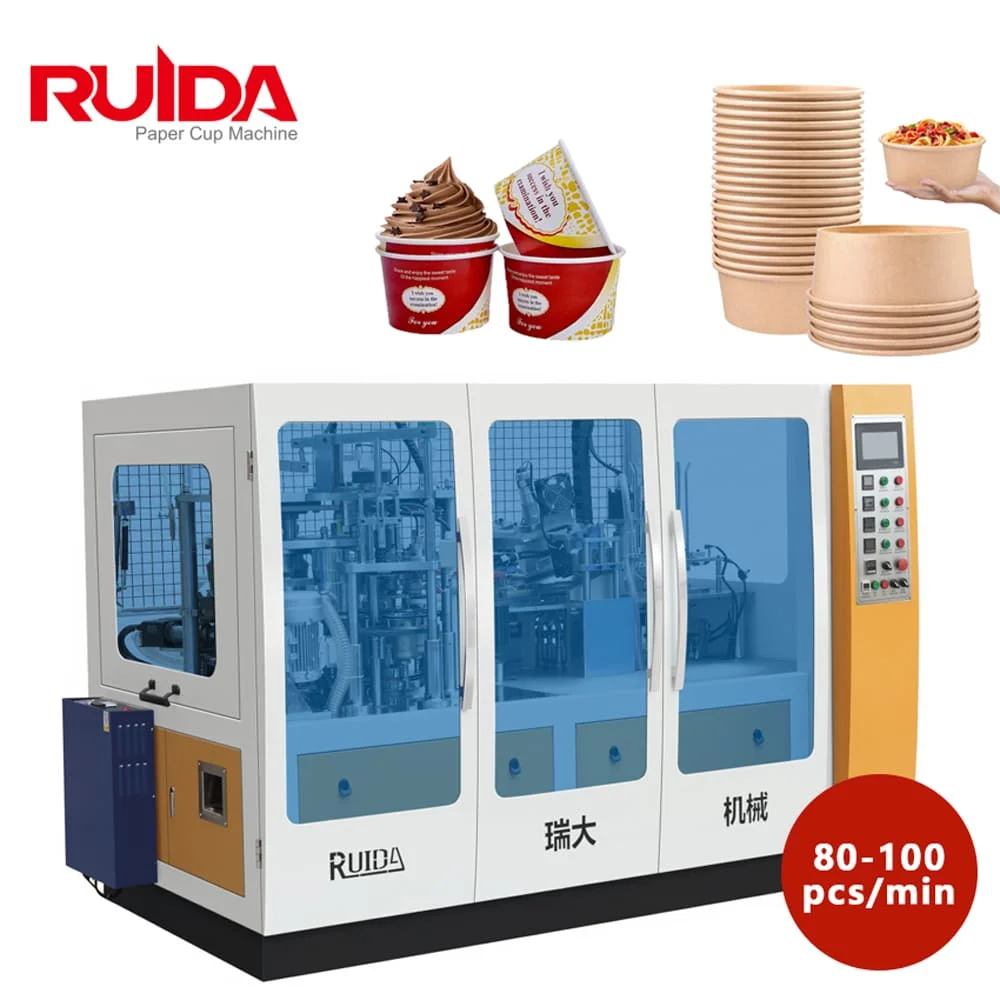

Model: RD-12/22-100B Automatic Paper Cup/Bowl Forming Machine Customized 80-100 pcs/min 2.5-40oz
RD-12/22-100B high speed paper cup forming machine comes with two turnplate, open intermittent indexing cam mechanism and gear transmission, longitudinal axis structures.
The machine comes with PLC control system, sensorfailure detecting. and can stop working automatically if the machine has any problem, it can greatly improve opeation safety and reducing labor cost. The machine can finish the whole process including paper feeding, side sealing, cup/bowl bottom punching&feeding, heating, knurling, cup/bowl-top curling. cup/bowl stacker. It is the best choice for making paper cup/bowl.
The machine comes with PLC control system, sensorfailure detecting. and can stop working automatically if the machine has any problem, it can greatly improve opeation safety and reducing labor cost. The machine can finish the whole process including paper feeding, side sealing, cup/bowl bottom punching&feeding, heating, knurling, cup/bowl-top curling. cup/bowl stacker. It is the best choice for making paper cup/bowl.
Website: paper-cup-machinery.com
______________________________________________________________________________________________________________________
Model - RD-LB120-3600A | Model - 12 | Model - 16 | Model - 22 | Model - 32 | |||
Maximum | Height: 110mm | Height: 139mm | Height: 177mm | Height: 205mm | |||
Paper material | Top:105mm, Bottom:75mm | ||||||
Paper materials | 180-350g/㎡ | ||||||
Speed | 50-60pcs/min | ||||||
Power supply | 380v 50Hz / 220v 50HZ | ||||||
General Power | 8KW | ||||||
Air source | 0.4m³/min | ||||||
Weight | 2500kg | ||||||
Packing Dimensions | 2730x1460x1800 mm | ||||||
Model: RD-LB120-3600A Automatic Paper Cup/Bowl Forming Machine Customized 50-60 pcs/min 2-40oz
RD-LB120-3600A medium speed paper cup forming machine is ouratest machine whichis made base on our manufacturingexperience and advanced technology fromoversea countriesitis apioneer eauioment in China.
The machine comes with rectangletube and channel steel welding structure, which is stronger anosmalldeformation.automatic lubrication system. which makes allmechanical parts working much more smoothly.
The cup bottomadopts the stretching die which make the bottom sealing qualitybetter and less leaking percentage.lt has PLCcontrolsensorfailure detecting system, cup bottom paper feedingcontrolled by servomotorbottom paperwill be delivered when cuptube comes. otherwise no bottompaperdelivervThe machine hassafety quard to protect the people workinc safely, it is the bestchoice for making paper cups.
Website: paper-cup-machinery.com
______________________________________________________________________________________________________________________
Model | RD-100T |
Cups Specifications | 6-22oz Double Wall Paper Cup |
Production rate | 80-100 pcs/min |
Paper Specifications | 180-350g/㎡ |
Power Supply | 380v 50Hz / 220v 50Hz |
General Power | 6 Kw |
Gas Source | 0.3-0.5m³/min |
Weight | 2400 Kg |
Packing Dimensions | 2600x1360x1800 mm |

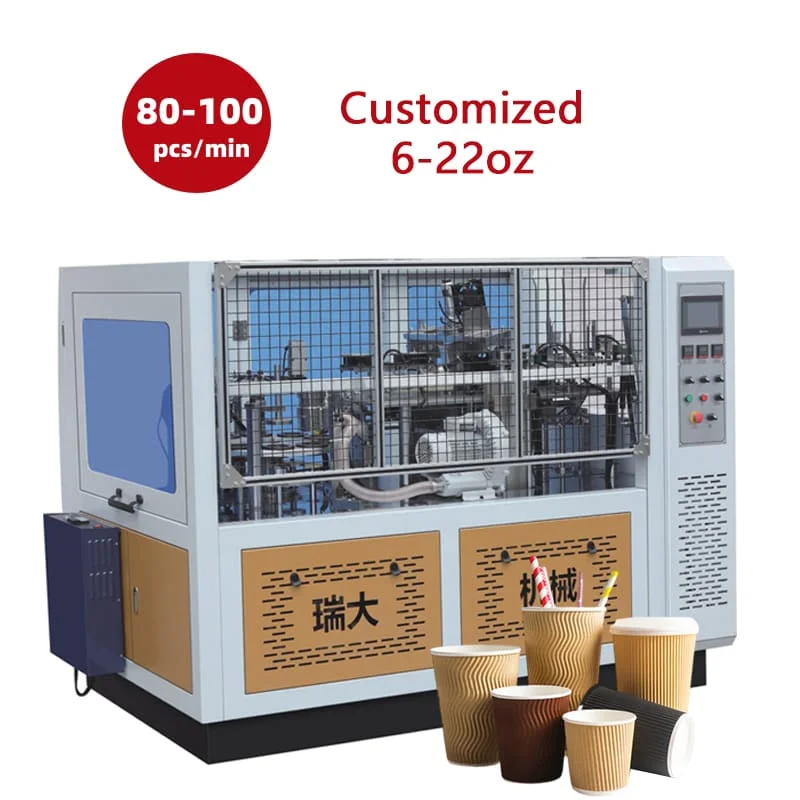

Model: RD-100T Double Wall Cup Forming Machine Customized 80-100 pcs/min 6-22oz
RD-100T double wall cup machine comes with open intermittentindexing cam mechanism，gear transmission,longitudinal axisstructures.
The whole machine adopts automatic lubricationsystem,which makes all mechanical parts working much moresmoothly. lt can make the double wall and ripple wall on the samemachine, suitable for making coffee cup, tea cup with two layer.
Website: paper-cup-machinery.com
______________________________________________________________________________________________________________________

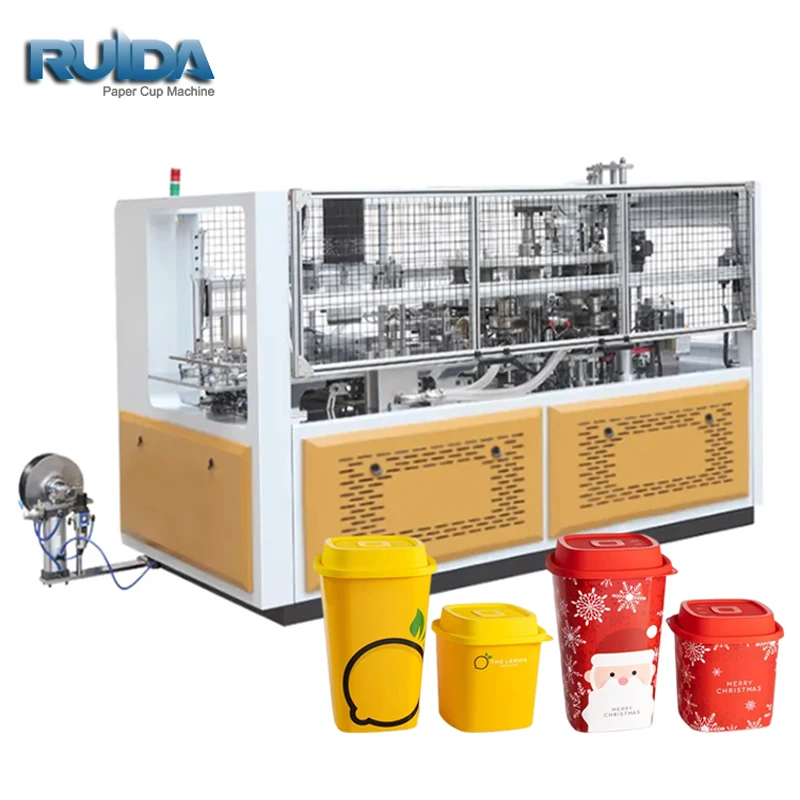

Model | RD-FBJ70 Square/Rectangle Paper Cup Machine |
Cups Specifications | 6-28oz Square Paper Cup |
Weight | 3200 kg |
Total Power | 380V 50HZ 15KW |
Paper Material | 170-350 g/m² |
Speed | 65-75 pcs/min |
Shipping Details | By sea/air,according to customers' requirements. |
Model: RD-FBJ70 Square/Rectangle Paper Cup Machine
RD-FBJ70 High speed square/rectangle cup forming machine is aprofessional equipment to produce the container
atsquare/rectangular"The machine adopts automatic rotary paper suction mechanism.the square customized molding die, the whole machine is drivenby open gear, and the bottom is heated and extruded by hotair.ltis suitable for making special cups, such as square bottom andround top, square bottom and square top, and oval bottom.
atsquare/rectangular"The machine adopts automatic rotary paper suction mechanism.the square customized molding die, the whole machine is drivenby open gear, and the bottom is heated and extruded by hotair.ltis suitable for making special cups, such as square bottom andround top, square bottom and square top, and oval bottom.
Website: paper-cup-machinery.com
______________________________________________________________________________________________________________________
Our Ruida paper cup machine factory will independently develop various specifications of paper cup making machines according to customer specifications and market needs, and can also specially customize the specified specifications of paper cup forming machines.
We not only have a paper cup machine, there are more related machines, such as: paper bowl machine, paper bucket machine, hidden tea cup hot sealing machine, coating machine, flexographic printing machine, die-cutting machine, paper plate machine, paper lunch box machine, paper cup detector machine, paper cup packaging machine and other machinery.
We not only have a paper cup machine, there are more related machines, such as: paper bowl machine, paper bucket machine, hidden tea cup hot sealing machine, coating machine, flexographic printing machine, die-cutting machine, paper plate machine, paper lunch box machine, paper cup detector machine, paper cup packaging machine and other machinery.
Company Profile
Established in 1994, our company is a specialized manufacturer of paper cups and label machines. Our product line currently covers paper cup printing, punching and forming machines.
We now have over a decade of industry experience, having developed into a comprehensive joint-stock enterprise with integrated design, manufacturing, and sales departments. Presently we have strong technical force and an efficient production process. Ensuring high-quality products that deliver complete customer satisfaction is our number one priority. In order to accomplish this objective, we focus on coupling advanced technology with superior management.
Our products have been sold well throughout China, the USA, Europe, and Southeast Asia.
Our products have been sold well throughout China, the USA, Europe, and Southeast Asia.
Our hard work and success have been recognized through the receipt of several regional and national awards and accolades.
