Outdoor ADSS Fiber Optic Cable 12 48 Core Adss Fiber Optic Cables
- Category: >>>
- Supplier: Guangzhou Jiqian Fiber Optic Cable Co. Ltd.
Share on (1600768257519):
Product Overview
Description
products description

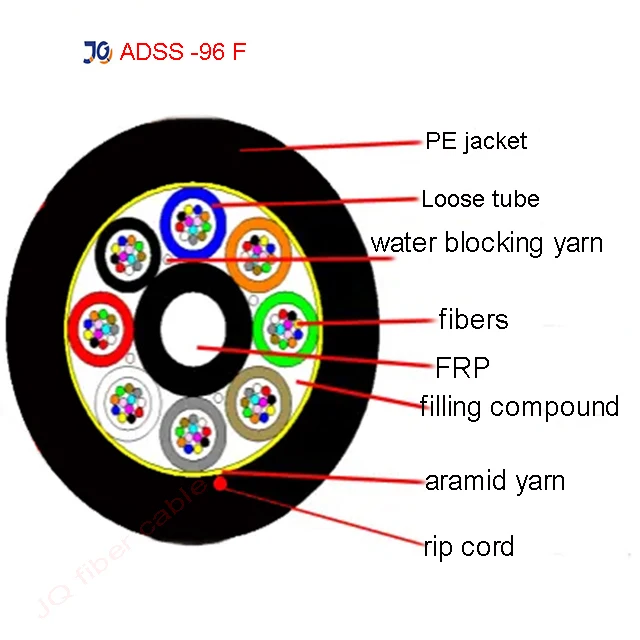

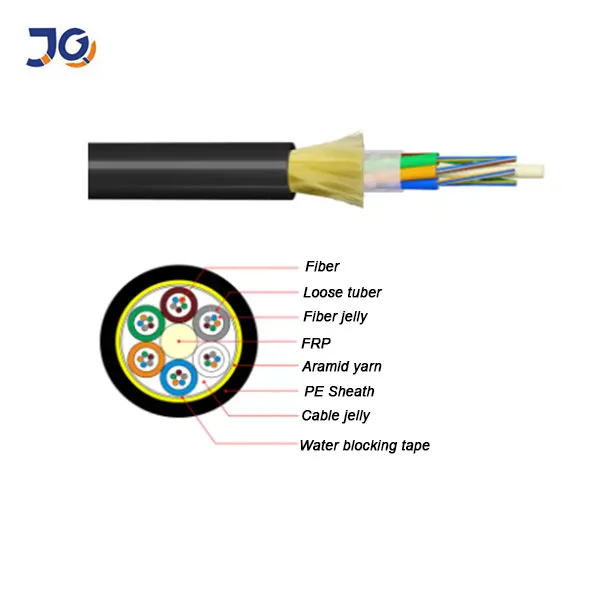

ADSS cable adopts the twisted structure of loose sleeve layer, 250 μm optical fiber is inserted into the loose tube made of high modulus materials, and the loose tube is filled with waterproof compounds. The loose tube ( and filling rope ) is twisted around the non-metallic center reinforcing core ( FRP ) to synthesize a compact cable core. The gap of the cable core is filled with a water-blocking yarn and a water-blocking belt longitudinally wrapped by the cable core, and then the aramid fiber that plays a reinforcing role is twisted. Finally, the polyethylene ( PE ) outer sheath or the electric mark ( AT ) outer sheath is extruded.
Outer Jacket:
UV and Flame resistant PE、AT
Features :
Compact, soft, flexible, easyto install.
UV and Flame resistant PE、AT
Features :
Compact, soft, flexible, easyto install.
Model Number | ADSS |
Type | Coaxial |
Number of Conductors | ≥ 10 |
Application | Aerial fiber cable |
Function | Delivery signal light |
Certification | ADSS pass ISO9001, CE |
Sheath material | PE or AT for adss fiber optic cable |
Fiber type | OS1/OS2,OM1,OM2,OM3,OM4 |
Length per roll | 2km/3km/4km ADSS fiber |
Marking | printing |
Fiber count | 2core to 288 core |
Strength member | FRP |
Fiber | 2-288 fibers Uni-loose tube gel-filled | ||||||
Central Strength Member | Fiberglass reinforced plastic (FRP) | ||||||
Inner Jacket | Black UV and waterproof polyethylene (PE) | ||||||
Strength Member | Dupon Kevlar Yarn | ||||||
Outer Jacket | Black UV and waterproof polyethylene (PE). | ||||||
Applications | Aerial | ||||||
Company Profile
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America,Europe,Mideast and Southeast Asia.Africa
Detailed Images
Our service:
1.Send us your inquiry ,we will revert back to you within 12 hours.
2.Adopt strict process and raw materials control to guarantee the life span of 30 years.
3.All our products are well tested,we provide you with test report and certification.
4.We sincerely welcome customers home and abroad to visit our manufactory.
Our Company
2.Adopt strict process and raw materials control to guarantee the life span of 30 years.
3.All our products are well tested,we provide you with test report and certification.
4.We sincerely welcome customers home and abroad to visit our manufactory.
Our Company
Exhibition (Mexico).
Certifications
Packing & Delivery
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

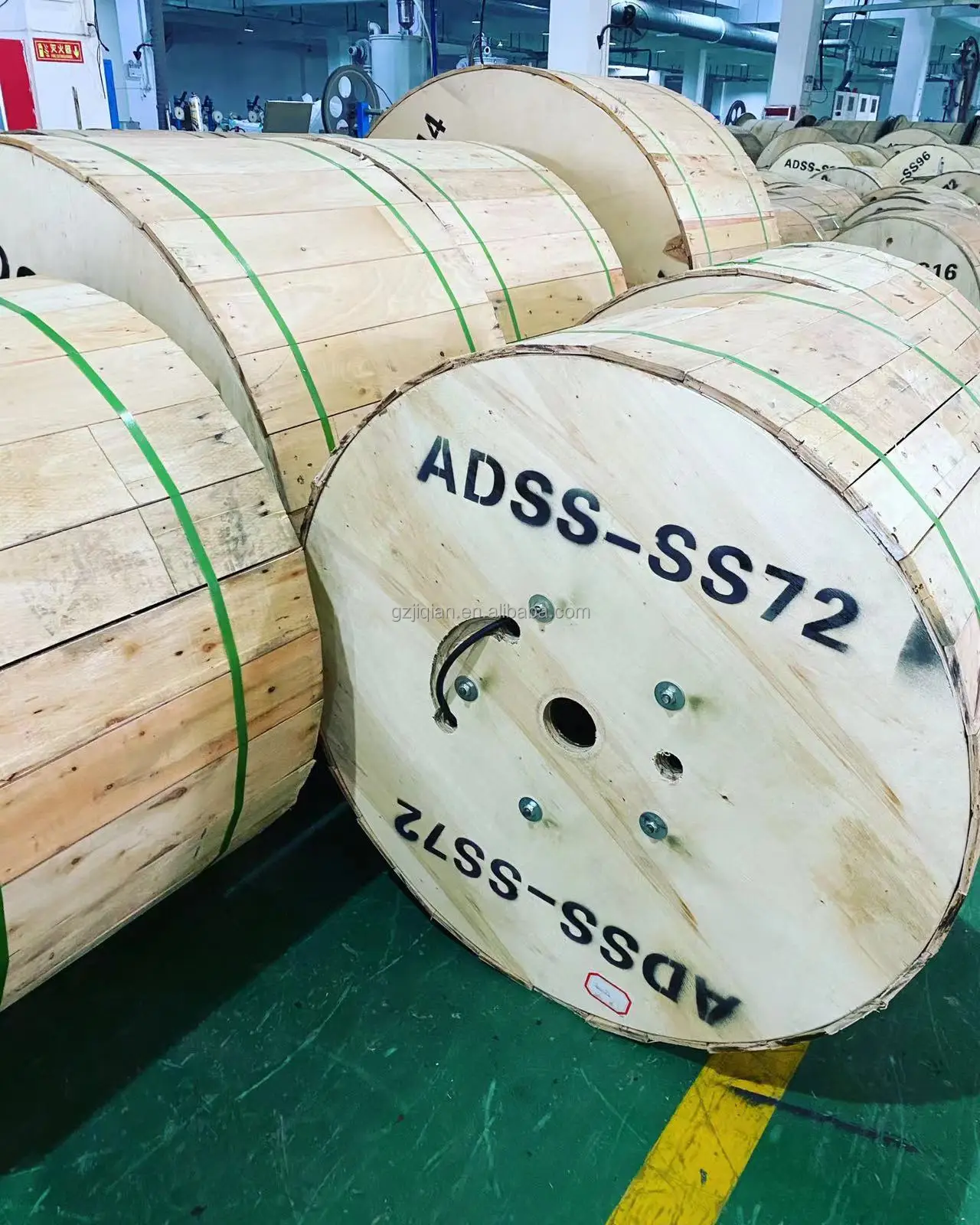

Packaging Details
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Packaging Details
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
FAQ
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2.what is your minimum quantity?
1KM. We support new project of our customers, trial order is available.
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
Yes, we are factory in guangzhou china, welcome to visit us!
2.what is your minimum quantity?
1KM. We support new project of our customers, trial order is available.
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
