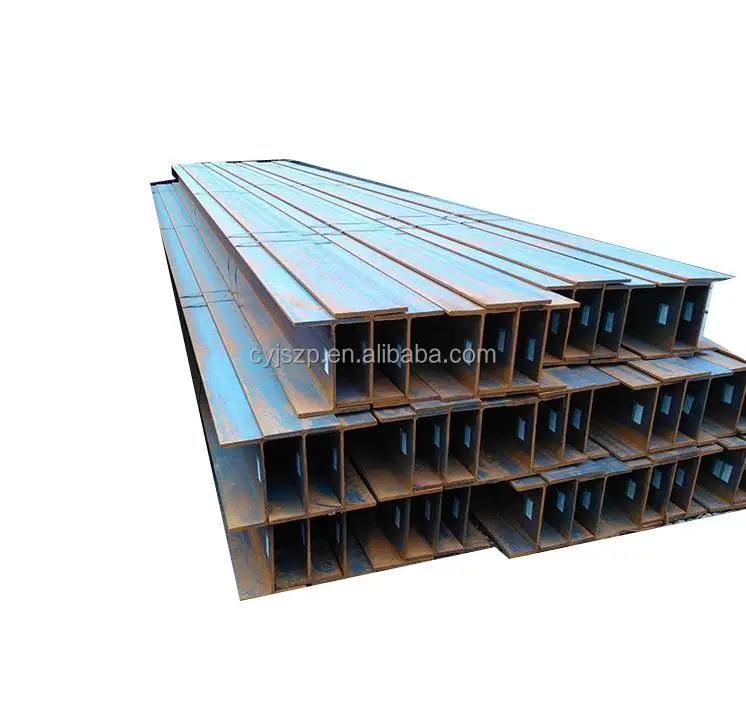

Cheap price H Beam Astm A36 Carbon Hot Rolled Prime Structural Steel Galvanized Steel HBeams
- Category: >>>
- Supplier: Wuxi Chengyue Metal Materials Co. Ltd.
Share on (1600768324276):
Product Overview
Description
Hot Rolled Structural Steel I Beam ASTM A36 SS400 Q235B Q345B, S235JR, S355JR Steel Bridge Construction Welded Galvanized/Carbon Steel Iron H Beam
Specificaton | ||
Product Name | Carbon steel H beam | |
Standard | ASTM,JIS,DIN EN10025,GB | |
Certificate | ISO, SGS ,CE or other third party inspection acceptable. | |
Material Grade | Q195-Q420 Series,SS400-SS540 Series,S235JR-S355JR Series,ST Series,A36-A992 Series,Gr50 Series | |
Leg Height | 100mm-630mm | |
Depth | 68mm-180mm | |
Thickness | 4.5mm-17mm | |
Length | 1000mm-12000mm | |
Technique | Hot Rolled | |
Surface treatment | Bare, black,galvanized,coated,painted or as your request | |
Application | Industry,Construction,Decoration,Shipbuilding,Bridging,etc. | |
Payment terms | T/T, L/C at sight,etc. | |
Trade terms | Ex-Work, FOB/CFR/CIF | |
Delivery Time | 15-20 days after receive the deposit. | |
Packing | Seaworthy wooden pallet or according to client's requirement | |
Port of shipment | Shanghai | |
Packing | Standard export package or as required | |
Advantage | Small MOQ + Superior quality + Competitive price + Fast delivery | |

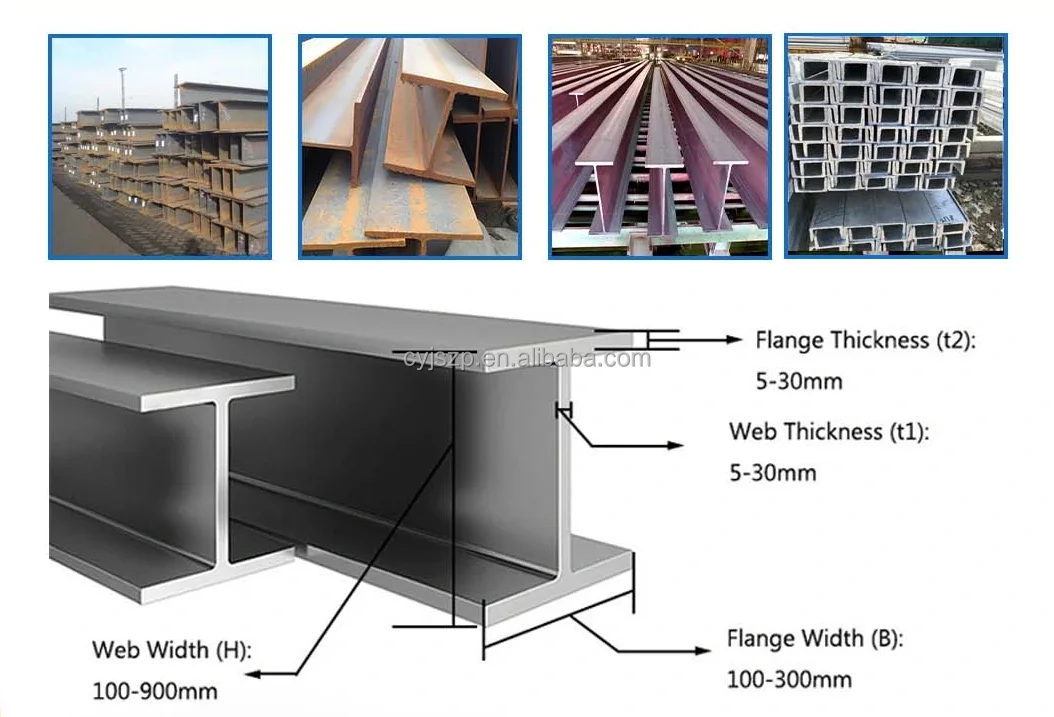

H beam detail size | ||||||||||
H Type Steel Size and Theoretical Weight | ||||||||||
Size (mm) | Theoretical Weight (kg/m) | Size (mm) | Theoretical Weight (kg/m) | Size (mm) | Theoretical Weight (kg/m) | |||||
100*50*5*7 | 9.3 | 250*125*6*9 | 29 | 446*199*8*12 | 65.1 | |||||
100*100*6*8 | 16.9 | 250*250*9*14 | 71.8 | 450*200*9*14 | 74.9 | |||||
125*60*6*8 | 13.1 | 294*200*8*12 | 55.8 | 482*300*11*15 | 110.8 | |||||
125*125*6.5*9 | 23.6 | 298*149*5.5*8 | 32 | 488*300*11*18 | 124.9 | |||||
148*100*6*9 | 31.1 | 340*250*9*14 | 36.7 | 496*199*9*14 | 77.9 | |||||
150*75*5*7 | 14 | 300*150*6.5*9 | 93 | 500*200*10*16 | 88.1 | |||||
150*150*7*10 | 20.7 | 300*300*10*15 | 78.1 | 582*300*12*17 | 132.8 | |||||
175*90*5*8 | 18 | 346*174*6*9 | 41.2 | 588*300*12*20 | 147 | |||||
175*175*7.5*11 | 40.4 | 350*175*7*11 | 49.4 | 596*199*10*15 | 92.4 | |||||
194*150*6*9 | 29.9 | 350*350*12*19 | 134.9 | 600*200*11*17 | 103.4 | |||||
198*99*4.5*7 | 17.8 | 390*300*10*16 | 104.6 | 700*300*13*24 | 181.8 | |||||
200*100*5.5*8 | 20.9 | 396*199*7*11 | 56.1 | 800*300*14*26 | 206.8 | |||||
200*200*8*12 | 49.9 | 400*200*8*13 | 65.4 | 900*300*16*28 | 240.1 | |||||
244*175*7*11 | 43.6 | 400*400*13*21 | 171.7 | |||||||
248*124*5*8 | 25.1 | 440*300*11*18 | 120.8 | |||||||
Length=6-12meters | ||||||||||

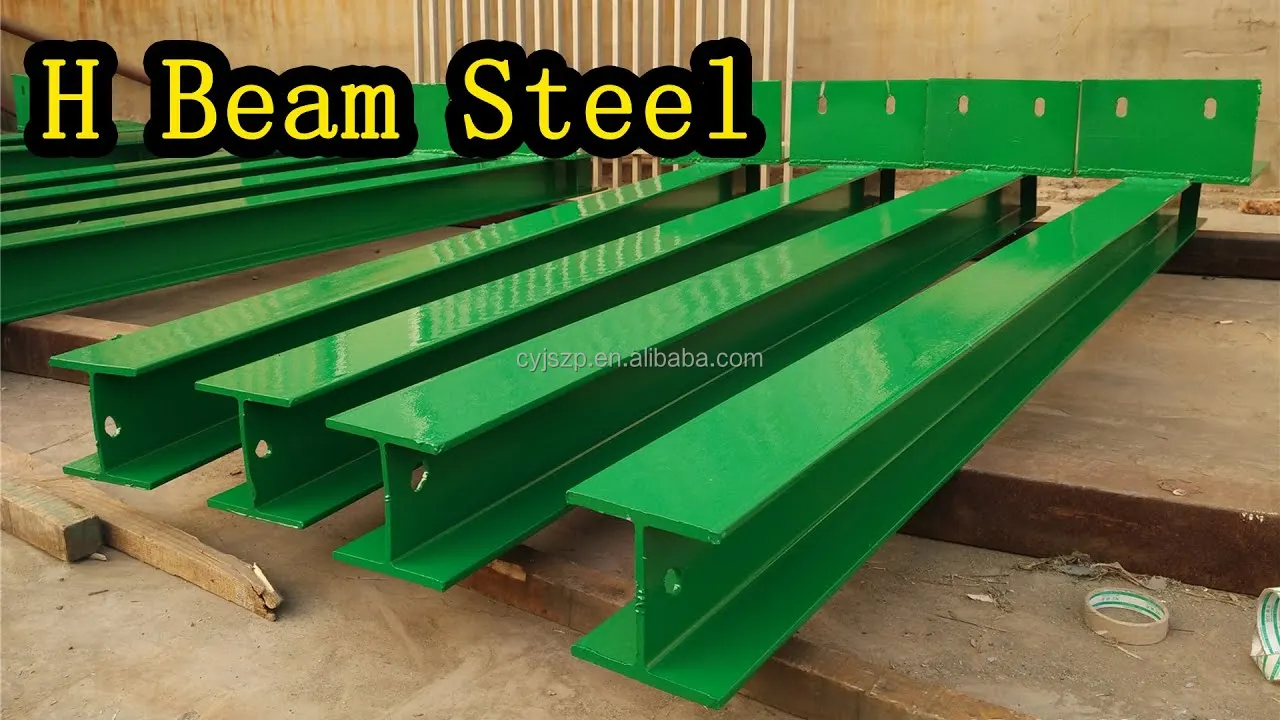

What is a H Beam?
H-Beam, as the name suggests, is rolled steel joist (RSJ) with the cross section in the form of the capital letter H. It is the
one of the most common and widely used structural steel member used in both residential and commercial building projects.
Because of its superior mechanical properties and better strength to weight ratio, they make for the preferred choice of material for mezzanines, bridges, and platforms. Plus they have wide flanges which are commonly used in residential building projects.

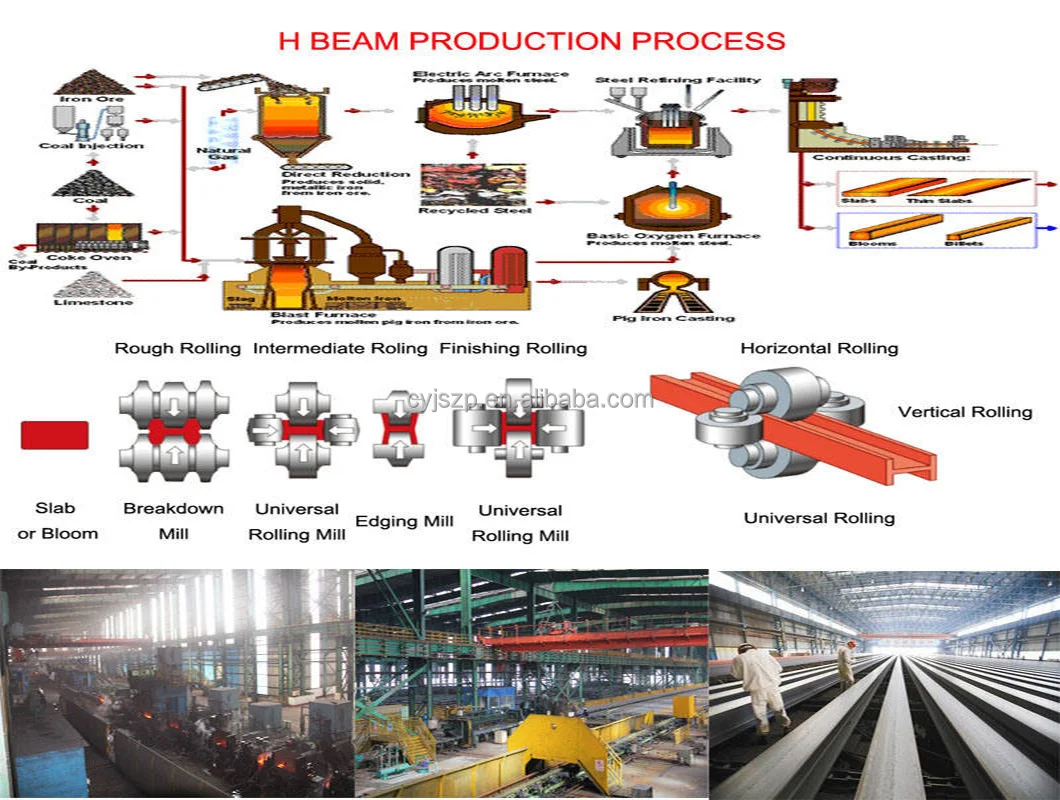

Hot rolled H beam
Billet after finishing and weighing, into the heating furnace.Then high pressure phosphorus removal, into the universal roughing mill rolling, and finally into the universal finishing mill forming.
Welded beam
Welded light gauge steel H section is H-steel manufactured
continuously from a hot-rolled steel strip by high-frequency resistance welding. It features thinner plate thickness and more accurate cross-sectional dimensions compared to a hot-rolled H section.
What are the main characteristics of H-beams?
H-beams have the following main characteristics:
Large bending stiffness: H-beams have a reasonable section shape and good bending stiffness, which can withstand large loads.
Lightweight: H-beams have a small specific gravity, light weight, and are easy to transport and install.
Convenient construction: H-beams are easy to manufacture and can be cut, drilled, and connected as required.
Corrosion resistance: After surface treatment, H-beams have good corrosion resistance.
What are the uses of H-beams?
H-beams are widely used in building, bridges, ships, machinery manufacturing, and other fields. In building structures, they are commonly used to make beams, columns, wall panels, roofs, and other components.
H-Beam, as the name suggests, is rolled steel joist (RSJ) with the cross section in the form of the capital letter H. It is the
one of the most common and widely used structural steel member used in both residential and commercial building projects.
Because of its superior mechanical properties and better strength to weight ratio, they make for the preferred choice of material for mezzanines, bridges, and platforms. Plus they have wide flanges which are commonly used in residential building projects.
Hot rolled H beam
Billet after finishing and weighing, into the heating furnace.Then high pressure phosphorus removal, into the universal roughing mill rolling, and finally into the universal finishing mill forming.
Welded beam
Welded light gauge steel H section is H-steel manufactured
continuously from a hot-rolled steel strip by high-frequency resistance welding. It features thinner plate thickness and more accurate cross-sectional dimensions compared to a hot-rolled H section.
What are the main characteristics of H-beams?
H-beams have the following main characteristics:
Large bending stiffness: H-beams have a reasonable section shape and good bending stiffness, which can withstand large loads.
Lightweight: H-beams have a small specific gravity, light weight, and are easy to transport and install.
Convenient construction: H-beams are easy to manufacture and can be cut, drilled, and connected as required.
Corrosion resistance: After surface treatment, H-beams have good corrosion resistance.
What are the uses of H-beams?
H-beams are widely used in building, bridges, ships, machinery manufacturing, and other fields. In building structures, they are commonly used to make beams, columns, wall panels, roofs, and other components.
What factors should be considered when selecting H-beams?
When selecting H-beams, the following factors should be considered:
Load requirements: Select suitable models and specifications according to load requirements.
Span: Choose the appropriate section size and model according to the span.
Material strength: Select the appropriate material grade according to the structural strength requirements.
How are H-beams connected?
H-beams can be connected by welding, bolted connections, steel groove connections, and other methods. Different connection methods have different application ranges and precautions.
When selecting H-beams, the following factors should be considered:
Load requirements: Select suitable models and specifications according to load requirements.
Span: Choose the appropriate section size and model according to the span.
Material strength: Select the appropriate material grade according to the structural strength requirements.
How are H-beams connected?
H-beams can be connected by welding, bolted connections, steel groove connections, and other methods. Different connection methods have different application ranges and precautions.
Tell Us What Are You Looking For ?
Factory Produced
Wuxi Cheng Yue Metal Materials Co., Ltd. is located in Wuxi, capital of Jiangsu province, China. Is a set of carbon steel,
galvanized and other alloy steel design, manufacturing, processing, wholesale, retail in one of the professional company.
galvanized and other alloy steel design, manufacturing, processing, wholesale, retail in one of the professional company.
Has the most powerful laser cutting machine in China. Processing projects include hollow steel carving, special-shaped graphics laser cutting, scuttling, bending, punching, welding, rust prevention, steel fast red rust solidification processing, surface treatment,etc. Customized services can be provided according to customer requirements.
Combined with more than ten years of experience in non-ferrous metals, the company has established long-term and stable cooperation with major steel plants such as Baosteel,Shougang Group, Wisco (Wuhan Iron and Steel Co., LTD.), Anshan Iron and Steel Group, Anyang Iron and Steel (Anyang Iron and Steel), Handan Iron and Steel Group and other senior steel companies. High stable material quality, reliable products and timely delivery are guaranteed.

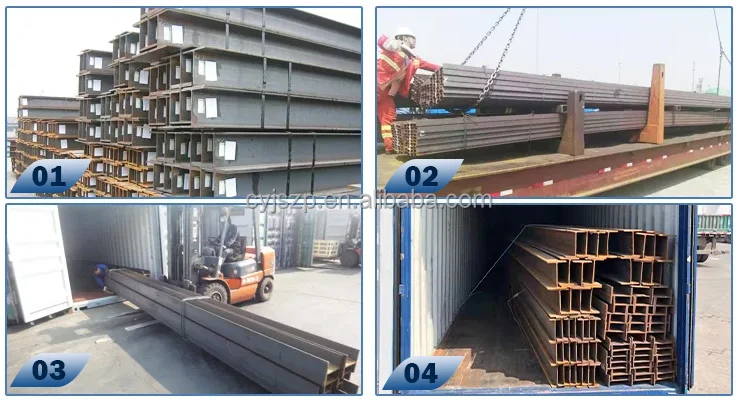

Packaging & Shipping
1 ) Steel H beam / I BEAM Loading by 20ft container: 26tons (Can load 5.8M Max).
2) Steel H beam / I BEAM Loading by 40ft container: 26tons (Can load 12M Max).
3) Steel H beam / I BEAM more than 100tons:can pack by bulk vessel.
4) Steel H beam / I BEAM Loading as your requirement.
2) Steel H beam / I BEAM Loading by 40ft container: 26tons (Can load 12M Max).
3) Steel H beam / I BEAM more than 100tons:can pack by bulk vessel.
4) Steel H beam / I BEAM Loading as your requirement.
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer with 1.5 million tons of steel annually in China. We have passed the factory inspection by various international organizations and have our own sales team. Welcome to seeing and inspecting our factory
2. Q: Do you have quality control system?
A: Yes,we have iso,bv,sgs certifications and our own quality contorl laboratory.
3. Q: How long is your delivery time?
A: Within 7-15 days after receiving the deposit or L/C at sight.
Longer lead time will be required for special designed products.
4. Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but the delivery charges will be covered by our customers.
5. Q: Do you provide after-sale service?
A: We provide after-sales service and offer 100% guarantee on our products.
6.Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.
6.Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.
