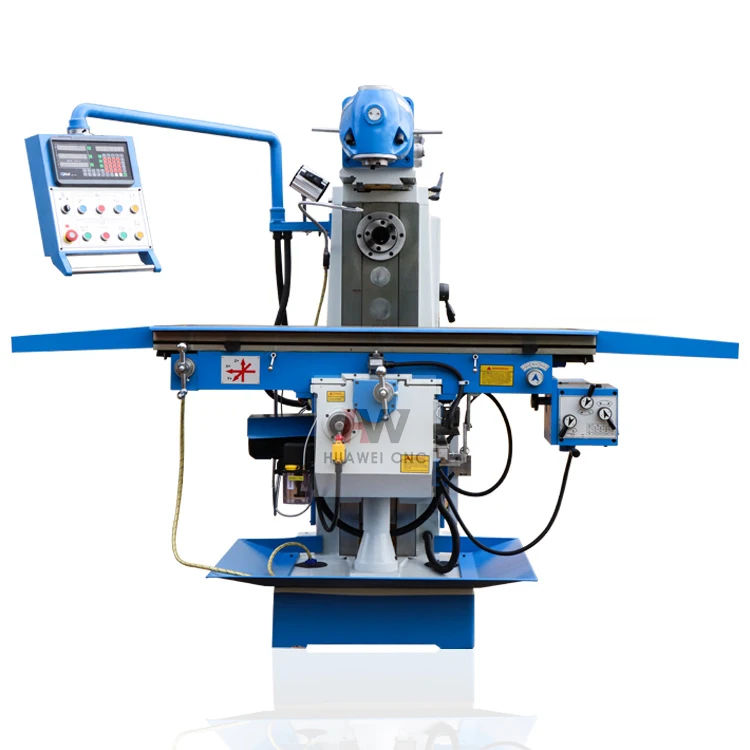

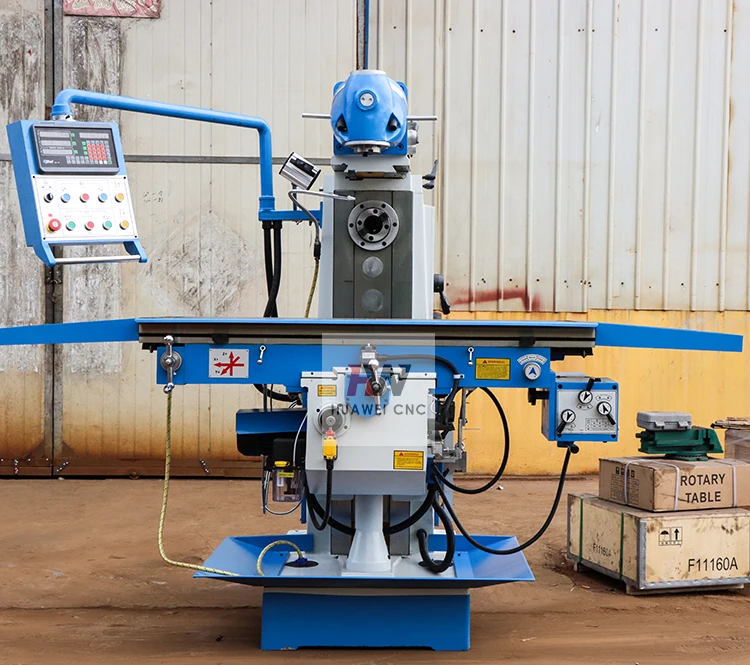

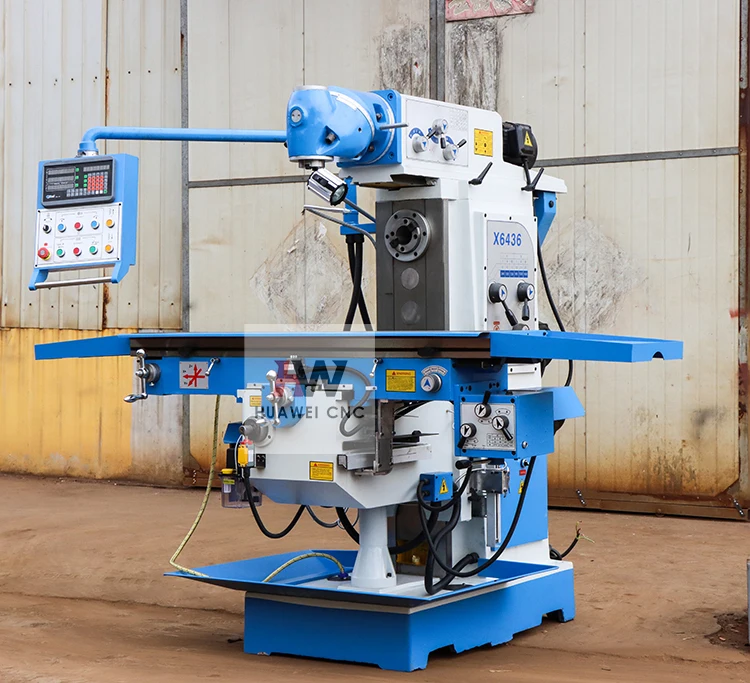

Hot sell Cheap factory price universal rotary head milling machine X6436
- Category: >>>
- Supplier: Shandong Huawei Intelligent Equipment Co. Ltd.
Share on (1600768359078):
Product Overview
Description
Product Description

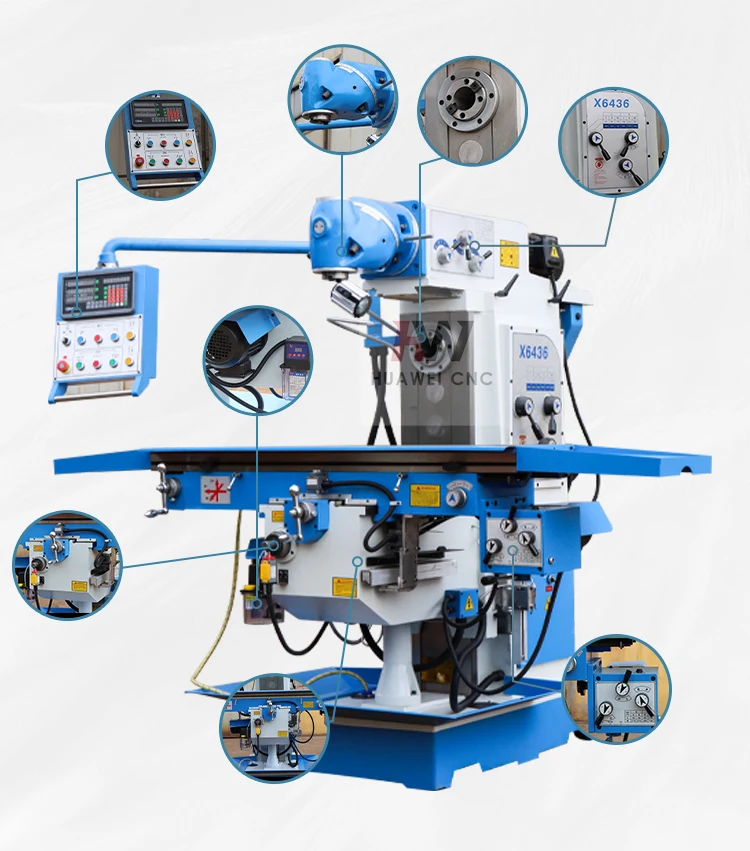

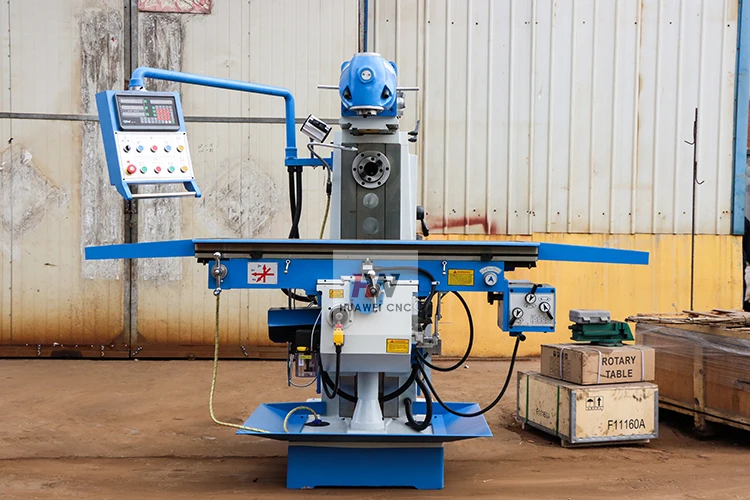

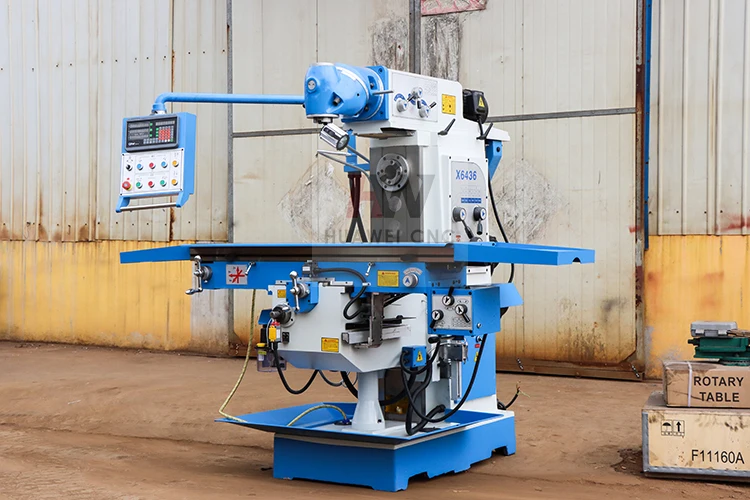

Cheap Factory Price swivel head rotary milling machine universal milling machine X6436 for sale
Product main technical parameters:
Specifications | Units | X6432 | X6436 |
Table size | mm | 1500x320 | 1500x360 |
Table travel | mm | 1000/320/400 | 1000/320/450 |
T-slot numbers / width /space | mm | 3-16-60 | 3-18-80 |
Spindle taper | ISO40(V) ISO40(H) | ISO40(V) ISO50(H) | |
Spindle speed range | rpm | 48-1660rpm(V) 40-1300(H) | 48-1660rpm(V) 40-1300(H)) |
Distance between spindle nose and table surface | mm | 120-520 | 150-550 |
Distance between spindleaxis and table surface | mm | 0-400 | 0-400 |
Range of table feed | mm /min | XY:22-555 Z:electric | XY:22-555 Z:electric |
Milling head swivel range | ° | 360 | 360 |
Spindle motor power | kw | 3(V)/3(H) | 4(H)/4(H) |
Feed motor power | kw | 1.1 | 1.1 |
Weight | kg | 2100 | 2580 |

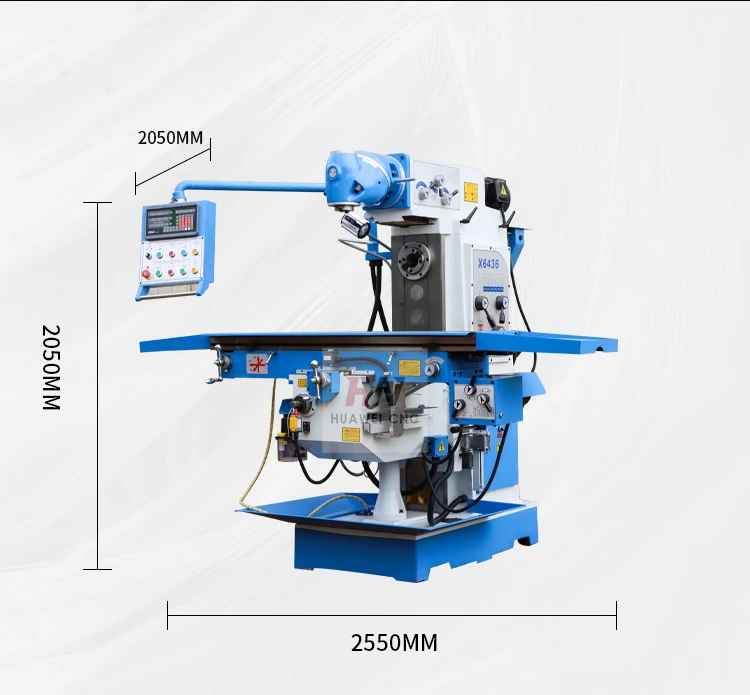

Overall dimension | mm | 2050x1750x2000 | 2550x2050x2050 |
The main performance characteristics:
1. realize vertical and horizontal milling two processing function;
2. two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong
steel, gear up for gear grinding ,by high frequency quenching and low noise durable
Application:
Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and
can vertical milling.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,
molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves,
holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries
of the ideal processing equipment.
1. realize vertical and horizontal milling two processing function;
2. two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong
steel, gear up for gear grinding ,by high frequency quenching and low noise durable
Application:
Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and
can vertical milling.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,
molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves,
holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries
of the ideal processing equipment.
