DH LVDV 2 Portable Viscometer, LCD Display Laboratory Viscosity Meter, High Viscometer for Hot Melt Asphalt
- Category: >>>
- Supplier: Guangdong Hongtuo Instrument Technology Co. Ltd.
Share on (1600768394458):
Product Overview
Description

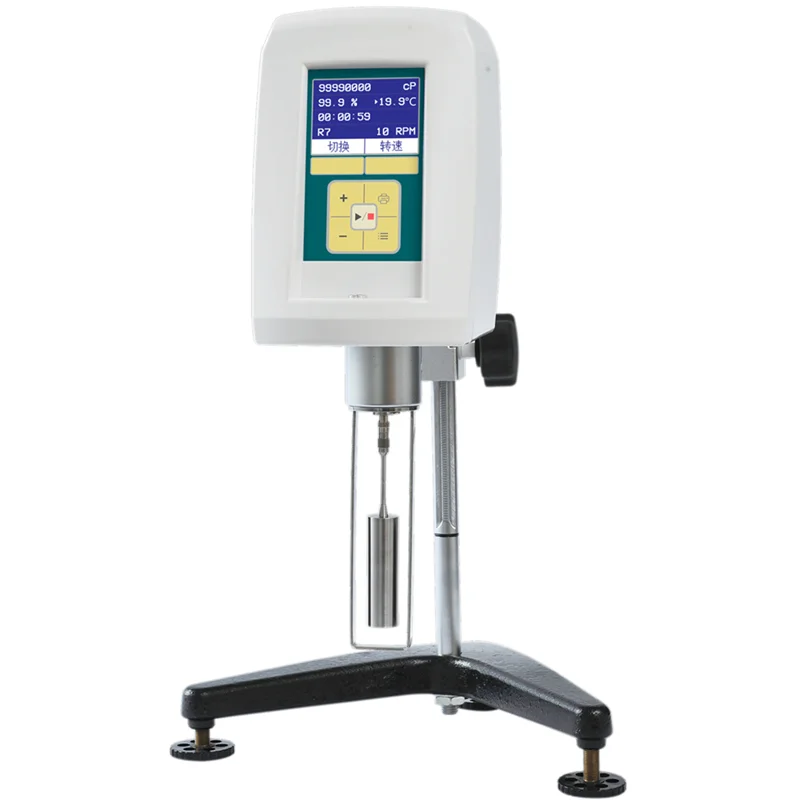

DH-LVDV-2 Portable Viscometer, LCD Display Laboratory Viscosity Meter, High Viscometer for Hot Melt Asphalt
Introduction
Application:
Widely used in paint, paint, cosmetics, ink, pulp, food, oil products, starch, adhesives, latex, biochemical products and other industries. It can also be optional high temperature furnace measurement need heating melt samples such as asphalt, hot melt glue, polyethylene wax and other samples.
Features
1. Viscosity value measurement accuracy: each range is automatically calibrated by a computer, with high accuracy and small error;
2. Front-level instrument: the level adjustment is intuitive and convenient;
3. Optional Pt100 temperature probe: wide temperature measurement range, from-20 to 300℃, temperature measurement accuracy of 0.1℃;
4. Optional enhanced ultra-low viscosity adapter ULR / URL PLUS, which can accurately measure the viscosity of 1mPa.S;
5. Select a small amount of sample adapter, SSR / SSR PLUS, and the sample volume measured each time is only 7-11ml;
6. Rich optional accessories: constant temperature bath, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;
7. With automatic scanning, timing measurement and other functions;
8. Automatic prompt function of viscosity measurement and stability;
9. Showing the shear rate and the shear stress;
10. Viscosity unit switching (1Pa.s=1000mPa.s; 1P=100mPa.s; 1cP=1mPa.s);
11. Temperature unit switch: Celsius, F;
12. Connect to the printer and the computer
13. Switching between Chinese and English operating systems
2. Front-level instrument: the level adjustment is intuitive and convenient;
3. Optional Pt100 temperature probe: wide temperature measurement range, from-20 to 300℃, temperature measurement accuracy of 0.1℃;
4. Optional enhanced ultra-low viscosity adapter ULR / URL PLUS, which can accurately measure the viscosity of 1mPa.S;
5. Select a small amount of sample adapter, SSR / SSR PLUS, and the sample volume measured each time is only 7-11ml;
6. Rich optional accessories: constant temperature bath, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;
7. With automatic scanning, timing measurement and other functions;
8. Automatic prompt function of viscosity measurement and stability;
9. Showing the shear rate and the shear stress;
10. Viscosity unit switching (1Pa.s=1000mPa.s; 1P=100mPa.s; 1cP=1mPa.s);
11. Temperature unit switch: Celsius, F;
12. Connect to the printer and the computer
13. Switching between Chinese and English operating systems
Specification
Model | DH-LVDV-1 | DH-LVDV-2 | |
Display method | liquid crystal display | ||
Speed(r/min) | 0.3 – 100 37 RPM | 0.1-200 58 RPM | |
Measuring range | 0.6 - 2,000,000 mPa.s | 0.3 - 6,000,000 mPa.s | |
(ULR below 10 ) The lower limit of the actual exact measurement is 1 | |||
Sample dosage | 1-4 Rotor：300-400ml 18,25,31,34Rotor：7-11ml； ULR: 21ml | ||
Measurement error | ±1% (Newtonian liquid) | ||
Repetitive error | ±0.5% (Newtonian liquid) | ||
Showing the shear response / shear rate | standard configuration | ||
Timed function | standard configuration | ||
Temperature measurement function | Standard temperature probe interface (optional temperature probe is required) | ||
Automatic scanning function | Automatically scan and recommend a preferential combination of the rotor and the rotational speed | ||
Maximum measurement range | Automatically displays the measurable viscosity range of the selected rotor and speed | ||
Print function | Data and curve printable (standard printing interface, printer) | ||
Thermostatic parts | Options (including special thermostatic slot for various viscosity meters, constant temperature cup) | ||
working power supply | 110V/60Hz or 220V/50Hz) | ||
outline dimension | 300 × 300 × 450 (mm) | ||

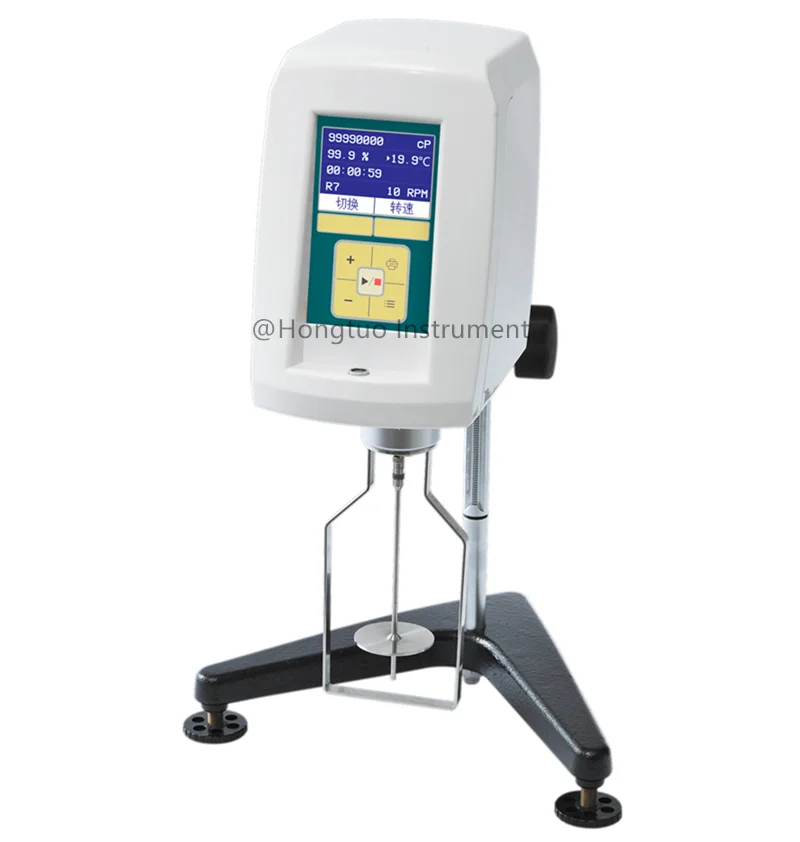

Details Images

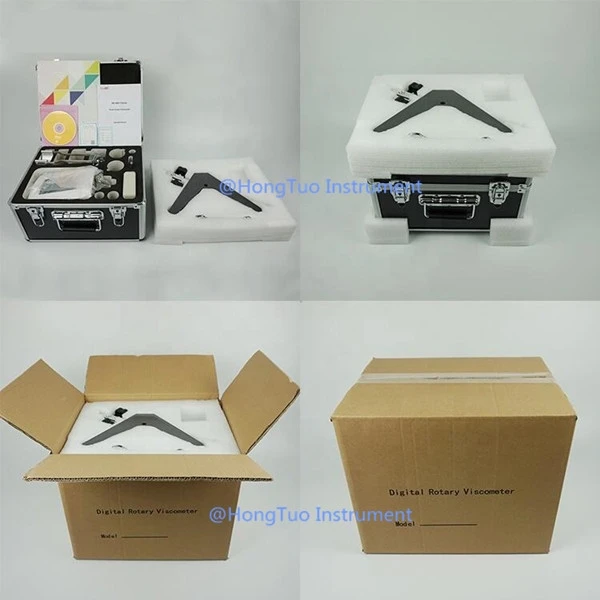

Product Packaging
Company Profile
We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
Certifications
FAQ
1.Quality Insurance
We guarantee this instrument for 1 year and life-long maintenance.
We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons:
(1) Wrong operation;
(2) Fixed or refitted personally;
(3) The machine itself is not the reason caused breakdown;
(4)Applying the machine under the serious conditions.such as high
temperature,moist, corrosive gas,or vibration.
(5)Move or transportation as soon as installed.
(6)Consumables and easy-loss components.
(7)Natural disaster
2.After-sales Service
a.If errors occur,please refer to the troubleshooting tips of the instruction manual.
b.Please contact with our after-sales service department or distributor in time if can’t clear fault.
c.DahoMeter after-sales hot line 400 830 0646
3.Are we manufacturer made copy product or original product?
We are the original manufacturer.
4.Why choose us?
We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service.
a.We have been specialized in this field since 2002.
b.Professional researching and technology team.
c.Customer service team.
5.Can you offer quality certification?
Yes.We can offer quality certification issued by our quality control department with free of charge.or issued by third-party international inspection organizations with extra charge.
6.Can you do the calibration and testing before handover the goods?
Yes.We do testing and calibration for every product before delivery.
We guarantee this instrument for 1 year and life-long maintenance.
We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons:
(1) Wrong operation;
(2) Fixed or refitted personally;
(3) The machine itself is not the reason caused breakdown;
(4)Applying the machine under the serious conditions.such as high
temperature,moist, corrosive gas,or vibration.
(5)Move or transportation as soon as installed.
(6)Consumables and easy-loss components.
(7)Natural disaster
2.After-sales Service
a.If errors occur,please refer to the troubleshooting tips of the instruction manual.
b.Please contact with our after-sales service department or distributor in time if can’t clear fault.
c.DahoMeter after-sales hot line 400 830 0646
3.Are we manufacturer made copy product or original product?
We are the original manufacturer.
4.Why choose us?
We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service.
a.We have been specialized in this field since 2002.
b.Professional researching and technology team.
c.Customer service team.
5.Can you offer quality certification?
Yes.We can offer quality certification issued by our quality control department with free of charge.or issued by third-party international inspection organizations with extra charge.
6.Can you do the calibration and testing before handover the goods?
Yes.We do testing and calibration for every product before delivery.
