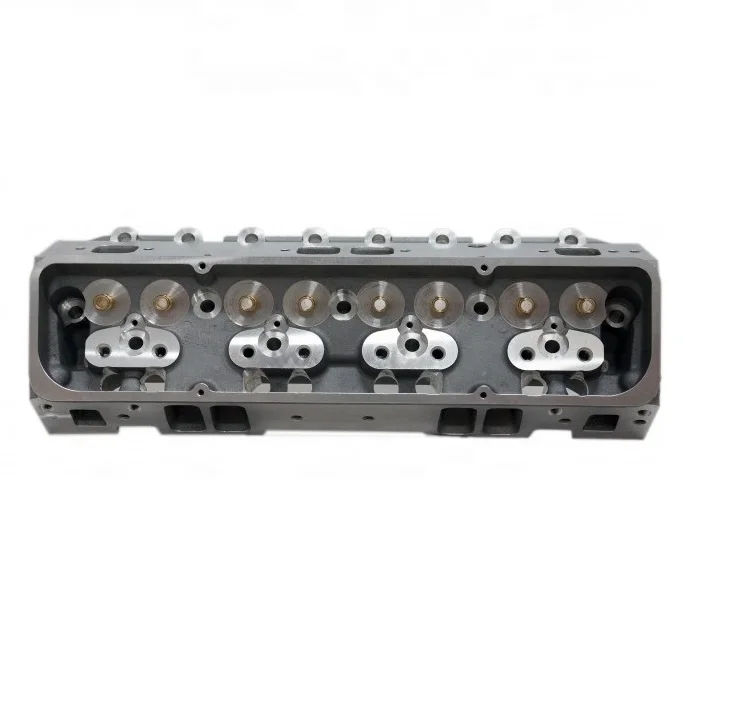

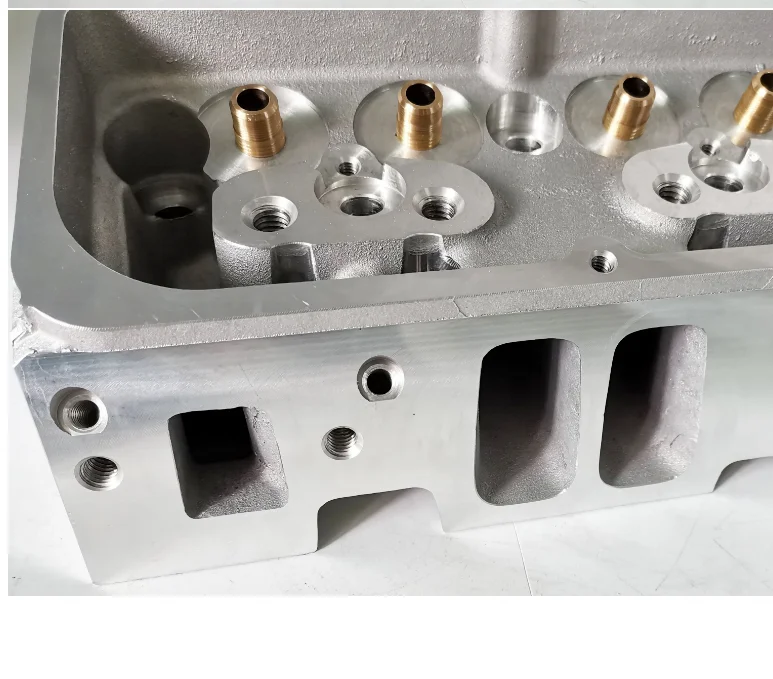

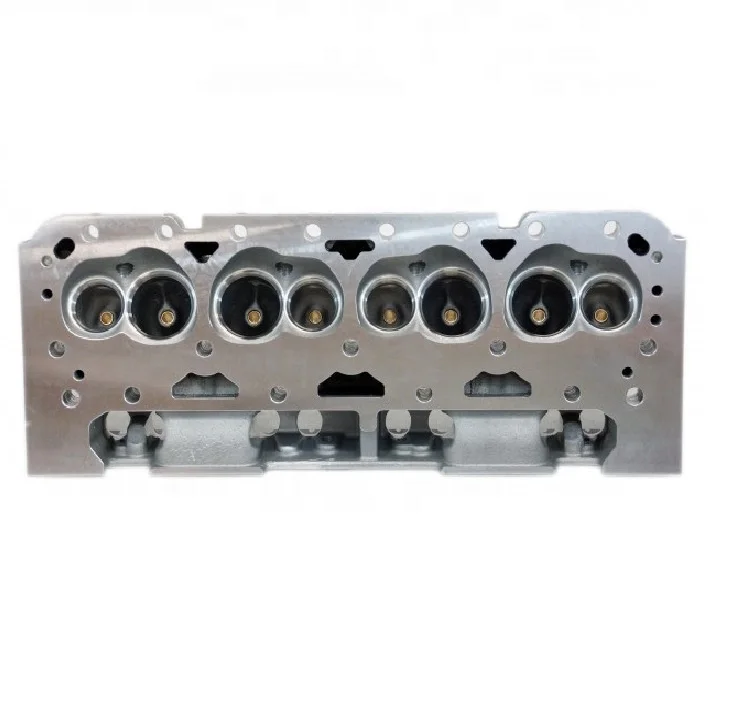

SBC Chevy Aluminum Cylinder Head GM350 Straight Plug SBC 302 327 350 383 400
- Category: >>>
- Supplier: Shijiazhuang Jialiya Trading Co. Ltd.
Share on (1600768457475):
Product Overview
Description

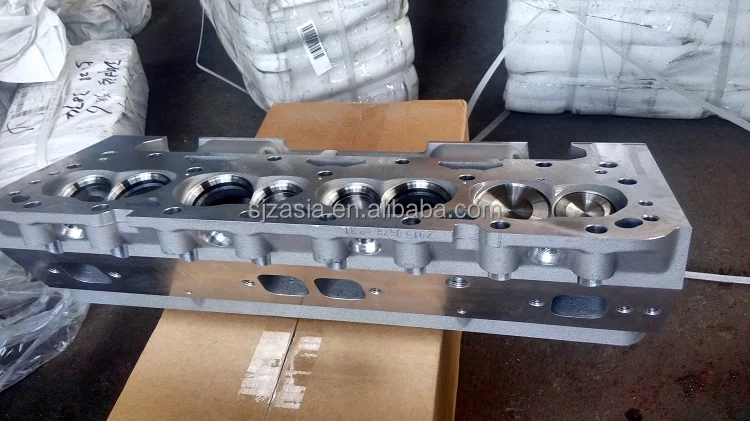

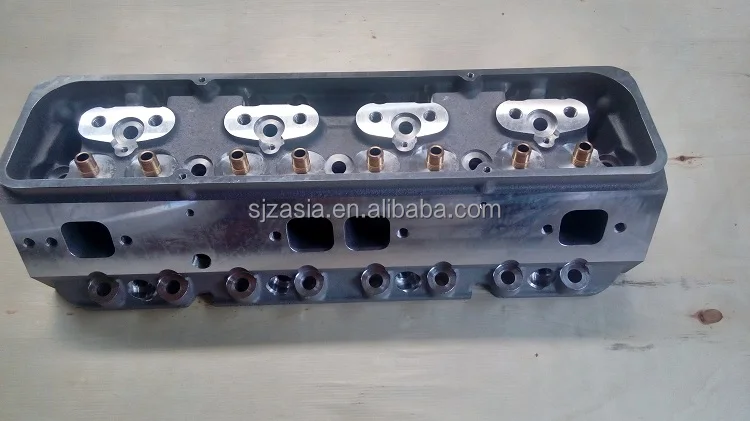

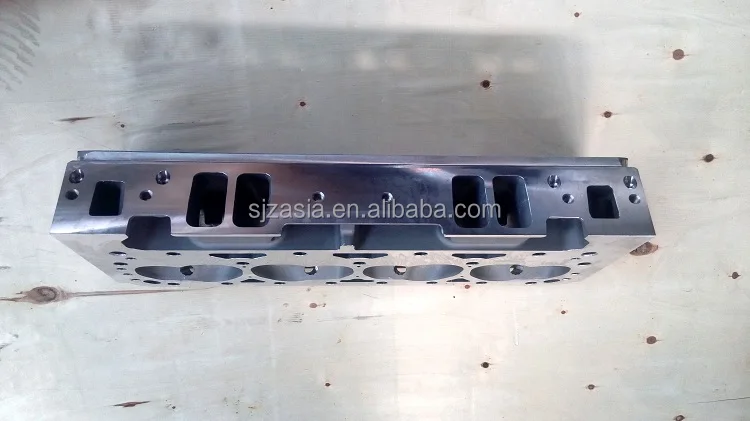

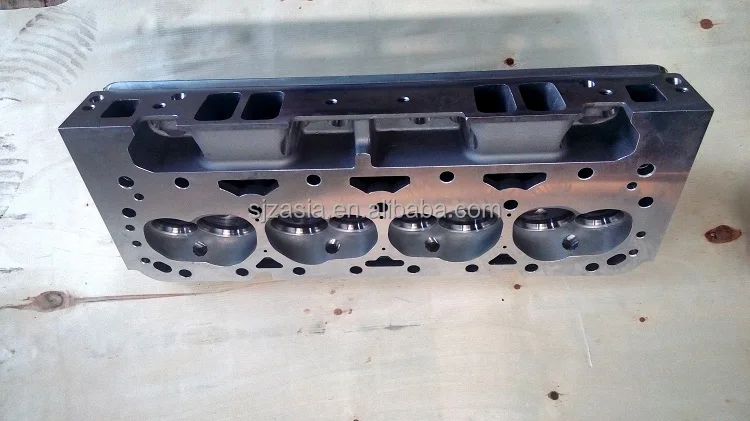

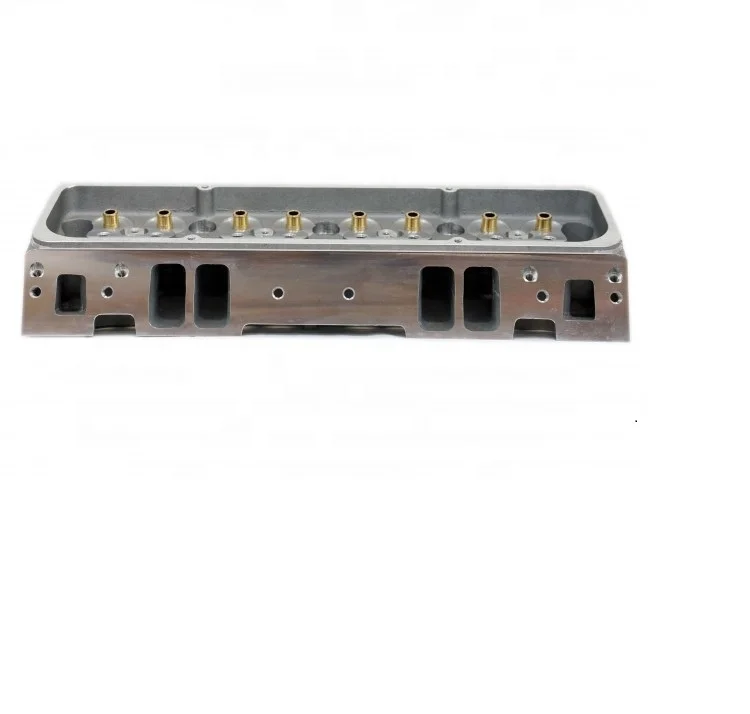

SBC Chevy Aluminum Cylinder Head
features:
high grade aluminum, bronze valve guides, hardened seats, advance port design for greater air flow
This head features a thicker deck design so they can be used on nitrous, turbocharged and supercharged applications.
Dual valve cover bolt pattern, will accept either center bolt or perimeter bolt valve covers
application: SBC engines such as 302, 327, 350, 383 and 400 small block chevy engines up to 1986

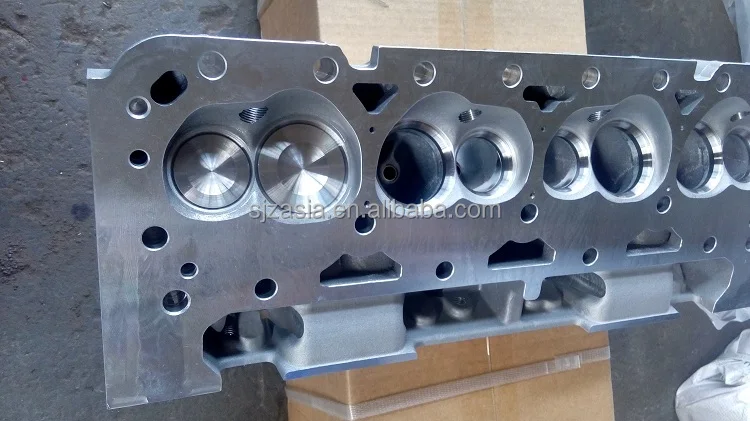

This head is 200cc intake runner with a 64cc combustion chamber, 64cc combustion chambers improve performance and retains stock compression on 1970 and earlier
- Intake Runner Volume: 200cc
- Exhaust Runner Volume: 74 cc
- Combustion Chamber Volume: 64 cc
- Intake Port Shape: Square
- Exhaust Port Shape: Square
- Spark Plug Style: Straight/angle both
- Intake Valve Diameter: 2.020 in.
- Exhaust Valve Diameter: 1.600 in.
- Valve Cover Mounting Style: Dual - Perimeter & Center Bolt
- Intake Valve Angle: 23 deg.
- Exhaust Valve Angle: 23 deg.
- Valve Guide Material: Manganese Bronze
- Valve Seats Machined: Yes
- Valve Seat Machine Style: 3-Angle
