bonens 3362U 0. 5W b10k a 20k b50k b100k Single turn Trimmer Potentiometer

Product Overview

Description

3362U 0. 5W b10k a 20k b50k Trimmer Potentiometer

Our Advantage:

1) More than 11 Years Manufactuer Experience in Potentiometer.

2) 8 years of Alibaba Gold Supplier.

3) Factory Price and OEM Provide.

4) TUV ROHS ISO9001 CE

5) Low MOQ:100 Piece

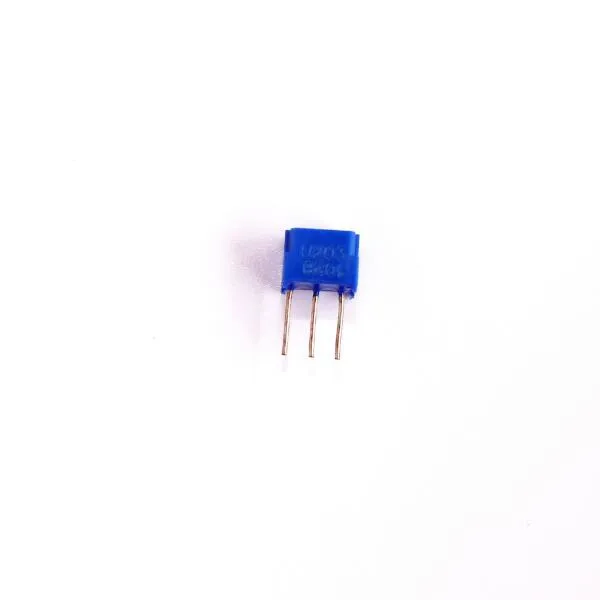

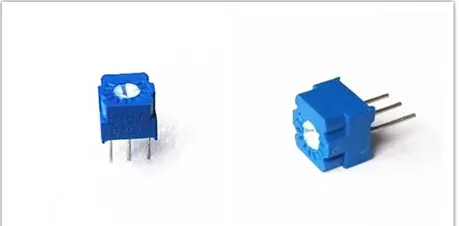

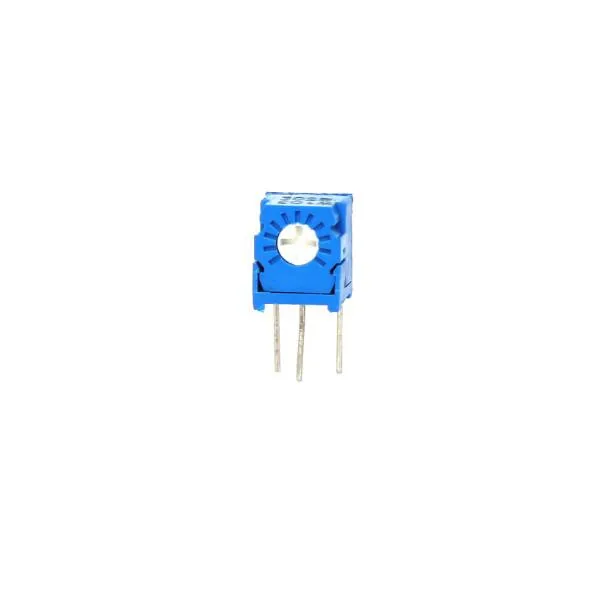

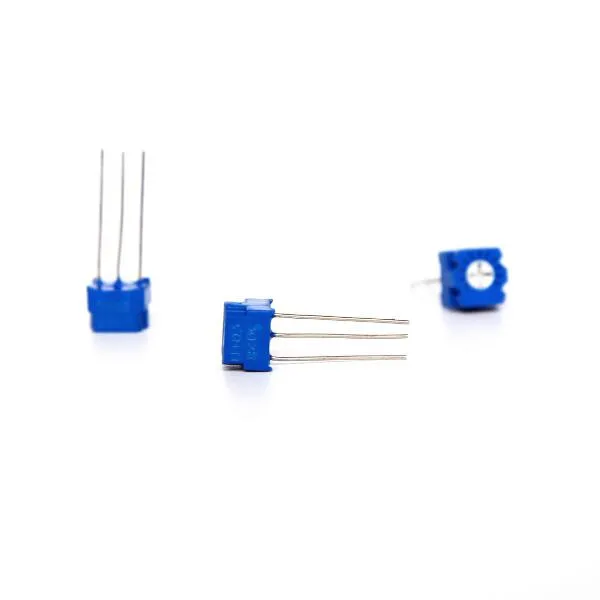

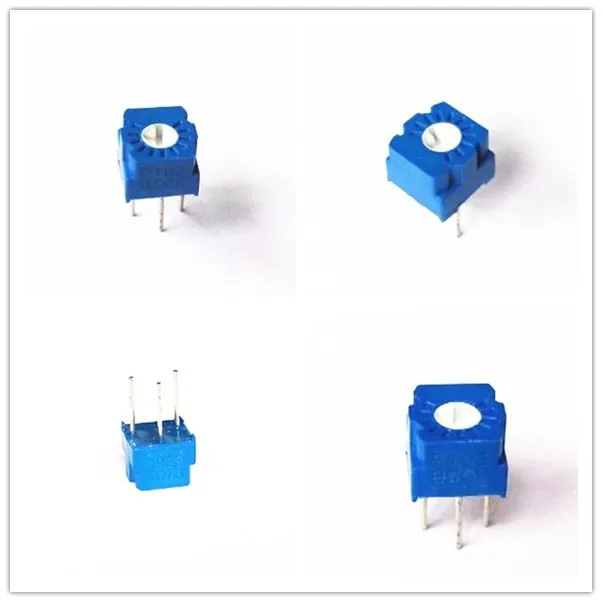

3362U Trimming Potentiometer Products show

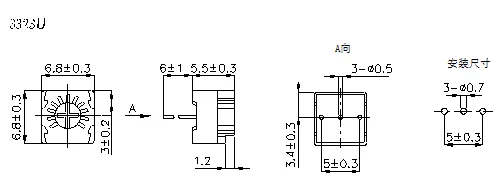

3362U Trimming Potentiometer Dimmension(mm)

3323U Trimming Potentiometer Description

Electrical Characteristics			Range of nominal resistance			10~5M
			Resistance tolerance			±10%
			Terminal resistance			≤±1%R or 2
			Contact resistance variation (CRV)			≤±1%R or 3
			Insulation resistance			≥ 1G (100V AC)
			Withstand voltage			500V (DC or AC peak value)
			Effective electrical travel			≥200of mechanical travel
Environment Characteristics			Rated power			0.5W ( 70°C)
			Temperature range			-55°C~ 125°C
			TCR			±250x10-6/°C
			Collision (390m/S2, 4000 times)			R≤±1%R
			Vibration (10-500HZ, 0.75mm, 6h)			R≤±1%R, Uab/Uac≤±2%R,
						Electrical break≤100S
			Temperature variation (-55°C/30min,			R≤±2%R,
			125°C/30min, 5 cycles)			Uab/Uac≤±2%R
			Climate category (IEC68-2-2)			R≤± (5%R 0.1),
						nsulation Resistance≥100M
			Electrical endurance (0.5W, 1000h)			R≤± (5%R 0.1),CRV≤±3%R or 5
			Mechanical endurance (200 cycles)			R≤± (10%R 0.5), CRV≤±3%R or 5
			Steady damp heat (IEC68-2-3, Ca, 96h)			R≤± (5%R 0.1),
						Insulation Resistance≥100M
Physical Characteristics			Total mechanical travel			270±10 lap
			Starting torque			≤20mN.m
			Standard package			50 pcs /tube

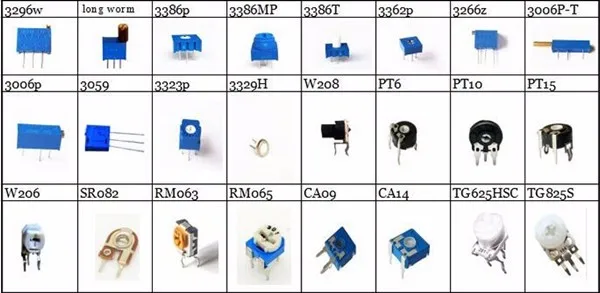

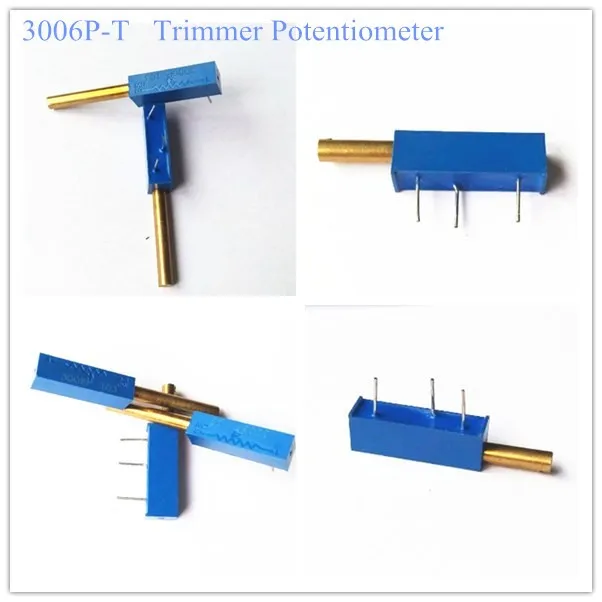

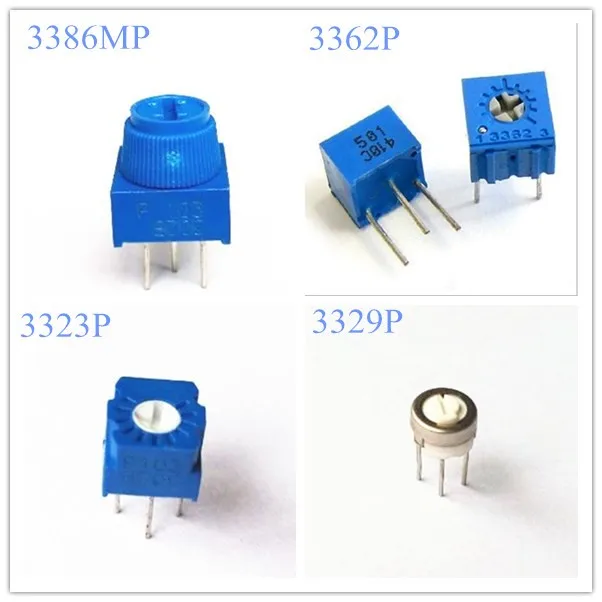

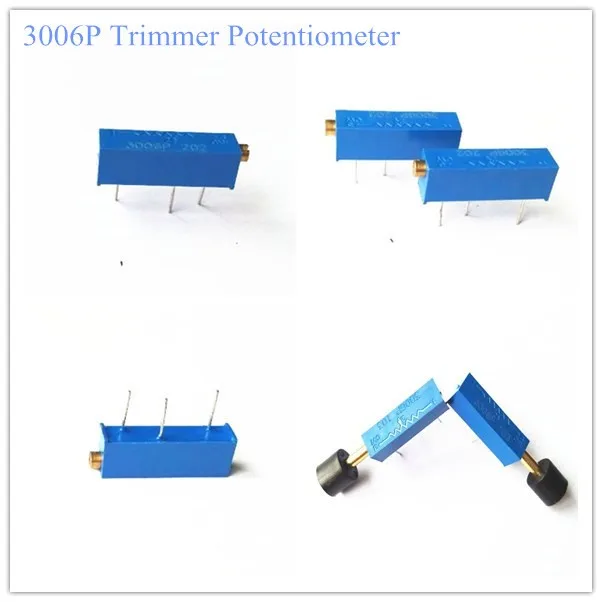

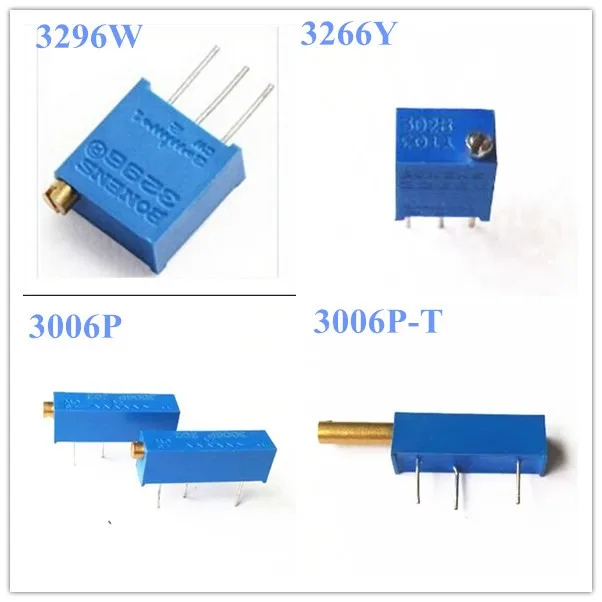

Our Trimming Potentiometer Series

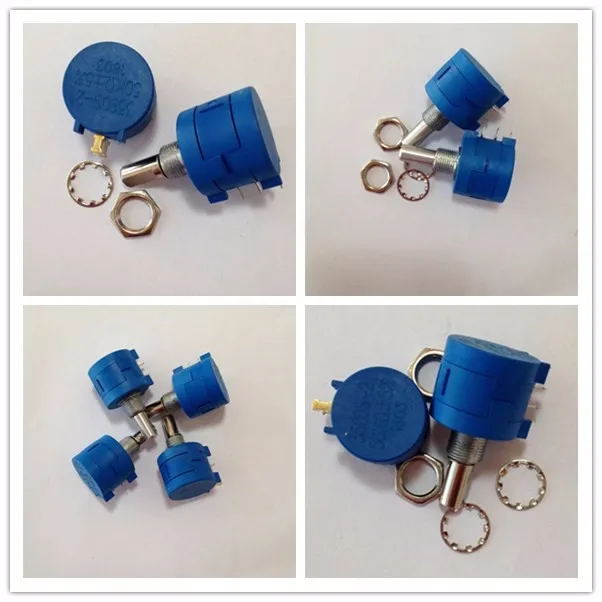

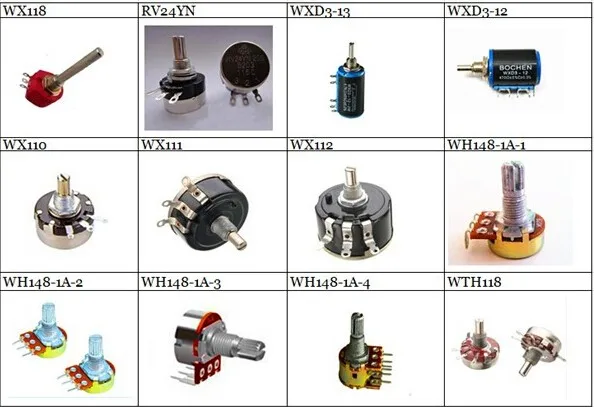

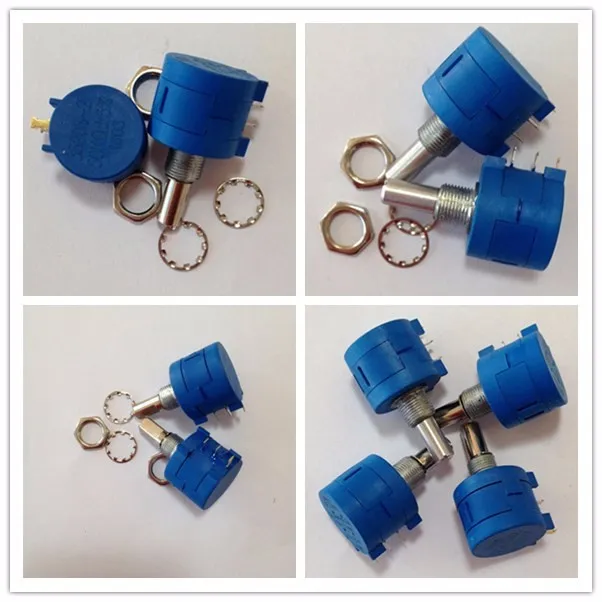

3590 Rotary Potentiometerproducts show

,

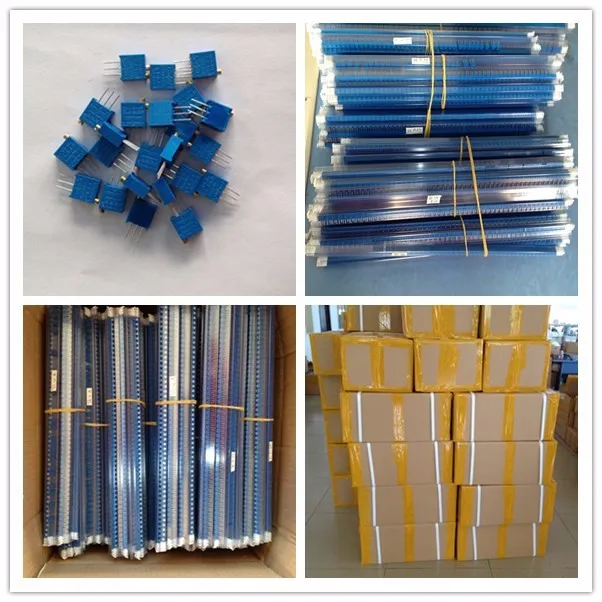

Trimming Potentiometer Packing

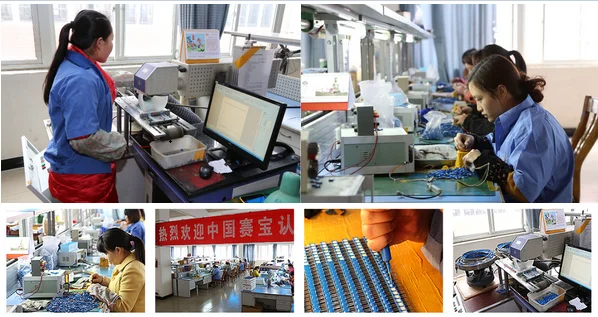

About us

TongYueXin Commerical and Trading Co.,Ltd(Chengdu) is a technical factory of mainly manufacturing and develp

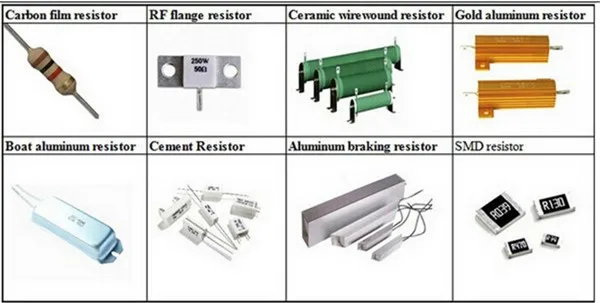

high power resistor,wirewound potentiometer,metal glass glaze potentiometer,carbon film potentiometer,precision parts andEMINoise filter.

The established maxim of our company is technical innovation, keeping improvement and meeting customer

demands.

Rich and varied goods is your selection guide. High quality is absolutely the credibility of the guarantee. Reasonable price is your final choice.

Our products is also used in the field of the military industry .Our factory are continuing to offer a great deal of qualified goods in the field of the military industry

Our Certificate

if any interest.pls feel free to let us know.

Contace person: Rebecca Cui

phone/Whatsapp: 0086 17828079058

Trade Manager:cn151786704eqb

QQ:1977757804
