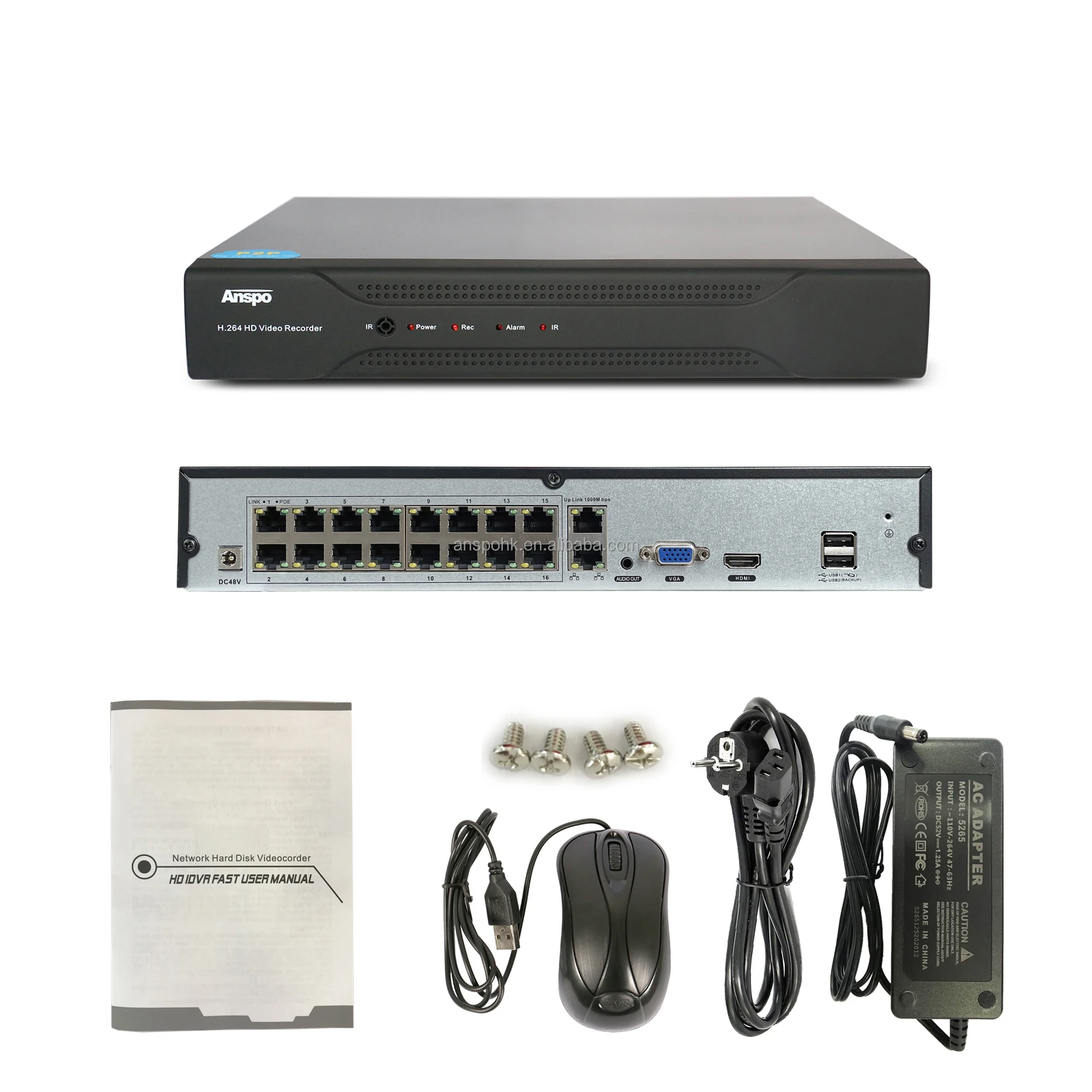

Anspo Security 5MP 4K 16 CH POE H.265 NVR Network Video Recorder XMeye P2P CCTV camera POE NVR plug and play
Anspo Security 5MP 4K 16 CH POE H.265 NVR Network Video Recorder XMeye P2P CCTV camera POE NVR plug and play
Anspo Security 5MP 4K 16 CH POE H.265 NVR Network Video Recorder XMeye P2P CCTV camera POE NVR plug and play
Anspo Security 5MP 4K 16 CH POE H.265 NVR Network Video Recorder XMeye P2P CCTV camera POE NVR plug and play
Anspo Security 5MP 4K 16 CH POE H.265 NVR Network Video Recorder XMeye P2P CCTV camera POE NVR plug and play
Anspo Security 5MP 4K 16 CH POE H.265 NVR Network Video Recorder XMeye P2P CCTV camera POE NVR plug and play

Anspo Security 5MP 4K 16 CH POE H.265 NVR Network Video Recorder XMeye P2P CCTV camera POE NVR plug and play

Share on (1600768604261):


Price:$130.88 - $136.76

Quantity:


Product Overview

Description



Product parameter


Model
16 CH POE NVR
8CH
16CH

System
Main processor
H3536 Technical grade embedded microprocessor
Operating system
Embedded LINUX operating system
System resource
Simultaneous multi-channel real-time recording,playback and USB backup.





Interface
Operation interface
16-bit true color graphical menu operation interface, support mouse operation
Screen display
1/4/9/16 screen
Video output
1 HDMI high-definition output, 1 VGA output
Audio I/O
0/1 (3.5MM interface)
2
4
Alarm I/O
0/0
Network interface
RJ45 10M/100M Adaptive Ethernet port
Video input
16*POE ports support POE power supply
8*POE ports support POE power supply
USB interface
2 USB2.0 ports (reserve a USB extension port)
Hard disk interface
1 SATA interface (each supports up to 8TB)






Video
Image decoding

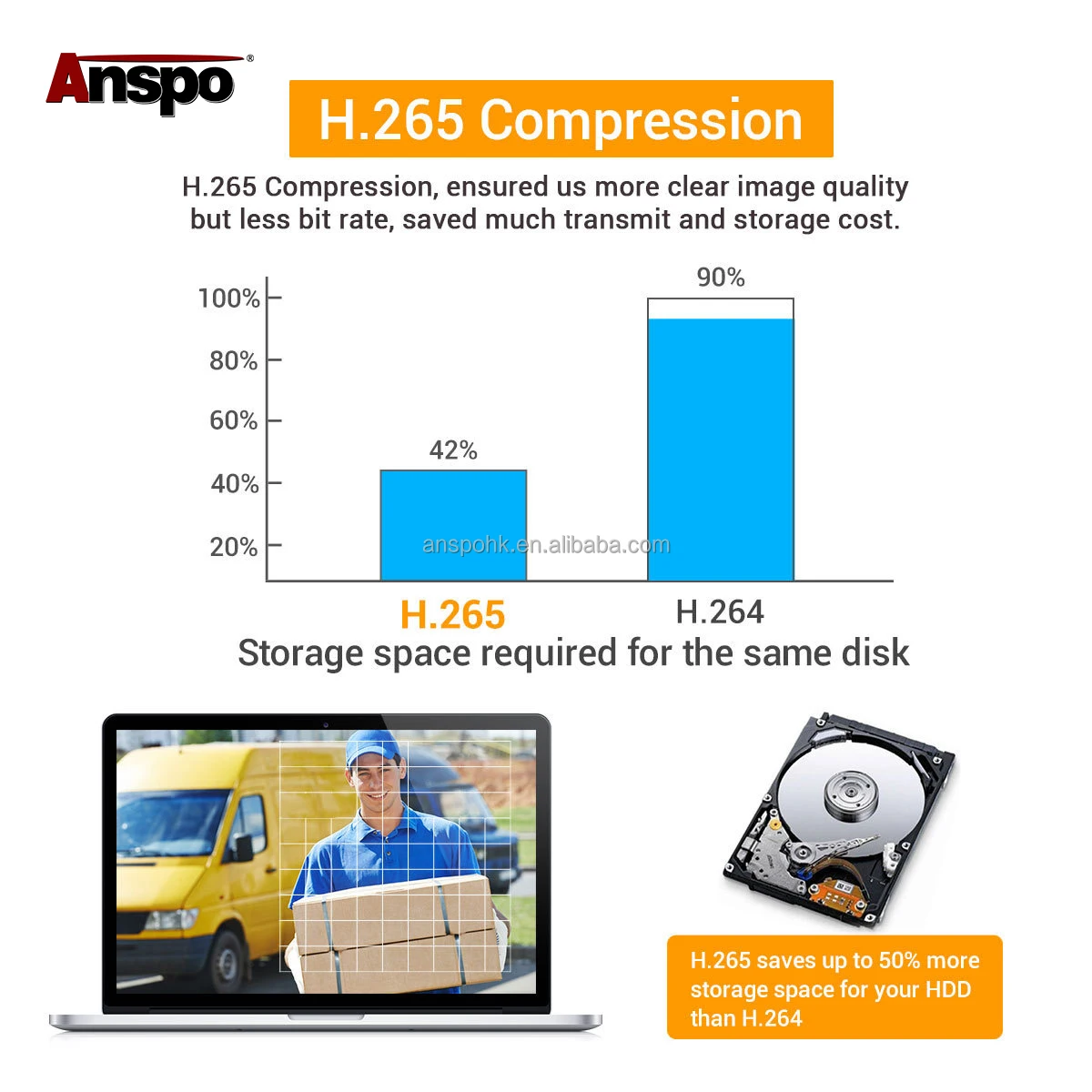

H.265AI/H265+ (compatible with H.265/H.264)
Video access mode
Up to 5MP(Access bandwidth 72Mbps)
Monitor quality
Max 2560*1440
8*1080N@12fps/4* 1080P@15fps
16*1080N@12fps/8* 960H/8*1080N
Playback quality
5M/1080P
Decoding capability (real-time + non-real-time)
5M（1+1）/4M(2+1)/3M（2+2）/1080P（4+2）
VR
not support
Humanoid face detection
Support (depending on front-end camera)

Audio
Audio compression
G.711A
Intercom
No



Record & Playback
Video mode
Manual>Alarm>Motion Detection>Timing
Local playback (real-time + non-real-time)
5M（1+1）/4M(2+1)/3M（2+2）/1080P（4+2）
Video query
Time point search, calendar search, event search, channel search，face search
Video save
Local hard disk, network
Backup method
Network backup, USB mobile hard disk, USB burning, SATA burning




Others
Onvif
Support



Others
Power supply
DC48-52V  4CH 1.25A, 8CH 2.3A
Power consumption
<10W (without hard disk)
Working temperature
-10℃-＋55℃
Working humidity
10%-90% RH
Size
217*255*43mm
