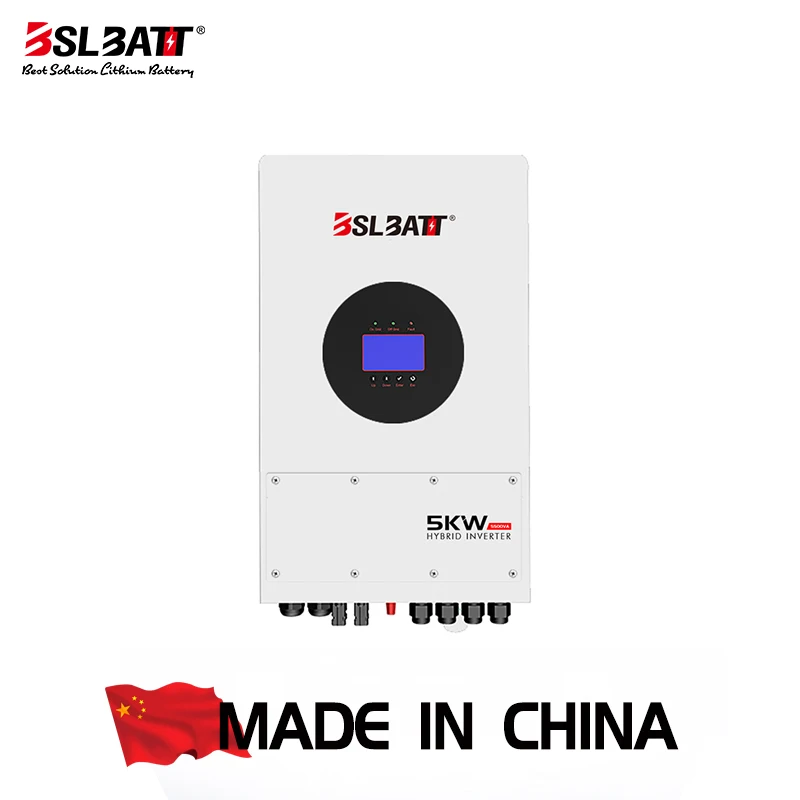

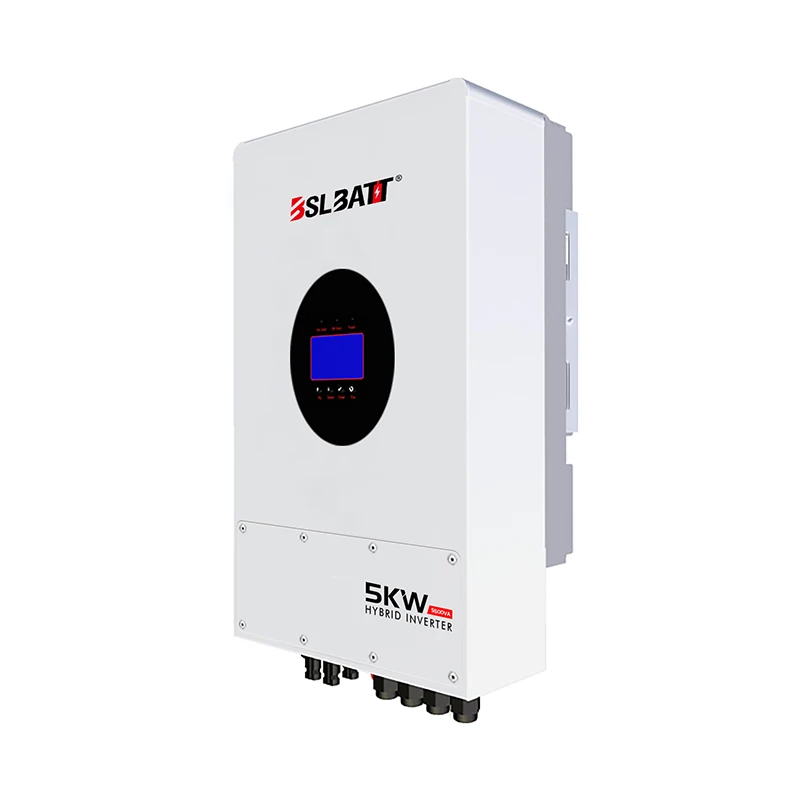

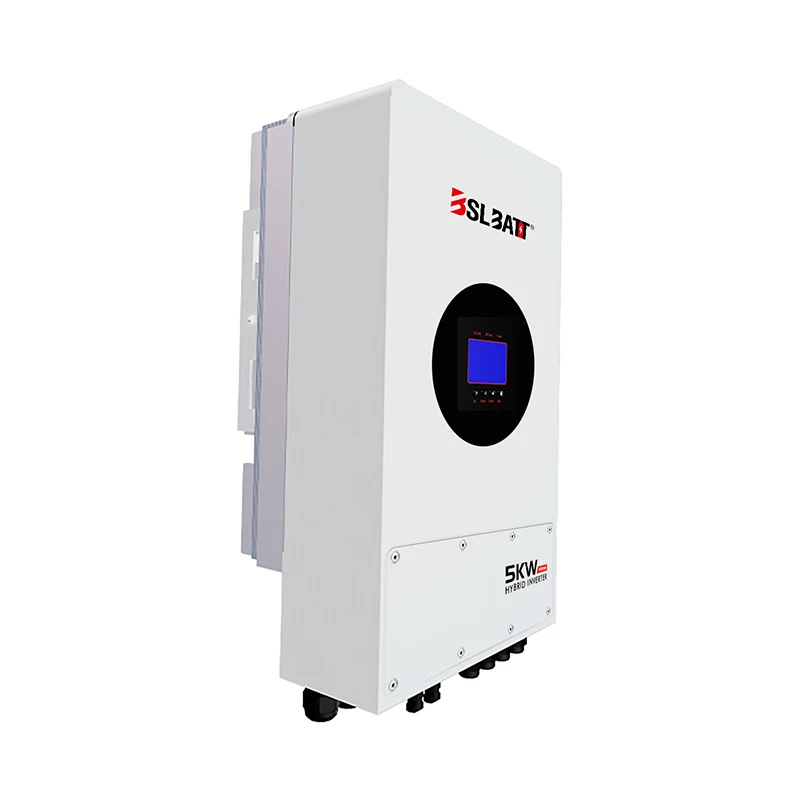

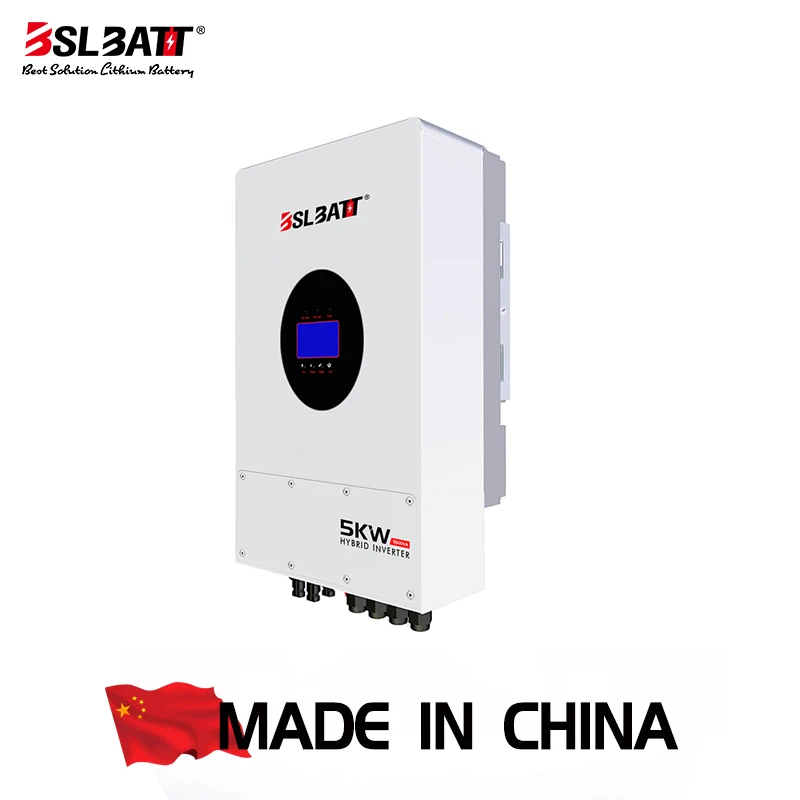

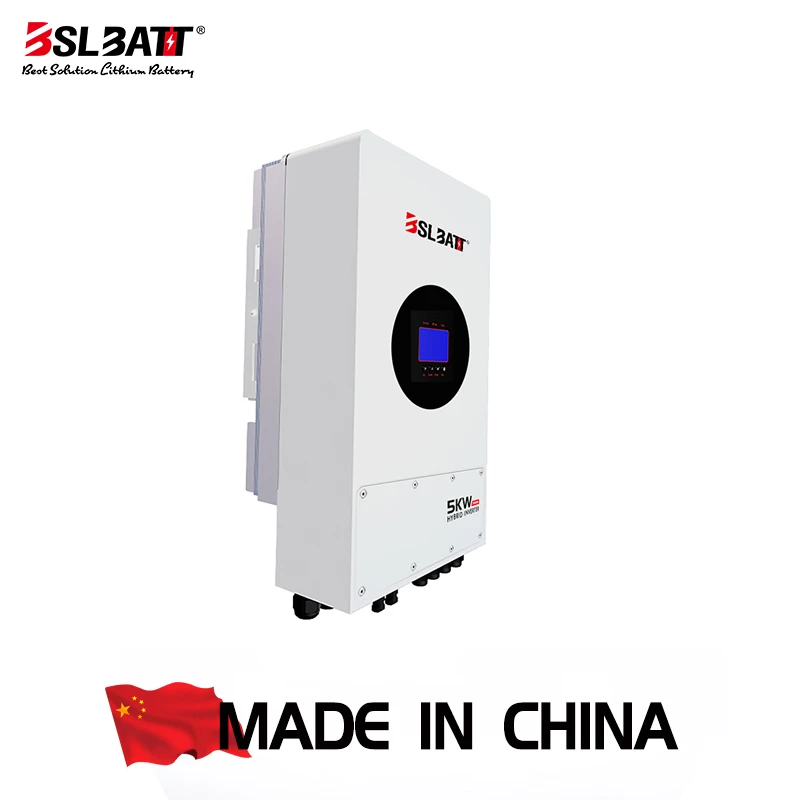

BSLBATT 3kw 5000w 48v 10kw off grid 5kw solar pump power hybrid pure sine wave solar inverter
- Category: >>>
- Supplier: Huizhou Wisdom Power Technology Co. Ltd.
Share on (1600768611433):
Product Overview
Description
Product Paramenters
PV Input(DC) | ||||||
Max. DC input power (W) | 7000W | 6600W | 5200W | |||
Max PV input voltage (V) | 500V | |||||
Starting voltage | 150V | |||||
PV input voltage range | 150V-500V | |||||
MPPT voltage range | 120V-430V | |||||
MPPT quantity | 2 | |||||
Max string quantity to each MPPT group | 1 | |||||
Max input current | 15A/15A | |||||
Output/Input(AC) | ||||||
Rating output power | 5000W | 4600W | 3600W | |||
Maximum output apparent power | 5500VA | 5000VA | 3960VA | |||
Max output current | 22.8A | 22.8A | 18A | |||
Rating grid voltage | 230V | |||||
Rating grid frequency | 50HZ | |||||
Total current waveform distortion rate | <3% (Rating power) | |||||
DC component | <0.5%In | |||||
Power factor range | >0.99@ Full power (Adjustable range 0.8 lead ~0.8 lag) | |||||
Off grid output | ||||||
Max output power | 4500W | 4500W | 3600W | |||
Rating output voltage | 230V | |||||
Rating output frequency | 50Hz(60Hz Optional) | |||||
UPS switching time | <20 ms | |||||
Total harmonic distortion (linear load) | <3% | |||||
Overload capacity | 110%,30S /120%,10/ 150% 80ms | |||||
Battery | ||||||
Voltage range | 41.6V-58.5V | |||||
Max charging current | 95A(PV&AC Hybrid charging) | 95A(PV&AC Hybrid charging) | 80A(PV&AC Hybrid charging) | |||
Max discharging current | 100A | 100A | 85A | |||
Battery type | Lithium battery / lead-acid battery | |||||
Communication interface | RS485/Can | |||||
Efficiency | ||||||
Max efficiency | 0.98 | |||||
European efficiency | 0.97 | |||||
Max discharge efficiency | 0.95 | |||||
MPPT efficiency | 0.999 | |||||
System | ||||||
IP inclosure | IP65 | |||||
Noise | <35dB | |||||
Ambient temperature | -25℃-60℃ | |||||
Ambient humidity | 0-95% non-condensing | |||||
Altitude | No derating below 2000m | |||||
Shutdown self power consumption | <3W | |||||
Display | LCD | |||||
Communication | RS485/USB/CAN/Wifi(GPRS optional) | |||||
Certification | IEC62109-1，IEC62109-2 EN61000-6-1，EN61000-1-3 VDE-AR-N4105,EN50549,G99,CEI-021,AS/NZS4777.2, RD1699(UNE 206006 IN:2011/UNE 206007-1 IN:2013/UNE 217002:2020) | |||||
Warranty | 5 Years(Standard) | |||||
Mechanical | ||||||
Size L*W*H | 580mm×350mm×230mm | |||||
Install method | Wall mounted | |||||
Weight | 23.5Kg | |||||

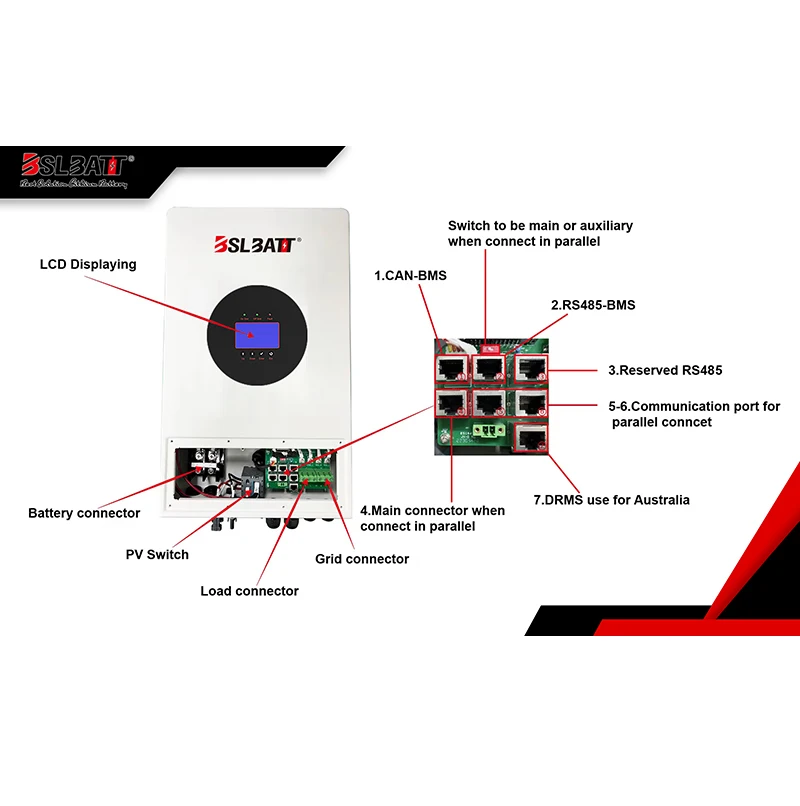

Product Details
Product Features
· Support Wi-Fi for mobile monitoring.
· 48V low voltage battery, transformer isolation topology.
· Max. charging/discharging current of 100A.
· DC couple and AC couple to retrofitexisting solar system
· Power supply can be switched automatically.
· IP65 Protection level.
· 48V low voltage battery, transformer isolation topology.
· Max. charging/discharging current of 100A.
· DC couple and AC couple to retrofitexisting solar system
· Power supply can be switched automatically.
· IP65 Protection level.

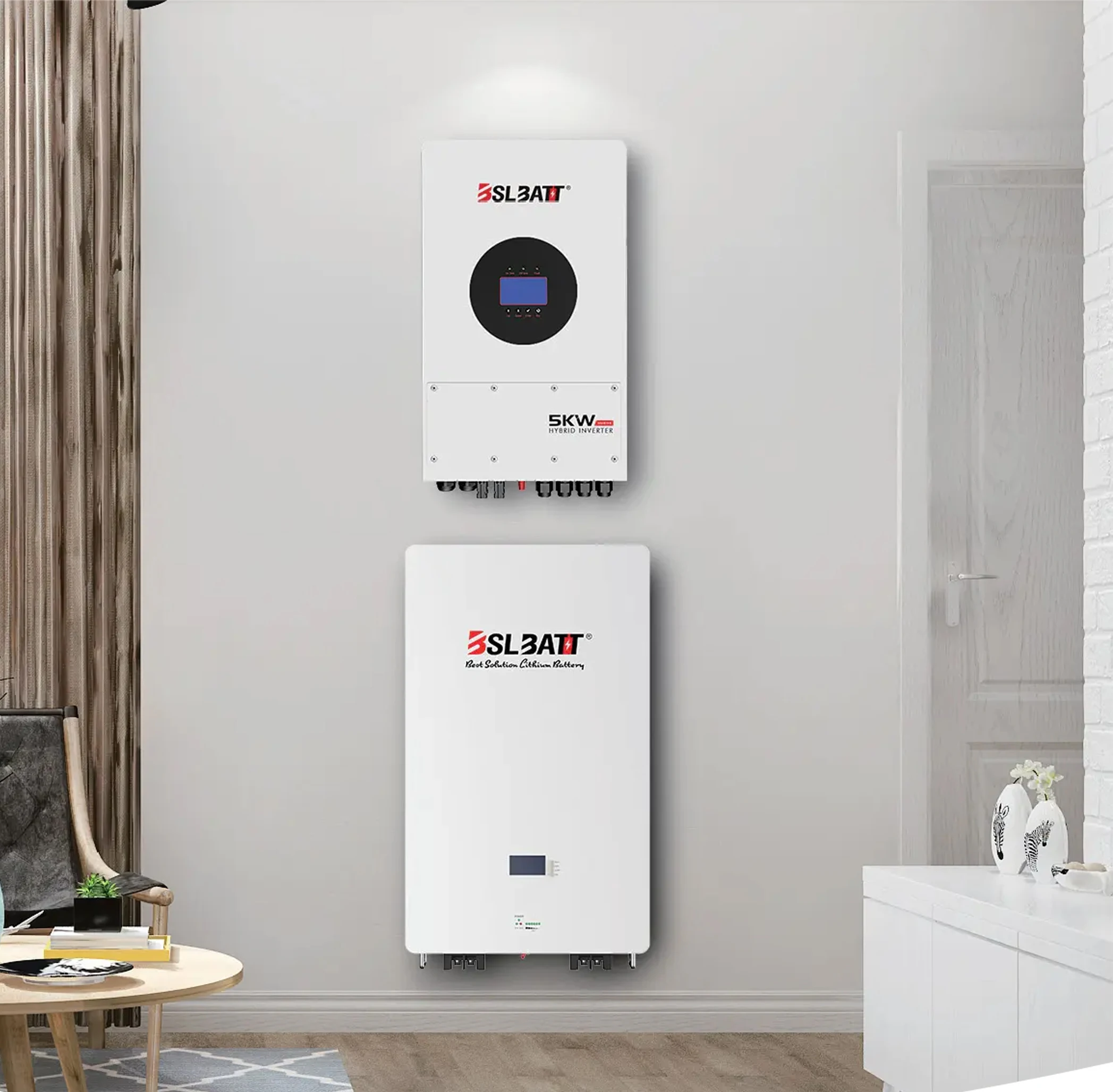

Application Scenarios
Customer Project
Why Choose Us
---Wisdom Industrial Power Co. Ltd is professional for R&D and manufacturing lithium battery systems more than 18 years. In 2003 Wisdom Power develops and produces advanced series “BSLBATT” brand for lithium battery.
---BSLBATT Lithium has an integrated BMS (Battery Management System), which maximizes the performance of the battery by balancing the cells and protecting them from being overcharged or over-discharged.BSLBATT lithium offer at least 5 years warranty as well as provide testing reports to our clients after finishing production.
---Wisdom Power have attained international certifications of ISO9001 and the lithium product has passed CE, CB, UN38.3 and IEC approvals. Our service teams provide 24/7 after sales service and online training for the customers. If you want to get more detail ,please feel free to contact us.
---BSLBATT Lithium has an integrated BMS (Battery Management System), which maximizes the performance of the battery by balancing the cells and protecting them from being overcharged or over-discharged.BSLBATT lithium offer at least 5 years warranty as well as provide testing reports to our clients after finishing production.
---Wisdom Power have attained international certifications of ISO9001 and the lithium product has passed CE, CB, UN38.3 and IEC approvals. Our service teams provide 24/7 after sales service and online training for the customers. If you want to get more detail ,please feel free to contact us.
FAQ
Q1: What is the biggest difference between your battery and other suppliers?
A1: Over 18 Years production experience with this model battery; Battery made of UL UN38.3 MSDS certificated battery cell, PCB structure Battery module, Build in Smart BMS for protection; All cells we adopt are brand new Grade A !other supplier maybe sell seconds on best quality prices.
Q2: Is this product safe?
A2: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance;
Q3. What's the Lead time of the battery?
A3: 3-10 work days; Specific Lead time depend on the quantity and requirement
Q4: Is it OK to print my logo on the product?
A4. Sure. Please inform us formally before our production and confirm the design first based on our sample.
Q5:How to proceed with an order?
A5. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirm the order details and place a deposit for formal order. Fourthly after receiving payment, we will arrange the production asap and keep you updated during the whole business.
A1: Over 18 Years production experience with this model battery; Battery made of UL UN38.3 MSDS certificated battery cell, PCB structure Battery module, Build in Smart BMS for protection; All cells we adopt are brand new Grade A !other supplier maybe sell seconds on best quality prices.
Q2: Is this product safe?
A2: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance;
Q3. What's the Lead time of the battery?
A3: 3-10 work days; Specific Lead time depend on the quantity and requirement
Q4: Is it OK to print my logo on the product?
A4. Sure. Please inform us formally before our production and confirm the design first based on our sample.
Q5:How to proceed with an order?
A5. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirm the order details and place a deposit for formal order. Fourthly after receiving payment, we will arrange the production asap and keep you updated during the whole business.
