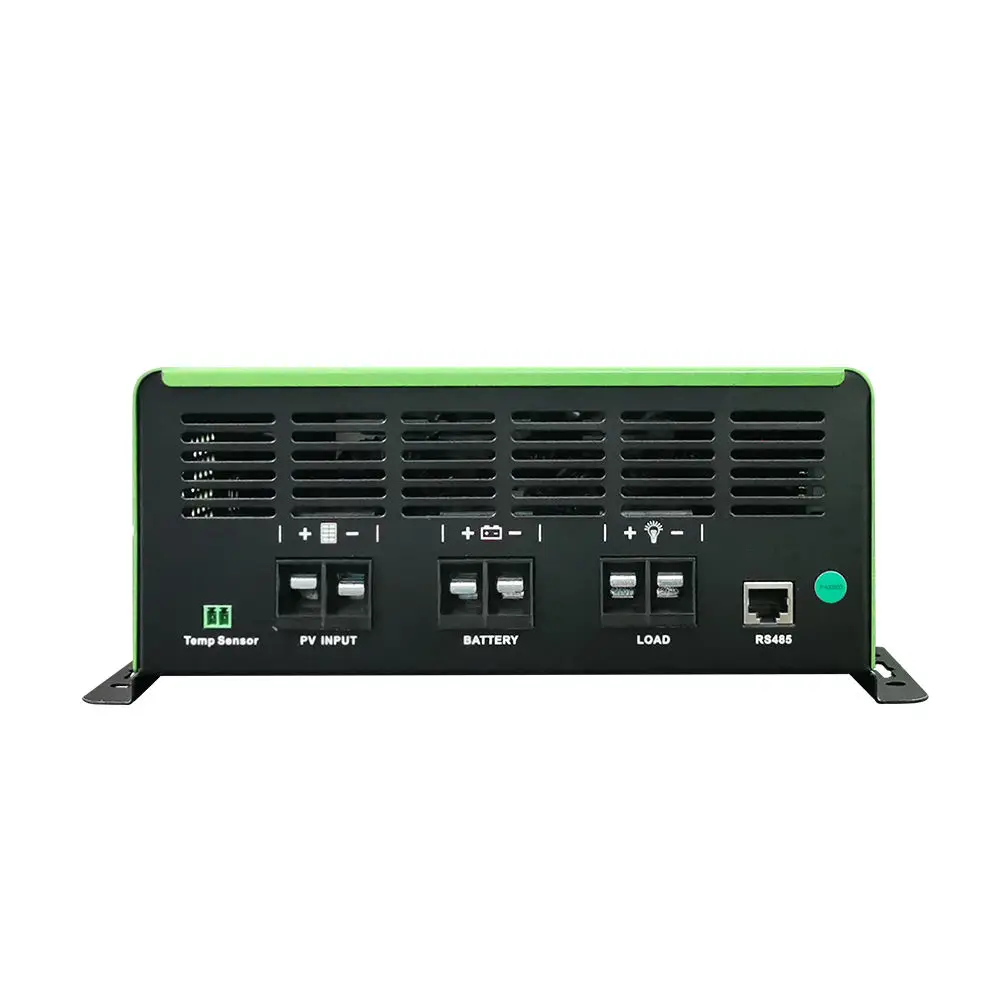

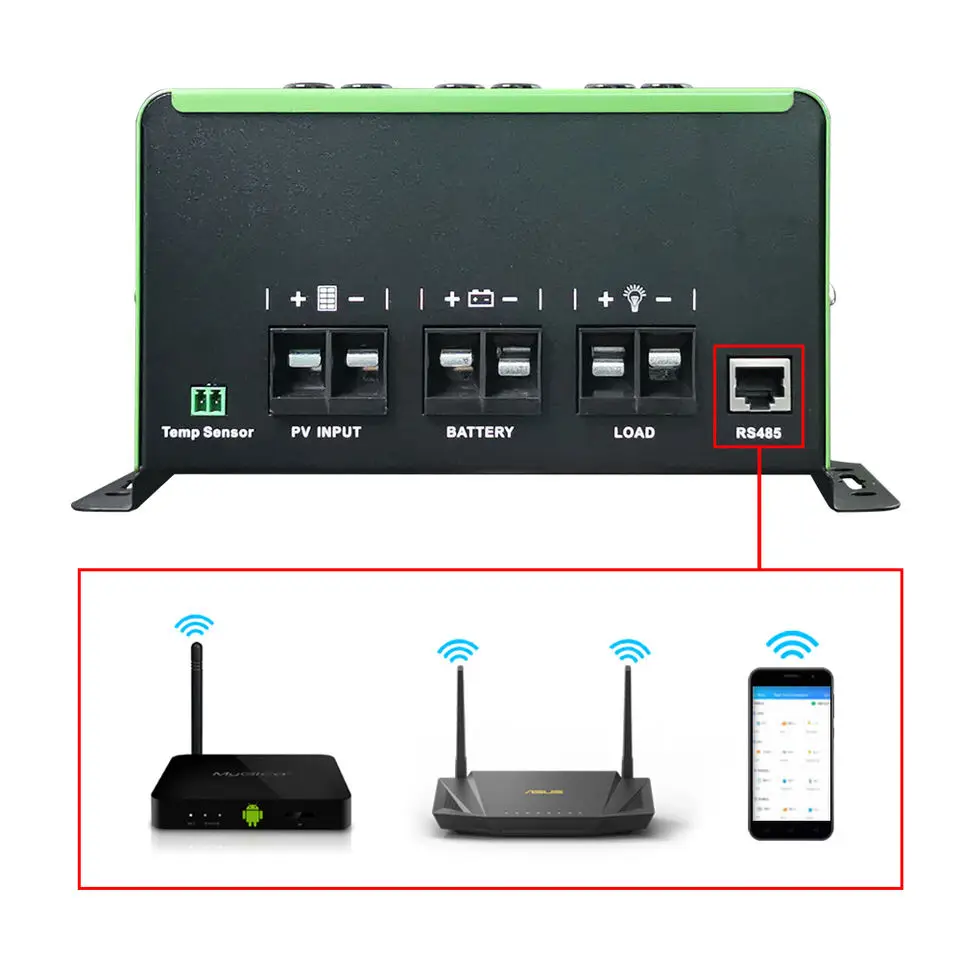

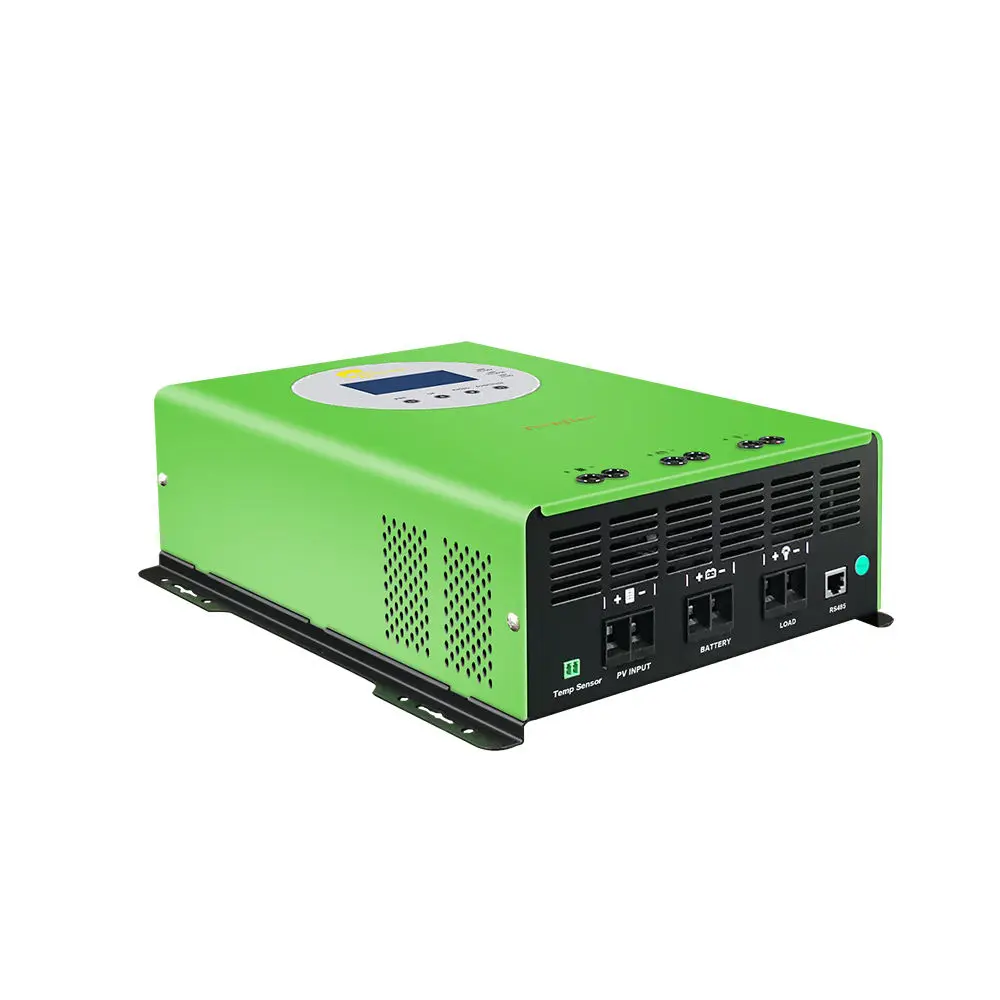

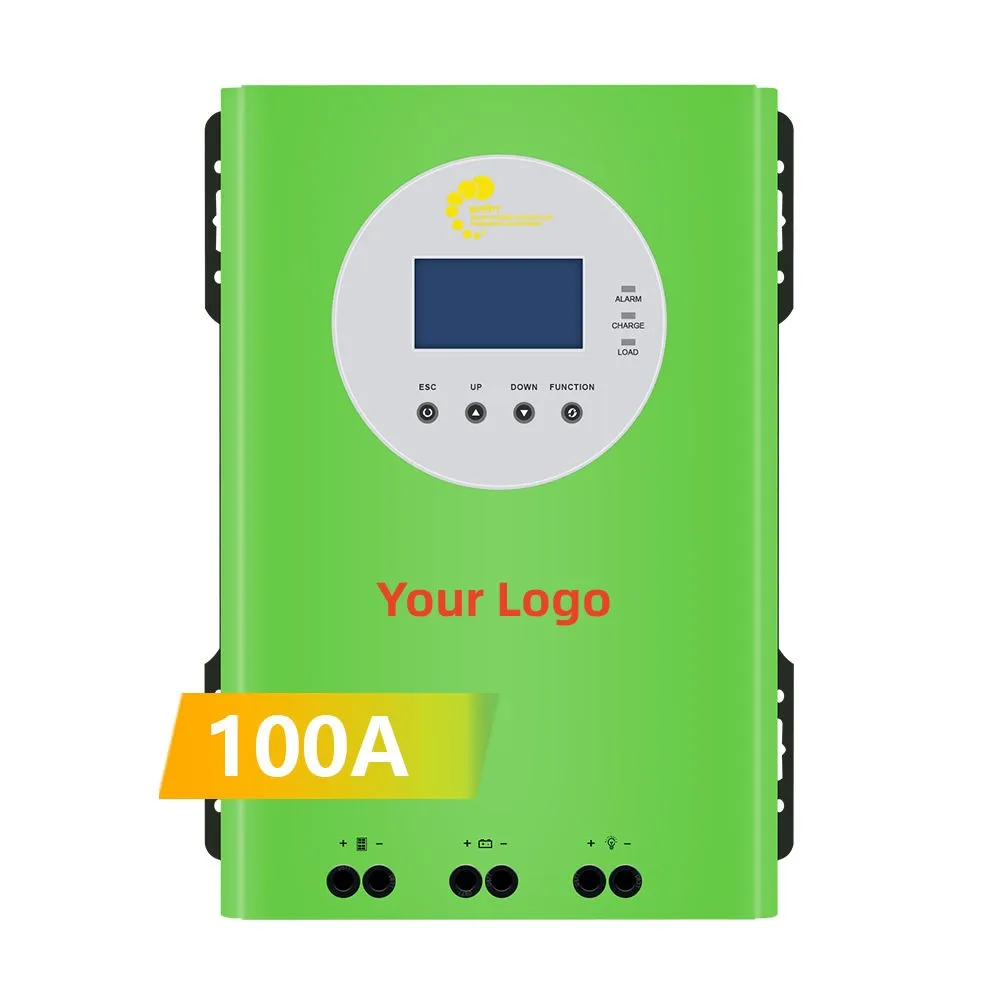

100 Amp Mppt Charge Controller Mppt Wind Solar Hybrid Charge Controller 48v Charge Controller For inverter
100 Amp Mppt Charge Controller Mppt Wind Solar Hybrid Charge Controller 48v Charge Controller For inverter
100 Amp Mppt Charge Controller Mppt Wind Solar Hybrid Charge Controller 48v Charge Controller For inverter
100 Amp Mppt Charge Controller Mppt Wind Solar Hybrid Charge Controller 48v Charge Controller For inverter
100 Amp Mppt Charge Controller Mppt Wind Solar Hybrid Charge Controller 48v Charge Controller For inverter
100 Amp Mppt Charge Controller Mppt Wind Solar Hybrid Charge Controller 48v Charge Controller For inverter
100 Amp Mppt Charge Controller Mppt Wind Solar Hybrid Charge Controller 48v Charge Controller For inverter

100 Amp Mppt Charge Controller Mppt Wind Solar Hybrid Charge Controller 48v Charge Controller For inverter

Share on (1600768626929):


Price:$123.00 - $147.00

Quantity:


Product Overview

Description





Product Name
Solar Charge Controllers 100A 12V 24V 48V MPPT
Item NO.
DPR-ML-100415
Rated Current
100 A
Max PV Power
5200 W
Max PV Voltage
48 V
Charge mode
MPPT Maximum Power Point Tracking
Certificate
CE, RoHS, ISO14001, ISO9001

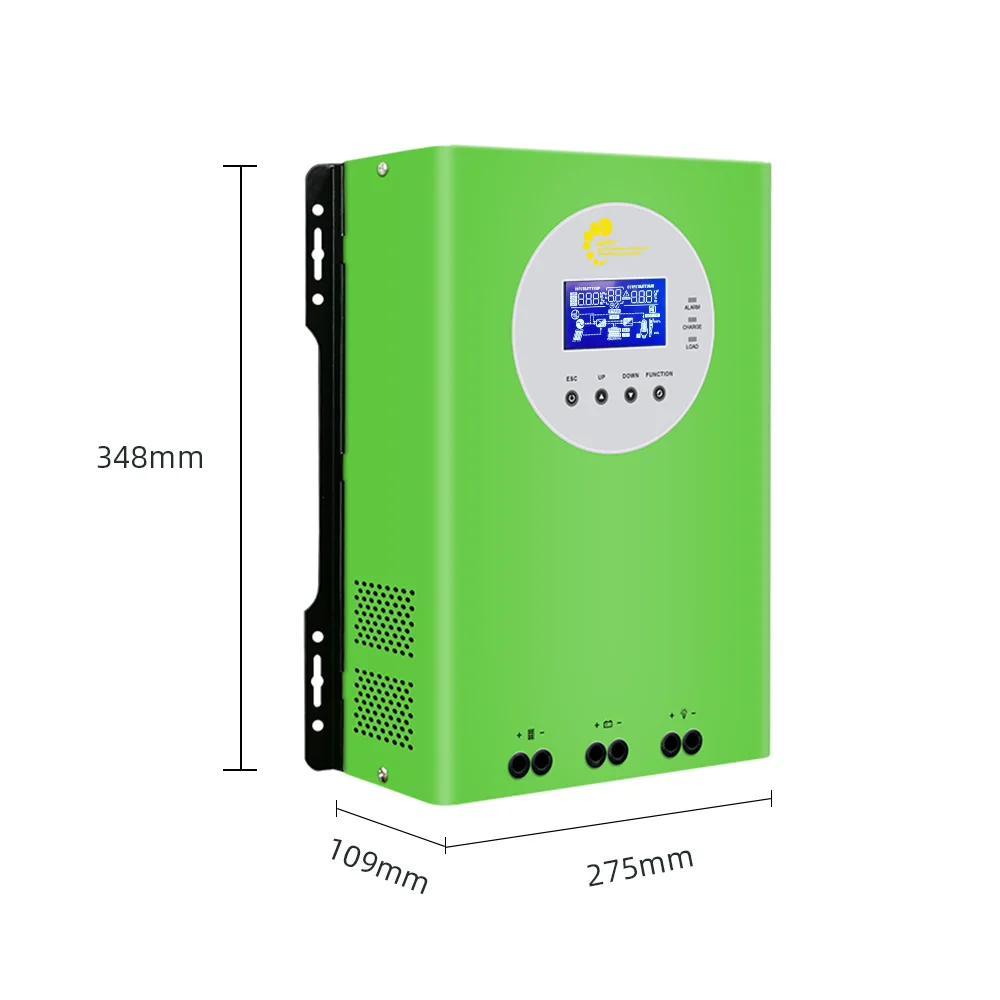

Size
348 x 275 x 109 (mm)


Our Advantages


❤20 YEARS industrial experience with three production bases in China & Malaysia. Owns advanced equipment and instruments and builds Automatic production line.

❤Automatic equipment production: stan dardizied quality、high efficiency production.

❤Three-stage smart charging, Adjustable parameters by pressing buttons, 12V/24V/48V adaptive.

❤Production: High voltage protection,Over load protection,Battery reverse connected protection, Low voltage protection,
Overheating protection, Output short-circuit protection.

❤The maximum utilization rate of solar energy can reach 99%,With super fast charging algorithm, efficiency increased by 30%

❤ Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.


Product Description




Product Paramenters


Model
40A
60A
80A
100A
System voltage
12V/24V/36V/48V(Adaptive)
Nominal current
40A
60A
80A
100A
Charging mode
MPPT maximum power point tracking
Applicable battery type
Sealed lead acid battery, GEL lead acid battery, open lead acid battery (can also customize parameters for other types of battery
charging
Charging method
Three stages: constant current, constant voltage, floating charge
PV input maximum open circuit voltage (VOC)
DC150V
Starting time
≤10s
Dynamic response recovery time
≤500us
Static power
≤1W
≤1.2W
Overall efficiency
≥98.5%
≥99.5%
System identified voltage
12V
8～16V
24V
17～30V
36V
30～42V
48V
42～64V
Photovoltaic input voltage
12V
17～150V
24V
30～150V
36V
41～150V
48V
53～150V
Solar panel rated input power
12V
540W
800W
1040W
1300W
24V
1080W
1600W
2080W
2600W
36V
1620W
2400W
3240W
3900W
48V
2160W
3200W
4160W
5200W
Load voltage
Same as the battery voltage
Nominal load current
40A
60A
80A
100A
Load control method
Normally on&off mode
Load undervoltage protection
10.5V*N（N stands for batteries number）Parameters can be adjustable
Display
HD LCD backlight display
Protections
Input and output over-voltage protection, input and output anti-reverse protection, over-temperature protection, load over-current
protection
Working temperature
▬20℃～+50℃
Storage temperature
▬40℃～+70℃
Accoustic Noise(db)
≤50dB
Humidity
0～90%RH
orking altitude
0～3000M
Dimension, L×W×H
180*300*110mm
440*325*120mm
Net Weight（KG）
4.3KG
9.46KG

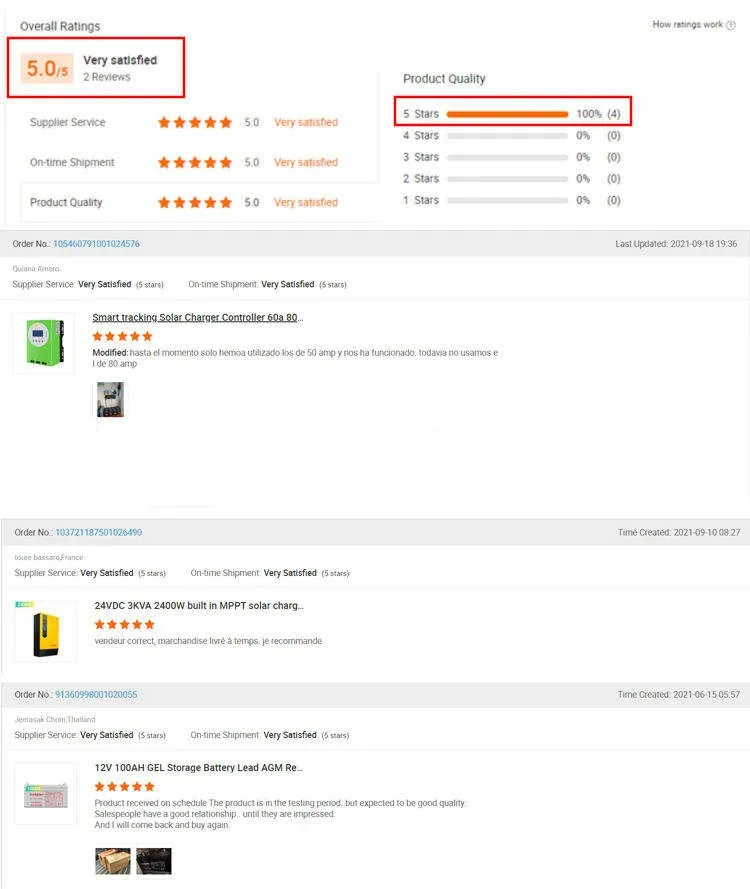

POSTIVE FEEDBACK FROM CLIENTS




Delivery and Logistics








More Products

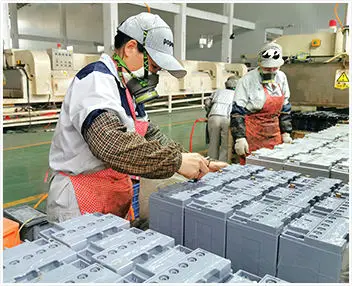

Company Profile






Hebei Depurui Import and Export Co.,Ltd is located in ShiJiazhuang City, Hebei Province, China. We are manufacturer of new energy Products: Air source heating and cooling system, Solar Energy Products ( Solar Panels, Solar Inverter, Solar Controller,etc); Wind Power Products (Wind Turbine, Inverter, Controller, etc.) and Energy Storage System (Portable Power Station). New energy has the advantages of cleaning, Environmental friendly, non -pollution, wide distribution, and large reserves. With the continuous progress and development of society, new energy products have been widely recognized by the world. We provide our customers with safe and reliable products, accurate energy-saving system solutions, and make unremitting efforts to improve and protect the human ecological environment.




EXHIBITION




FAQ




Q1: Why you should choose us?
---More than 20 years MPPT factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time ---Sincerely services

Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one

Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series MPPT pass different labor testing according to different countries’ requirements.

Q4: Delivery time:
---Standard products could be delivered within 15 days;

Q5. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q6. Do you have any MOQ?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q7. Do you support OEM?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
