YOKOGAWA Built in Temperature Sensor Type Vortex Flowmeters VY series
- Category: >>>
- Supplier: Zhejiang Hongrun Measurement And Control Technology Co. Ltd.
Share on (1600768677445):
Product Overview
Description
Product Description

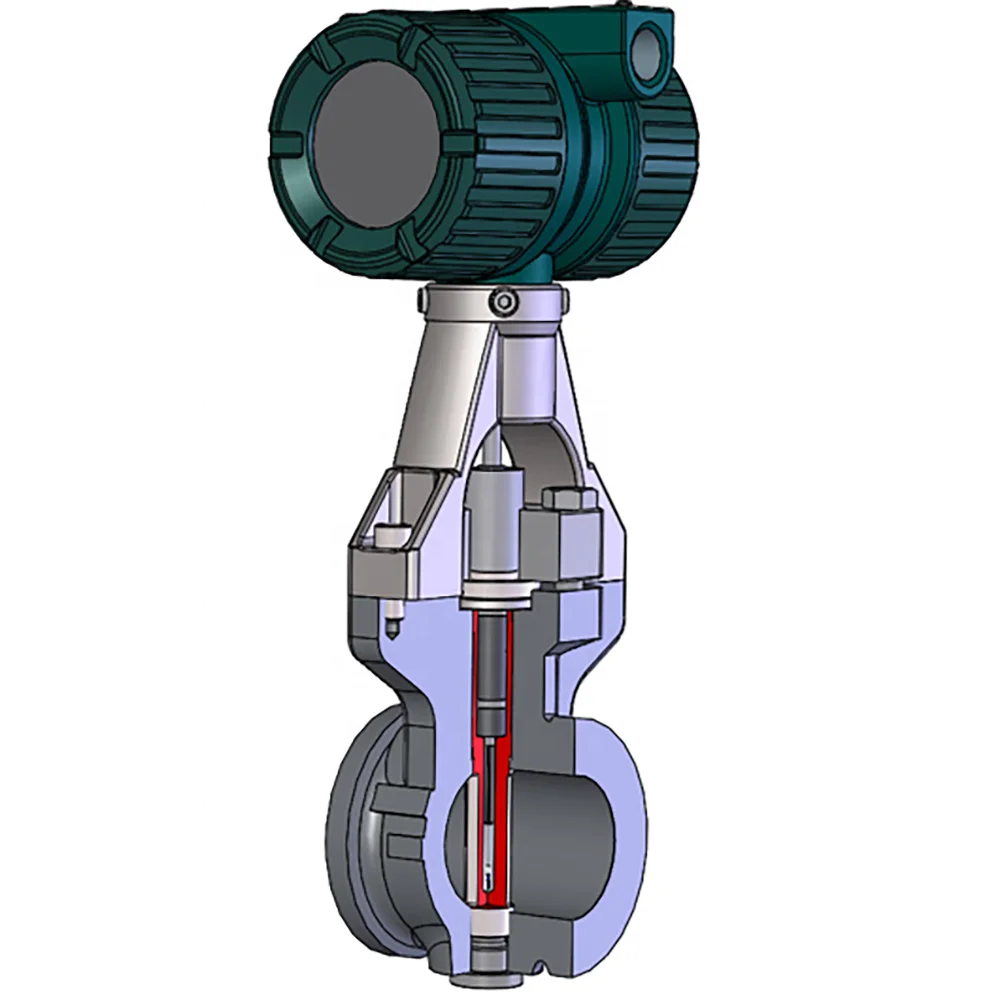

This type is a flowmeter with a built-in temperature sensor (Pt1000) in the shedder bar (vortex generator), and can measure the process fluid temperature at the same time. Size is from 25 mm to 300 mm. It can be combined with the High Temperature Type and Reduced Bore Type. It covers a wide range of fluid measurement. The measured temperature can be used for temperature compensation. In addition, combination with analog input signal (eg. pressure...) supports more accurate flow measurement.
Specification
item | value |
Warranty | 1 year |
Customized support | OEM, ODM |
Place of Origin | Japan |
Brand Name | YOKOGAWA |
Model Number | Built-in Temperature Sensor Type Vortex Flowmeters |
Accuracy | ±0.75 % (liquid), ±1 % (gas, steam) |
Process Temperature | -40 °C to 250 °C |
Ambient Temperature | -40 ( / -50 ) °C to 85 °C |
Wafer Connection Size | From 25 to 100 mm |
Flange Connection Size | From 25 to 300 mm |
Max Process Pressure | ASME Class 900, EN PN40, JIS 40K |
