Electric Motor Testing Machine Stator Tester Stator Coil Winding Tesing Machine With the touch screen

Alternator Stator testing machine

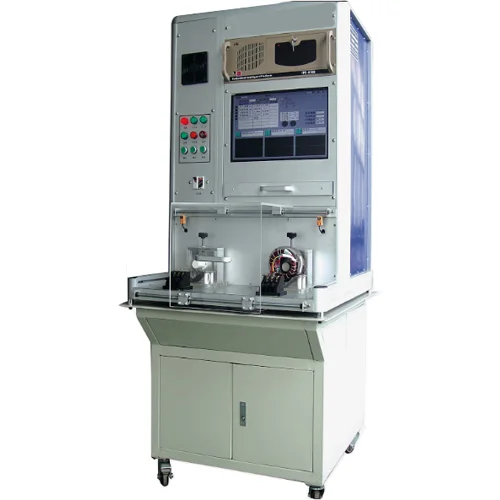

ND-STA-856A Stator testing panel

1. Technical data

(1) Dielectric strength test(Hi-pot)

Testing range: 500~2800V AC 50Hz   1~60s

Voltage precision: +/-2.5%

Current range: 0.1~10mA

Current precision: +/-1%

Alarm setting: settable within the range

(2) Insulation resistance test

Testing range: DC500V

Resistance range: 10MΩ~500MΩ

Precision: ±3%

Alarm setting: settable within the range

(3) Cold resistance test (ambient temperature capture by machine automatically)

Testing range: test A. B. C. resistance individually and invert to resistance value under standard temperature fast. Standard temperature is 20℃ (User could set it by them)

Testing range: 0~1Ω~100Ω (according to sampling motor)

Testing precision: +/-0.5%

Threshold value: settable within the range

(4) Surge test

Surge voltage peak value: 500~2800v main phase, aux phase, main/aux phase breaking individually

Voltage precision of surge peak value:  +/-3%

Surge rising time: 1.2μs

Identification way  Δs/s  Δf/f

Threshold setting: settable within  1~100

(5) Running direction testing

2. Application

This testing panel is suitable for air conditioner motor, washing machine motor, servo motor, stepping motor and other ironclad stator.

3. Machine main function and characteristic

All the test items are done automatically at one time

Two work station, high efficient.

Production capacity ≤8s/set (exclude loading/unloading time)

Testing item could be select as per requirement, approval criteria could be automatic generated by sampling.

Ambient temperature compensation automatically

Alarm for NG part.

Testing data could be save, transfer and printed.
