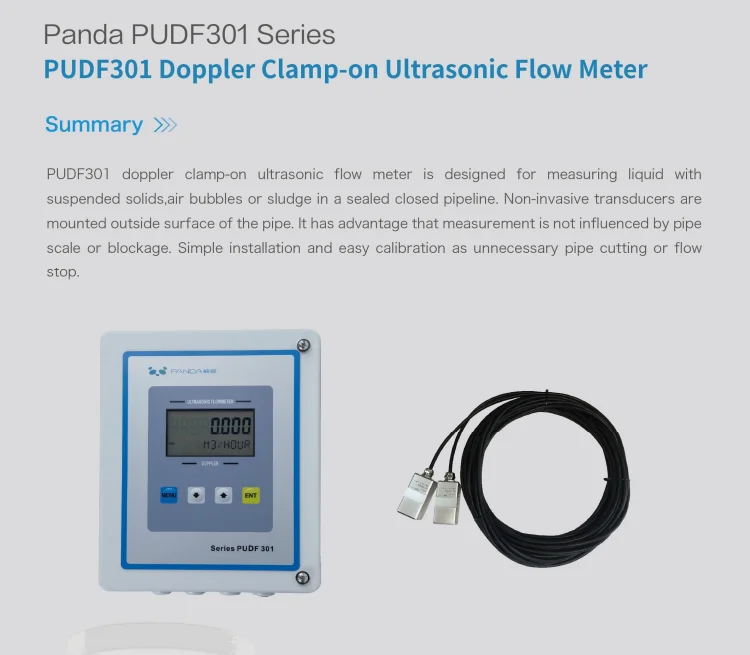

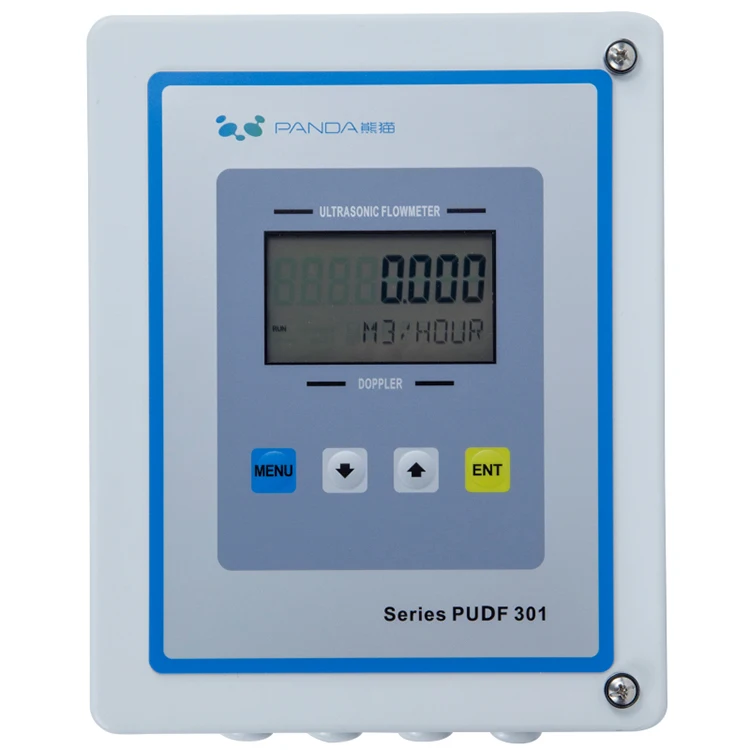

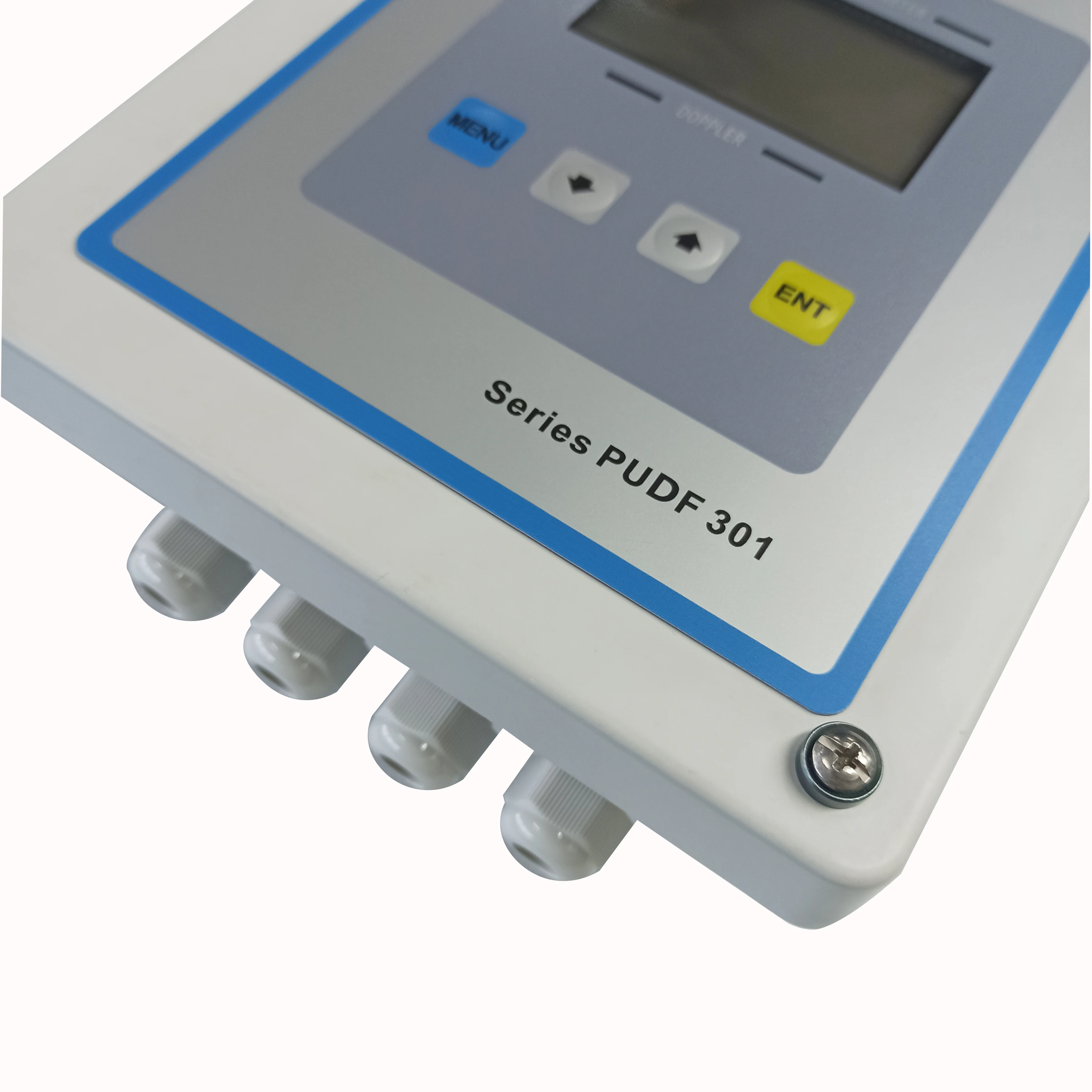

Doppler Ultrasonic PUDF 301 or 305 Clamp on Doppler Ultrasonic Flow MeterRS485/Pulse/Relay/Data Storage Wall
- Category: >>>
- Supplier: Shanghai Panda Machinery (group) Co. Ltd.
Share on (1600768737816):
Product Overview
Description
Product Description
Details
Features
- Non-invasive Installation,Unnecessary pipe cutting or flow interruption;
- Measuring Accuracy± 0.5% ~±2%F.S;
- Signal Automatic Gain Adjustment;
- Anti-interference Frequency Converter;
- Simple Operation,Only Input Inner Diameter To Realize Flow Measurement;
- 2*8 LCD Display Flow Rate,Volume,Velocity etc.

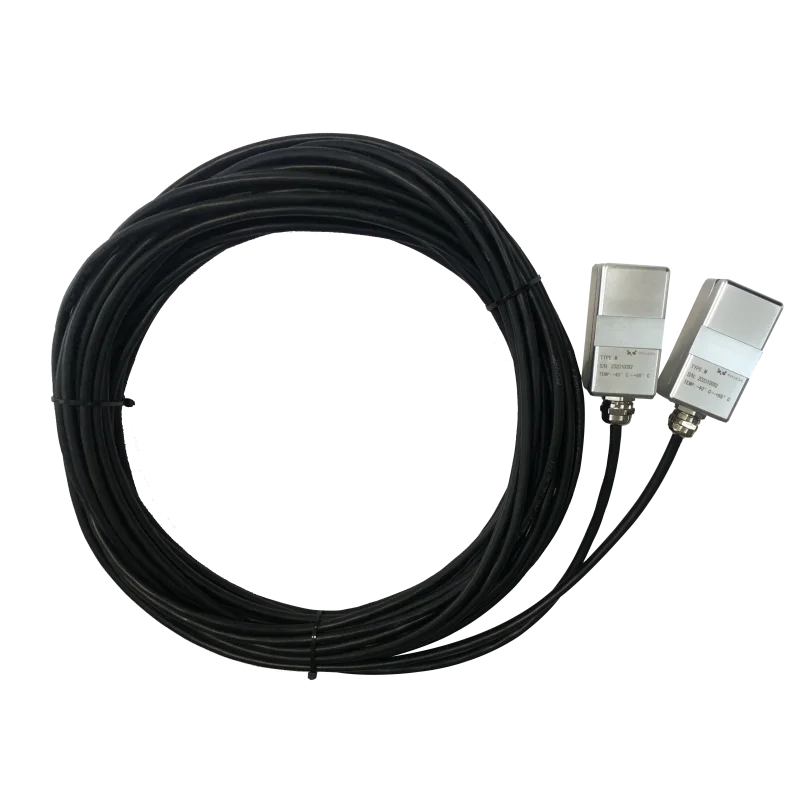

Transducer
Protection Class | IP67 |
Fluid Temperature | Std. transducer : -40℃~85℃(Max.120℃) |
High Temp : -40℃~260℃ | |
Pipe Size | 40mm~6000mm |
Transducer Type | General standard |
Transducer Material | Std. Aluminum alloy, High Temp.(PEEK) |
Cable Length | Std. 10m (customized) |
