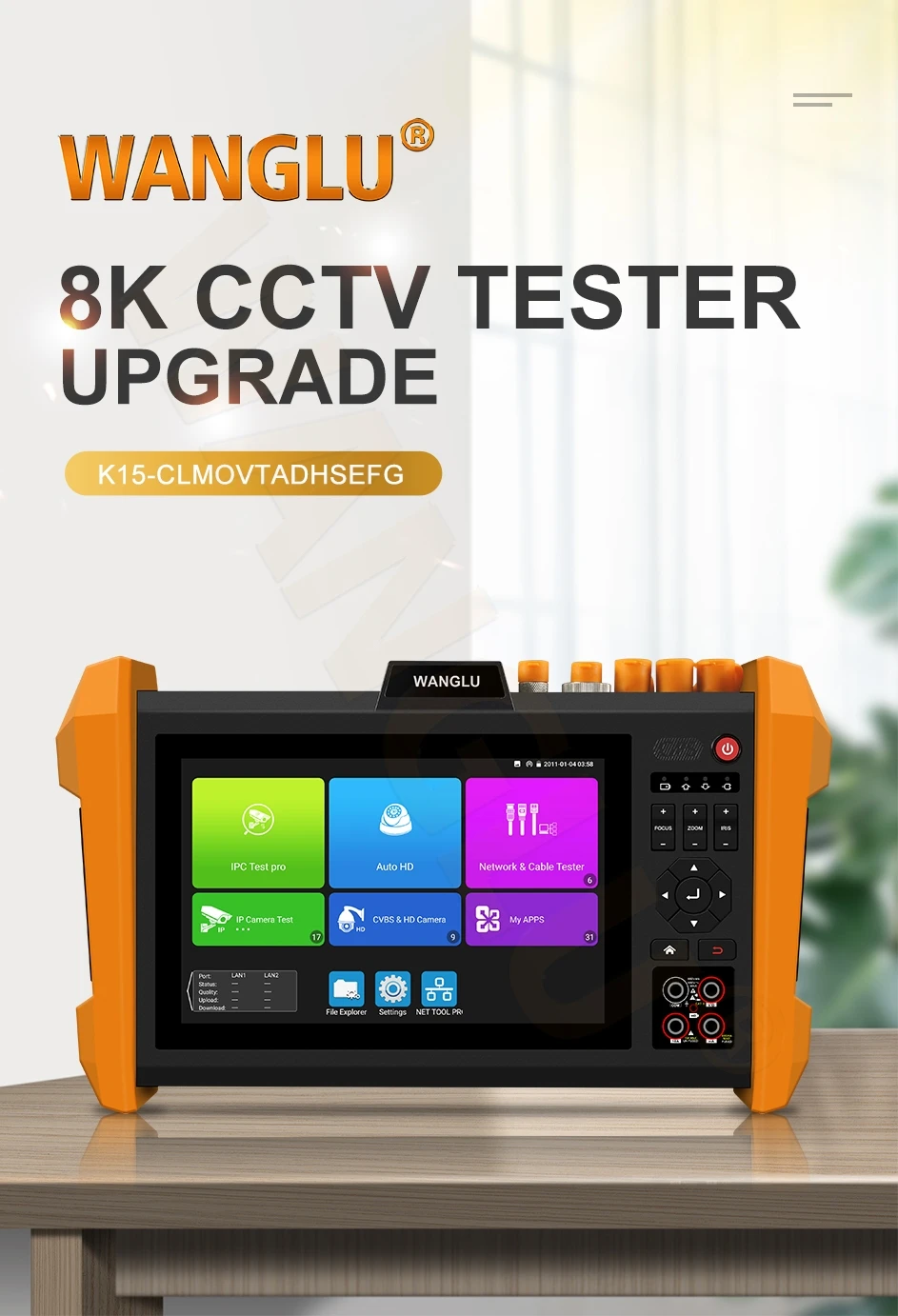

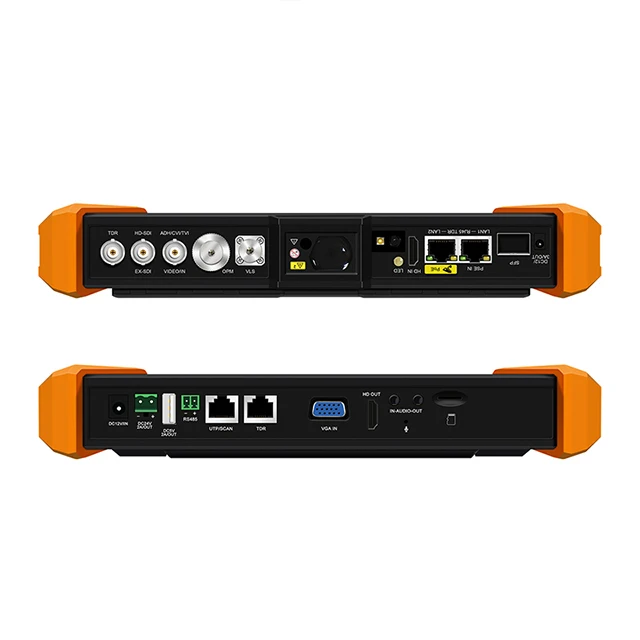

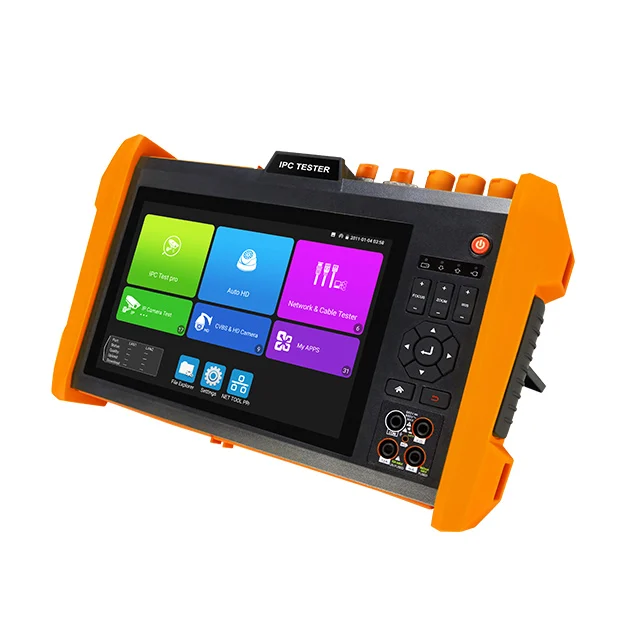

New Android system 7 inch Retina Touch screen Full 4K CVI TVI AHD IP Analog all in one IPC CCTV WIFI camera battery tester

Product Overview

Description

WANGLU 7 inch IP AHD TVI CVI Analog CCTV tester HD Input/Output, VGA input

7 inch IPS touch screen, 1280*800 resolution



Model : K15-ADH

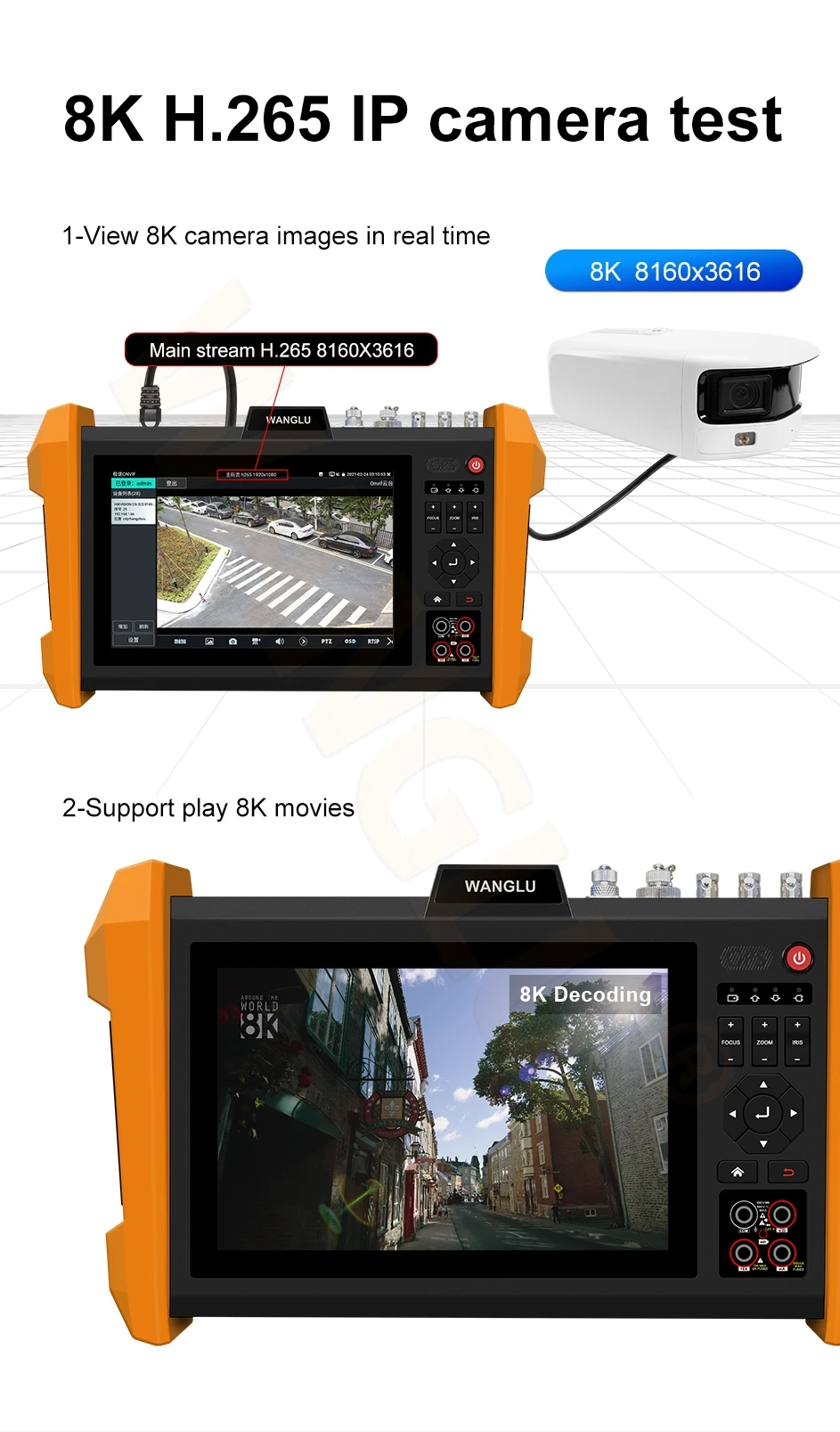

8K H.265, 8MP TVI, 8MP CVI, 8MP AHD IP Camera Tester



Features

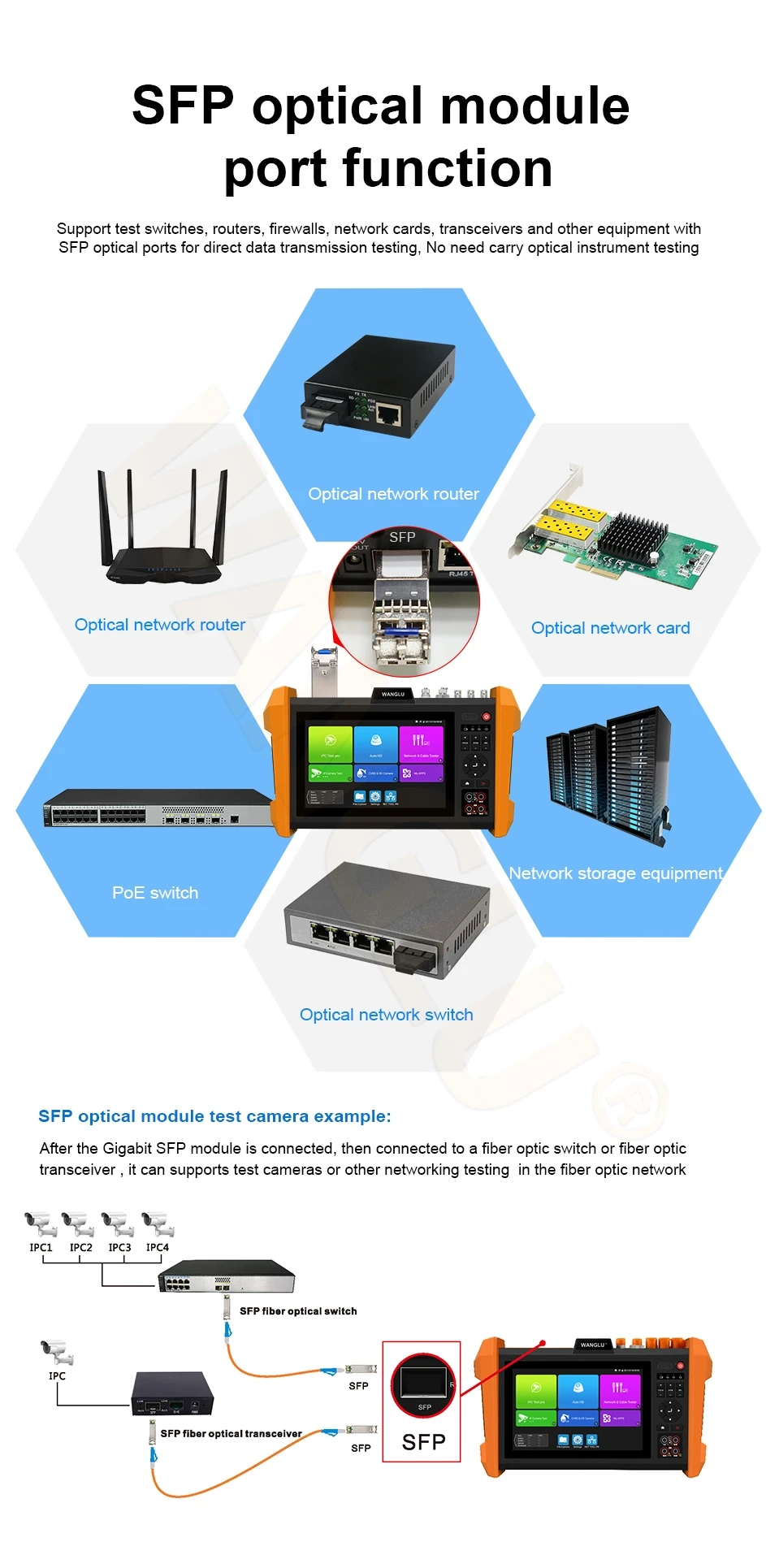

Optical fiber network test / Fiber test:

— NEW ONE Gigabit SFP port, support insert SFP optical fiber module, for optical fiber network testing

Camera test:

— 7 inch IPS touch screen, 1280*800 resolution

— H.265 & H .264 IP, 4K video display via mainstream

— Support TVI5.0 audio test

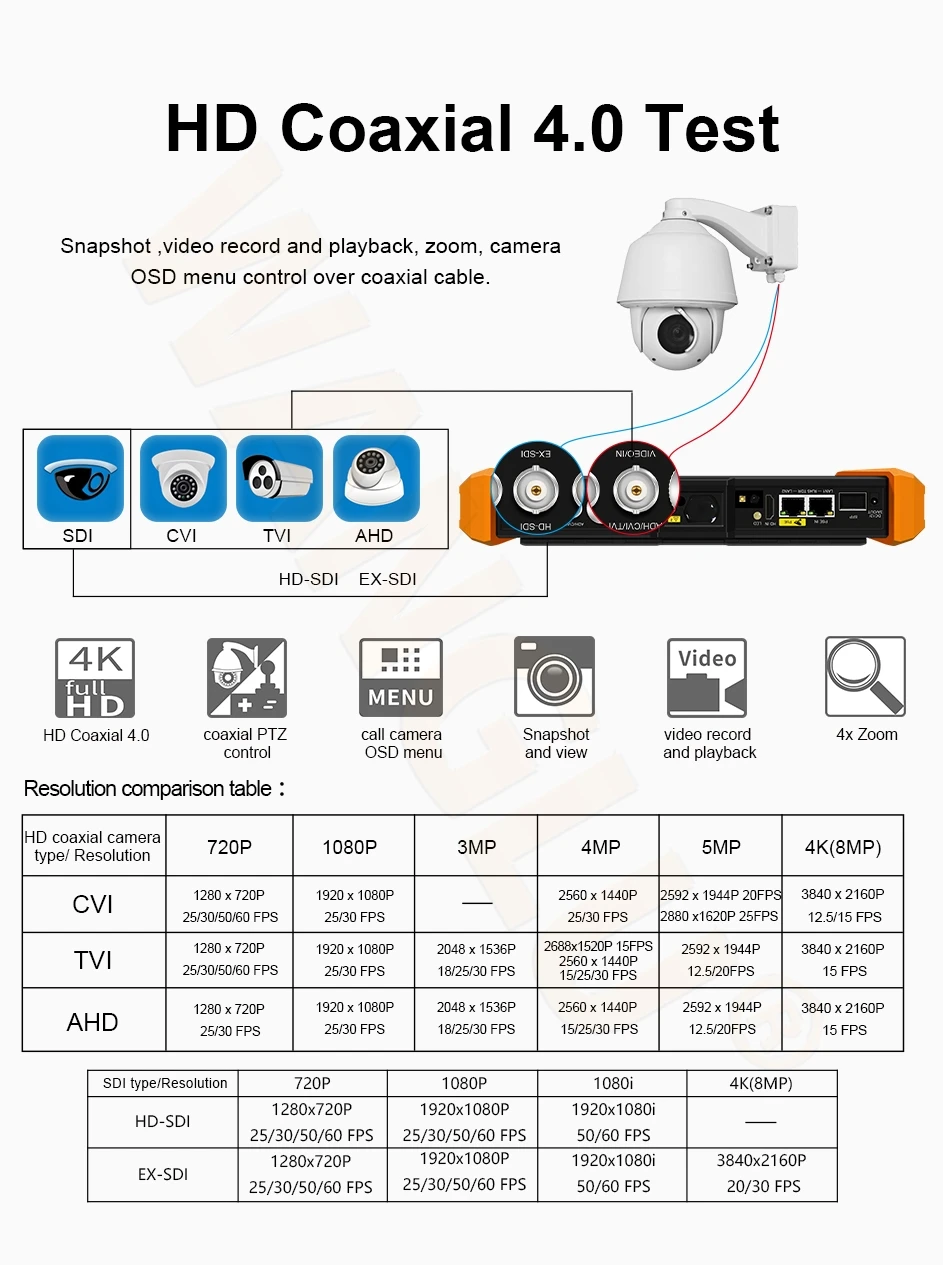

— TVI 5.0 test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu

— 8MP AHD test, 3840 x 2160P 15 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu

— 8MP CVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

— Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu

— HD Input, up to 4K 30FPS, and support snapshot, video record & playback

— NEW Rapid ONVIF, Auto log in and display image, one-key create testing report, including camera IP address, resolution, encoding and other related information; support cross-network segment test; audio and video synchronization test; face recognition and other functions

— Enter ONVIF app, input username and password to test

— CVBS camera test and PTZ control

— DC12V/3A power output, DC24V 2A power output

— DC5V 2A power output, can connect USB camera, USB and Mouse, as power bank

— 48V PoE power output power, max power 25.5W

— Rapid video, just by one key to detect all network cameras and auto display

— Built in Wi-Fi Analysis, support 2.4G/5G frequency band, can test Wi-Fi camera, create Wi-Fi hotspot

Cable test:

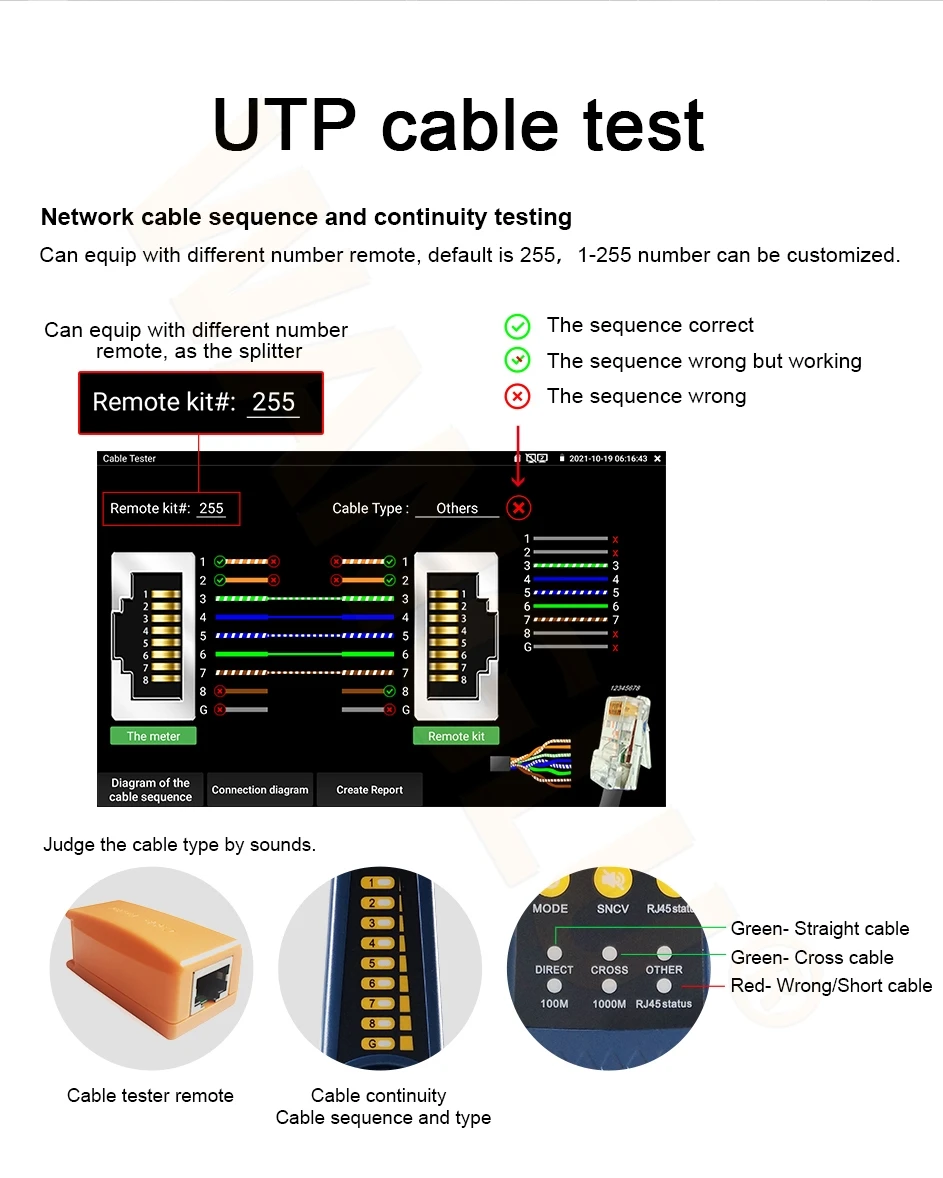

— Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized,and detect near-end, mid-end and far-end fault test of RJ45 cable plug

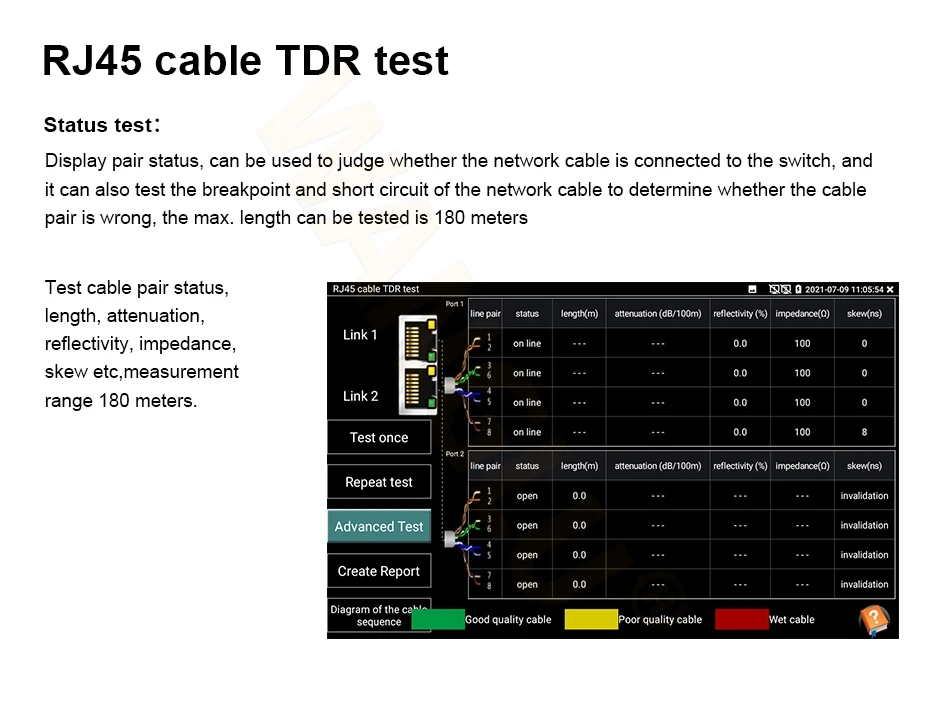

— RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

Other functions:

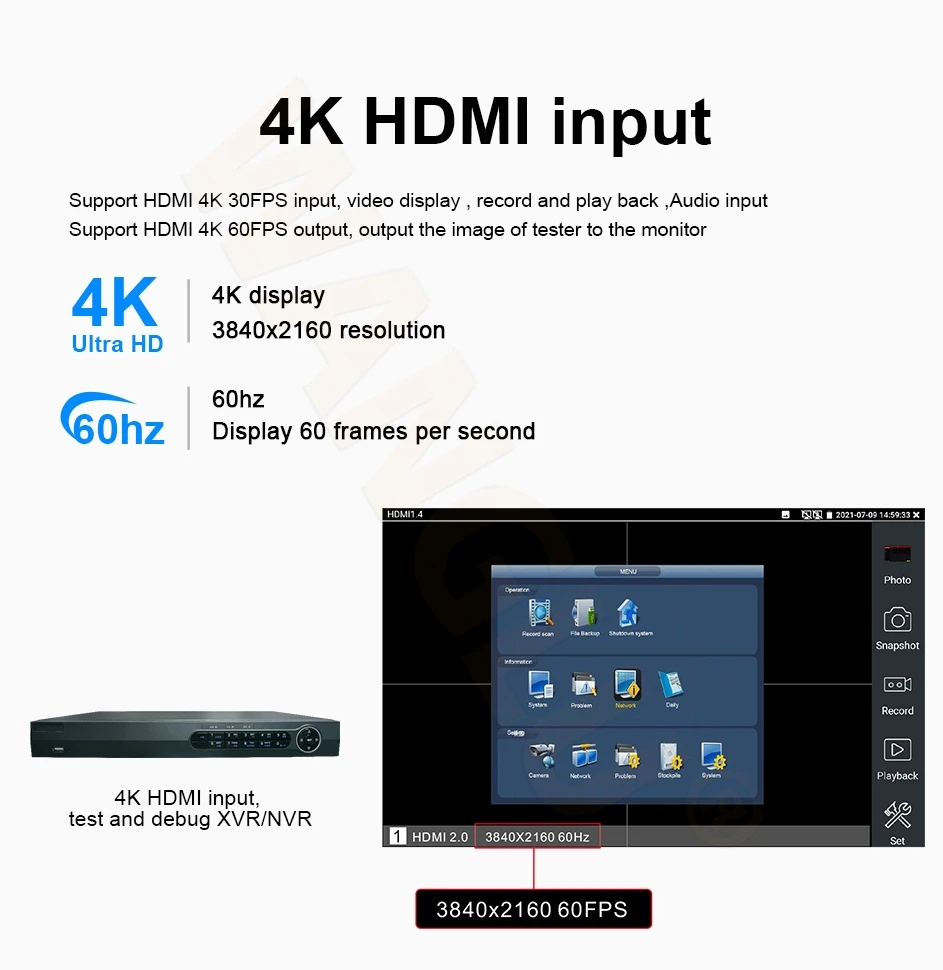

— HD Input support 4K 30FPS, HD output support 4K 60FPS

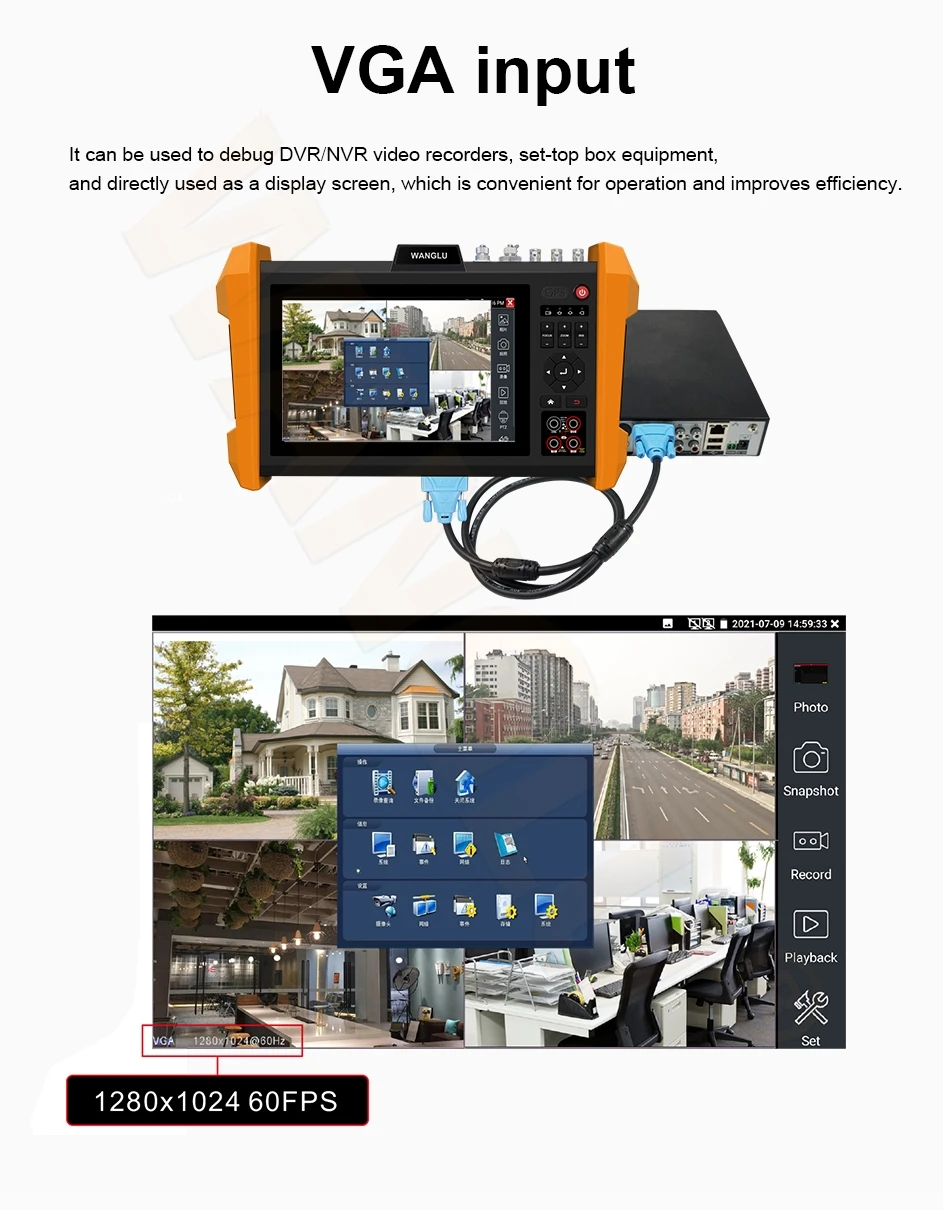

— 2K 60FPS VGA input

— Professional WIFI Analyzer, detect the surrounding wifi signal and signal strength

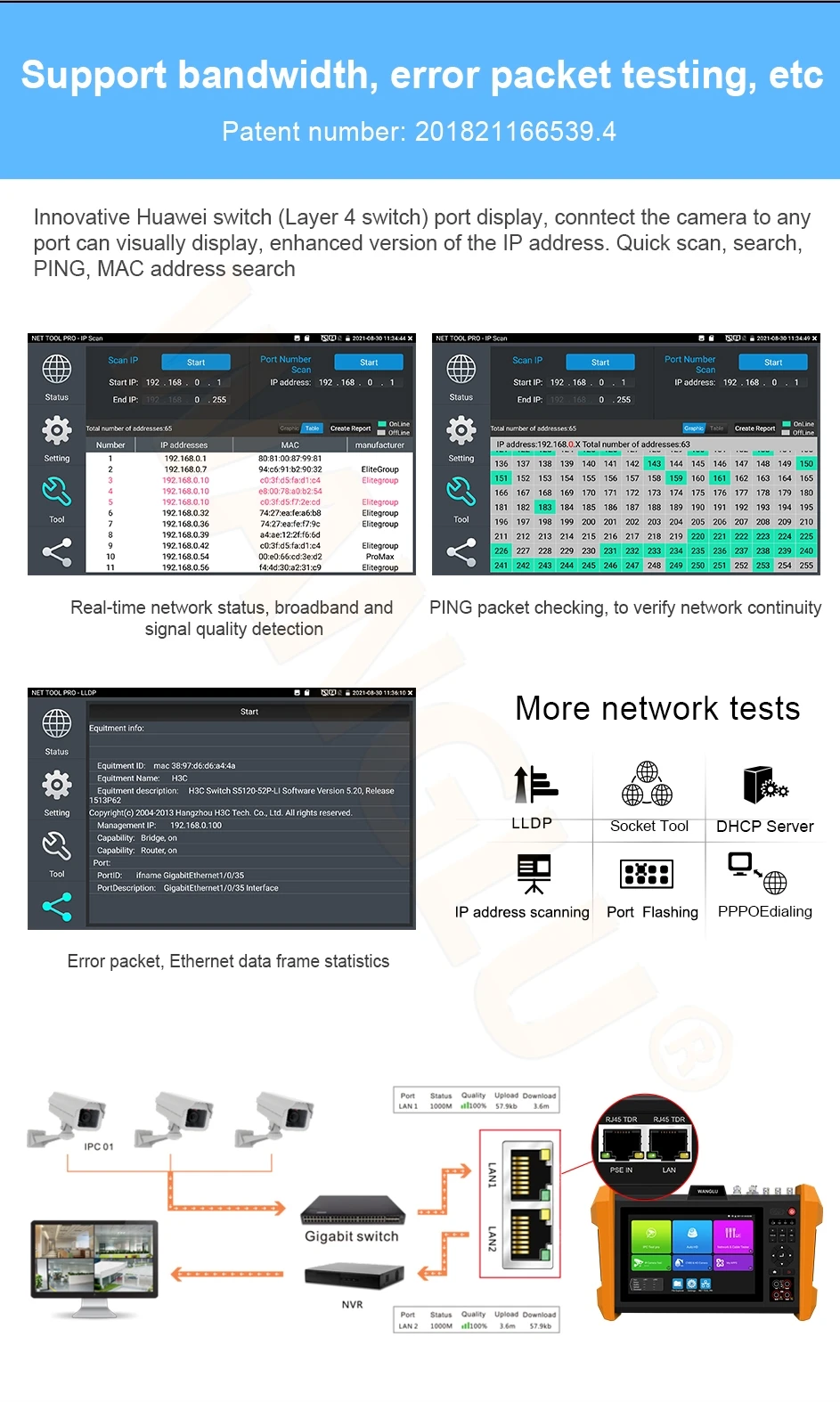

— Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

— POE & power information, DC12V& PoE power and voltage output /input measurement

— Tester Play: Tester, android version mobile phone and PC display at the same time

— Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc

— Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

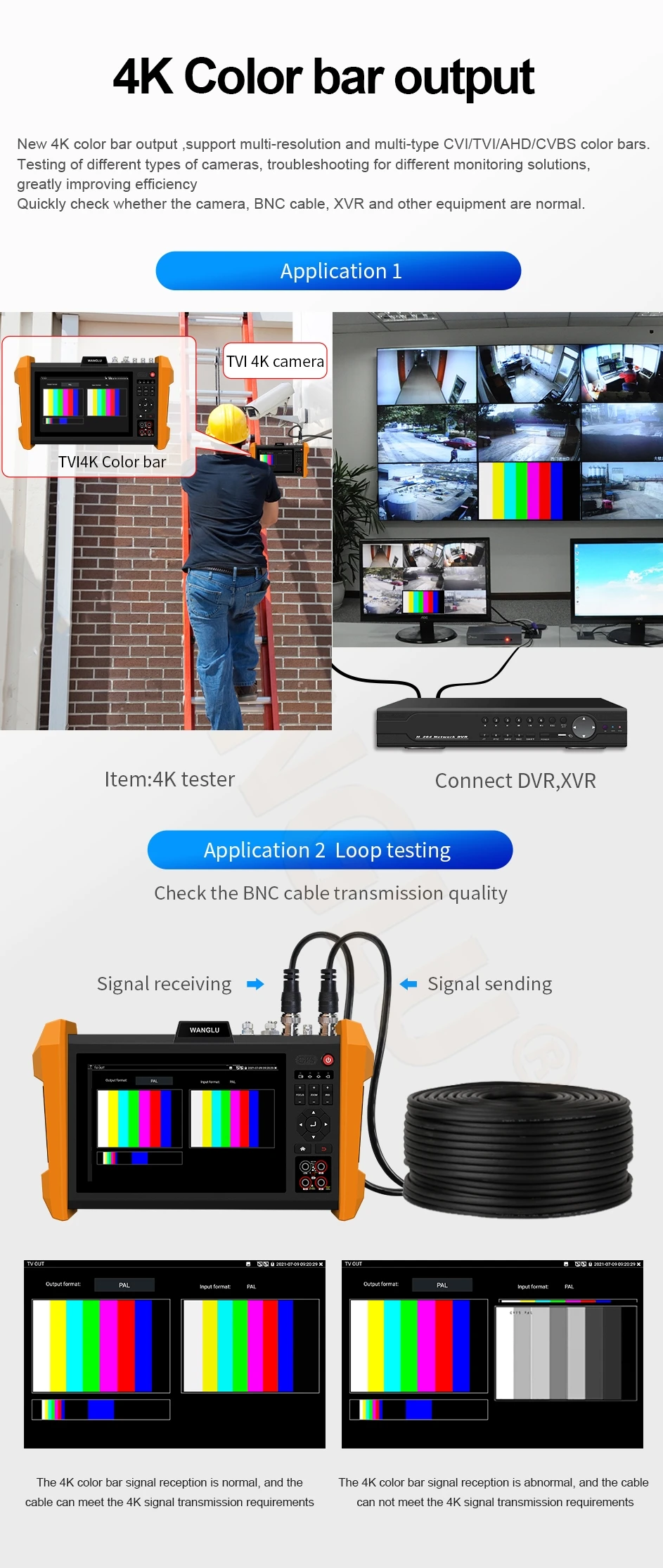

— 4K color bar generator, send CVI/TVI/AHD/CVBS color bar video signal for testing monitor or video cable, support 4K resolution

— Self-update software, you can install apps with android version

— Media player, 4K video files and MKV/MP4 media files play

— Quick office, quick office app (support excel, word, ppt format) doc. editable

— 8GB TFT card included

— Display its genuine resolution of the IP camera images

— Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

— 7.6 V /7800mAh Lithium Ion Polymer Battery, after 3.5 hours charging, working time lasts 16 hours

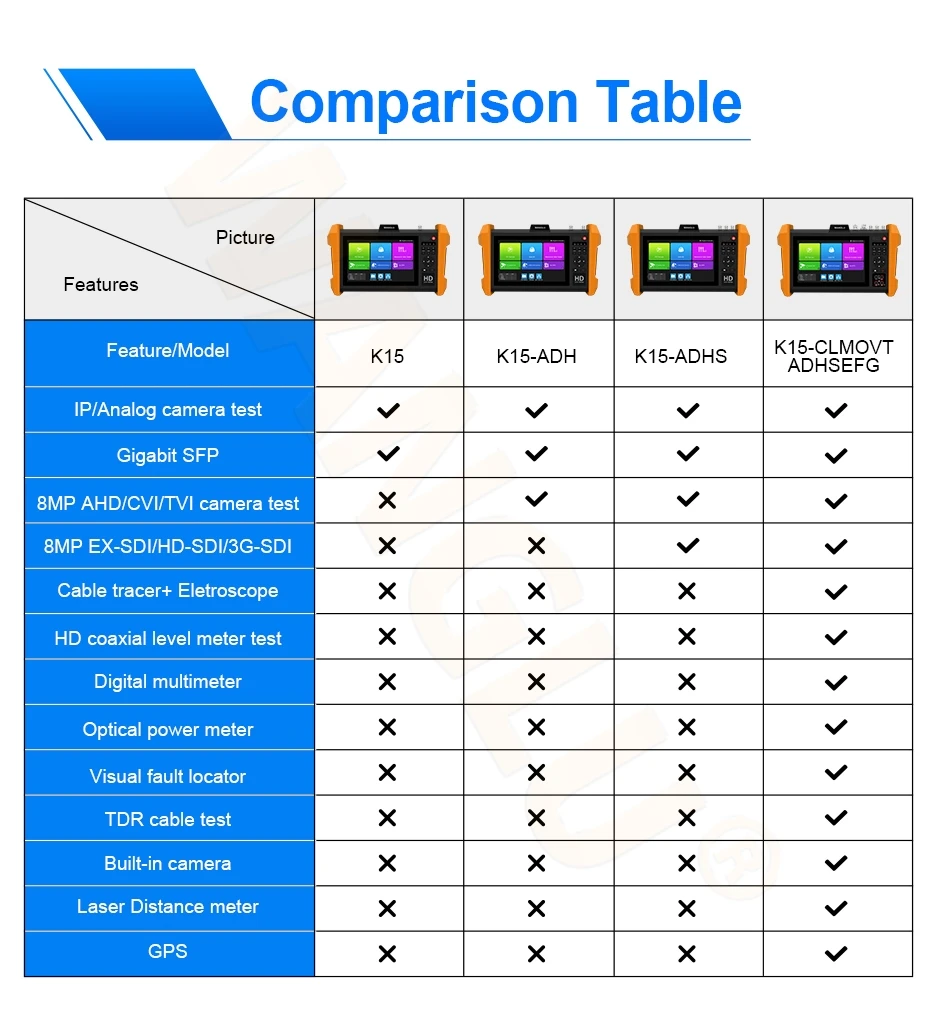

Below are optional functions
M	Digital Multimeter: DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement
O	Optical power meter, Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range , -70 ~+10 dBm, for optical power testing and Fiber link loss relative measurement
V	Visual fault locator :10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10KM
T	TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM
A	AHD camera test: 8MP AHD test, 3840 x 2160P 15FPS, UTC control & call OSD menu
H	TVI camera test: 8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control &call OSD menu
D	CVI camera test: 8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu
S	HD-SDI/EX-SDI/3G-SDI camera test: 8MP EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu
L	Video level meter: PEAK, SYNC signal level, color burst chroma level measurement

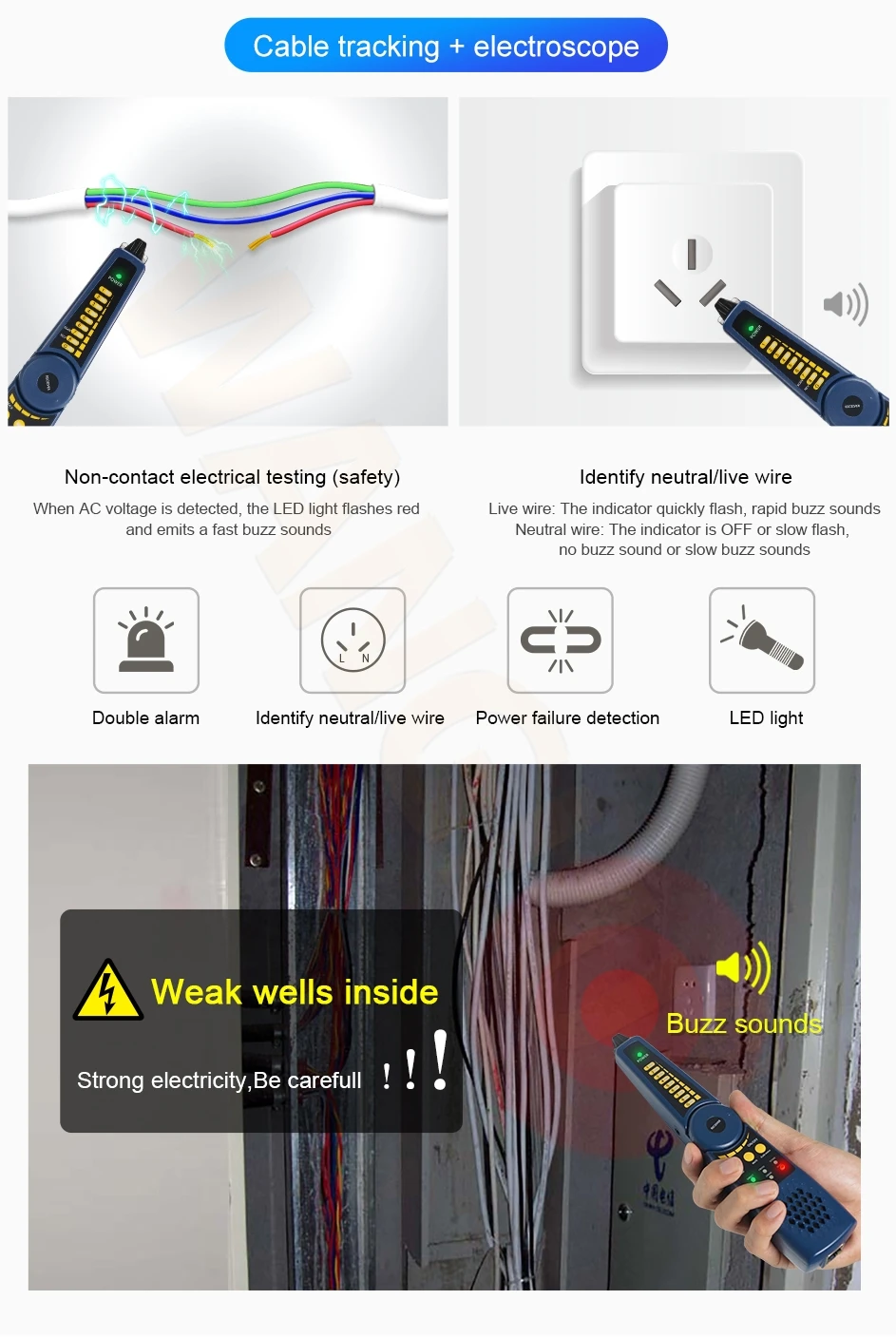

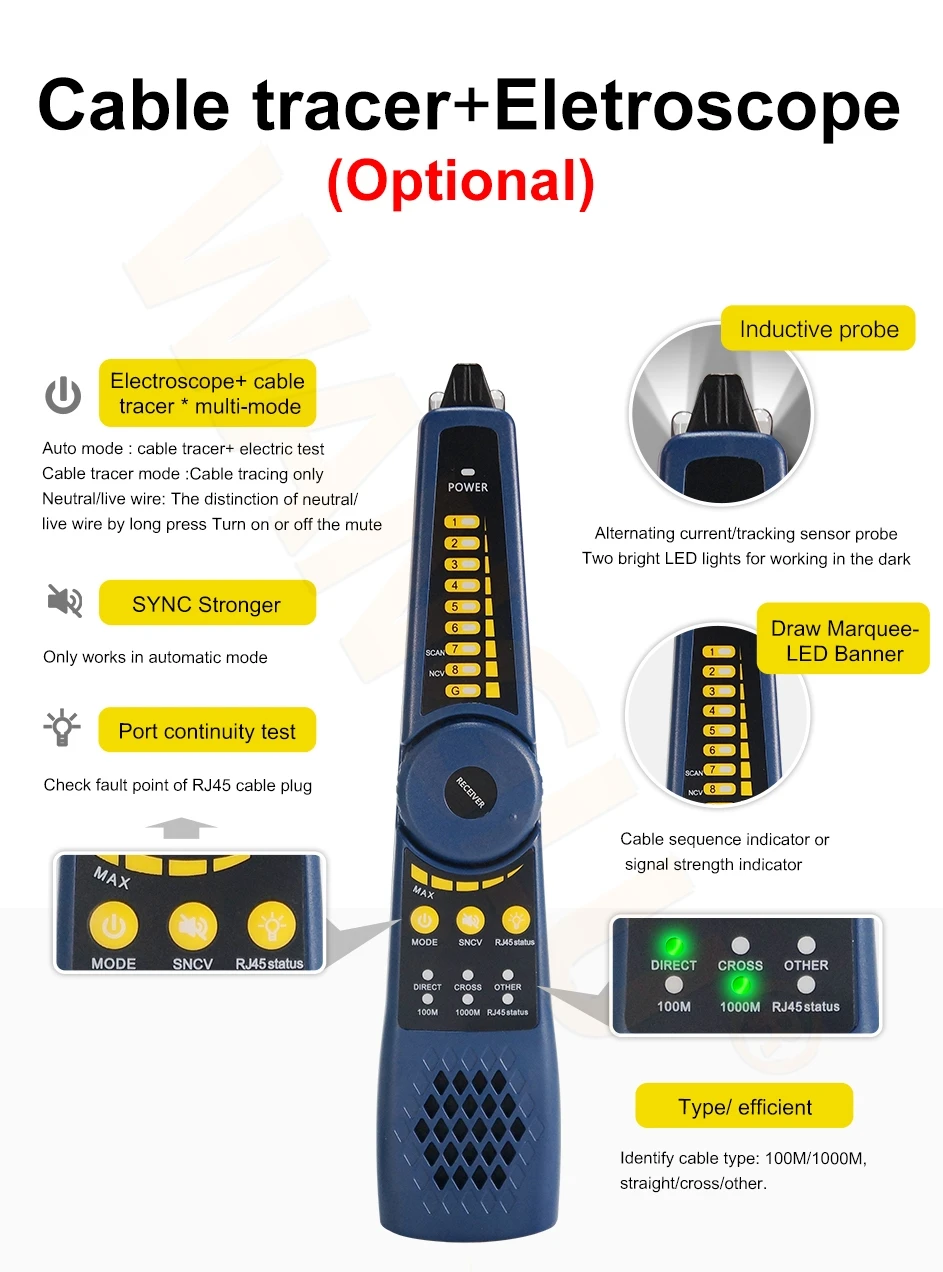

C	Digital cable tracer: Search BNC cable, network cable and telephone cable from the mess cables, more accurately.
