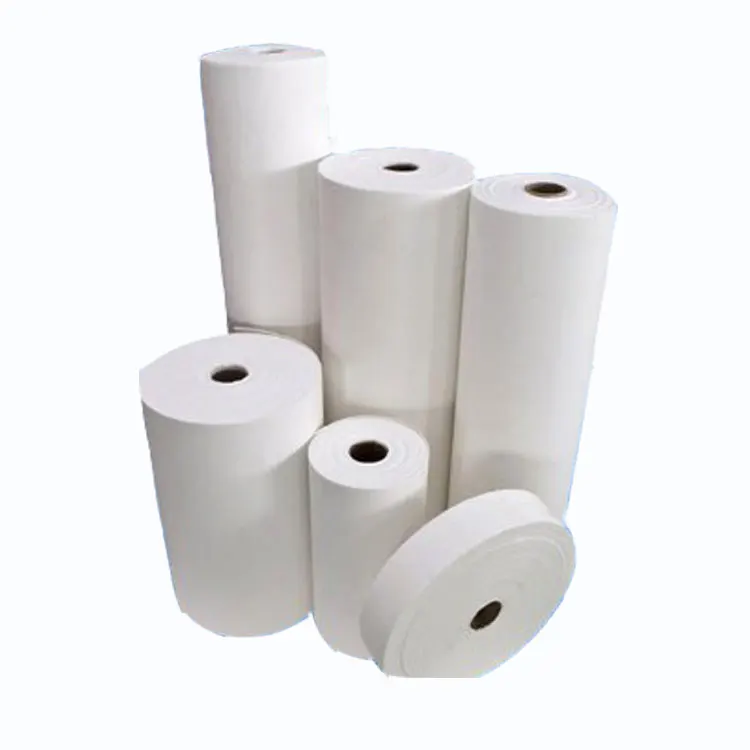

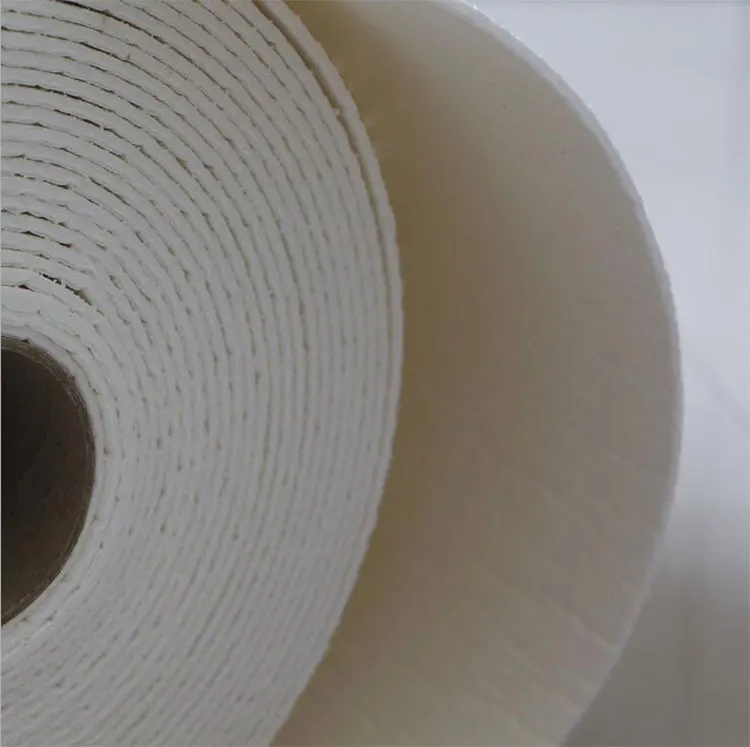

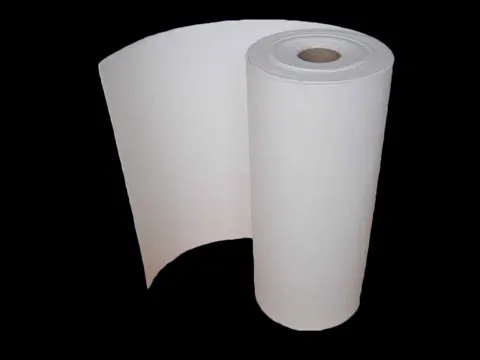

1100C Aluminum Silicate Fire Refractory Ceramic Fiber Paper for Industrial insulation
- Category: Ceramic Fiber Paper >>>
- Supplier: Henan Synthe Corporation
Share on (1600768835840):
Product Overview
Description
Product Characteristics:
1.Low thermal conductivity, low thermal capacity
2.Low shot content
3.Good resistance to tearing, High flexibility

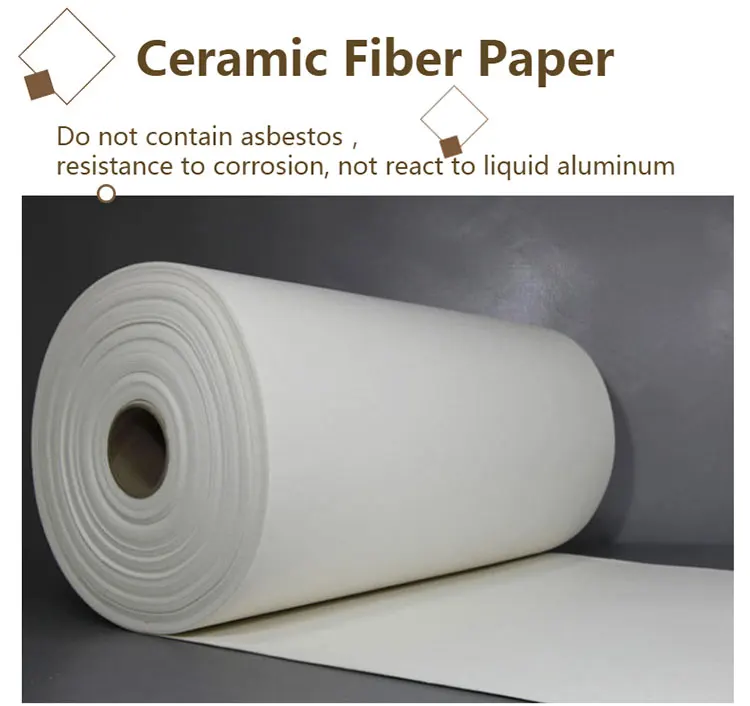

4.Do not contain asbestos, resistance to corrosion, not react to liquid aluminum
5.Good electrical insulation and sound insulation performance
6.Excellent mechanical performance
2.Low shot content
3.Good resistance to tearing, High flexibility
4.Do not contain asbestos, resistance to corrosion, not react to liquid aluminum
5.Good electrical insulation and sound insulation performance
6.Excellent mechanical performance
Specification
Type | Standard Type | High-Al Type | Zirconium Type | ||
Classification Temperatur ( ℃) | 1100 | 1350 | 1430 | ||
Working Temperature ( ℃) | 1000 | 1200 | 1350 | ||
Average Capacity ( Kg/ m3) | 220 | 220 | 220 | ||
Tensile Strength ( Mpa) | 0.75 | 0.75 | 0.75 | ||
Ignition Loss ( %) | 6 | 6 | 6 | ||
Organic Content ( %) | 10 | 8 | 8 | ||
Thermal Conductivity ( w/ m. k) | 800℃ 0.195 | 800℃ 0.19 | 800℃ 0.18 | ||
Liner Shrinkage While Heated ( %) | 1000℃×24h≤ 3.5 | 1000℃×24h≤ 3.0 | 1000℃×24h≤ 3.0 | ||
Chemical Content ( %) | Al2O3 | 45 | 50 | 50 | |
SiO2 | 52 | 49 | 30 | ||
Fe2O3 | ≤2.0 | ≤1.2 | - | ||
ZrO2 | - | - | 20 | ||

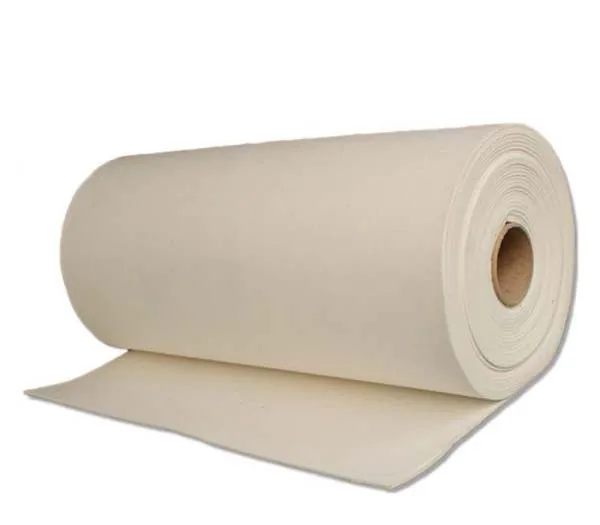

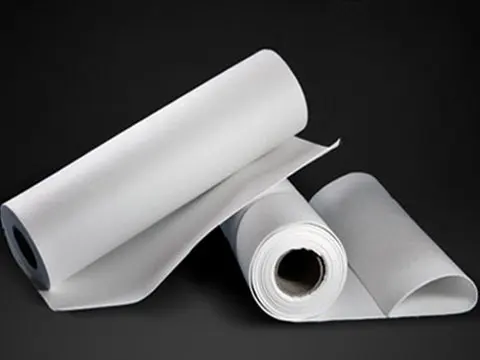

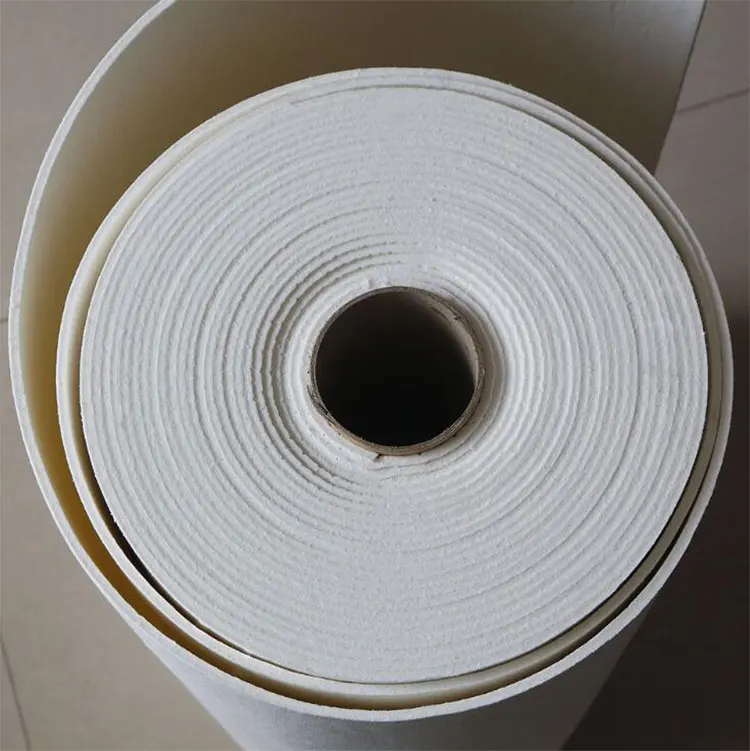

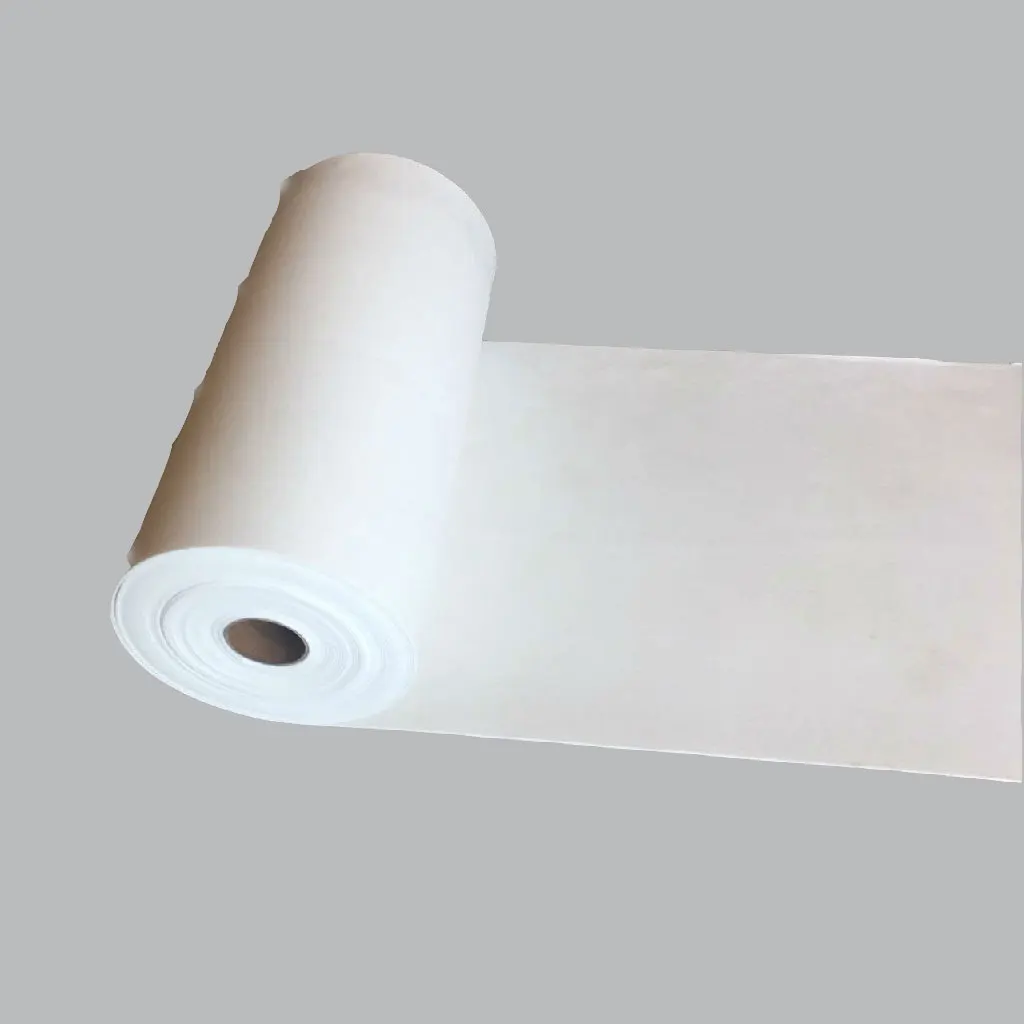

Details Images
Product Applications:
1.Industrial insulation, seal, protective materials
2.Electric heat device insulation, heat insulation materials
3.Molten metal gasket
4.Instrument equipment, electric heating element of insulation and heat insulation materials
5.Fire protection
6.Thermal barriers for vehicles
7.Fillers of expansion joints
2.Electric heat device insulation, heat insulation materials
3.Molten metal gasket
4.Instrument equipment, electric heating element of insulation and heat insulation materials
5.Fire protection
6.Thermal barriers for vehicles
7.Fillers of expansion joints
Our Company
Henan Synthe Corporation was founded in January 2013, is engaged in the design, development, manufacture, and sales of high-temperature insulation, vacuum-formed ceramic fiber heaters, diffusion heaters, and high-quality thermal processing equipment, all custom designed to meet your thermal requirements. Temperature ranges from room temperature 20°C ( 68°F) to 1800°C ( 3272°F), for over ten years in the industry, SYNTHE have been a problem-solver working with our customers to resolve their thermal management problems.
Relanted Products
Certifications
The company has obtained the "High-tech enterprise", "Private enterprise of technology", and other awards successively. Currently,it has eight new utility patents, and two other patents of invention and eight other new utility patents are in the process of application.
International Exhibition:
HK2017 Heat Treatment Congress Held in Koln, Germany
THERMPROCESS 2019 Held in Dusseldorf/ Germany
THERMPROCESS 2019 Held in Dusseldorf/ Germany

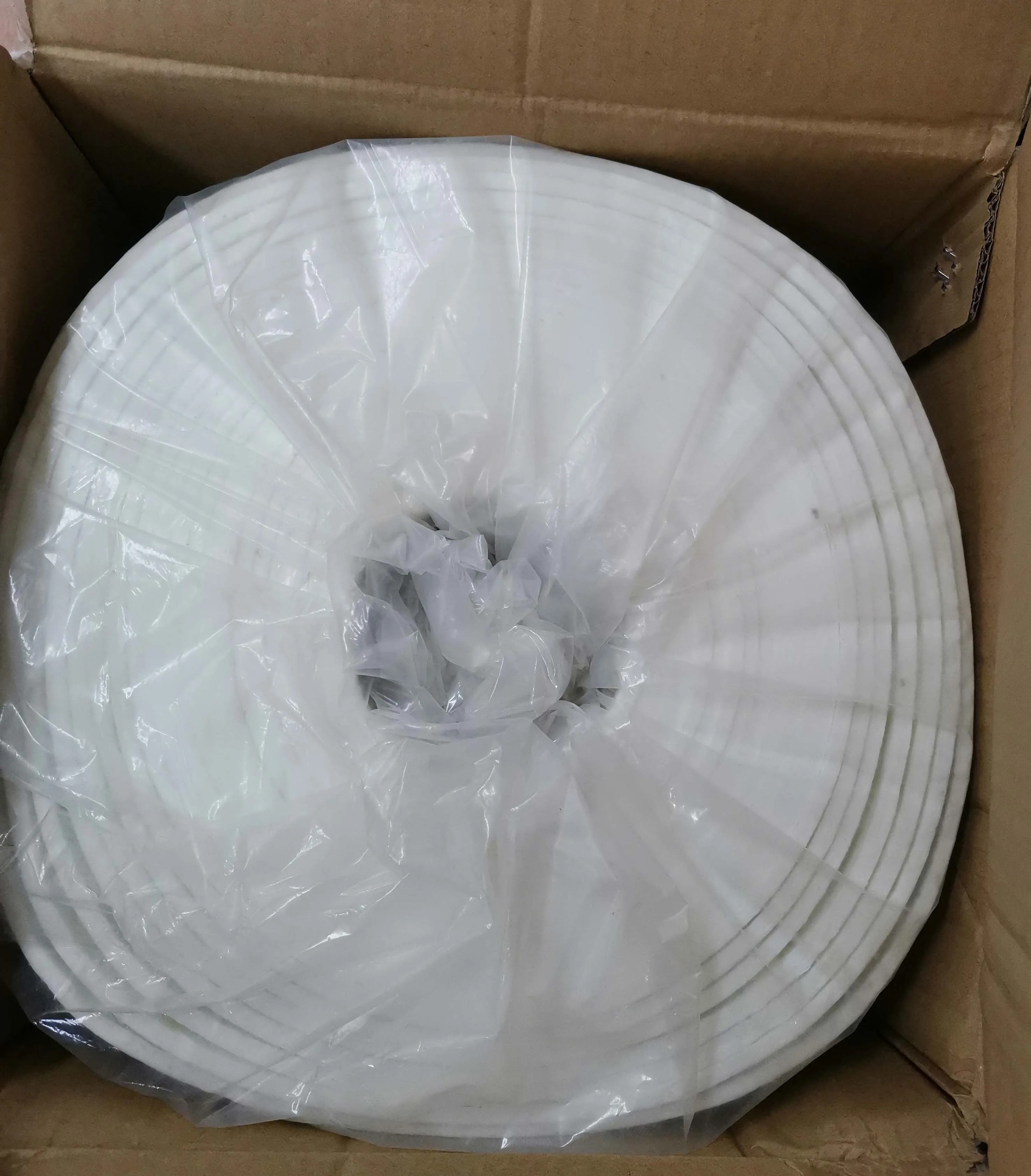

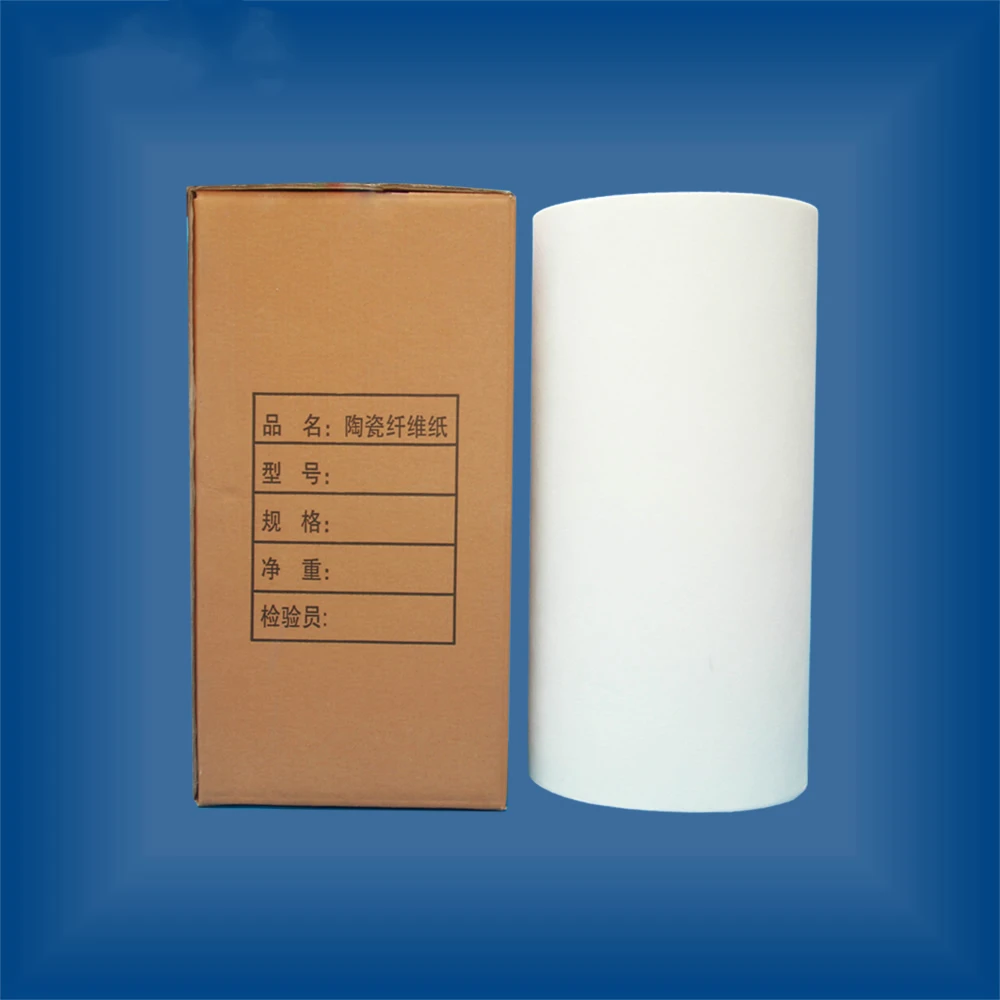

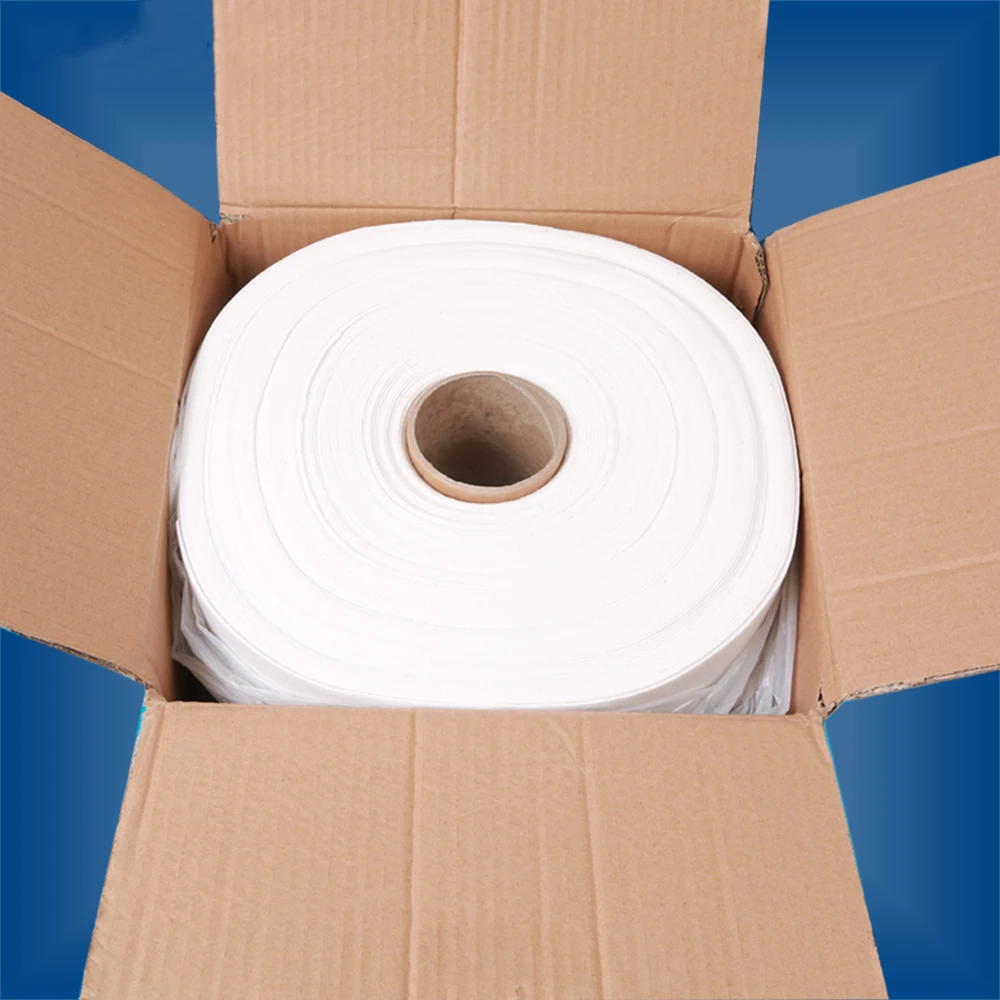

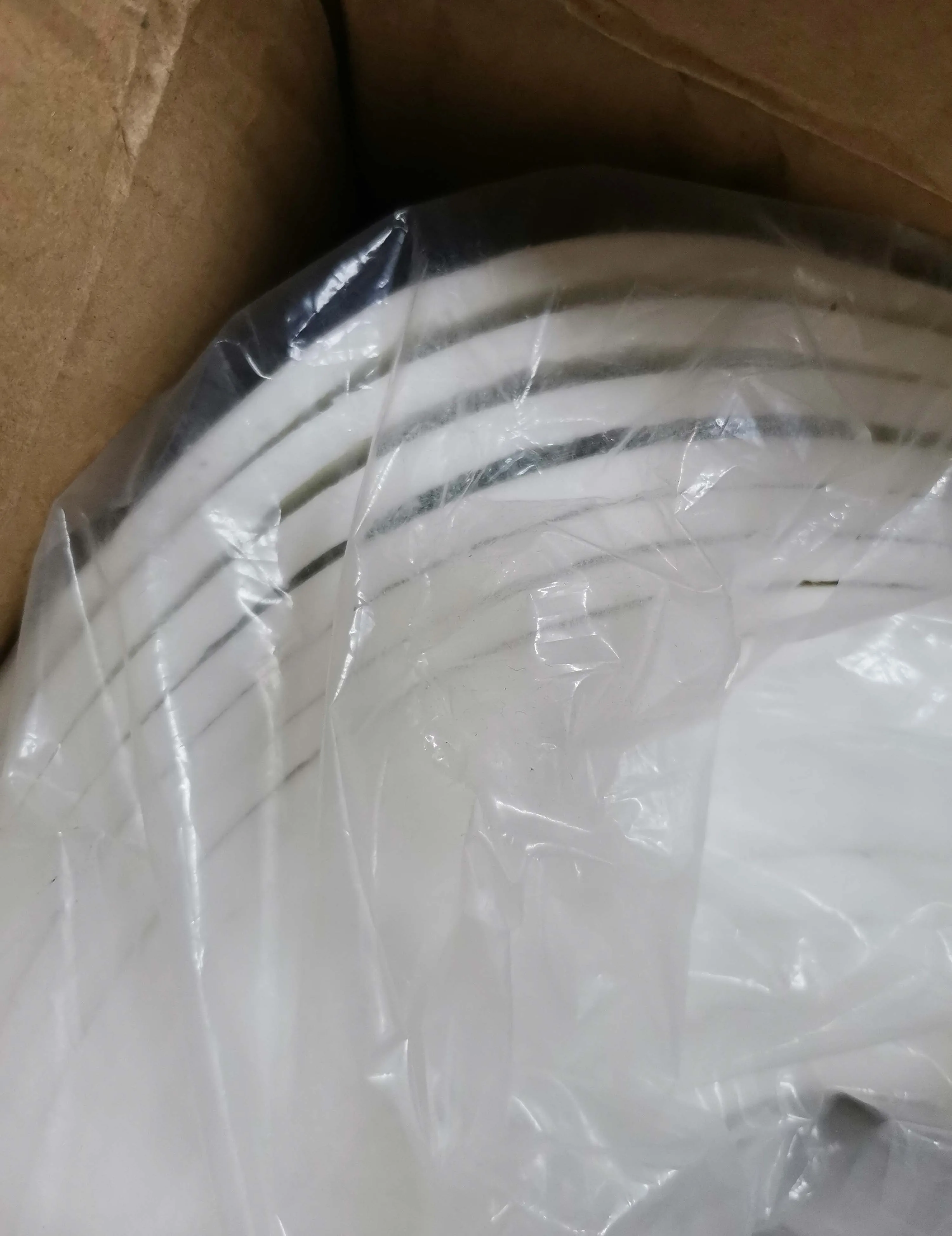

Product packaging
