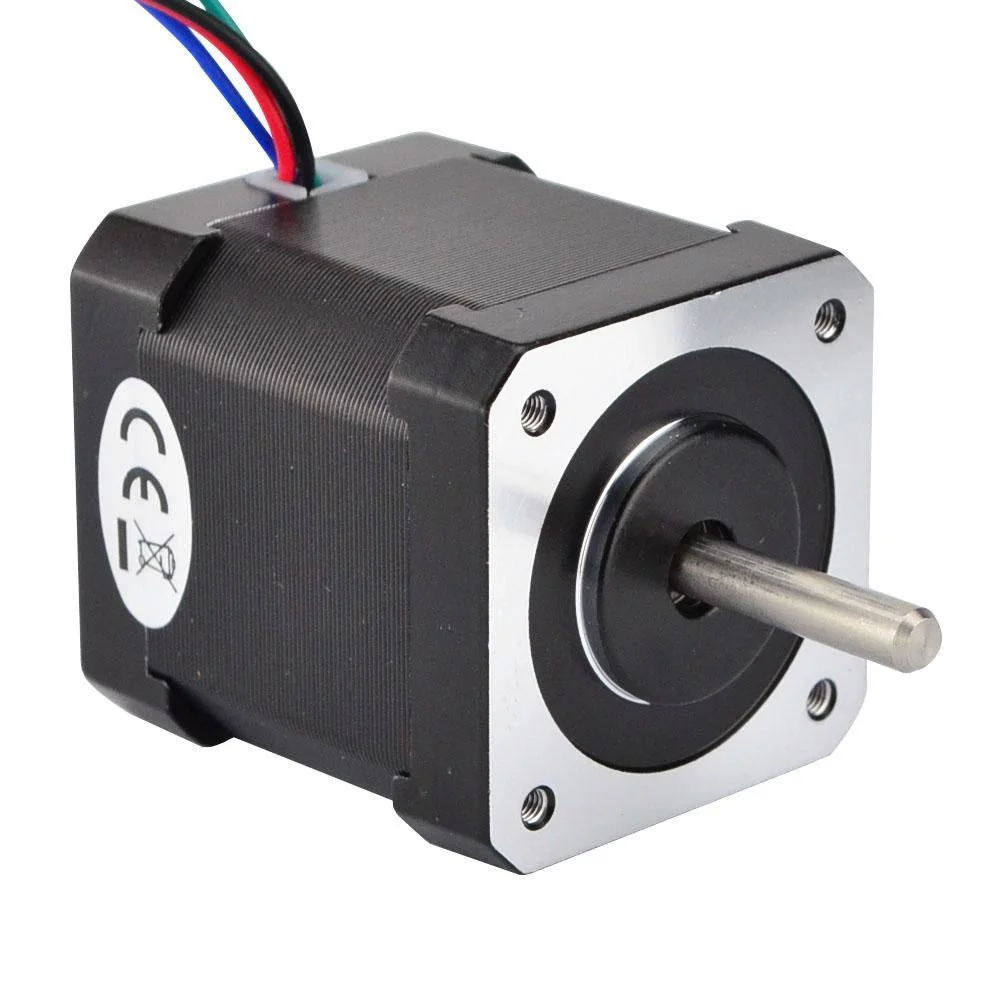

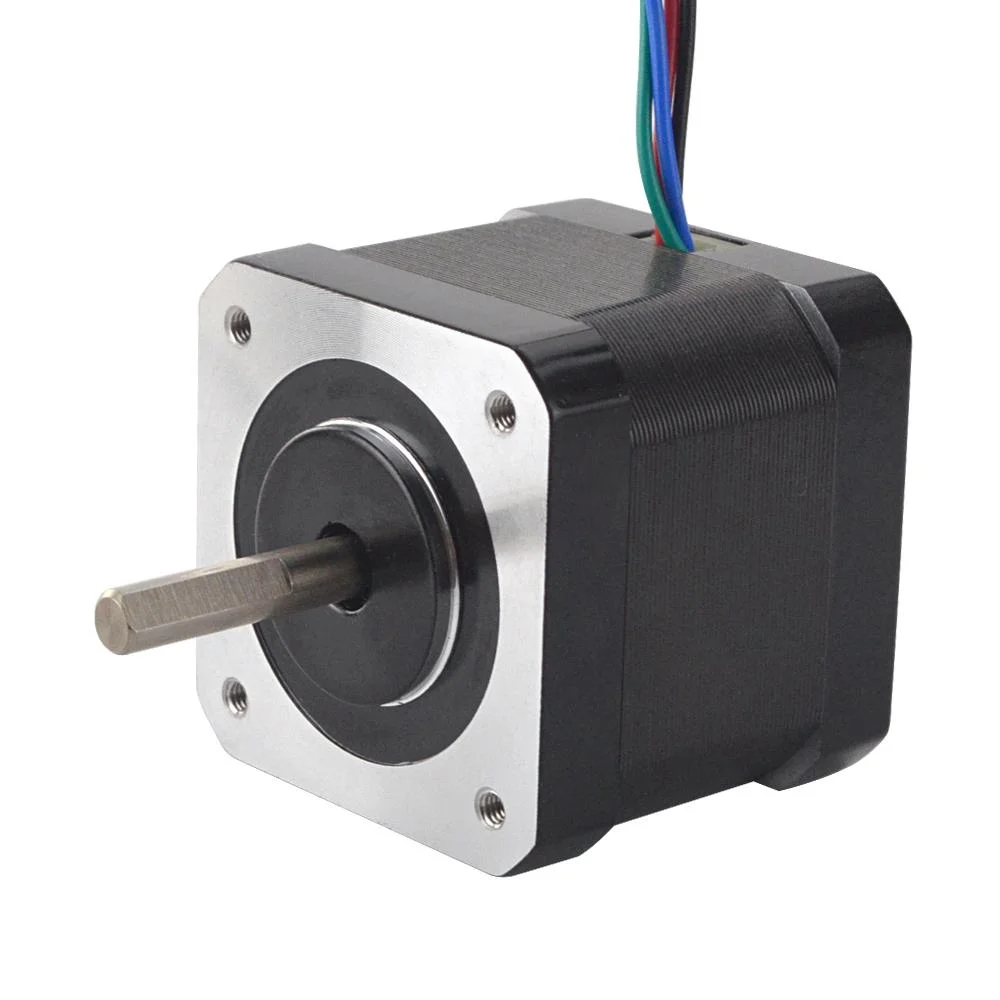

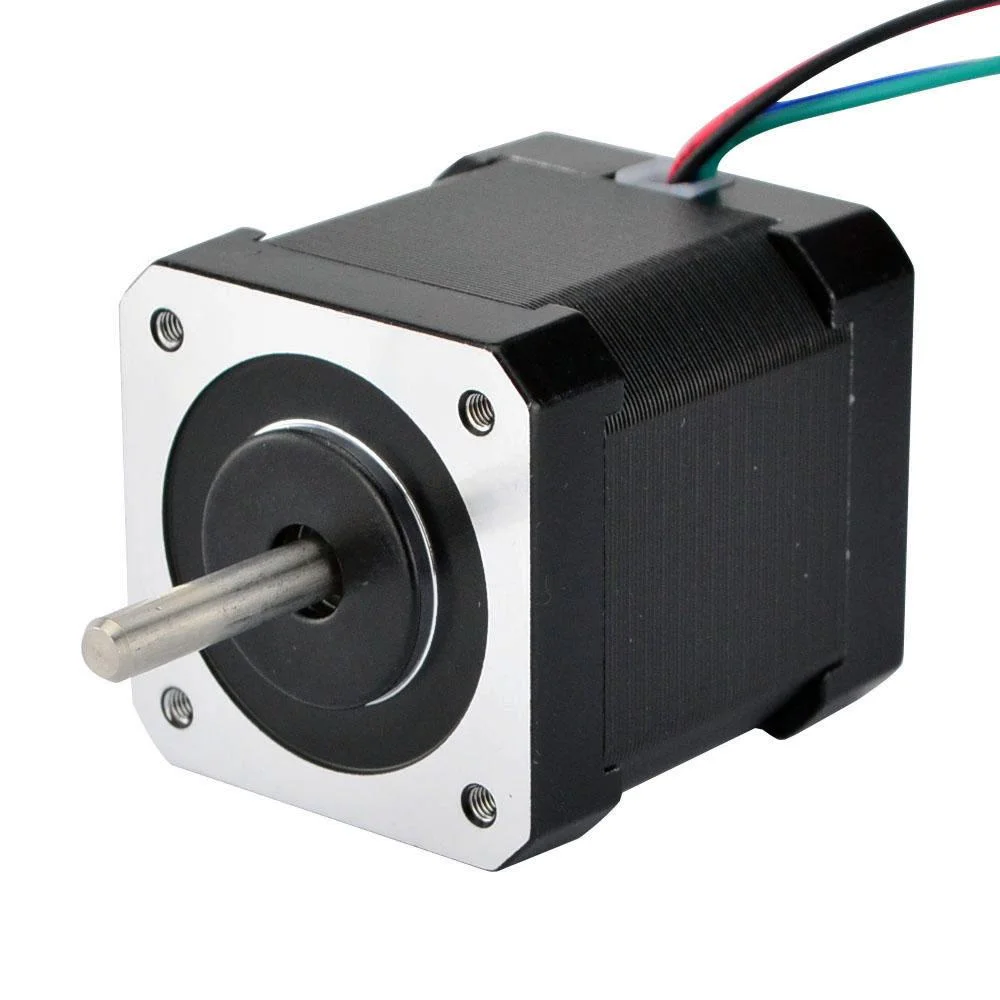

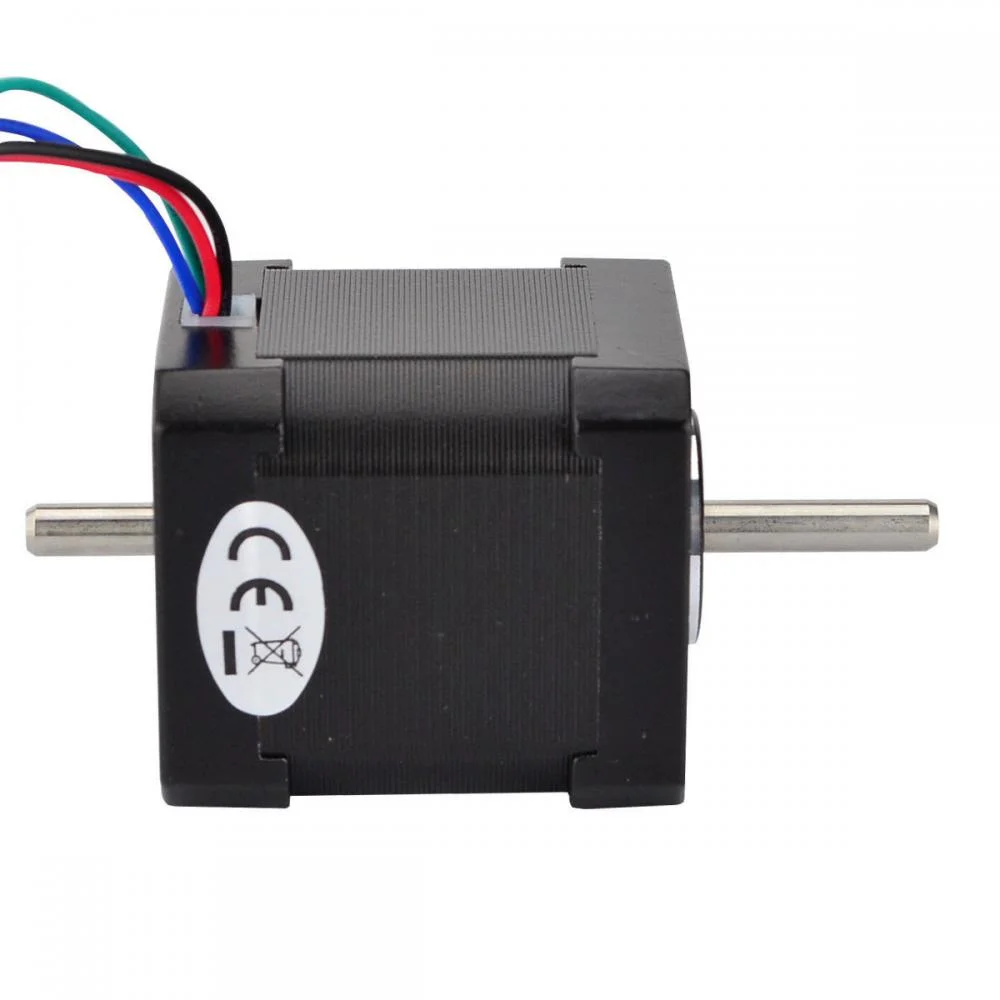

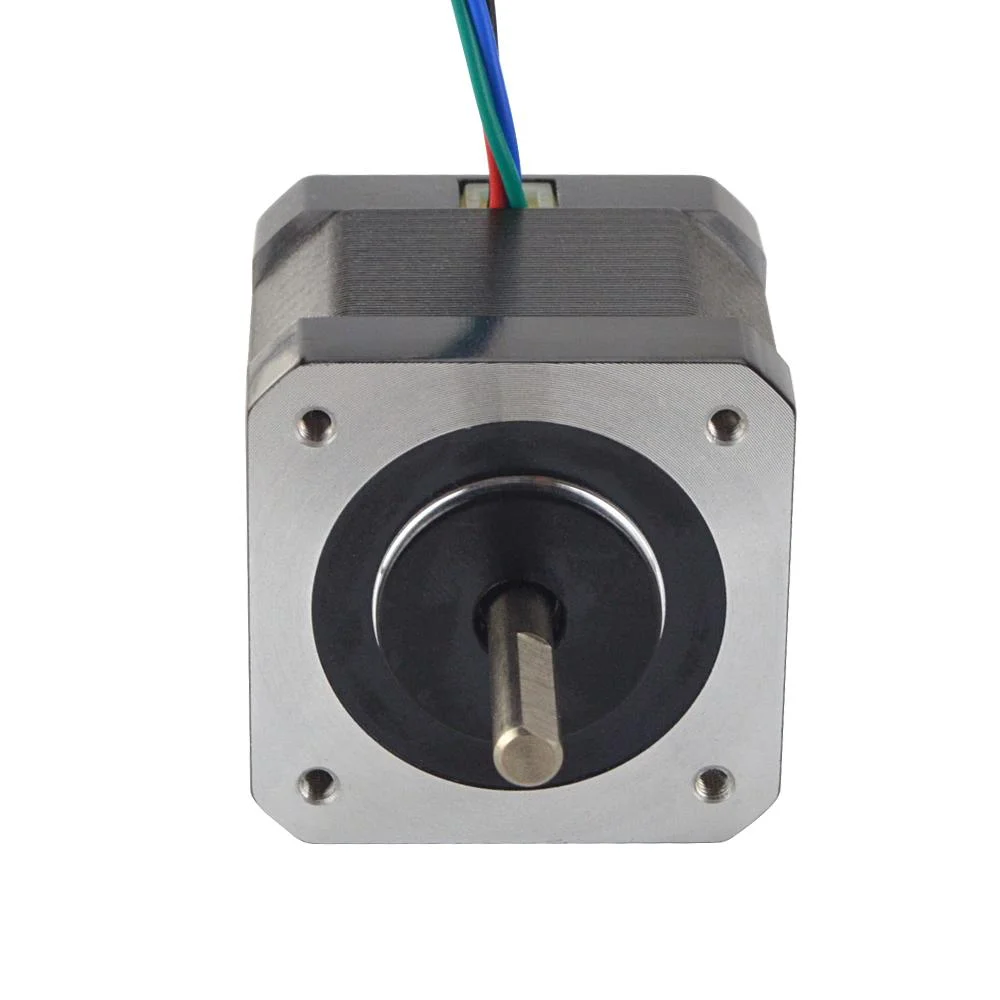

nema 17 stepper motor 450mN.m 1.5A 3.45V Step motor for automation equipment
- Category: >>>
- Supplier: Guangzhou Fude Electronic Technology Co. Ltd.
Share on (1600768872071):
Product Overview
Description
Product Paramenters
Product Name | NEMA17 Hybrid Stepper Motor | ||||||

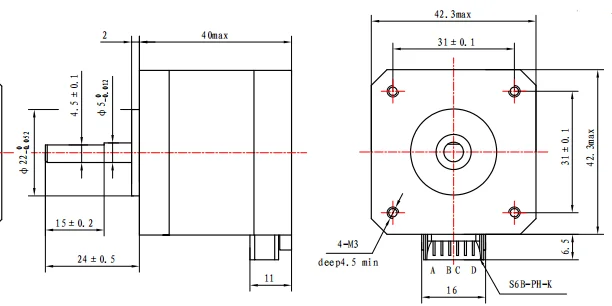

Size | 42x42x40mm | ||||||
Shaft | D-Shaft 70mm | ||||||
Brand | Casun | ||||||
Model | 17HS15-1504S-X1(42SHD0287-24B) | ||||||
General Specification | Electrical Specification | |||||
Step Angle | 1.8° | Rated Voltage | 3.45V dc | |||
Number of Phase | 2 | Rated Current | 1.5A | |||
Insulation Resistance | 100MΩmin. (500V DC) | Resistance per phase | 2.3Ω±10% | |||
Insulation Class | Class B | Inductance per Phase | 4.4mH±20% | |||
Rotor Inertia | 57g.cm² | Holding torque | 450mN.m | |||
Mass | 0.24kg | Detent torque | 15mN.m | |||
Recommend Products
Same Series
Casun Model | General Model | Length | Angle | Rated Current | Holding Torque |
42SHD4950-20B | 17HS08-1004S | 20mm | 1.8° | 1.0 A | 0.13 N.m |
42SHB4002-17 | 17HM08-1204S | 20mm | 0.9° | 1.2 A | 0.11 N.m |
42SHD0008-24 | 17HS-0316S | 34mm | 1.8° | 0.3 A | 0.16 N.m |
42SHD4003-20B | 17HS13-0404S1 | 34mm | 1.8° | 0.4 A | 0.26 N.m |
42SHD4046-24 | 17HS13-1334S | 34mm | 1.8° | 1.33 A | 0.22 N.m |
42SHD0217-24B | 17HS4401 | 40mm | 1.8° | 1.5 A | 0.5 N.m |
42SHD0192-24B | 17HS15-1504S1 | 40mm | 1.8° | 1.5 A | 0.45 N.m |
42SHD0134-22B | 17HS15-1704S | 40mm | 1.8° | 1.7 A | 0.44 N.m |
42SHB0509-24B | 17HM15-0904S | 40mm | 0.9° | 0.9 A | 0.35 N.m |
42SHD0285-24B | 17HS15-0404S | 40mm | 1.8° | 0.4 A | 0.4 N.m |
42SHD0287-24B | 17HS15-1504S-X1 | 40mm | 1.8° | 1.5 A | 0.45 N.m |
42SHD4425-24B | 17HS19-2004S1 | 48mm | 1.8° | 2.0 A | 0.59 N.m |
42SHD4463-24B | 42BYGHW811 | 48mm | 1.8° | 2.5 A | 0.48 N.m |
42SHB4608-24B1 | 17HM19-2004S | 48mm | 0.9° | 2.0 A | 0.46 N.m |
42SHD4813-24B | 17HS24-2104S | 60mm | 1.8° | 2.1 A | 0.65 N.m |
Other series
Company Profile
Why Choose Us
You may be happy to find a new reliable motor supplier with guaranteed quality,
We have more than 10 years of experience in the motor industry.
We provide 24 months of quality assurance.
Our production line has stepper motors and brushless motors
Nema 8-Nema 34 conventional, screw, closed loop, brake, reduction gear can be produced by us.
Since 2011, the company has passed the ISO9001 certification, and all products have passed Rosh and CE certification.
We have more than 10 years of experience in the motor industry.
We provide 24 months of quality assurance.
Our production line has stepper motors and brushless motors
Nema 8-Nema 34 conventional, screw, closed loop, brake, reduction gear can be produced by us.
Since 2011, the company has passed the ISO9001 certification, and all products have passed Rosh and CE certification.
FAQ
Q1.How can we know the product quality?
A1:We suggest you to order a sample.Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.
Q2.Can we have free sample?
A2:This depend on our stock .And please pay the shipping cost by yourself.
Q3.Is this your final price?May i have the discount?
A3:Our price is the factory price, and if your quantity is larger, we will allow the discount for you.
Q4.Can we visit your factory?
A4:Yes welcome warmly.
Q5:Do youhave any certificates?
A5:Yes, we have.All the motors have been approved by CE and Rohs.
Q6:Do you offer OEM AND ODM service?
A6:Yes.We can supply OEM andmake customized design for any specific application.
A6:Yes.We can supply OEM andmake customized design for any specific application.
Q7:What's the delivery time?
A7:Except special order.For samples usually 10-14 working days .For batch order .Usually 17-25days. For Stock motors usually 1~2 days.
