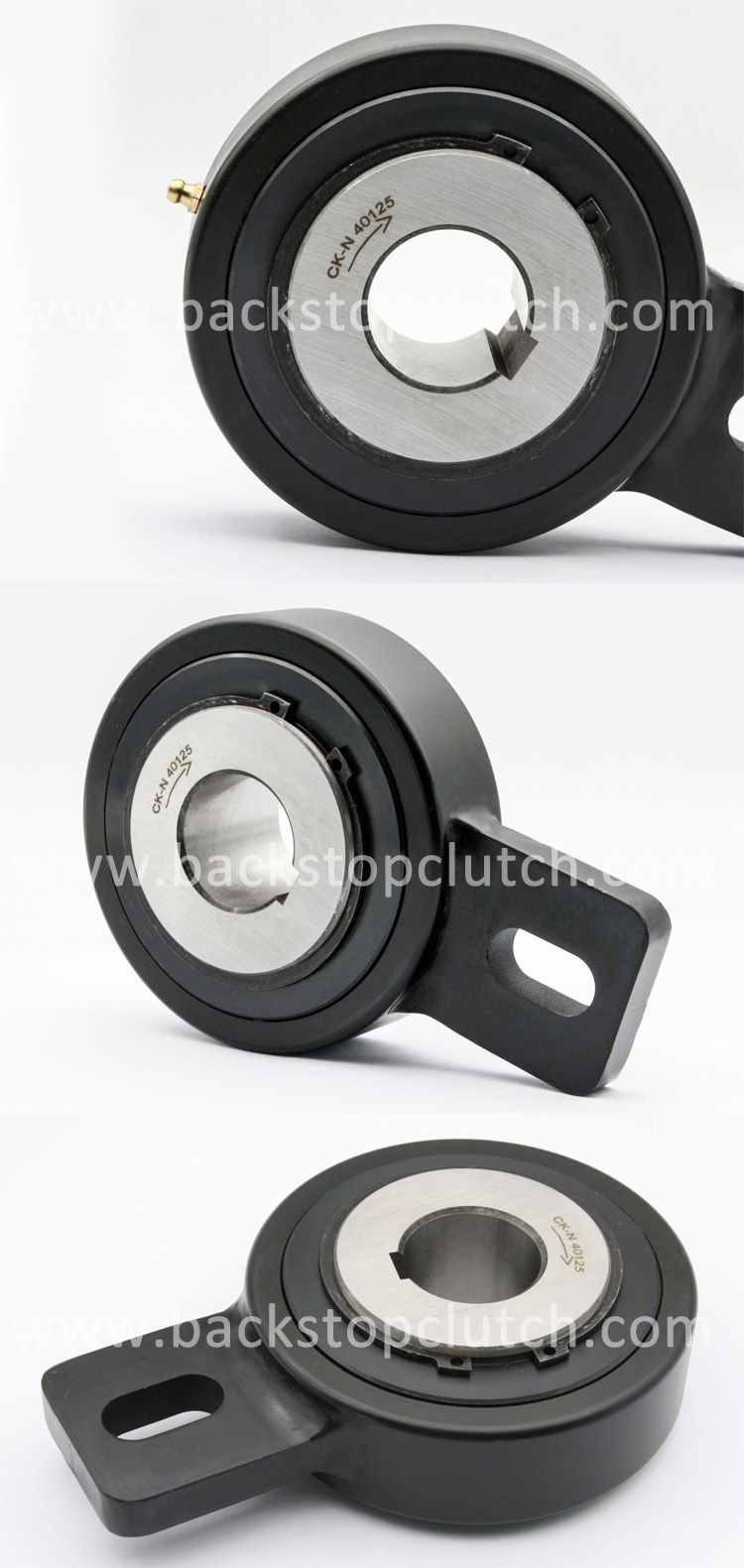

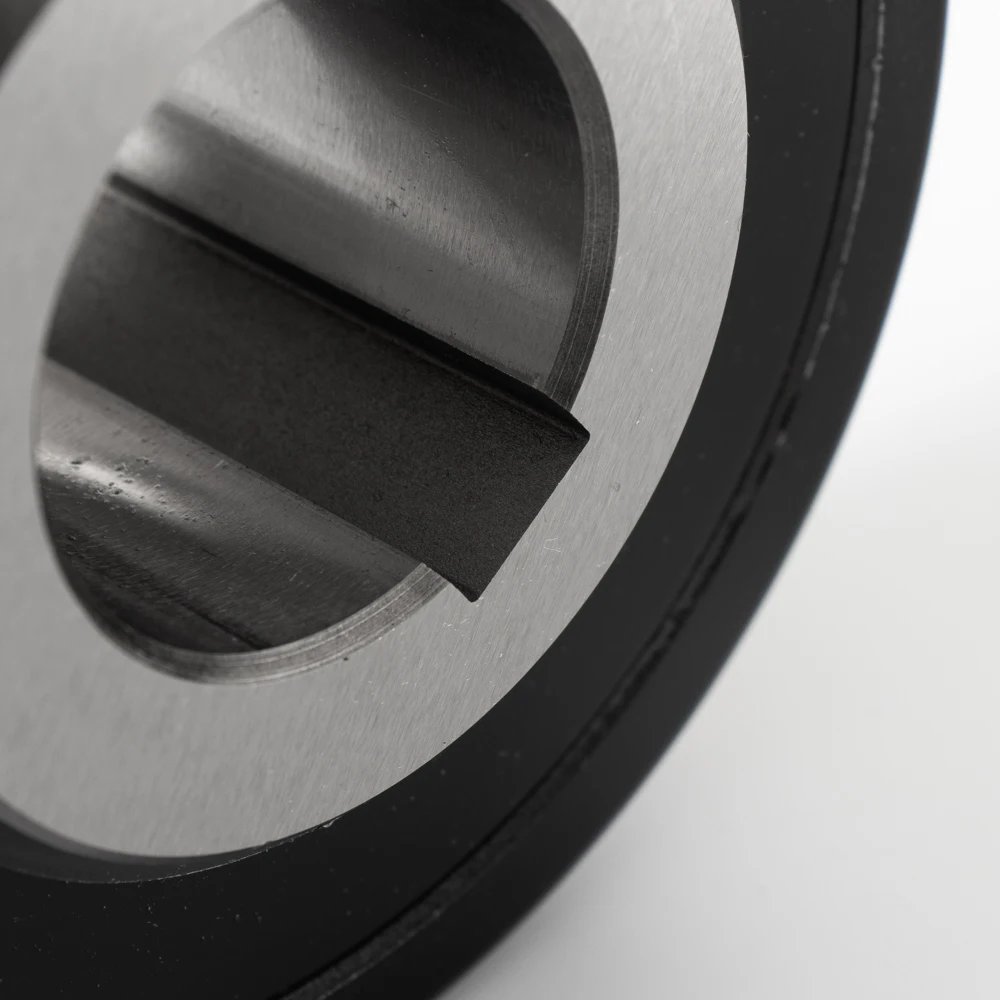

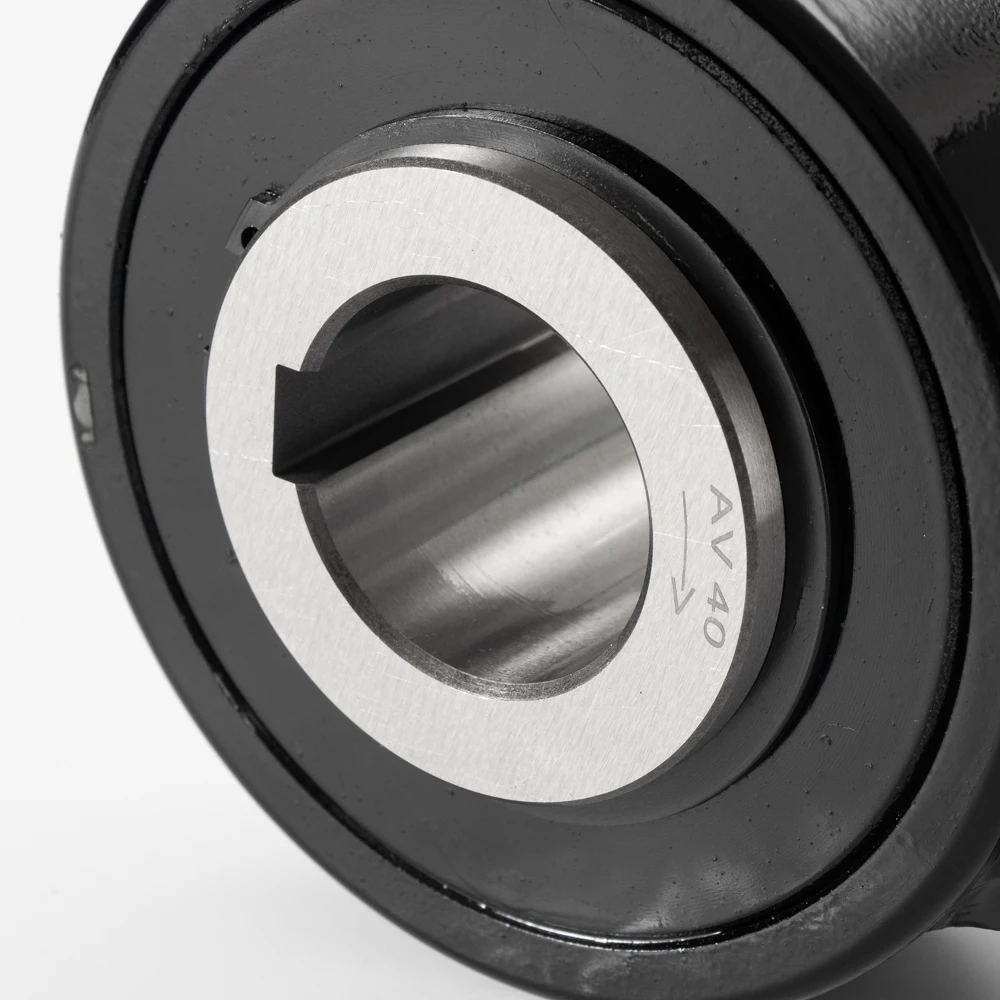

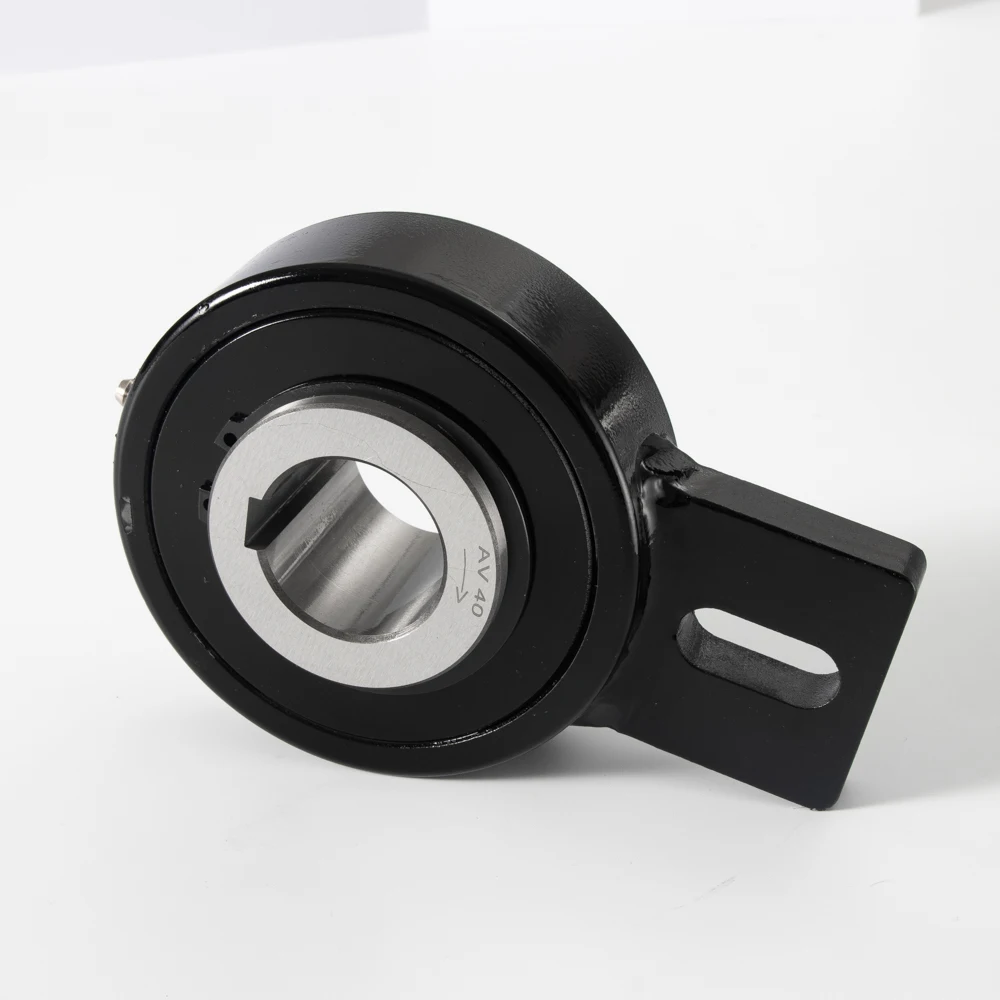

Type AV is a roller type freewheel. It is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield protected metallic labyrinth seals

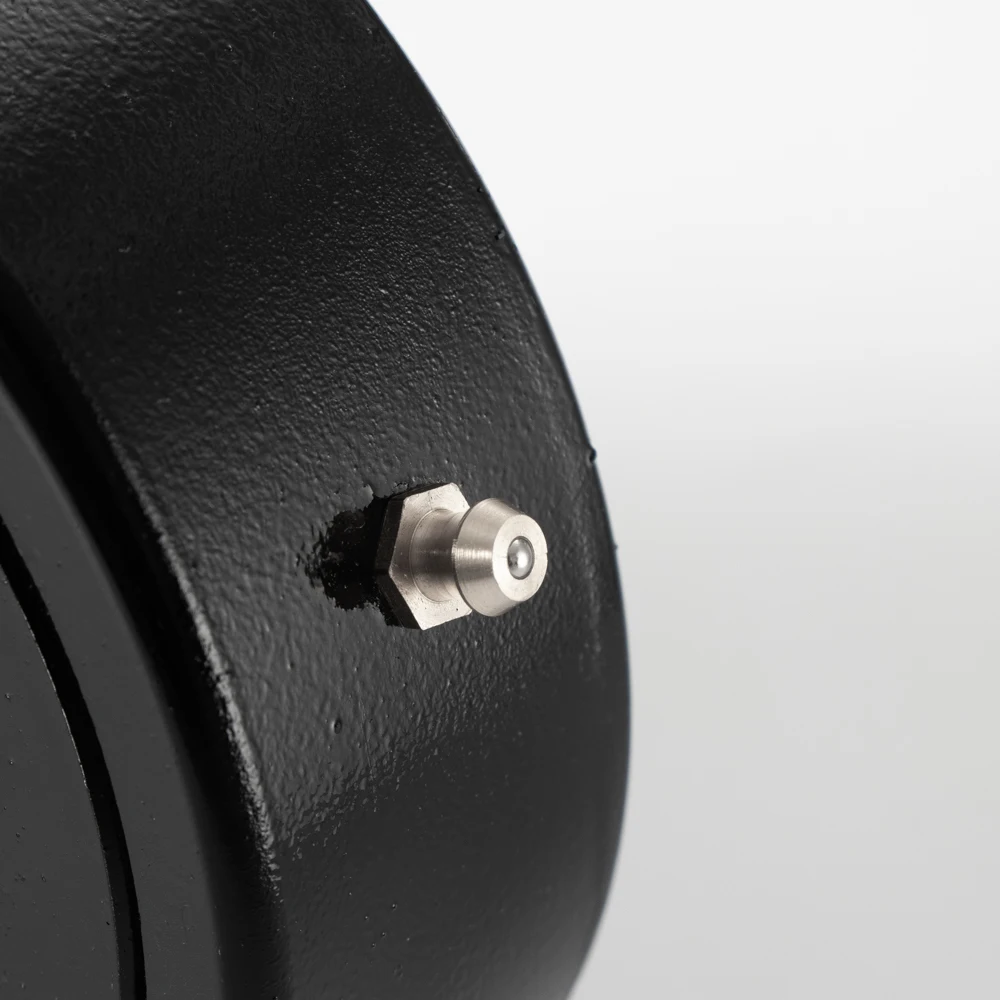

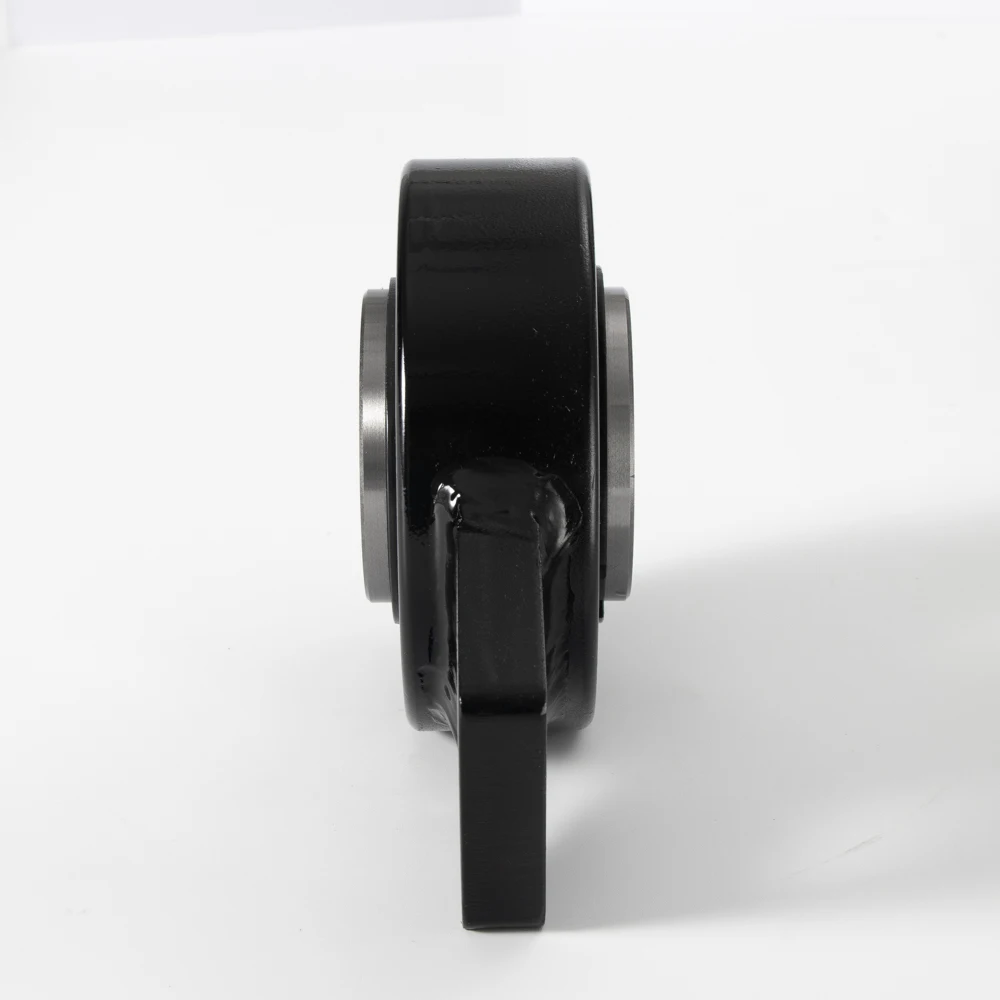

Unit is delivered grease lubricated, ready to install in a horizontal or vertical position. Primarily used as a backstop, the torque capacity is high for a minimum space requirement. This design is suitable for use in difficult environments. A bolt, secured to a fixed part of the machine and passing through the slot in the torque arm, provides the rotational stop. Radial clearance on this bolt should be equal to 1–3 % of the slot width.
The torque arm and the bearings must not be prestressed. The roller design makes the AV type ideal for light indexing applications.
Data Sheet
| Item | AV60 |
| Material | GCr15 |
| Bore size | 60 mm |
| Outer dia. | 115 mm |
| Width | 54 mm |
| Overrunning Speed | 300 r/min |
| Weight | 5.5 kg |
| Drag Torque | 2.2 Nm |

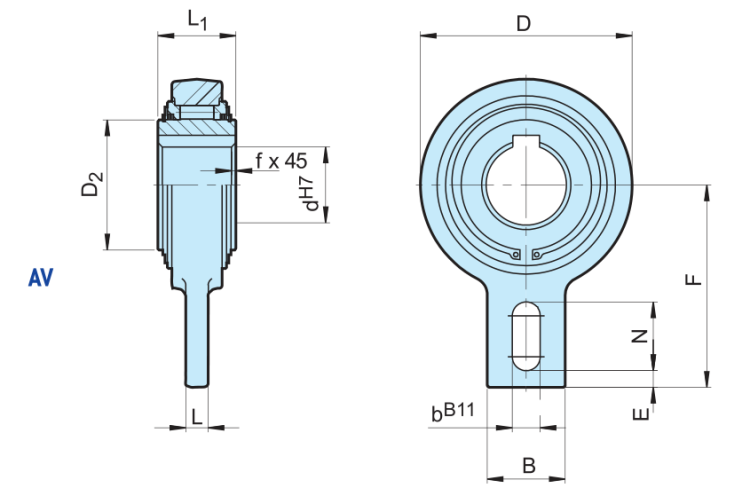

Dimension and Capapcity
Type | Size |
| Overrunning | Weight | Drag | ||||||||||
|
| speed |
|
| torque | ||||||||||
dH7 | TKN1) | nimax | D | D2 | L 1 | L | B | F | bB11 | N | E | f | TR | ||
[mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | [Ncm] | |
AV | 20 | 265 | 450 | 83 | 42 | 35 | 12 | 40 | 90 | 15 | 35 | 5 | 0.8 | 1.3 | 18 |
25 | 265 | 450 | 83 | 42 | 35 | 12 | 40 | 90 | 15 | 35 | 5 | 0.8 | 1.3 | 18 | |
30 | 1200 | 320 | 118 | 60 | 54 | 15 | 40 | 110 | 15 | 35 | 8 | 1 | 3.5 | 130 | |
35 | 1200 | 320 | 118 | 60 | 54 | 15 | 40 | 110 | 15 | 35 | 8 | 1 | 3.4 | 130 | |
40 | 1200 | 320 | 118 | 60 | 54 | 15 | 40 | 110 | 15 | 35 | 8 | 1 | 3.3 | 130 | |
45 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 140 | 18 | 47 | 10 | 1 | 5.5 | 240 | |
50 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 140 | 18 | 47 | 10 | 1 | 5.4 | 240 | |
55 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 140 | 18 | 47 | 10 | 1 | 5.3 | 240 | |
60 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 140 | 18 | 47 | 10 | 1 | 5.2 | 240 | |
70 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 140 | 18 | 47 | 10 | 1 | 5 | 240 | |
80 | 2900 | 200 | 190 | 110 | 64 | 20 | 80 | 155 | 20 | 40 | 10 | 1.5 | 8.7 | 360 | |
90* | 7125 | 150 | 260 | 160 | 90 | 25 | 120 | 220 | - | - | - | 3 | 24.5 | 360 | |
100* | 7125 | 150 | 260 | 160 | 90 | 25 | 120 | 220 | - | - | - | 3 | 23.5 | 360 | |
110* | 7125 | 150 | 260 | 160 | 90 | 25 | 120 | 220 | - | - | - | 3 | 22.5 | 360 | |
120* | 11000 | 130 | 300 | 180 | 110 | 30 | 140 | 260 | - | - | - | 3 | 42 | 600 | |

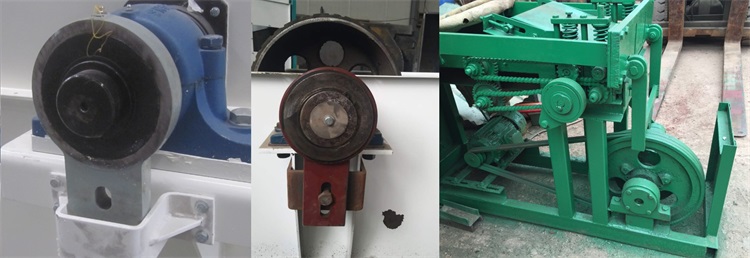

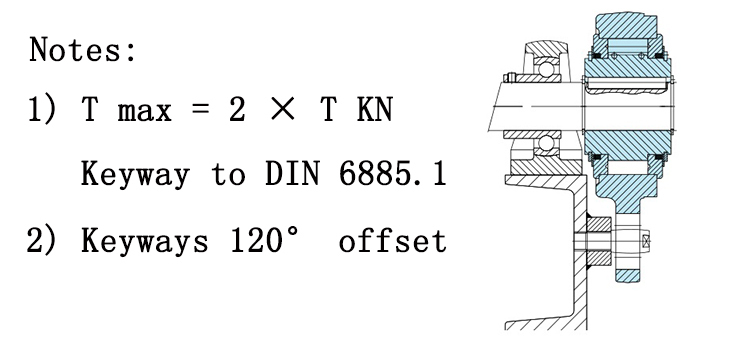

Mounting Example
