Product Overview
Description
Vacuum Atmosphere furnace is designed for material synthesis under controlled inert gas atmosphere with better temperature uniformity.It is an ideal heating equipment for preparing new materials which requires inert gas or oxidizing gas. For sintering and processing with inert gas, like Nitrogen and Argon.
the Chamber insulation material adopts high purity alumina ceramic fiber lining board, insulation is good and energy-saving. Heavy duty double layer structure with cooling fan to keep furnace exteriors
safe to touch. Double furnace doors, inner door block the fire, outer door is sealed with flanges, high temperature PTFE gasket is installed on the outer furnace door to ensure the reliable sealing of the furnace; the furnace body is equipped with an air outlet, which can extract vacuum. Vacuum degree ≤ 0.098Mpa (Rotary vane vacuum pump for higher vacuum degree。
Model | STQ-8-14 | STQ-18-14 | STQ-36-14 | STQ-45-14 | STQ-64-14 | ||||
Chamber Size(WxLxH)mm | 200x200x200 | 250x300x250 | 300x400x300 | 300x500x300 | 400x400x400 | ||||
Type | Vacuum Box Furnace | ||||||||
Furnace Structure | Chamber Material, Temperature Controller System, Heating Element, Furnace Shell and Other assistant parts | ||||||||
Max Temperature | 1400℃ | ||||||||
Continue Operating Temp. | 1300℃ | ||||||||
Power Supply | 220V/5KW | 220V/6KW | 380V/12KW | 380V/14KW | 380V/18KW | ||||
Heating Element | High Quality SIC Rod | ||||||||
Chamber Material | High temperature polycrystal alumina ceramic fiber material | ||||||||
Temperature Precision | ±1℃ | ||||||||
Thermocouple | S type | ||||||||
Temperature Controller | SHIMADEN (Japan) brand intelligent microcomputer PID controller can program 4 groups 32 sgements | ||||||||
Electronic Component | SCHNEIDER (France) electronics brand | ||||||||
Heating Rate | ≤ 15℃/min ( suggest 10-15℃/min for longer life using of furnace ) | ||||||||
Safety Protection | Overheat and thermocouple-break alarm | ||||||||
Certification | ISO9001 CE SGS | ||||||||
Furnace Shell | High quality cold-rolled steel sheets CNC processing | ||||||||
Insulation | High quality thermal insulation material to ensure a good uniformity | ||||||||
Accessories | One pair of high temperature furnace gloves One pair of crucible stongs | ||||||||
Optional | Paperless recorder Alumina crucible Vacuum Pump & Flowmeter | ||||||||

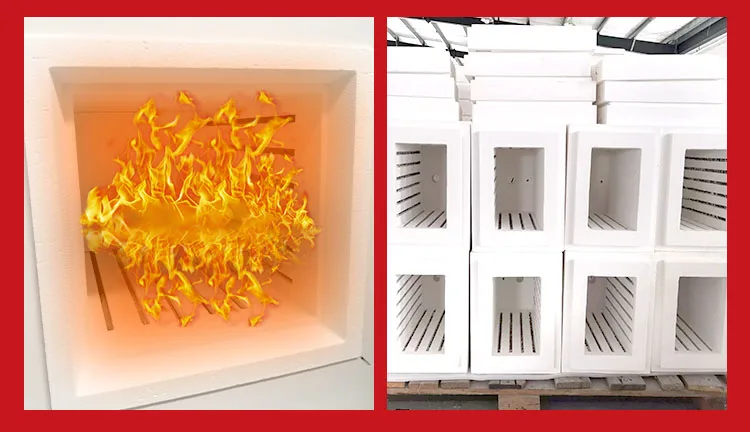

Furnace Chamber Material
High grade alumina ceramicaterials as chamber materials with good temperature uniformity inchamber

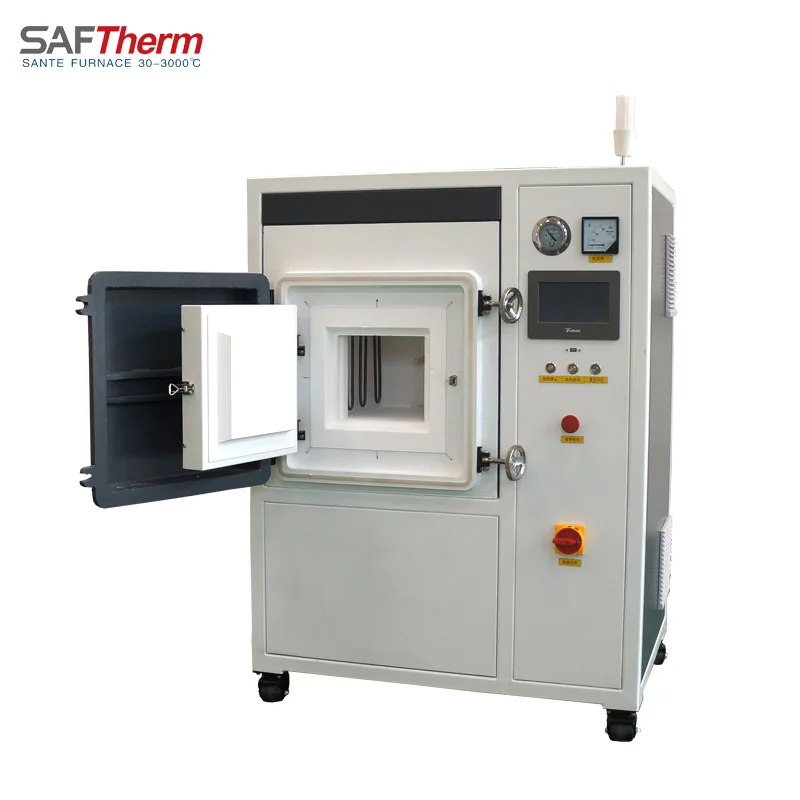

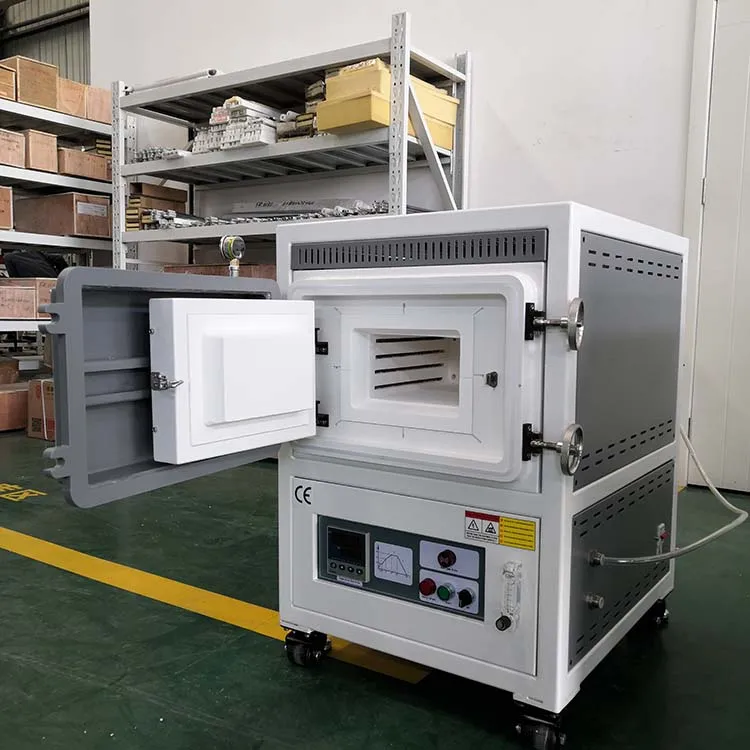

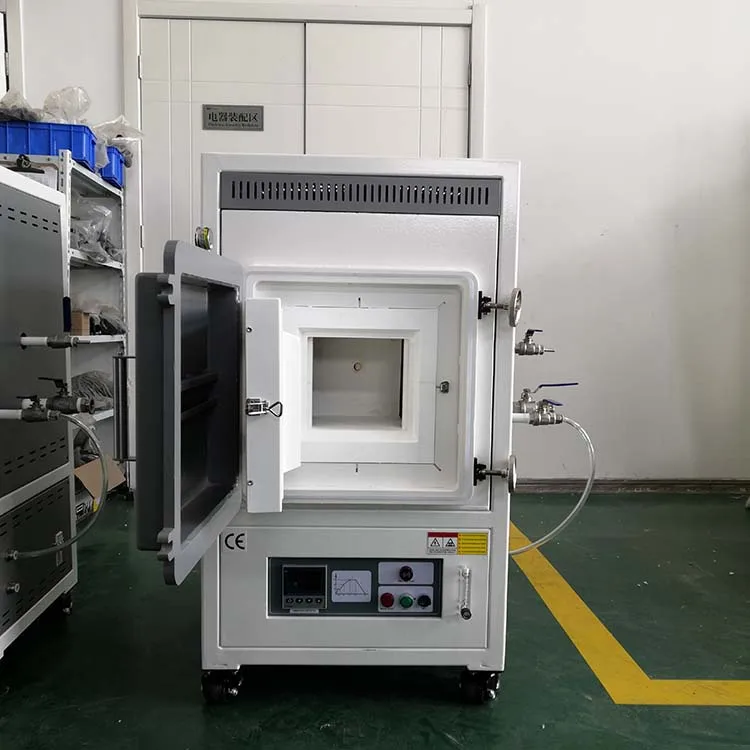

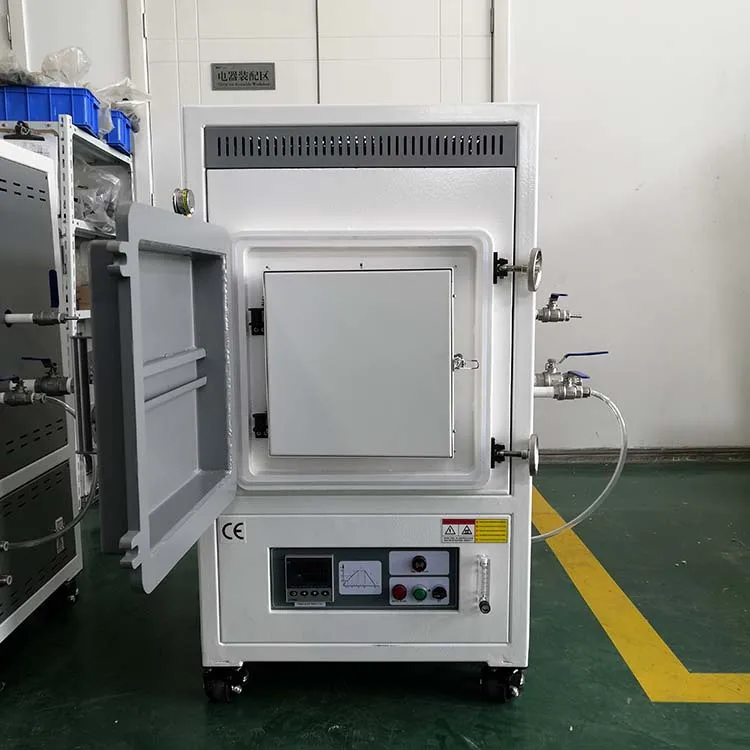

Double furnace doors
Inner door block the fire and outer door is sealed with flanges.High temperature PTFE gasket is installed on the outer furnace door to ensure the reliable sealing of the furnace

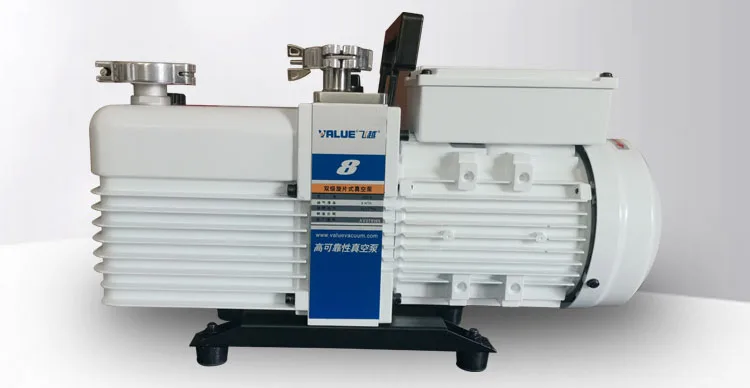

Rotary vane vacuum pump
The fumace body is equipped with an air oulet which used for extracting air and get vacuum environment, Vacuum degree ≤ 20000Pa.
(Optional Accessories)
Main Features
High standard, high quality
Heating Element
High quality HRE alloy resistance wire,Excellent temperature uniformity;

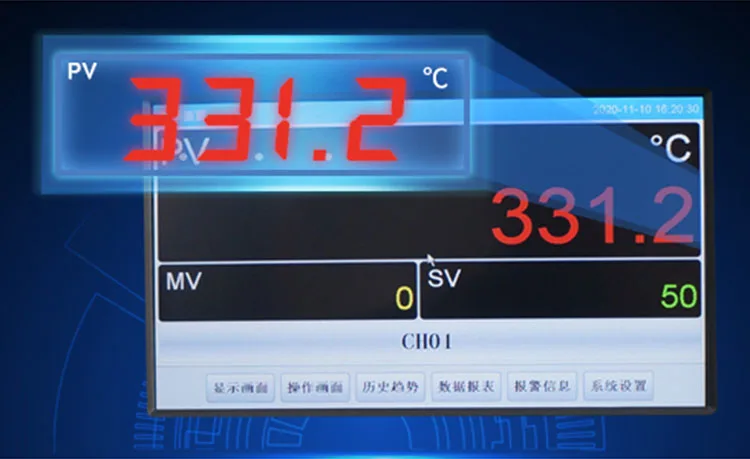

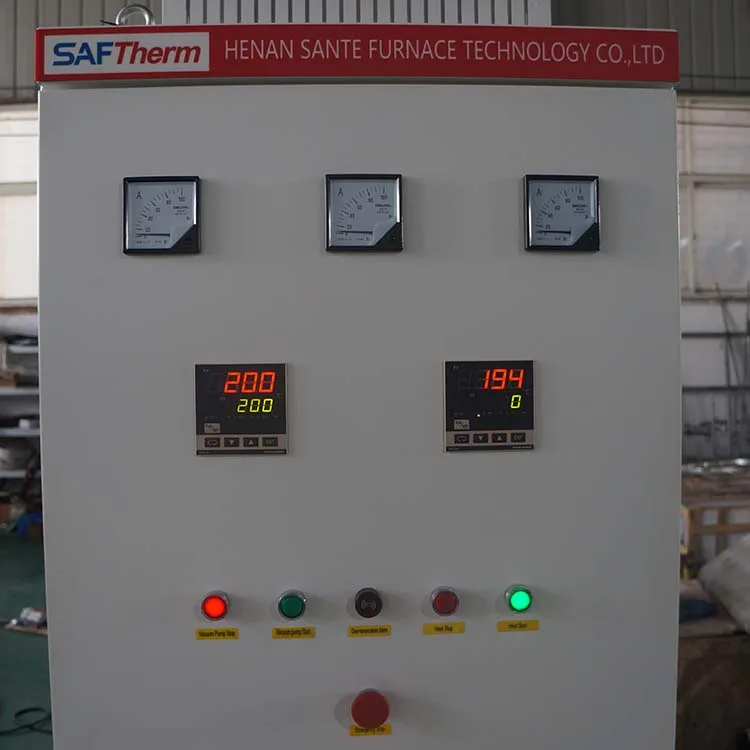

Temp Controller
It can be programmed with 30 sections, and RS485 communication interface and communication software can be selected to realize remote control and data recording of the furnace;
Gas Flow Meter
This gas meter is connected to hose to measure unidirectional gas flow;

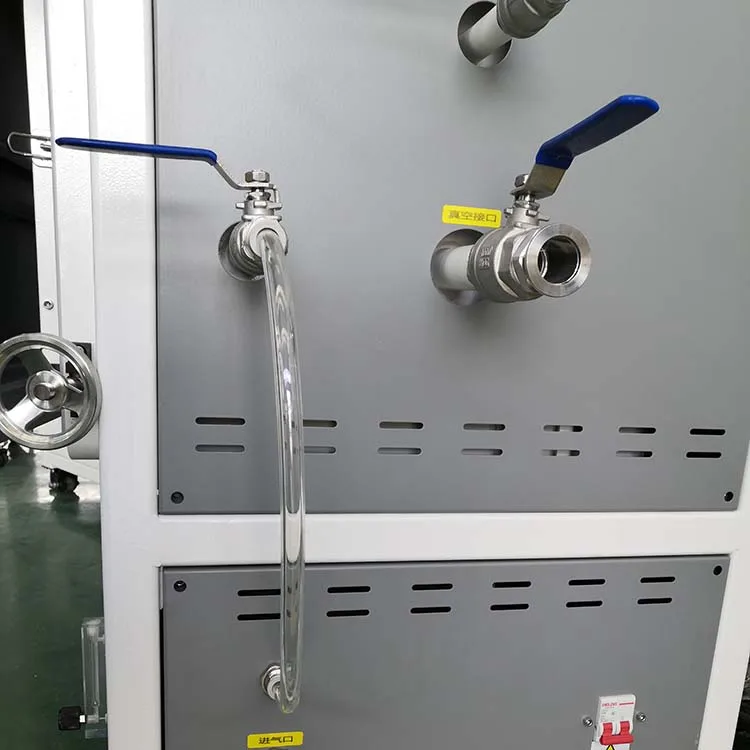

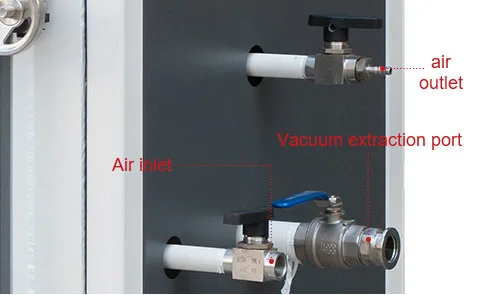

Air extraction port
Air inlet, vacuum pump interface, air outlet, high pressure and high temperature stainless steel valve, improving air tightness;
