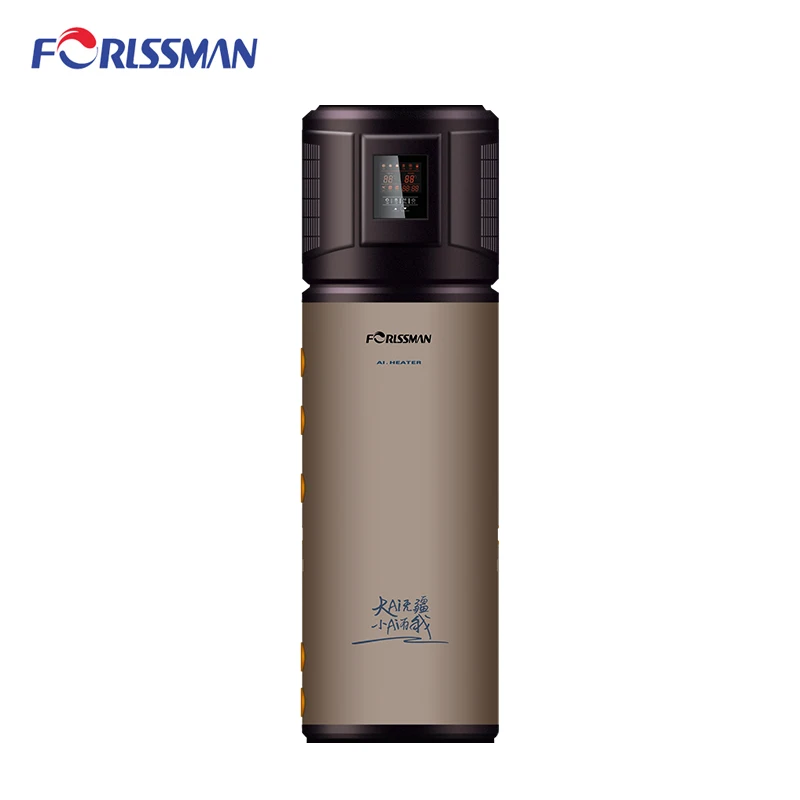

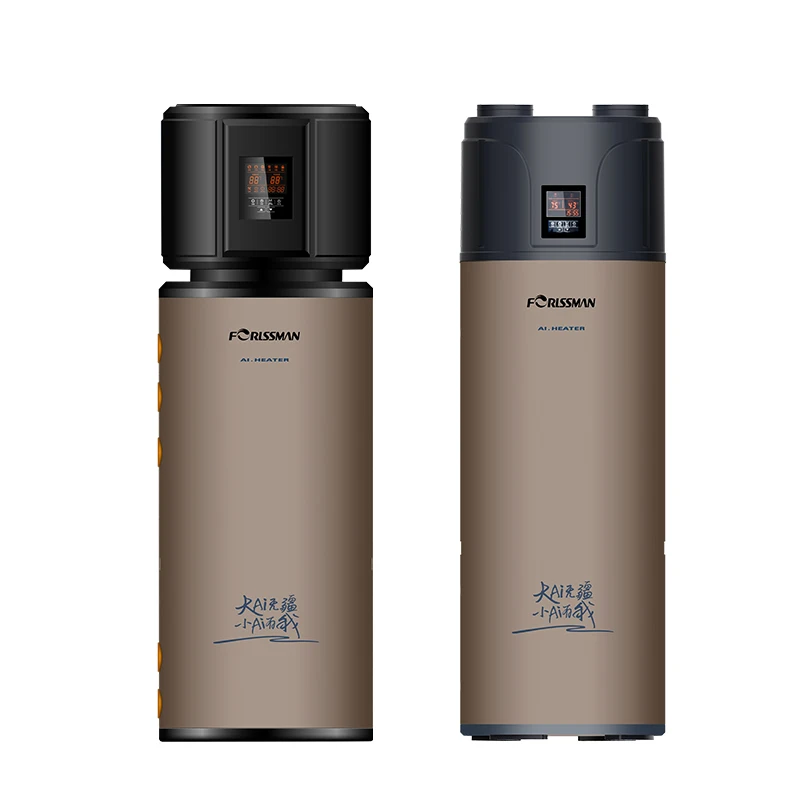

All in One Heat Pump Water Heater 70 Degree Water Outlet Household Air Source Water HeaterOEM R134
- Category: >>>
- Supplier: Guangdong Forlssman Electrical Appliances Co. Ltd.
Share on (1600768940346):
Product Overview
Description
Company Profile
Forlssman is located in Foshan, the manufacturing base of home appliance in Guangdong, China. The factory, spreading over an area of 10,600 square meters, possesses a complete, advanced production line, including: an intelligent CNC production line of sheet metal, an intelligent welding production line, an intelligent production line of enamel water tank, a fully automatic assembly line of water tank, an assembly line of airenergy large commercial machine, a China national level philosophy of pragmatism, innovation, integrity, and winwin, and "Quality is the life of the enterprise" as the creed. It pursues excellence and its throughput of business is booming. With its first-class technology R&D and management team, Forlssman has stayed ahead in its industry and customers are all over the world. Forlssman is committed to building the largest OEM base for enamel insulation water tanks and air source heat pump water heaters in China, and willing to establish long-term partnerships with customers in the same industry.
Product Description
Product parameter
Model | KFR35-150D/N1A1 | KFR35-200D/N1A1 | KFR35-300D/N1A1 | |||
Heating capacity (kw) | 4.2~4.5 | 4.2~4.5 | 4.2~4.5 | |||
COP | 3.87 | 3.87 | 3.87 | |||
Water tank volume (L) | 150 | 200 | 300 | |||
power supply(V/Hz/Ph) | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | |||
Rated power input (W) | 55 | 55 | 55 | |||
Max outlet water temp | 60 | 60 | 60 | |||
Rated power input(W) | 850 | 850 | 1.28 | |||
Rated current(A) | 3.86 | 3.86 | 5.82 | |||
Electric heater power(W) | 2000 | 2000 | 2000 | |||
Compressor type | Rotary | Rotary | Rotary | |||
Refrigerant pipe diameter(mm) | 5/8"-φ9.52），7/16"-φ6） | 5/8"-φ9.52），7/16"-φ6） | 5/8"-φ9.52），7/16"-φ6） | |||
Throtting device | Capillary | Capillary | Capillary | |||
Evaporator | Gold /Blue Hydrophilic Aluminum Fin | |||||
Ambient temperature(℃） | -7~45 | -7~45 | -7~45 | |||
Refrigerant | R410A/R407C | R410A/R407C | R410A/R407C | |||
Noise in 1 meter distance (dB(A)) | ≤52 | ≤52 | ≤56 | |||
Product Dimensions(mm) | 760*255*540 | 760*255*540 | 760*255*540 | |||
Net Weight (kg) | 32 | 32 | 37 | |||
water tank liner | Enamel tank | Enamel tank | Enamel tank | |||
Pipe diameter(mm) | G1/2‘’ | G1/2‘’ | G3/4’ | |||
Cabinet | Galvanized powder coated steel | |||||
Low pressure protection system | Yes | Yes | Yes | |||
High pressure protection system | Yes | Yes | Yes | |||
Magnesium stick | Yes | Yes | Yes | |||
water tank product Dimension (mm) | Ø470*1510 | Ø510*1615 | Ø570*1805 | |||
Water tank packing weight (KG) | 55 | 61 | 92 | |||
Testing condition:Heating:Ambient temp:(DB/WB):20℃/15℃,water inlet/outlet temp:15℃/55℃ | ||||||
Certifications
FAQ
Q: Are you a manufacturer?
A: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D,production,sales and service supply.
Q: What is your main product?
A: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat pumps,and EVI heat pumps in cold areas.
Q: How to place an order?
A: Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you Catalogs,quotations and other information you need.
Q: Do you provide OEM/ODM customized manufacturing services?
A: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to your special needs.
Q: Can I apply to become your heat pump distributor/distributor?
A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products in local countries/regions.
A: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D,production,sales and service supply.
Q: What is your main product?
A: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat pumps,and EVI heat pumps in cold areas.
Q: How to place an order?
A: Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you Catalogs,quotations and other information you need.
Q: Do you provide OEM/ODM customized manufacturing services?
A: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to your special needs.
Q: Can I apply to become your heat pump distributor/distributor?
A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products in local countries/regions.
