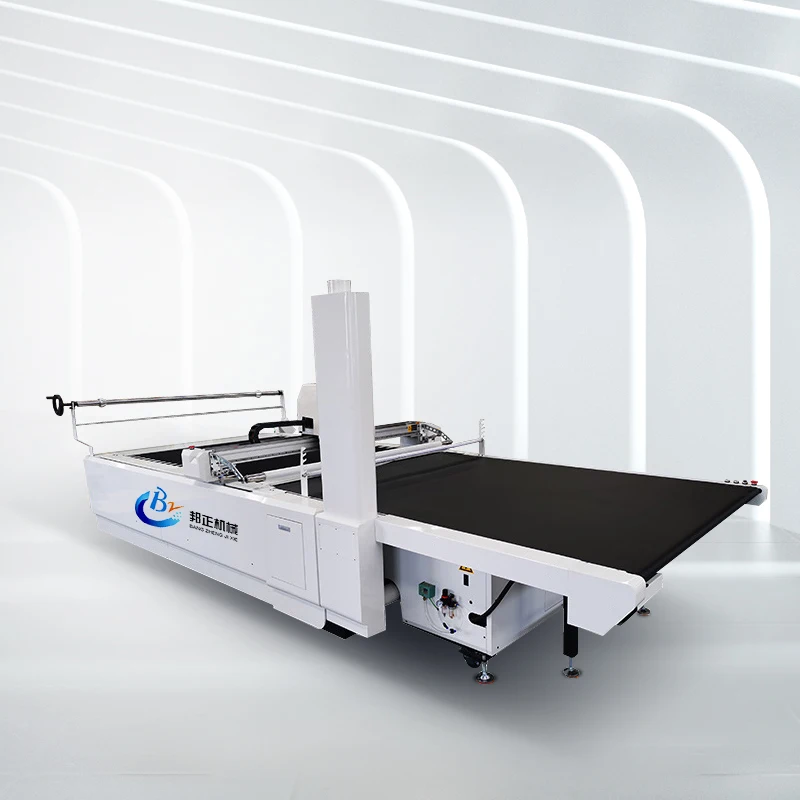

Worth Buying Textile/Cloth/Garment Circular Knife Cutting Machine CNC Upholstery Fabric Multilayer Cutting and Cutting Machine
- Category: >>>
- Supplier: Shandong Bangzheng Machinery Equipment Co. Ltd.
Share on (1600768959274):
Product Overview
Description
Product Description
clipping height | 1-11 cm | ||||||
Effective cropping width | 1700mm | ||||||
Effective cutting length | Automatic feeding unlimited length | ||||||
Automatic spreading length | 16.8m spreading table (total working length 24m) | ||||||
Way of transporting the knife | Reciprocating vibrating knife transport | ||||||
cutting speed | 0-60m/min | ||||||
Cutting knife grinding | Double wheel counter-rotating grinding | ||||||
Adsorption method | Frequency conversion vacuum constant pressure control mode | ||||||
safety devices | automatic induction | ||||||
using electric | Three-phase AC380V/50Hz/25Kw | ||||||
operation panel | touch control panel | ||||||
clipping parameters | Input LAN, USB | ||||||
Device weight | About 4500Kg | ||||||

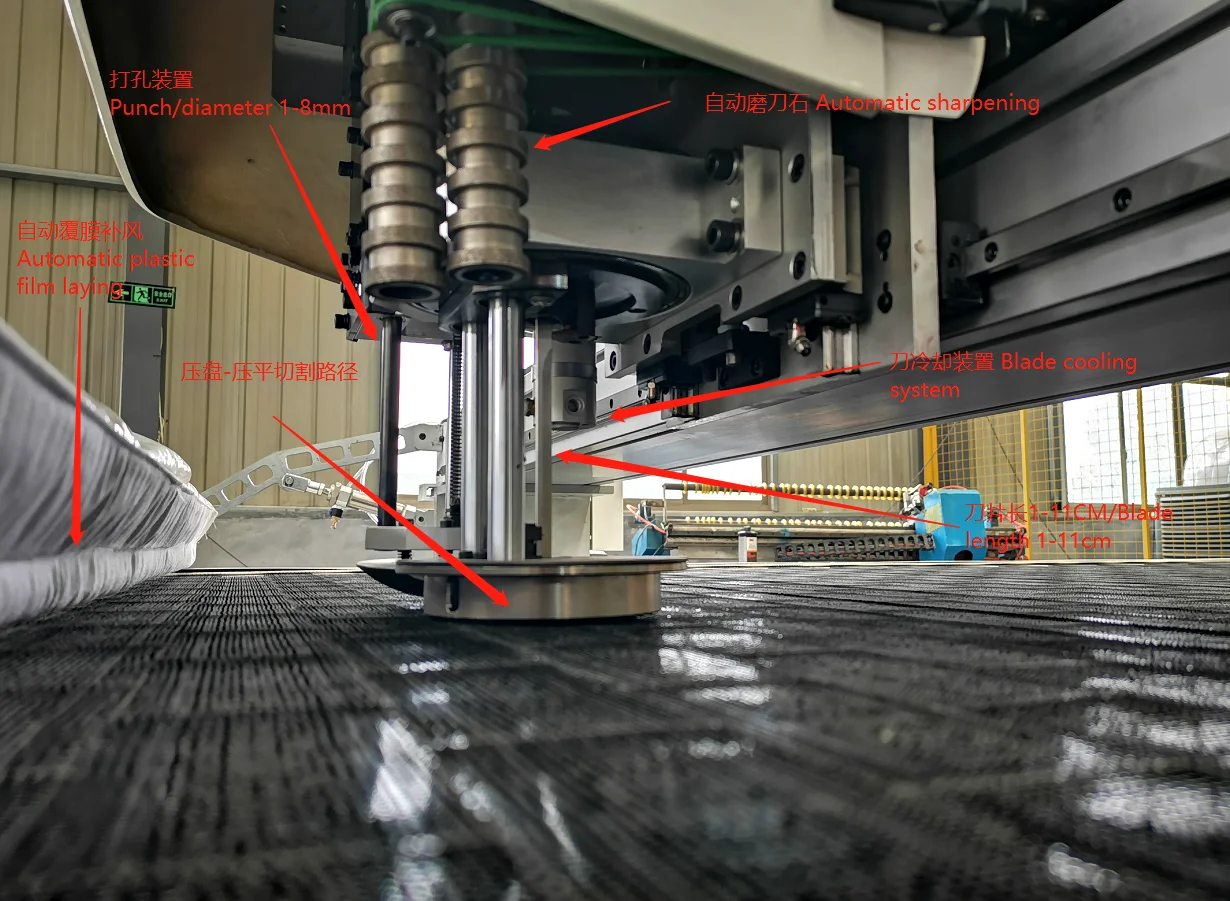

Other functions | Mobile cutting device, automatic feeding device, pattern scanning, adsorption bed | ||||||
operating system | Supports the overall rotation of the nesting chart, knife-edge conversion, single-piece recutting, one-key deletion of overlapping areas (supports removal of repeated lines), automatic multi-layer cutting bed for residual cloth cutting, automatic cloth spreading machine, and air floatation table | ||||||
Product advantages
Introduction to multi-layer cutting machine
Product parameters
product display

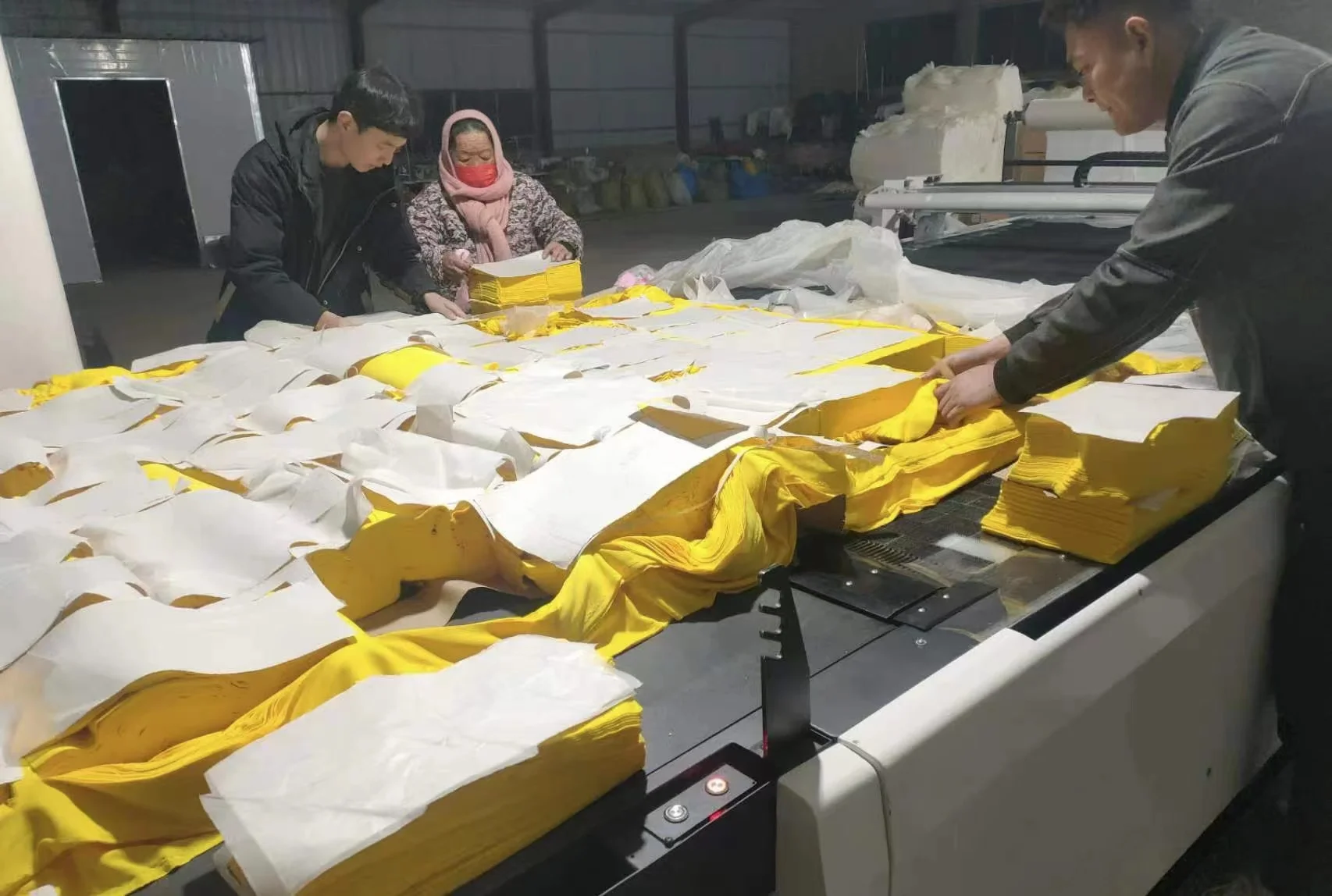

Scenario shows
Enterprise honor
Packing and shipping
