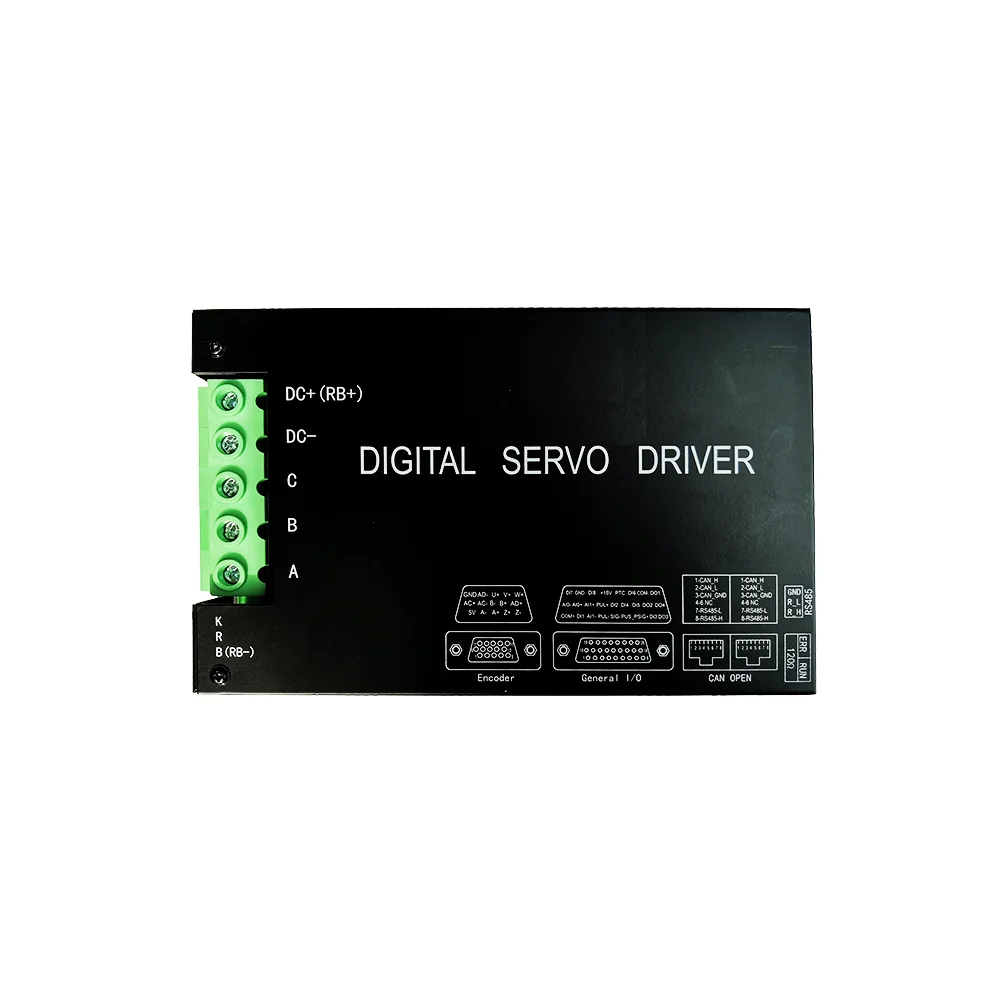

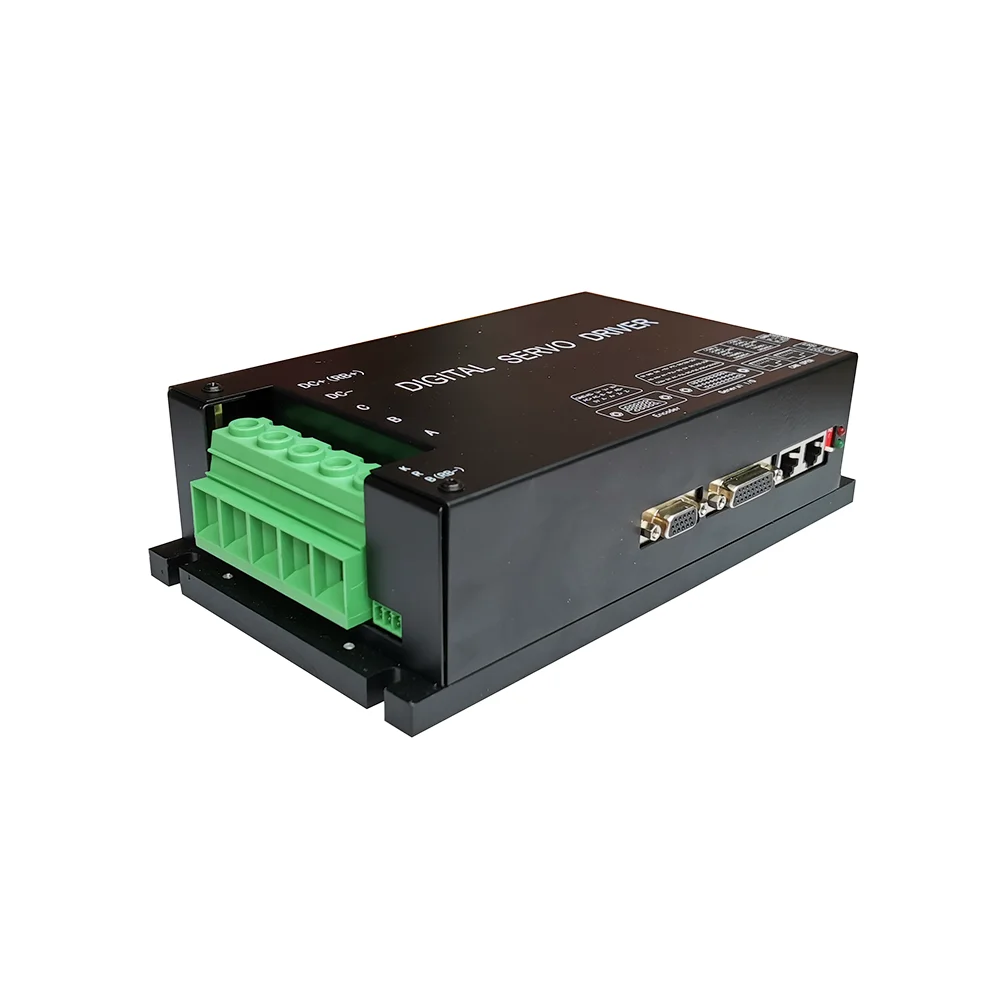

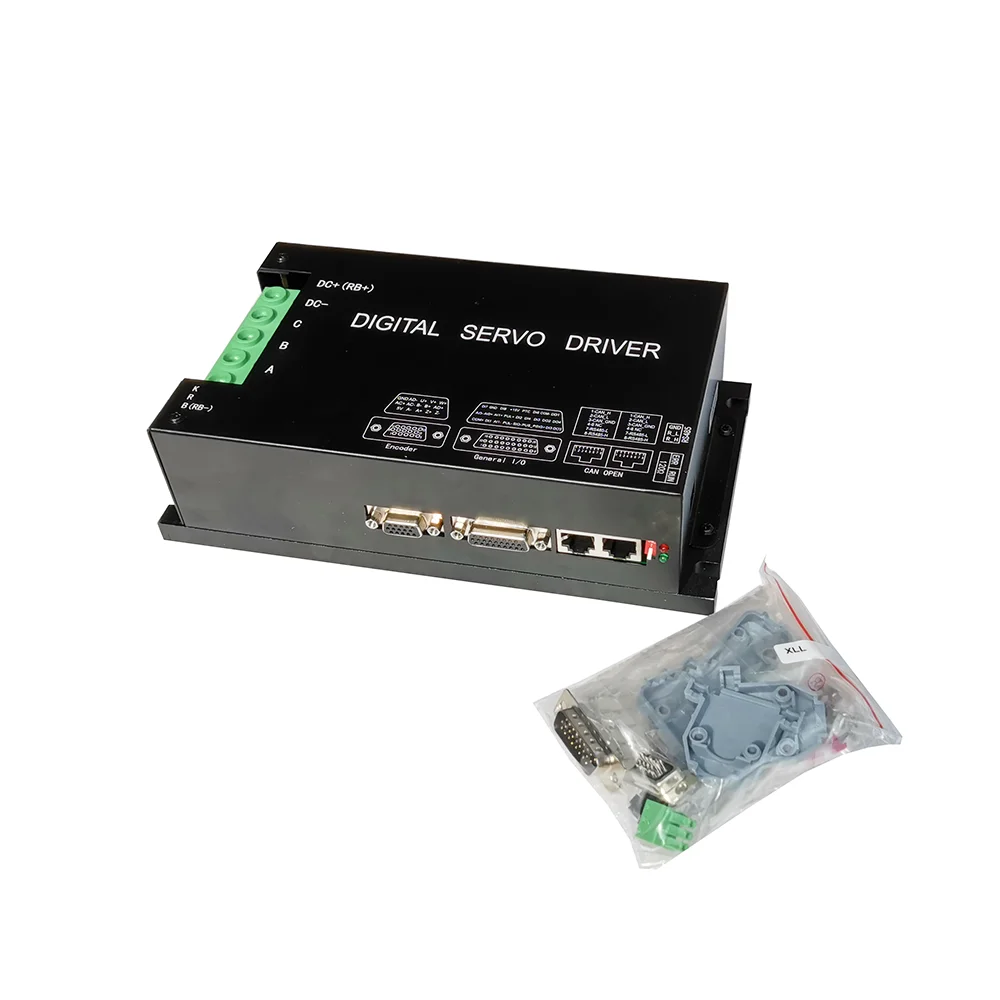

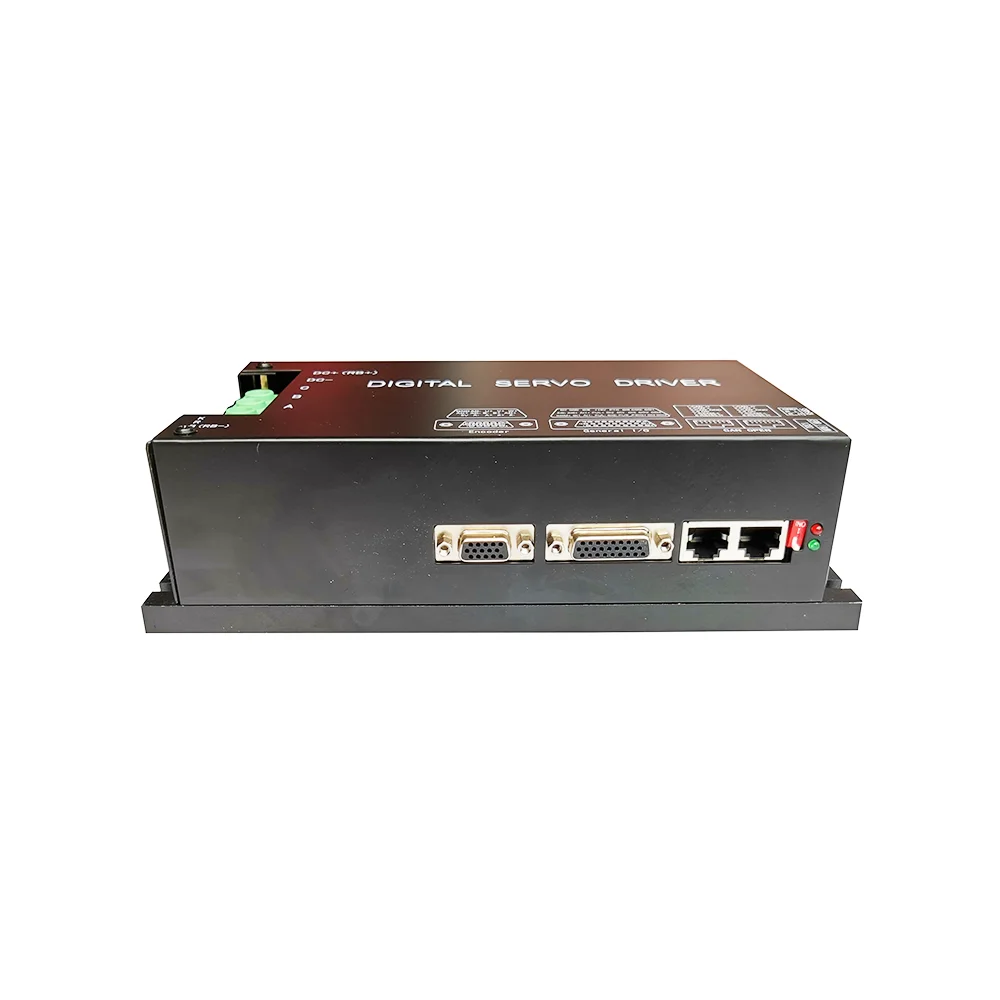

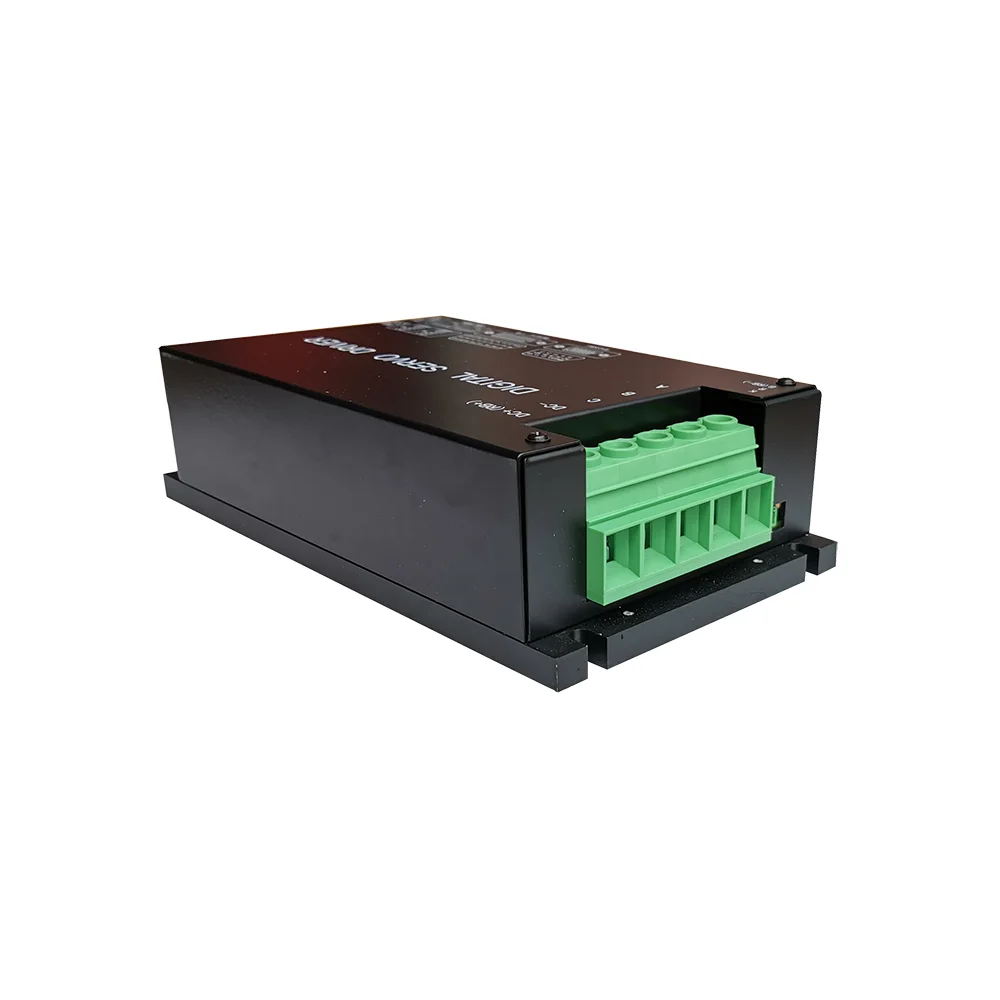

IXL-II. 80.160. IXL-II Series Motor Driver
IXL-II series low-voltage servo drivers can be used to drive low-voltage permanent magnet synchronous motors, brushless DC motors, and brushed DC motors. They are widely used in AGVs, mobile robots, manipulators, etc. The rated current is available in various specifications from 5-150A , Power from 50W-6KW, support standard CanOpen protocol, Modbus bus protocol.




Product specifications


Item
Parameters
Model
IxL-II 80.160
Input voltage
20-60/90VDC
Input maximum current of power supply
160A
Rated power
4000W/7000W
Heat capacity coefficient
720 J/C
Maximum continuous output current at speed < 100RPM
80Arms
Maximum continuous output current at maximum speed
70Arms
Maximum output current
160Arms
Maximum output voltage
Vin * 0.95 VDC
PWM frequency
10 KHz
Efficiency at rated power
97%
Outline dimension
SIZE 3
Weight
1.86KG
Cooling mode
Free cooling

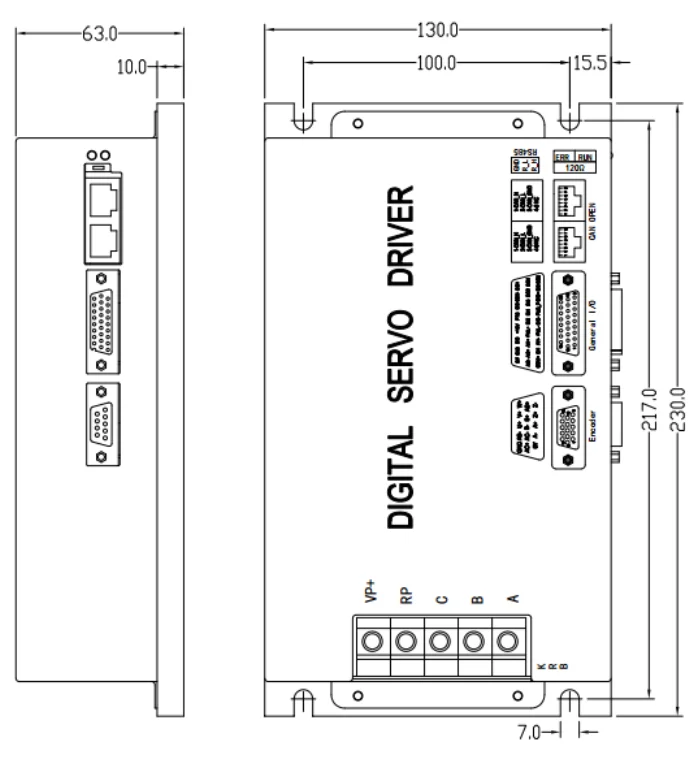

Dimensions




Product Advantages



*Support 20V-90V power supply
*Peak current up to 300A
*Support brushless motor, brushed motor, servo motor
*Support analog, pulse control
*Supports incremental, absolute, resolver
*Support standard Modus/CanOpen/EtherCat protocol
