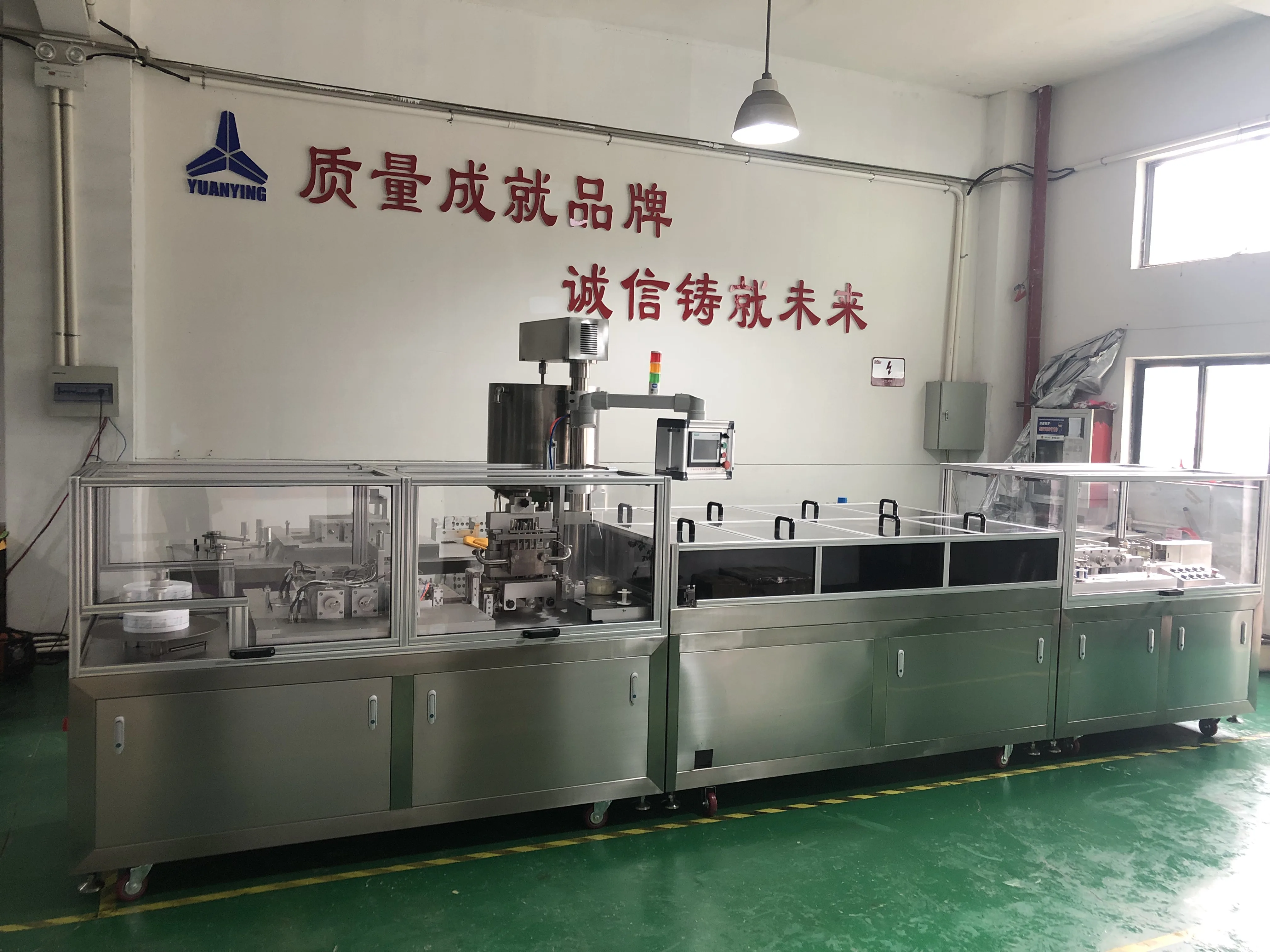

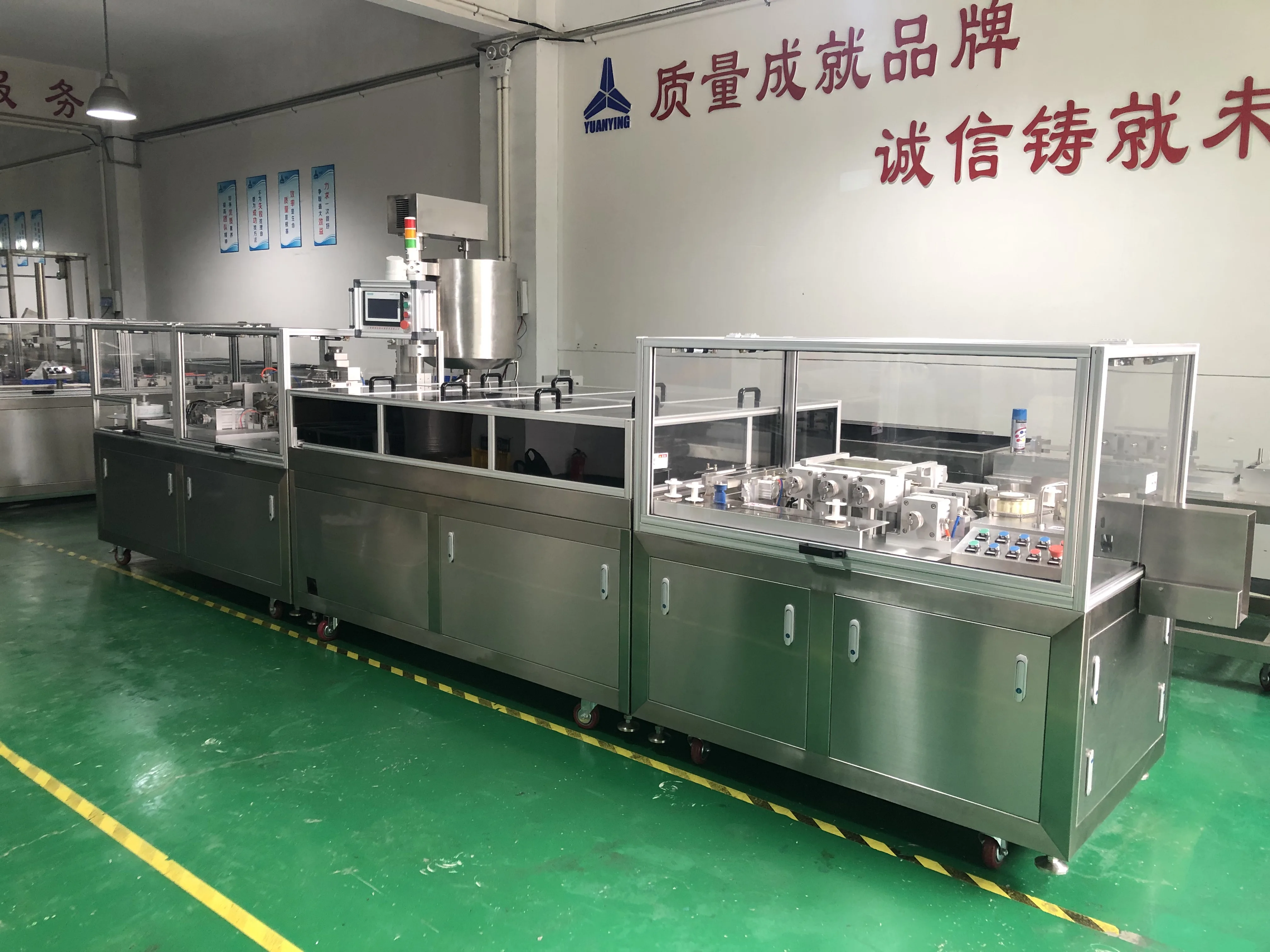

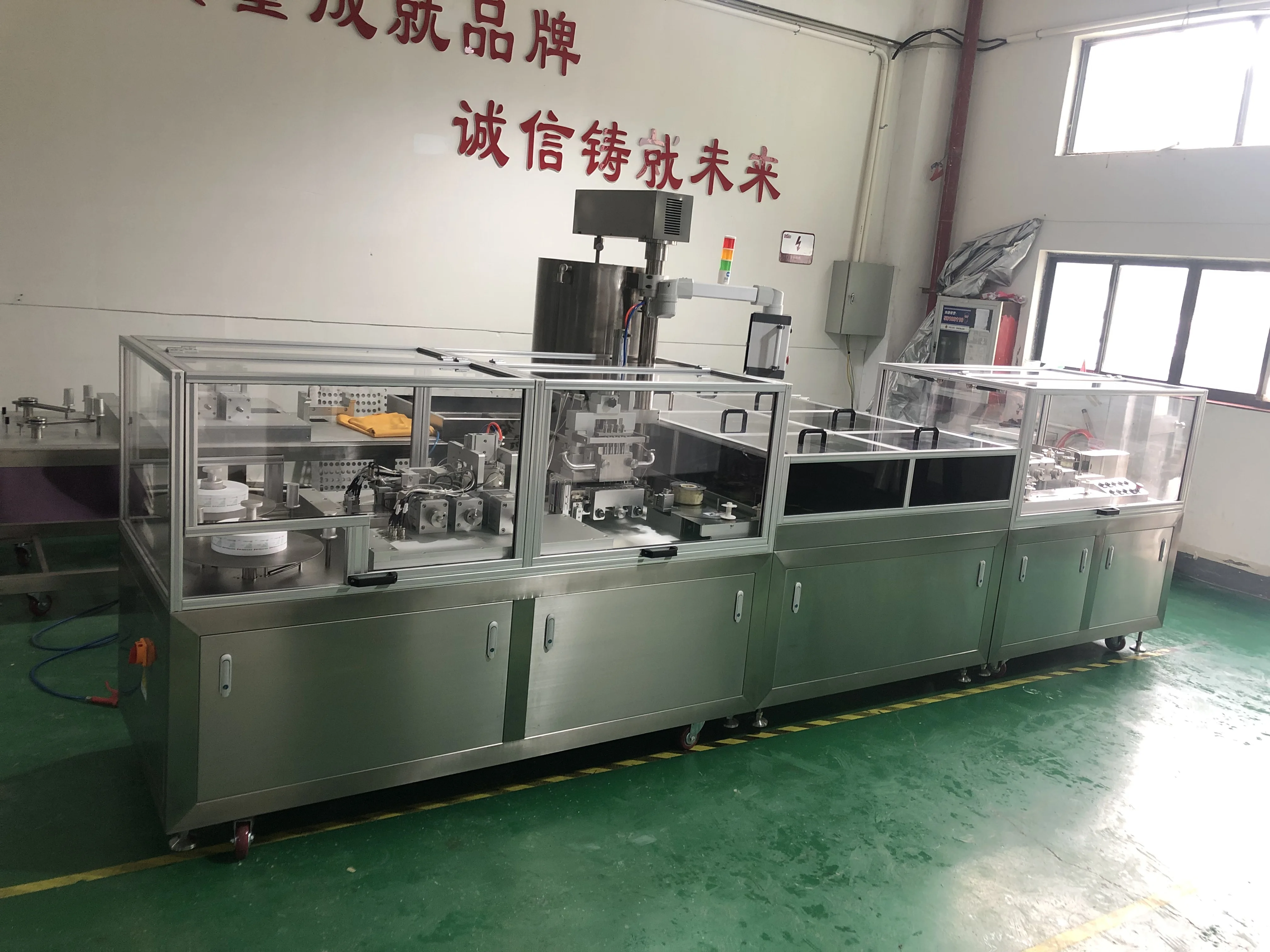

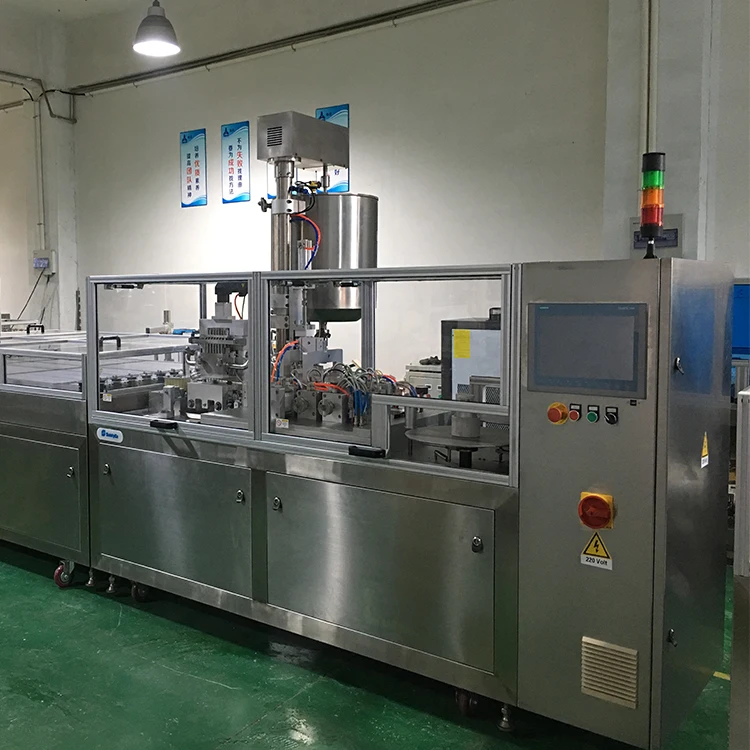

High Quality Automatic Suppository Machine Suppository Filling And Sealing Production Line
- Category: >>>
- Supplier: Wenzhou Urban Machinery Co. Ltd
Share on (1600769026022):
Product Overview
Description
Product Paramenters
Commodity | Continuously Automatic suppository production line |
Model | SJ-7LS |
Output | 8,000 -12000pcs/h |
Single dosage | 0.5—5ml |
Dosage allowed | ＜±2% |
Stirring tank capacity | 70L |
Air consumption/min | 1.5m3 |
Working voltage | 3 phase 380V |

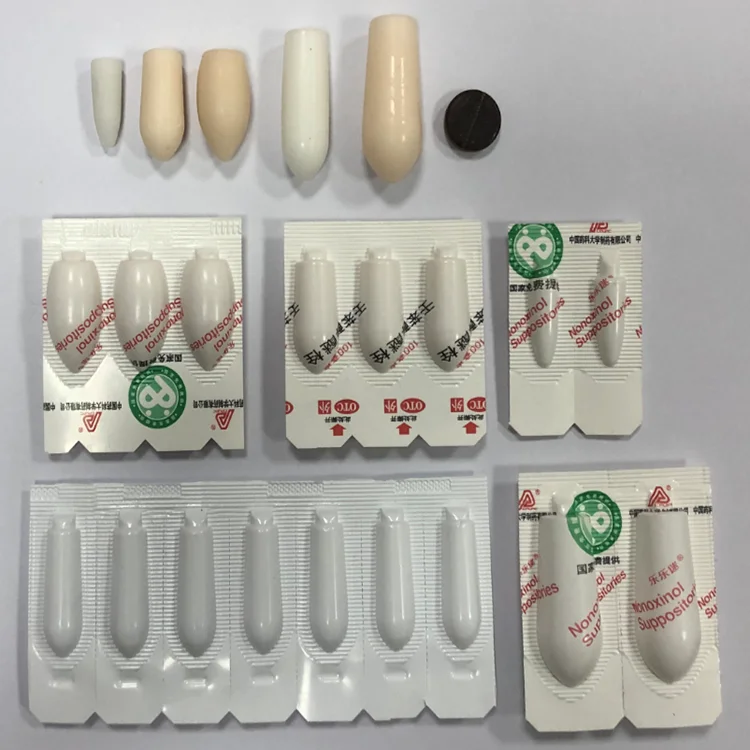

Adopt forming shapes | Bullet, torpedo and duck shapes and other shapes |
Adapt Material | Synthetic fatty acid glycerol, glycerin gelatin, polyethylene glycol etc |

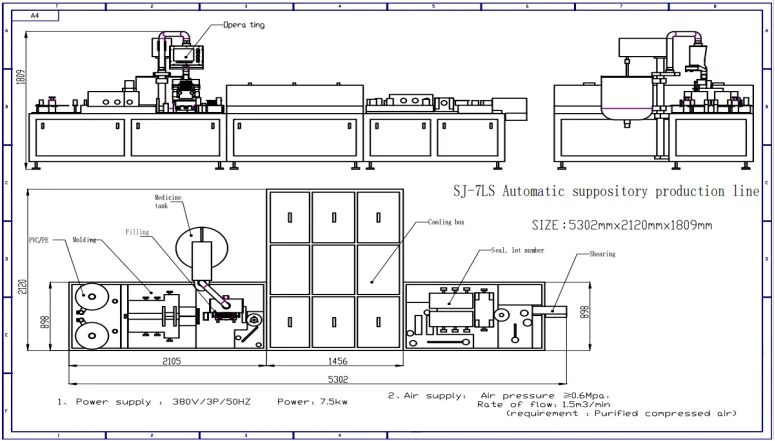

Overall dimensions | L5,302mm×W2，120mm×H1,809mm |

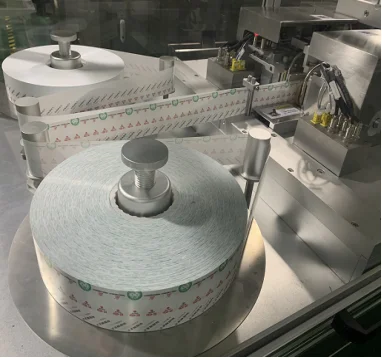

Packaging Film | PVC\\PE (thickness0.15-0.18mm) |
Air pressure | ≥0.6Mpa |
Water consumption/h | 50kg (recycling) |
total power | 7.5KW |
Machine Weight | 2000KG |
Each distance of suppository | 17.4mm |
Products Description
Feature:
1 SJ-7LS Full-automatic Suppository Production Line is suitable for the production of special shape such as bullet head, torpedo shape and duck bill, to meet the production of your suppository. (according to the specifications of your specifications)
2 The equipment adopts PLC programmable control and man-machine interface operation, easy operation, convenient adjustment, accurate temperature control and smooth operation.
3 The temperature sensor and microcomputer control system are used to realize high precision thermostatic control.
4 The liquid storage tank is made of 316L stainless steel, with proper volume, heat preservation and heating function, and accurate temperature control; The tank is equipped with a mixing device to ensure the homogeneity of the liquid in the VAT at any time. The reservoir can be connected with the filling mechanism through the pipe, and the liquid can be kept in circulation to ensure the fluidity of the liquid and satisfy the demand of filling.

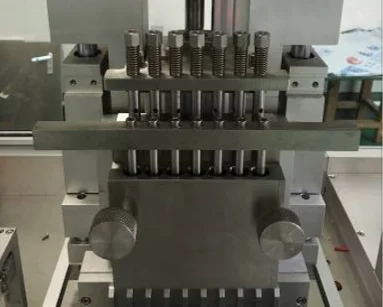

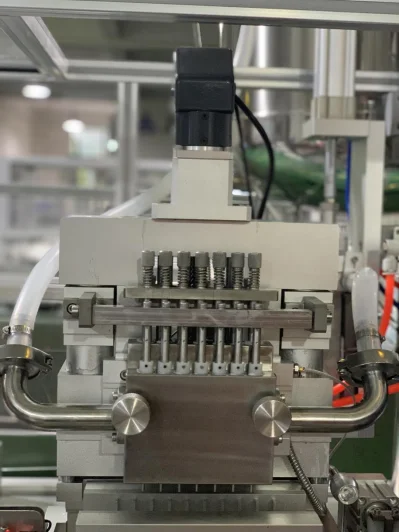

5 The insertion type linear perfusion mechanism can be used to locate accurate, not dropping, and not hanging wall; The single-grain measurement is 0.5-5ml and the filling error is plus or minus 2%.

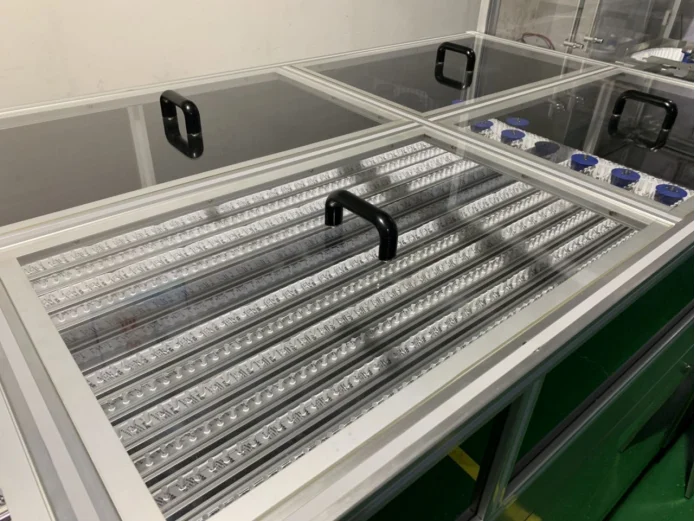

6 Continuous cooling design, the post-infusion suppository shell can be fully cooled and the liquid solid transformation is realized.

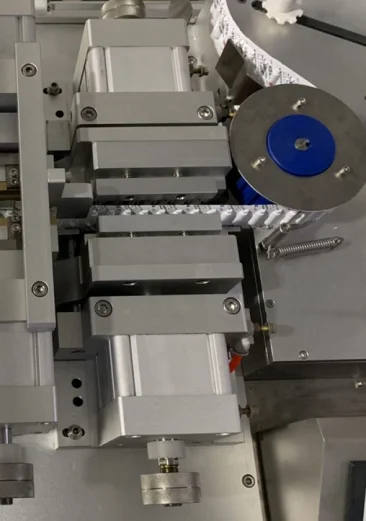

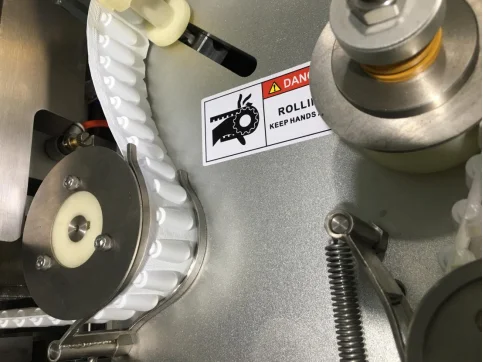

7 Continuous strip, continuous sealing, sealing process batch number self-printing; The sealing seal should be well sealed.
8Simple and reasonable design, convenient operation and maintenance.
2 The equipment adopts PLC programmable control and man-machine interface operation, easy operation, convenient adjustment, accurate temperature control and smooth operation.
3 The temperature sensor and microcomputer control system are used to realize high precision thermostatic control.
4 The liquid storage tank is made of 316L stainless steel, with proper volume, heat preservation and heating function, and accurate temperature control; The tank is equipped with a mixing device to ensure the homogeneity of the liquid in the VAT at any time. The reservoir can be connected with the filling mechanism through the pipe, and the liquid can be kept in circulation to ensure the fluidity of the liquid and satisfy the demand of filling.
5 The insertion type linear perfusion mechanism can be used to locate accurate, not dropping, and not hanging wall; The single-grain measurement is 0.5-5ml and the filling error is plus or minus 2%.
6 Continuous cooling design, the post-infusion suppository shell can be fully cooled and the liquid solid transformation is realized.
7 Continuous strip, continuous sealing, sealing process batch number self-printing; The sealing seal should be well sealed.
8Simple and reasonable design, convenient operation and maintenance.
Details Images

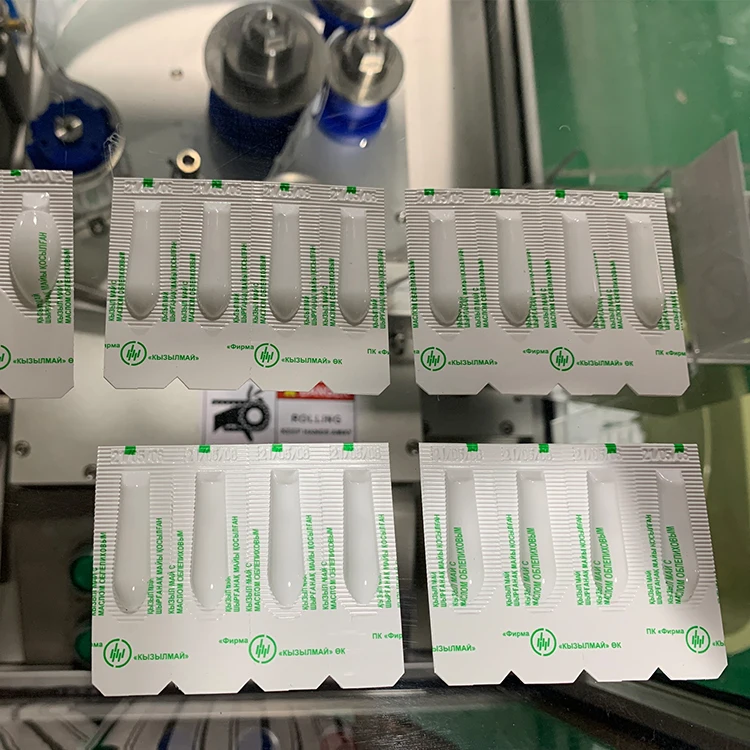

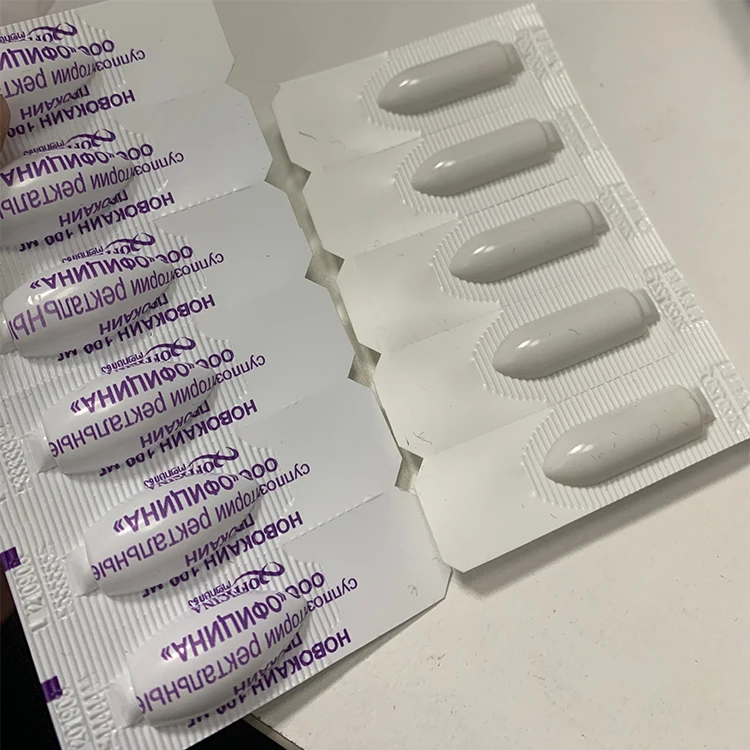

Sample
