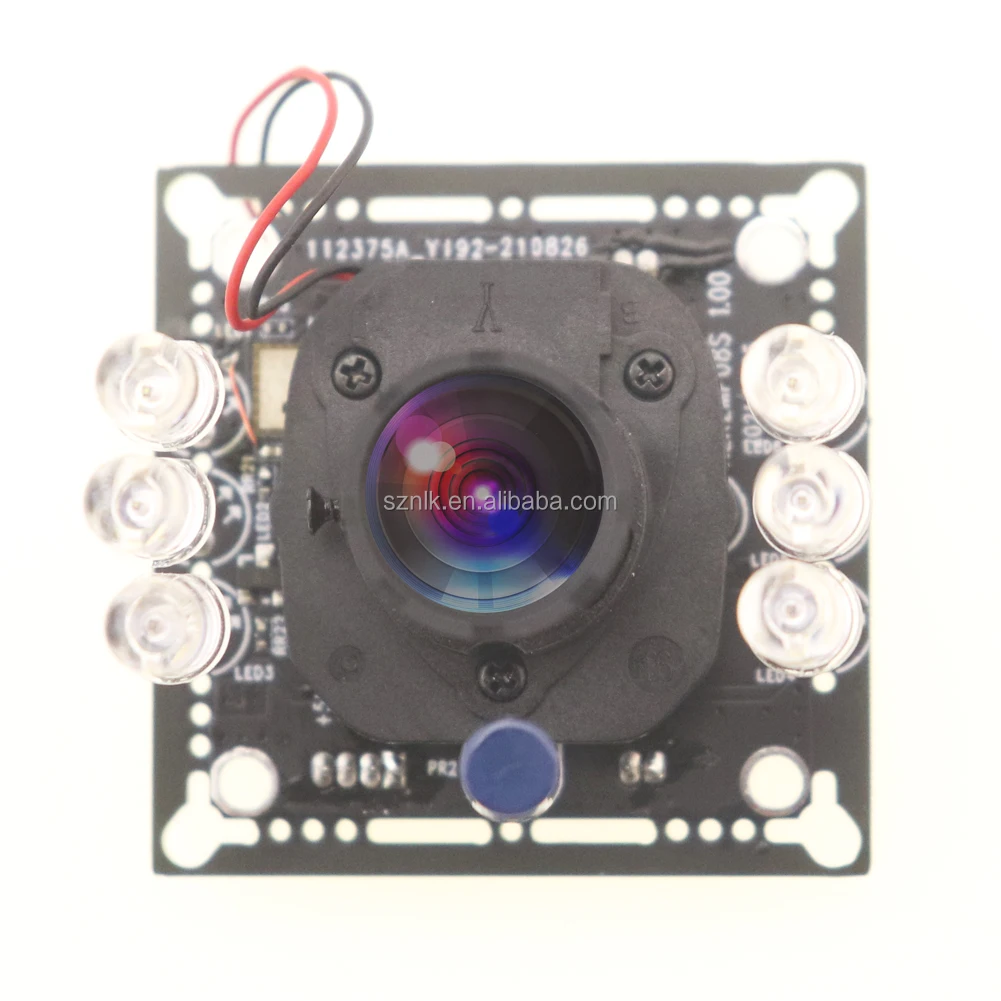

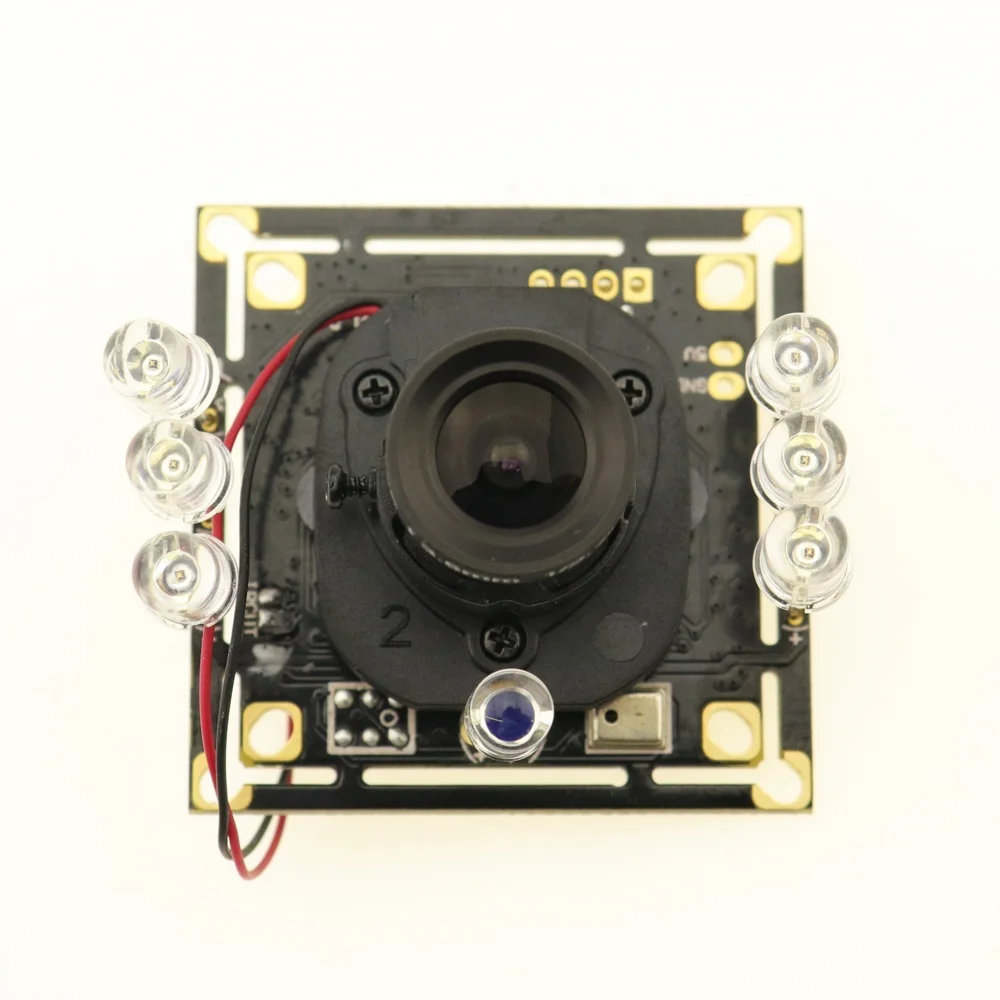

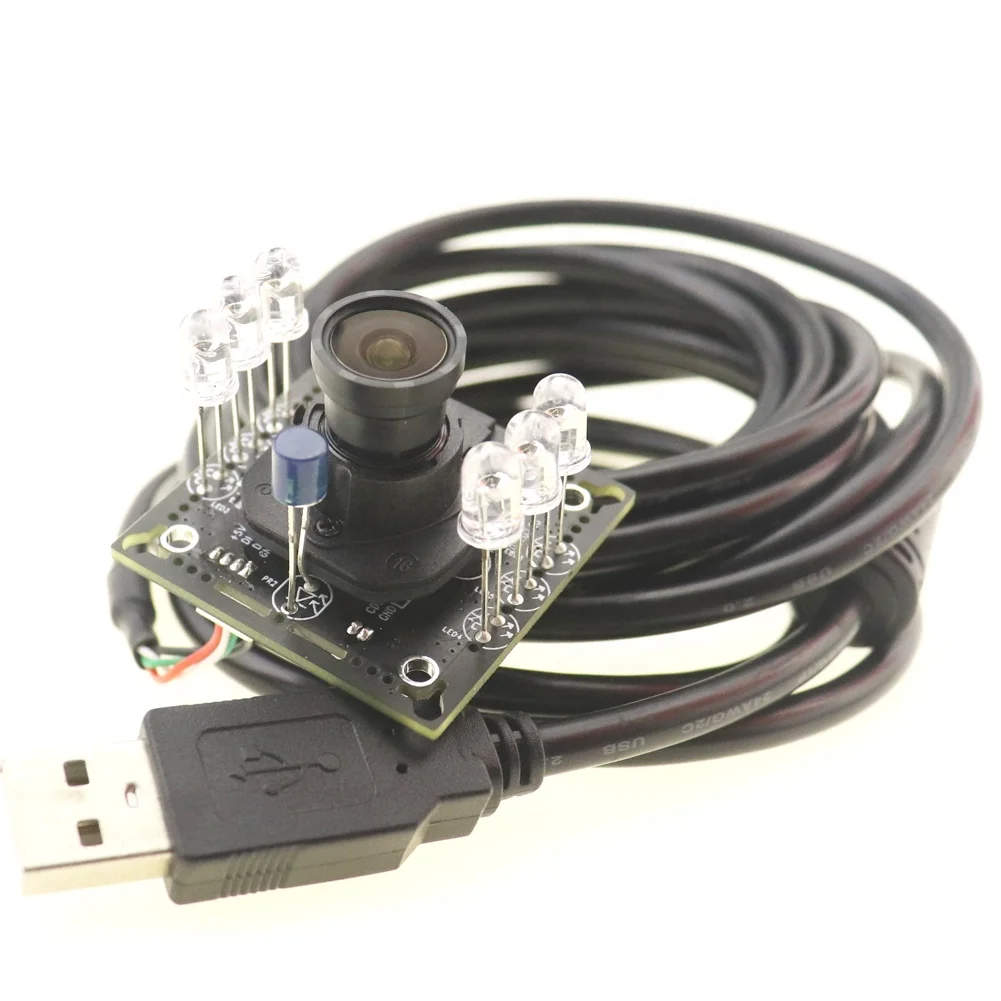

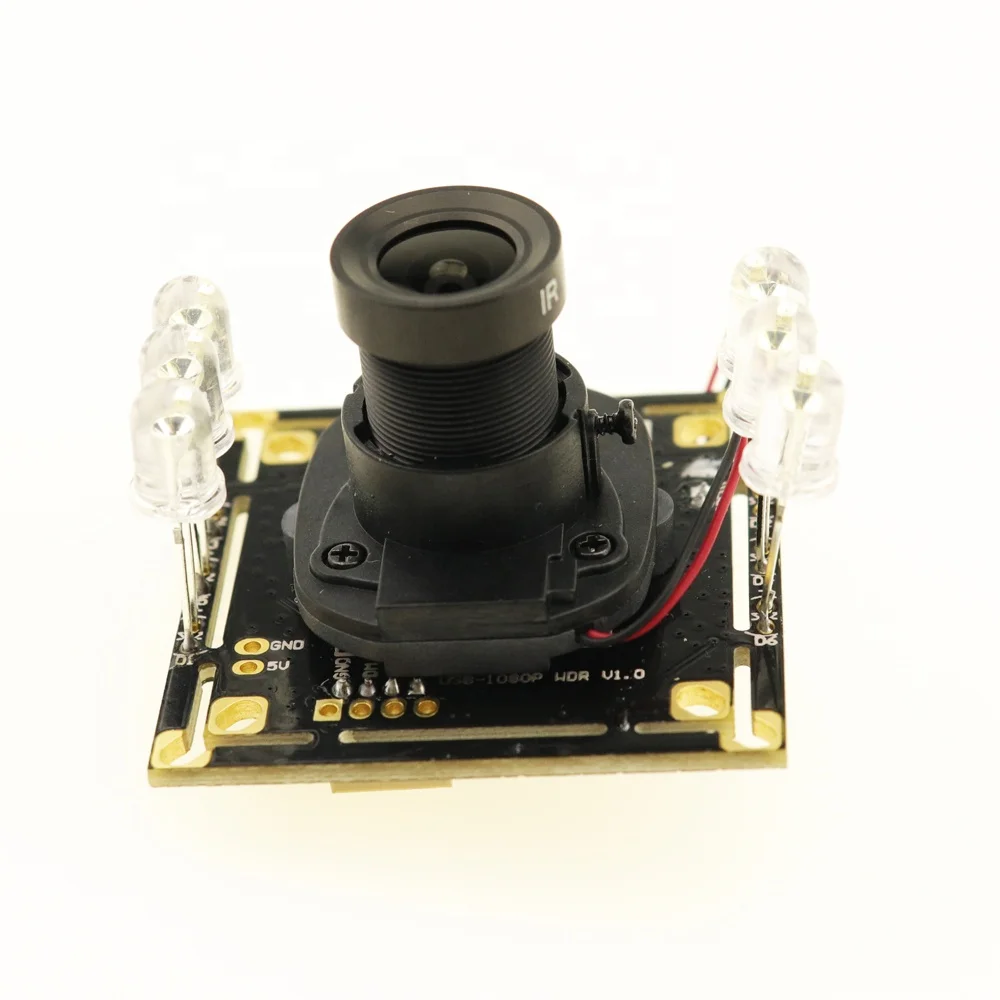

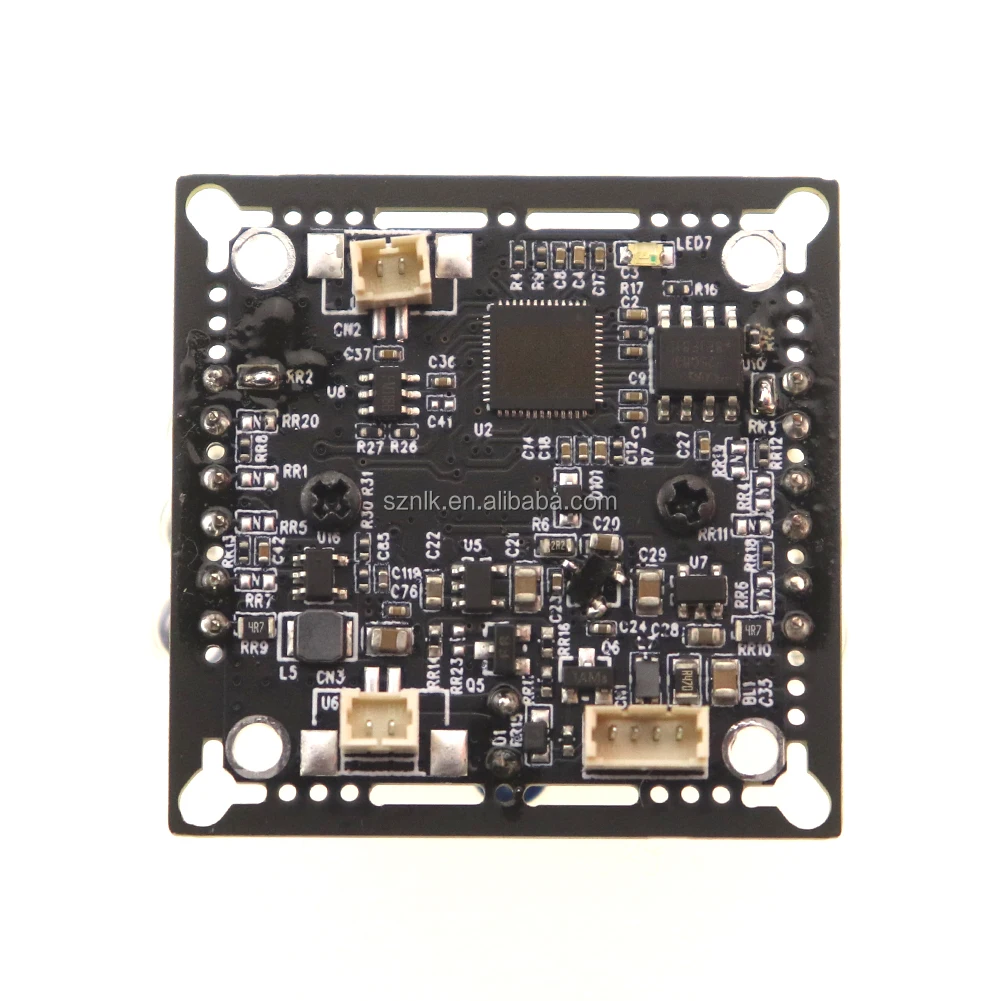

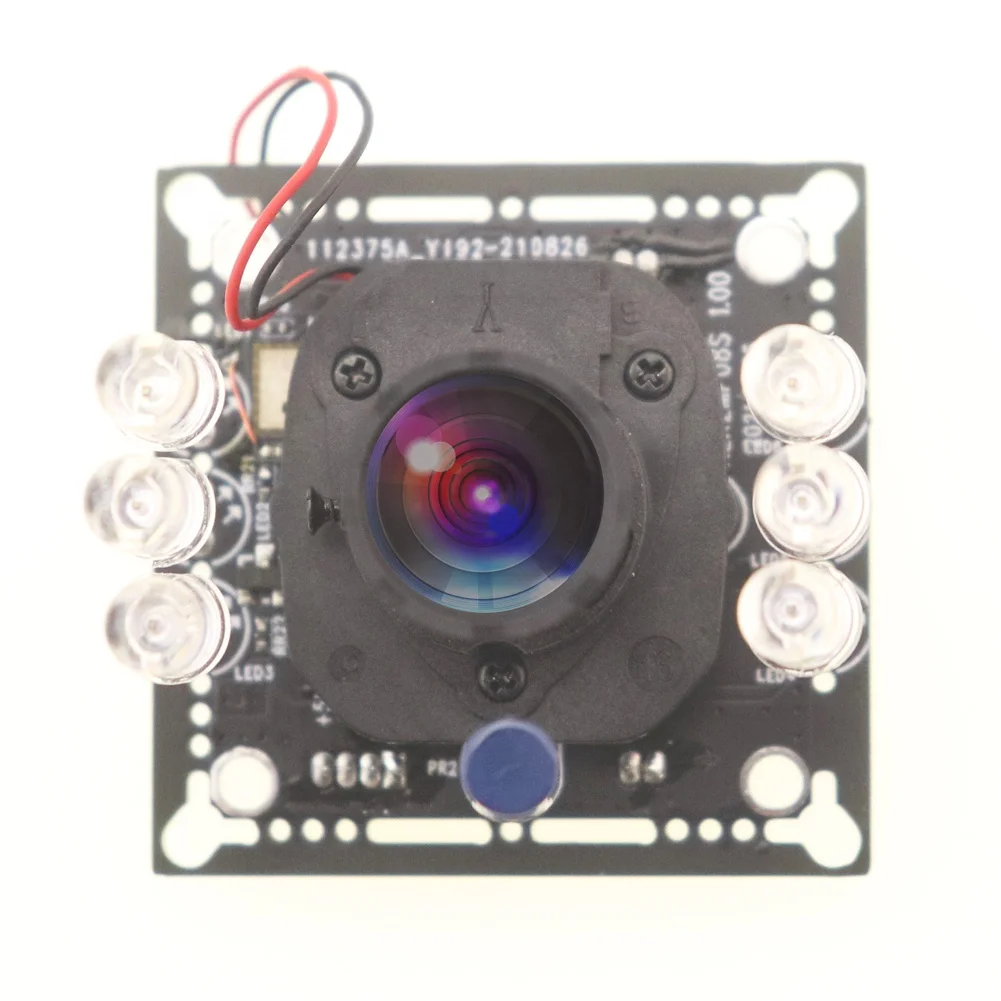

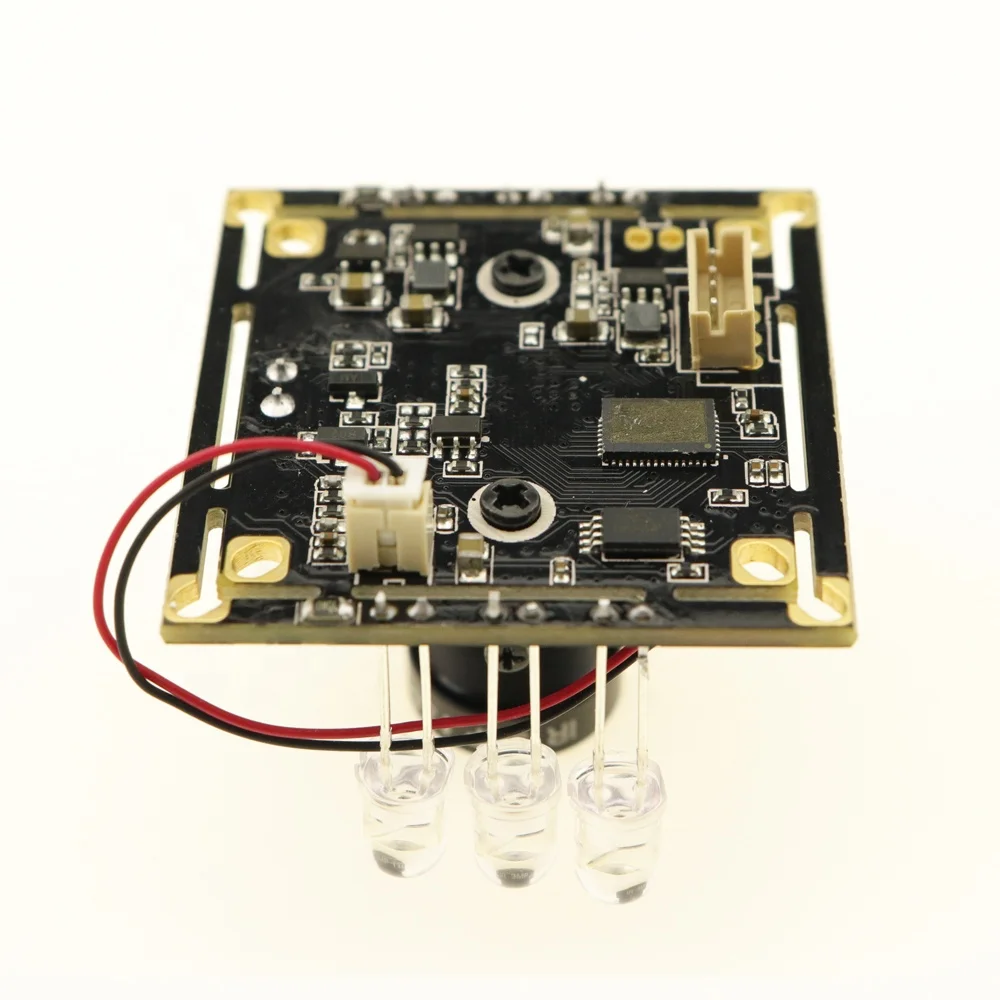

1080P high pixel Day & Night Auto IR Cut Switching All Day Dual Stream H.264 Webcam High Frames USB Camera module

Product Overview

Description



1080P high pixel Day & Night Auto IR-Cut Switching All-Day Dual Stream H.264 Webcam High Frames USB Camera module

Mipi camera board

· SONY IMX307 STARVIS Sensor, 1/2.8 inch 2 Mega

· Built-in ISP processing

· USB2.0 Interface,USB Video Class(UVC)

· Data fromat : YUY2 / MJPG / H.264

· Standard lens mount

· IR-CUT circuit

· BLC, Digtal WDR, 2D/3D noise reduction, Anti-fog

· Brightness, Contrast, Sharpness, Saturation adjustable







Applications

Drone,QR code Scanner,Video surveillance
Machine Vision, AI
Smart Home and Machines
ADAS



Main Parameters



Technical Details
SENSOR
Sensor	SONY IMX307LQR-C STARVIS
Pixels	2.07M pixels
Resolution	1920*1080 MAX
Image Size	Diagonal 6.46 mm (Type 1/2.8)
Unit Cell Size	2.9um (H)*2.9um(V)
SNR1s Value	0.24lx
ISP
YUY2 Frame Rate	640*360@25fps / 30fps
MJPG Frame Rate	1920*1080@25fps / 30fps, 1280*720@50fps / 60fps, 640*360@25fps / 30fps
H.264 Frame Rate	1920*1080@25fps / 30fps, 1280*720@50fps / 60fps, 640*360@25fps / 30fps
Exposure	Auto or Manual
White Balance	Auto or Manual
Shutter	1/25(1/30)s to 1/50,000s
Slow Shutter	Coming Soon
Denoising	2D/3D noise reduction
Image Setting	Brightness, Contrast, Sharpness, Saturation,Flip, Mirror
Image Enhancement	BLC, Digtal WDR, Defog
Day/Night Switch	Manual or IR-CUT filter with external trigger
Lens & IR-CUT
Lens Mount with IR-cut	Support M12*0.5 or M16*0.5 depend on lens mount,MTV12 or MTV16,from 1.8mm to 50mm or more.(optional)
Mounting Hole	2 screw holes with diameter of 2.2mm,20mm Center-to-Center Spacing
Interface
Connector	MX1.25*4,USB2.0 Interface
Communication Interface	USB2.0,UVC Protocol
IR-CUT Control	IR-CUT motor control, 3.3VDC
Day/Night External Trigger	3.3VDC to 5VDC compatibility
General
Operating Conditions	-10℃~60℃, Humidity 95% or less, non-condensing
Power Supply and Consumption	5VDC,1.2W MAX
Dimension	38mm*38mm*10mm(not include lens and lens mount)
