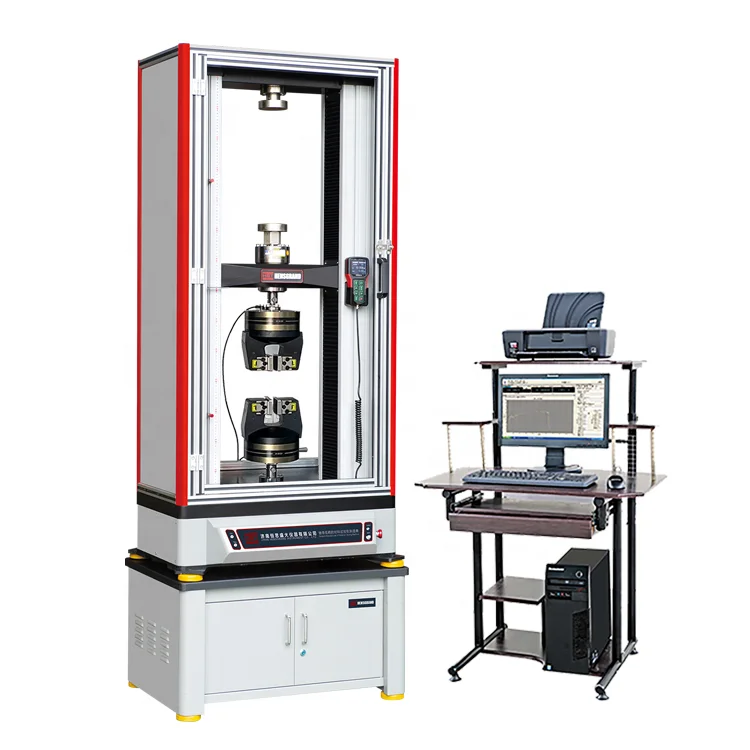

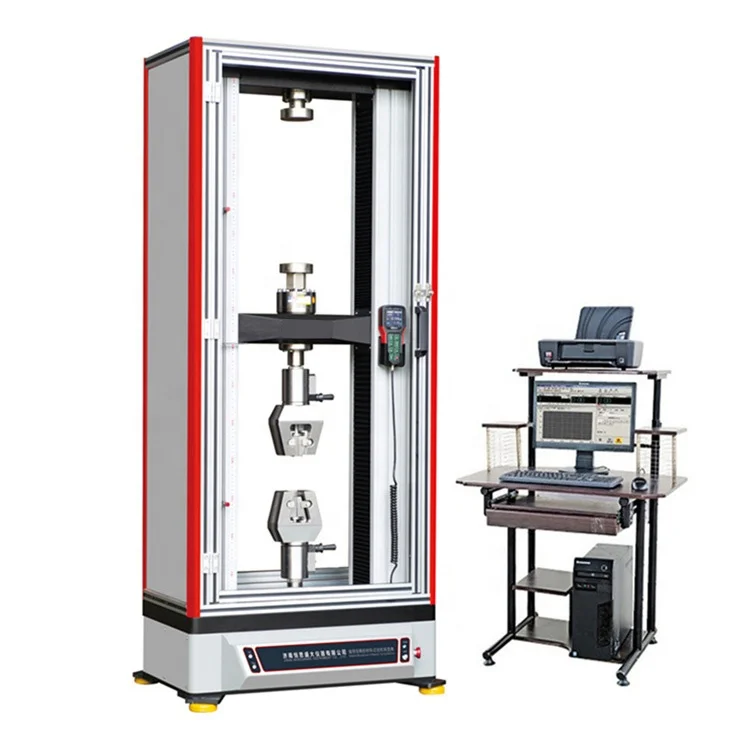

30kn 20kn 100kn UTM electronic universal tensile compression shear strength testing machine
- Category: >>>
- Supplier: Jinan Hensgrand Instrument Co. Ltd.
Share on (1600769155114):
Product Overview
Description
Products Description
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-
1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-
1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc
Safety Divice
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
NO. | Items | Model | WDW-10E | WDW-20E | WDW-30E | WDW-50E | WDW-100E | ||||
1 | Host | Structure | column and 2 Ball Screw | ||||||||
Max. Load(kN) | 10 | 20 | 30 | 50 | 100 | ||||||
Tensile space(mm) | 670 | 700 | 770 | 650 | |||||||
Compression space(mm) | 900 | 1000 | 1000 | 1000 | |||||||
Effective test width | 450 | 450 | 450 | 550 | |||||||
size(mm) | 850 x 590 x 1750 | 840 x 570 x 1850 | 840 x 570 x 1850 | 950x660x2000 | |||||||
Host Weight (mm) | 370kg | 420kg | 420kg | 680kg | |||||||
Power Supply | 220V/50-60Hz | ||||||||||
Recommend Products

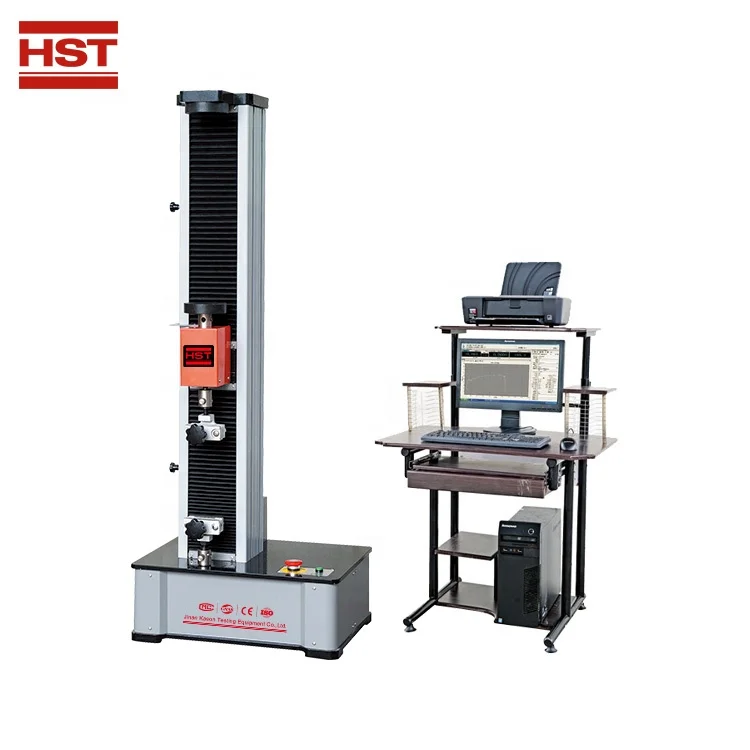

50N-5KN Single Column Universal Testing Machine | Electronic Universal Testing Machine with 10kN Pneumatic Grips | Electronic Universal Testing Machine with Hydraulic grips |

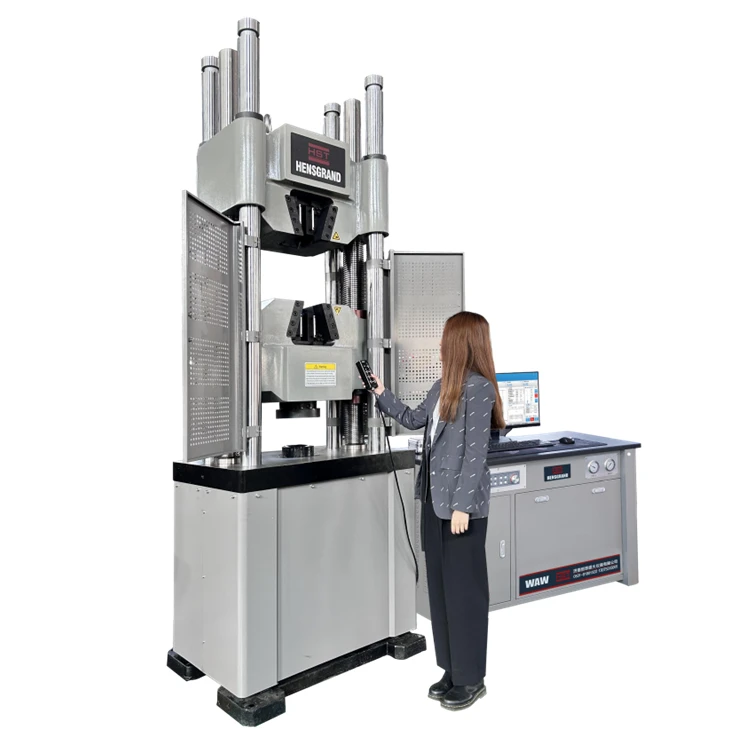

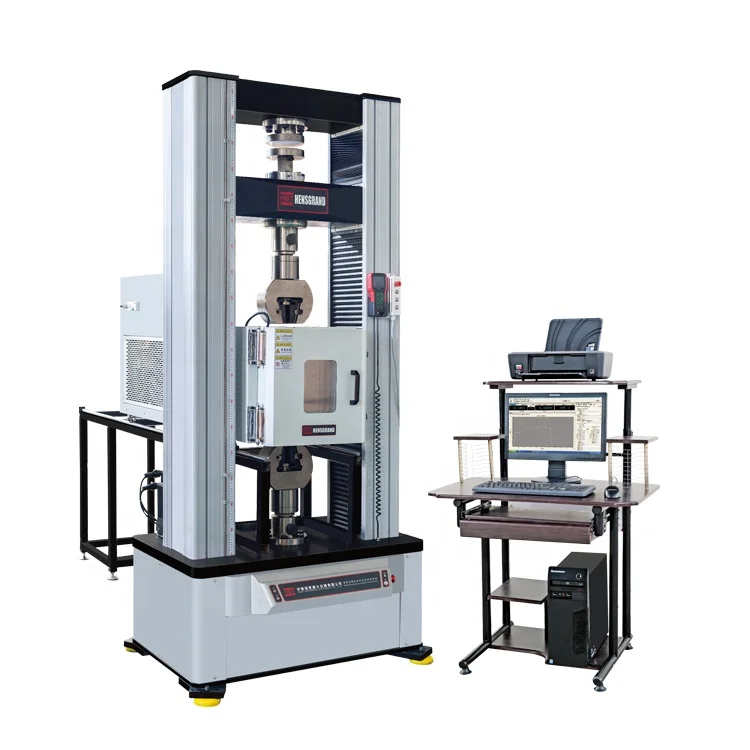

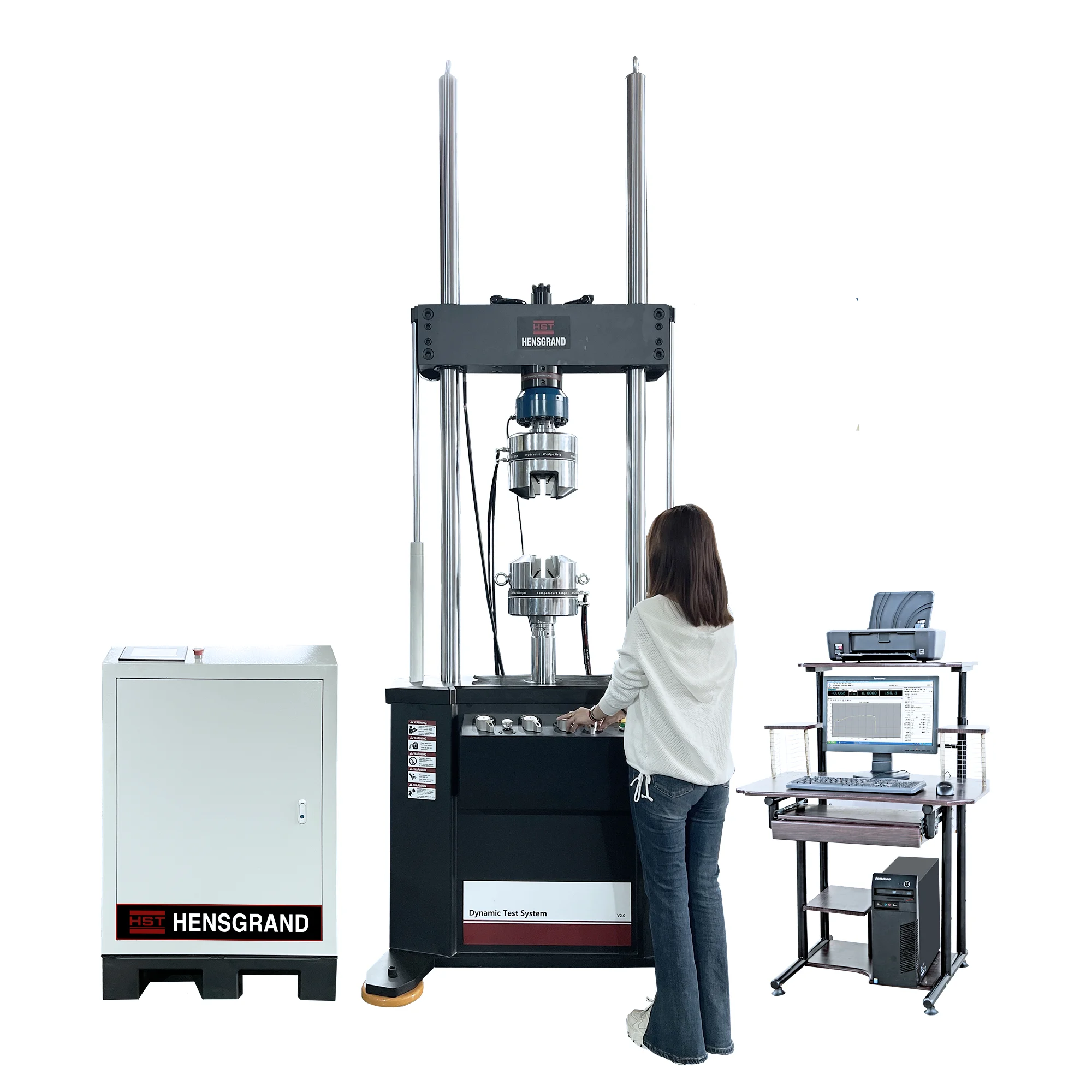

Electronic Universal Testing Machine with Temperature Chamber | 50kN -1000kN Hydraulic Dynamic Static Fatigue Testing Machine | 100kN -2000kN Servo Hydraulic Universal Testing Machine |
Company Profile

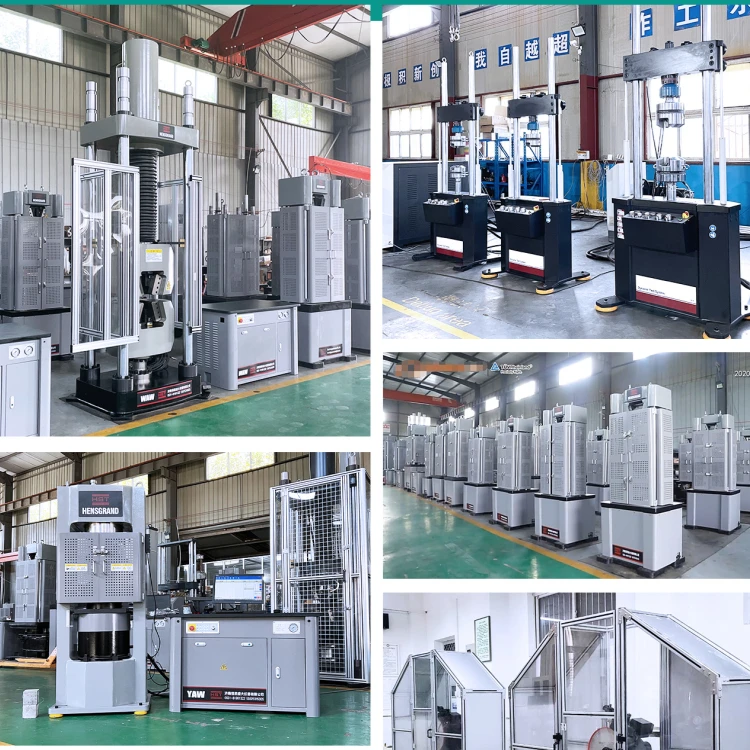

Customer Photos
