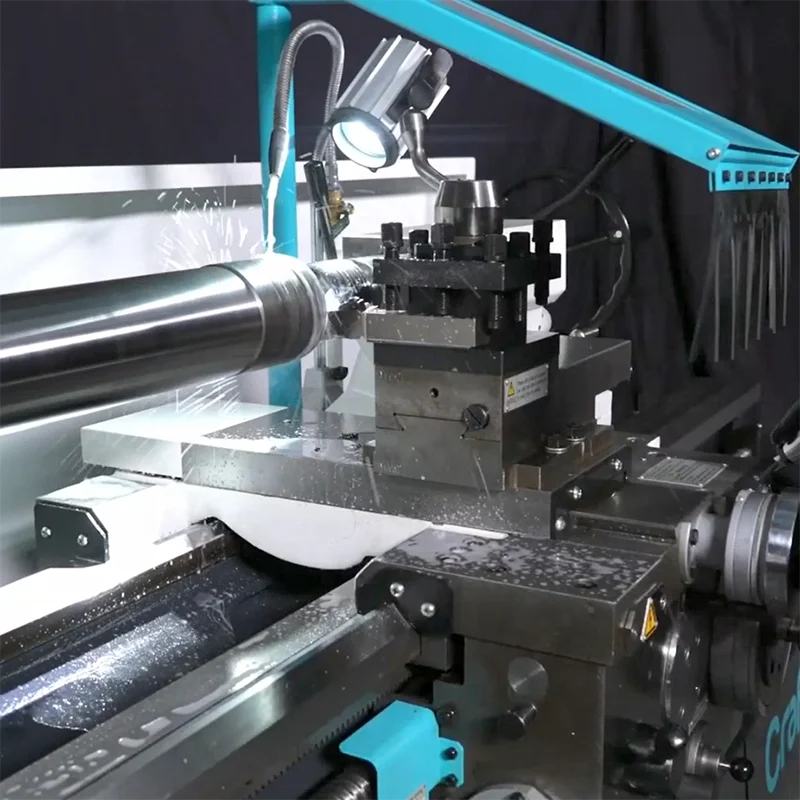

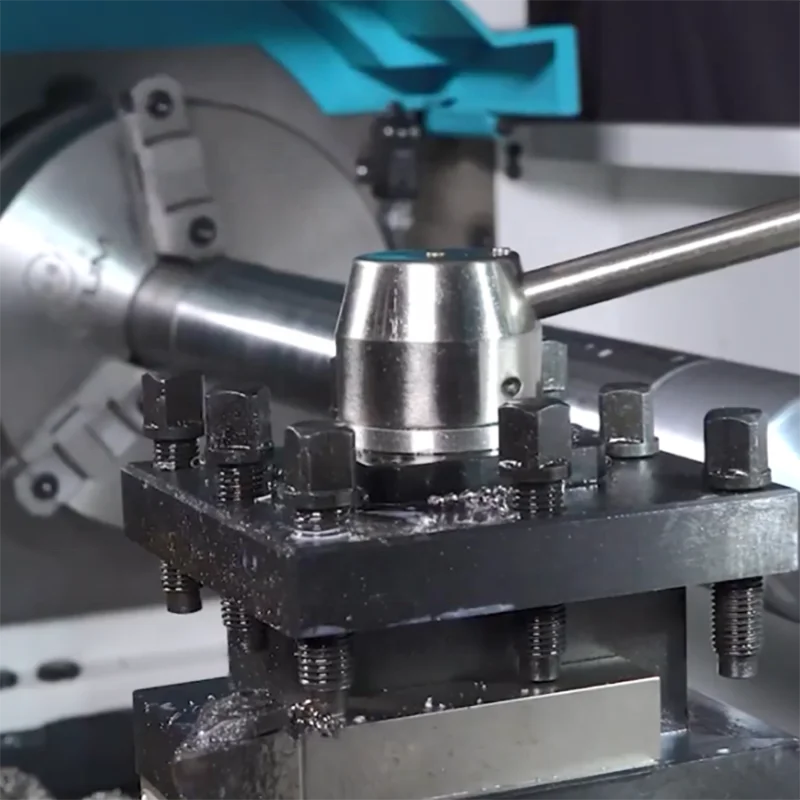

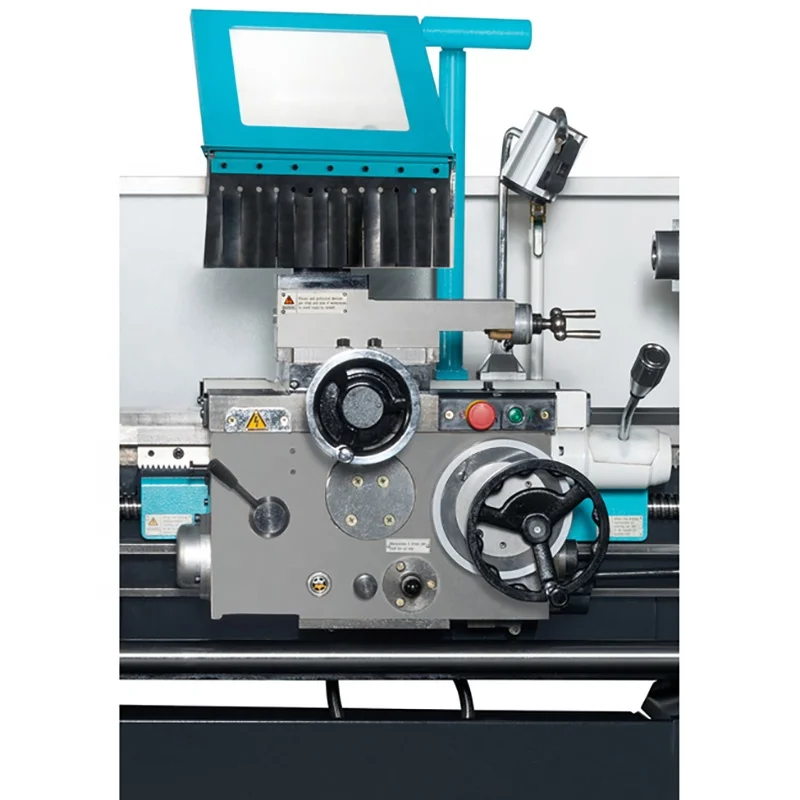

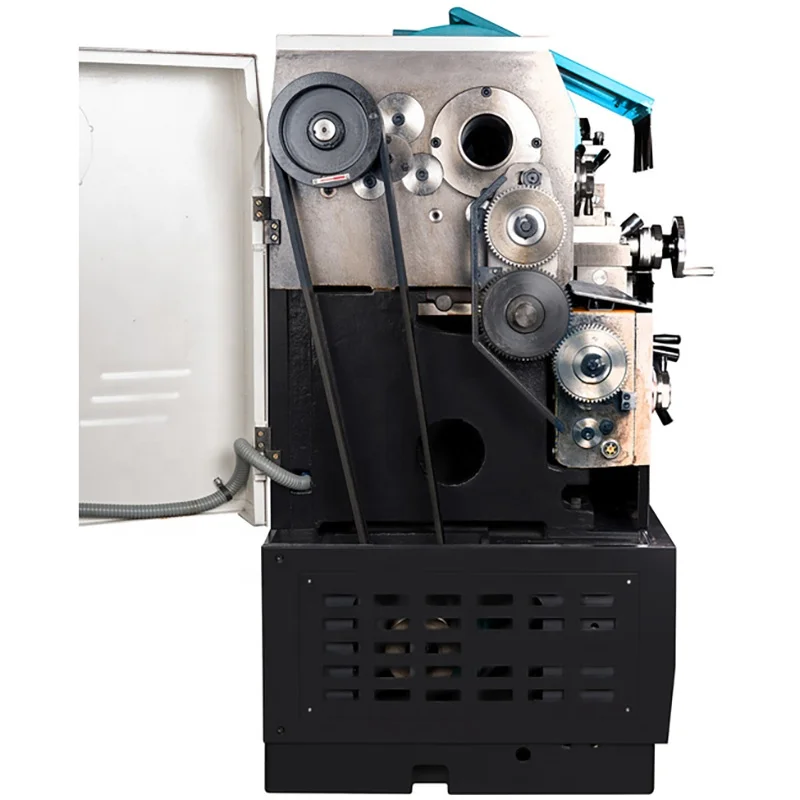

Mesin Bubut Tornos Para Metal Bench Horizont Gap Bed Metal machine tool equipment universal Manual Lathe
- Category: >>>
- Supplier: Hangzhou Techmax Precision Machinery Co. Ltd.
Share on (1600769182196):
Product Overview
Description
BRIEF INTRODUCTION
▪ Hardened and grinded z-axis guideway
▪ Mechanical clutch system
▪ Chuck guard with safety switch
▪ Heavy-duty and rigid cast iron machine bed
▪ Equipped with joystick featuring practical easy use
▪ Machine lamp
▪ Lathe Foot Brake
▪ Mechanical clutch system
▪ Chuck guard with safety switch
▪ Heavy-duty and rigid cast iron machine bed
▪ Equipped with joystick featuring practical easy use
▪ Machine lamp
▪ Lathe Foot Brake
▪ Coolant System
▪ CE Standard
high quality cast iron Headstock
Central lubrication system

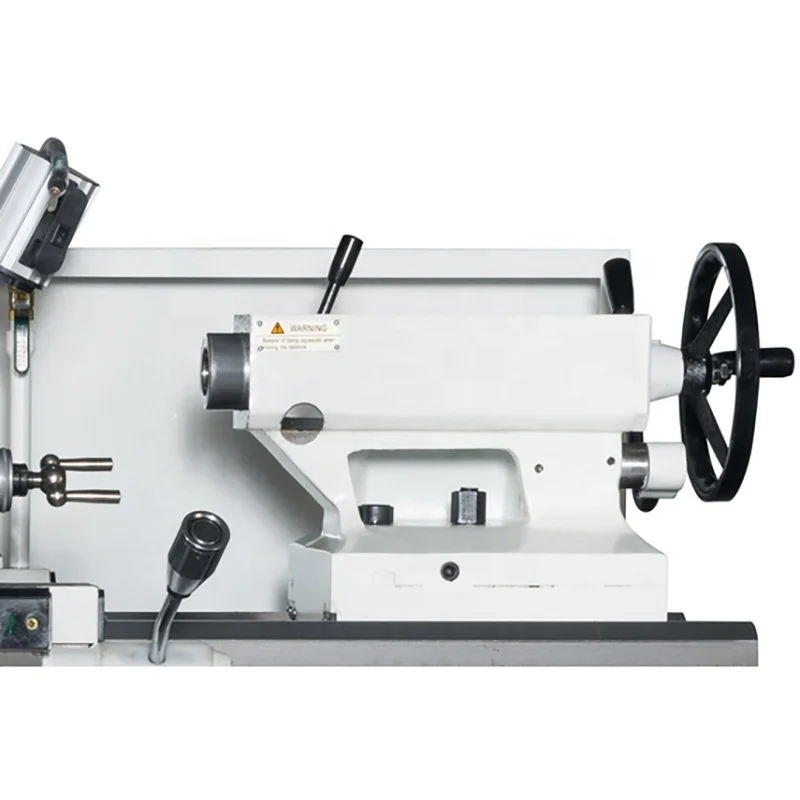

High Rigid Tailstock
TECHNICAL PARAMETERS
Specification | Unit | CB-500B | CB-660B | CB-800B |
Distance between centers | mm | 1000/1500/2000/3000 | 1000/1500/2000/3000 | 2000/3000 |
Center height | mm | 250 | 330 | 400 |
Swing over bed | mm | Φ500 | Φ660 | Φ800 |
Swing over cross slide | mm | Φ300 | Φ420 | Φ560 |
Swing over gap | mm | Φ710 | Φ870 | Φ1000 |
Spindle bore | mm | Φ82 | Φ82 | Φ82 |
Spindle nose fixture | - | ISO 702/II No.8 | ISO 702/II No.8 | ISO 702/II No.8 |
Spindle speed | rpm | (24) 9-1600 | (24) 9-1600 | (24) 8-1400 |
Longitudinal feed | mm/rev | (93) 0.012-2.73 | (93) 0.012-2.73 | (93) 0.012-2.73 |
Cross feed | mm/rev | (93) 0.028-6.43 | (93) 0.028-6.43 | (93) 0.028-6.43 |
Metric thread | mm | (48) 0.5-224 | (48) 0.5-224 | (48) 0.5-224 |
Inch thread | TPI | (46) 72-1/8 | (46) 72-1/8 | (46) 72-1/8 |
Module thread | MP | (42) 0.5-112 | (42) 0.5-112 | (42) 0.5-112 |
Diametrical thread | DP | (45) 56-1/4 | (45) 56-1/4 | (45) 56-1/4 |
Top slide travel | mm | 145 | 145 | 145 |
Cross slide travel | mm | 320 | 310 | 320 |
Tool section size | mm | 25×25 | 25×25 | 25×25 |
X/Z-axis rapid feed speed | m/min | 1.9/4.5 | 1.9/4.5 | 1.9/4.5 |
Tailstock sleeve diameter | mm | Φ75 | Φ75 | Φ90 |
Tailstock sleeve travel | mm | 150 | 150 | 150 |
Tailstock sleeve taper | - | MT5 | MT5 | MT5 |
Main motor power | kw | 7.5 | 7.5 | 7.5 |
Rapid feed motor power | kw | 0.3 | 0.3 | 0.3 |
Coolant pump motor power | kw | 0.12 | 0.12 | 0.12 |
Machine length | mm | 2632/3132/3632/4632 | 2632/3132/3632/4632 | 3365/4365 |
Machine width | mm | 975 | 975 | 1340 |
Machine height | mm | 1230 | 1270 | 1430 |
Weight approx. | kg | 2100/2300/2500/2900 | 2200/2400/2600/3000 | 330/3700 |

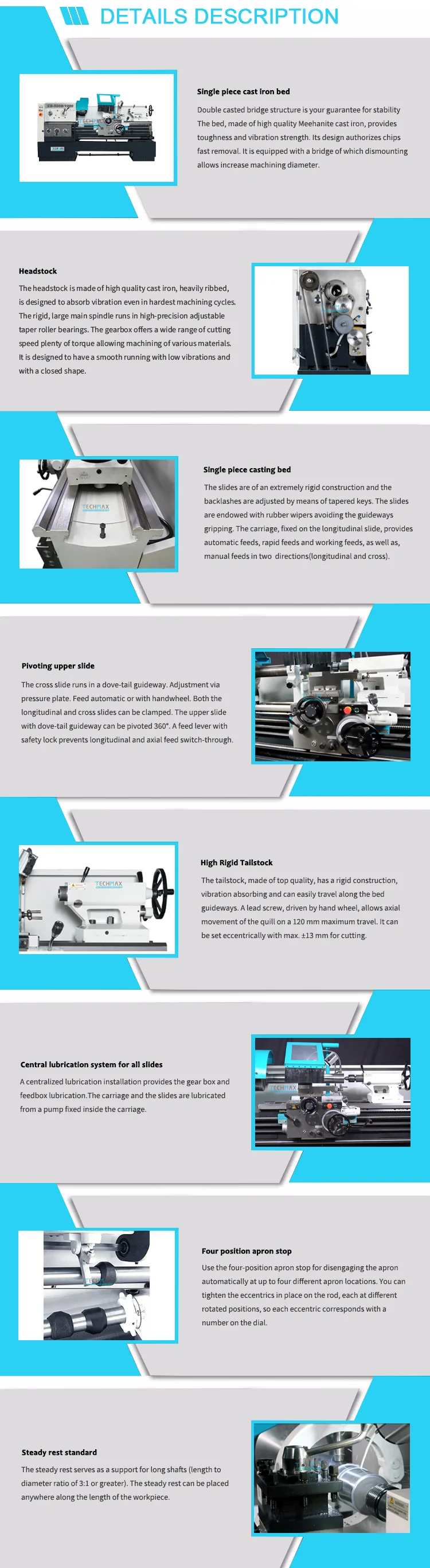

DETAILED DESCRIPTION
COMPANY PROFILE
FAQ
1. How can I choose the most suitable machines ?
Re: Please tell us your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
You can also send us the products drawing ,we will choose the most suitable machines for you.
2. What's your main products of your company?
Re: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3. What kinds of inspection you will do for each machine?
Re: For each assembly procedure, there is geometric accuracy test. After assembly, spindle accuracy will be tested by dynamical balance testing instrument; 3 axes accuracy will be tested by Ball bar. And laser interferometer to inspect positioning and repositioning accuracy. Then the inspection team will make full test before delivery and test piece will be done on each machine. Each workpiece will be inspected by CMM, so each machine performance can be checked and kept in record.
4. Can you supply turn-key solution?
Re: Of course, we have professional team of technical service & after sale service department, who can give you the perfect solution and meet your processing requirement. Besides, we also cooperated with professional fixture company and support with us.
5. What is the warranty time of machine?
Re: We have 14 months warranty after delivery. Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts from free. Even beyond the period, we will still supply the replacing parts with cost price.
6. What is the delivery time, and what is the package?
Re: Normally the delivery time is about 45-60 days. All our machines are packed with the seaworthy wooden case/pallet, also applied with anti rust measures in advance. View drawing together if any parts disassembled.
