Беспроводной пульт дистанционного управления для автомобиля, отключение аккумулятора 24 В, отключение аккумулятора, 200 А, 12 В постоянного тока, дистанционный выключатель отключения аккумулятора
- Category: Remote Control Switches >>>
- Supplier: Shenzhen Geili Technology Co. Ltd.
Share on (1600769224618):
Product Overview
Description
Product Paramenters
Key word | remote control switch | Working voltage | DC12V 24V 36V 48V 60V 72V | ||||

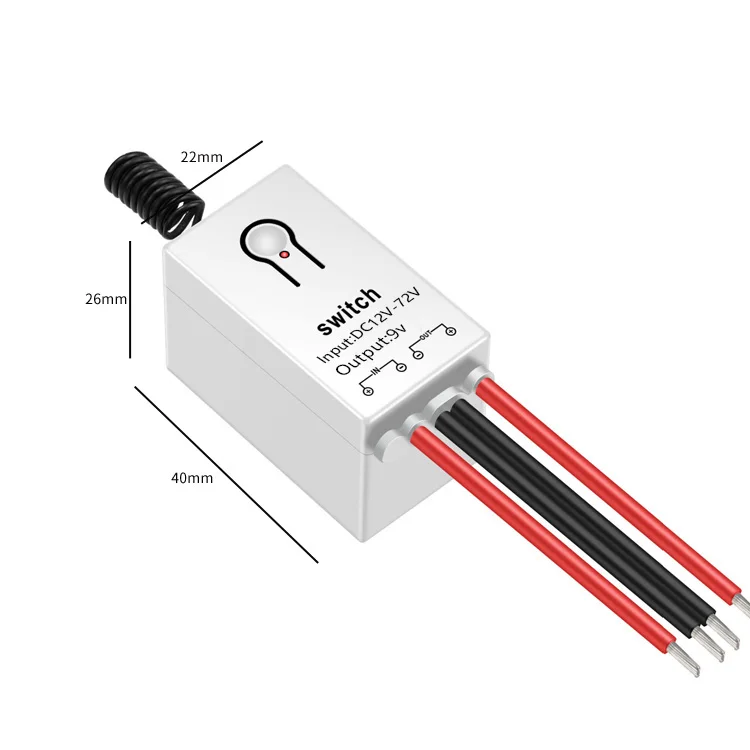

Product Size | 22*26*40mm | Working frequency | 433.932 MHz | ||||
Emission current | ≤0.01 uA | Remote distance | 50m~100m | ||||

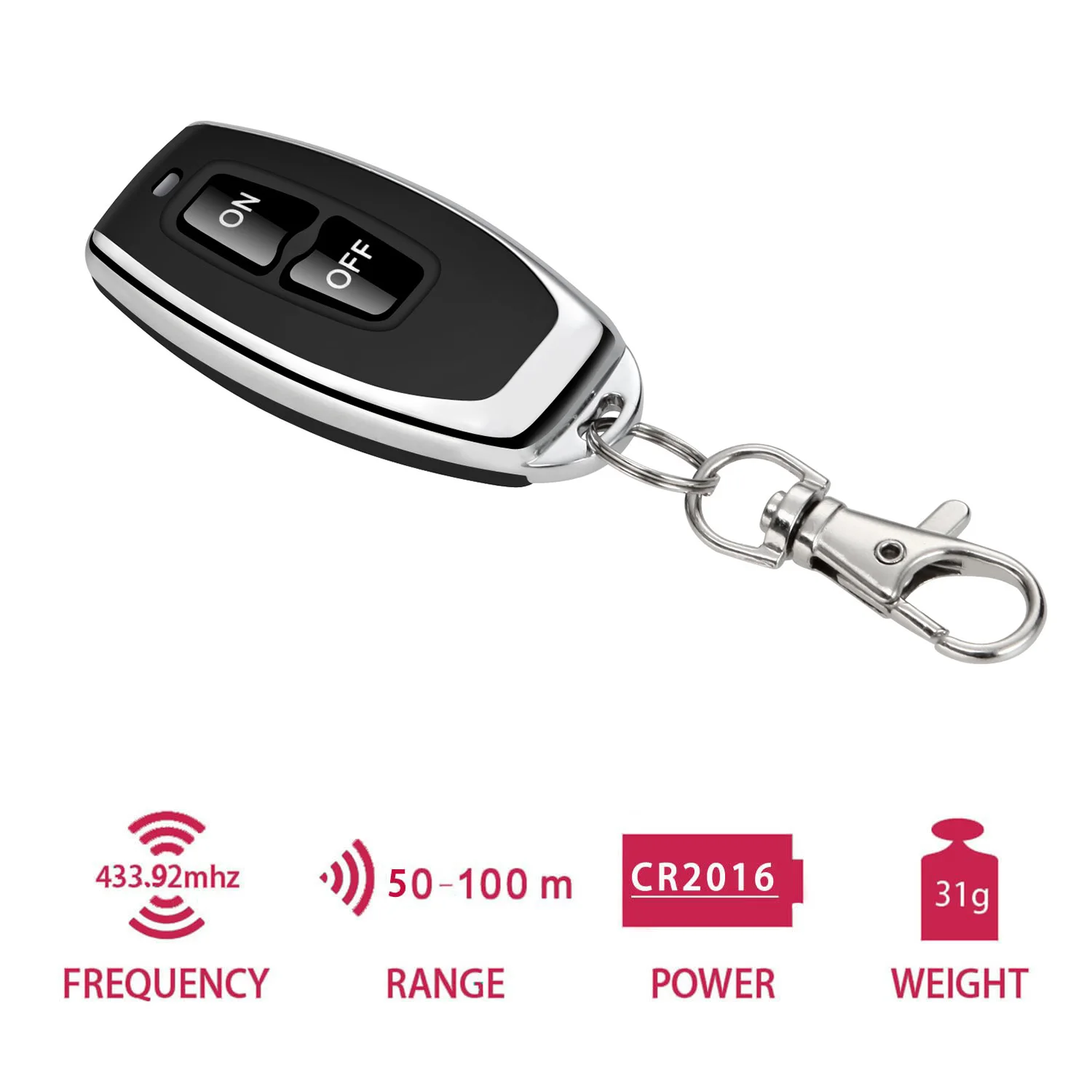

Remote control size | 12*29*61mm | Remote control battery | CR2016 two in series | ||||
Working mode | Since the lock interlock Manual on and off | ||||||
Details Images

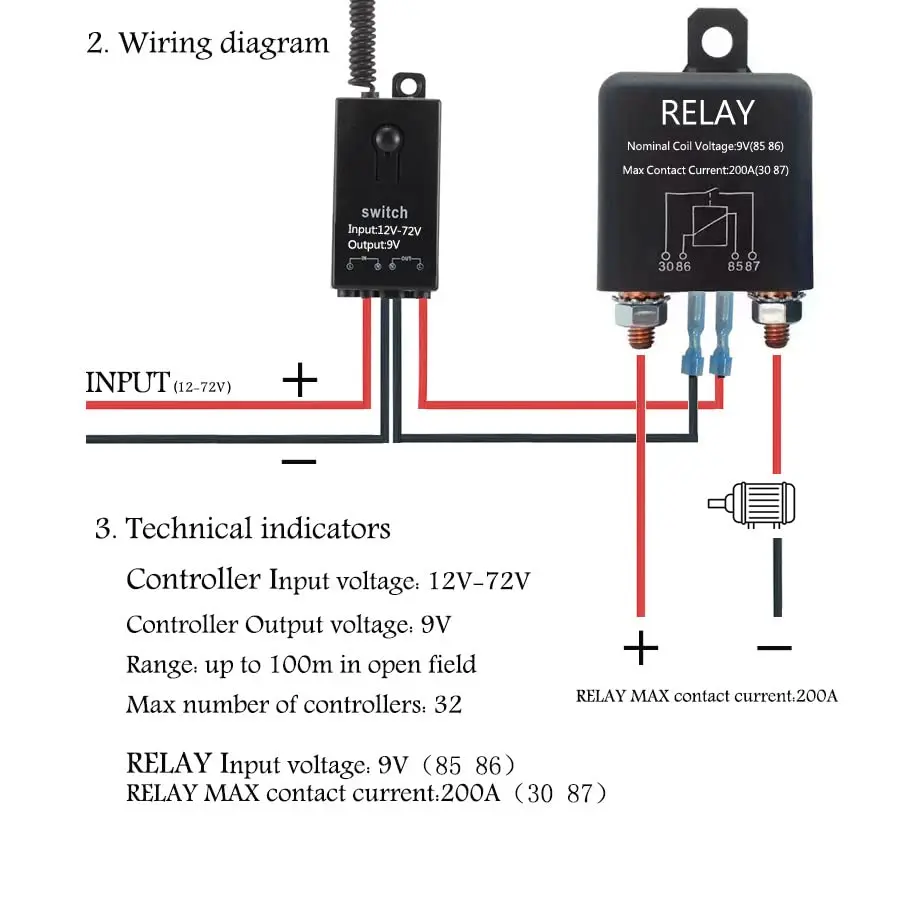

Installation Instructions
Learn Matching Instructions
Introduction to the working mode
Self-locking mode: with a key control, press once open, then press once off, called self-locking.
Interlocking mode: when the remote control has two keys, one button is on and the other button is off, it is called interlocking.
Manual switch: no remote control, press the learning button on the receiver, press one on, then one off.
Interlocking mode: when the remote control has two keys, one button is on and the other button is off, it is called interlocking.
Manual switch: no remote control, press the learning button on the receiver, press one on, then one off.
Learning methods

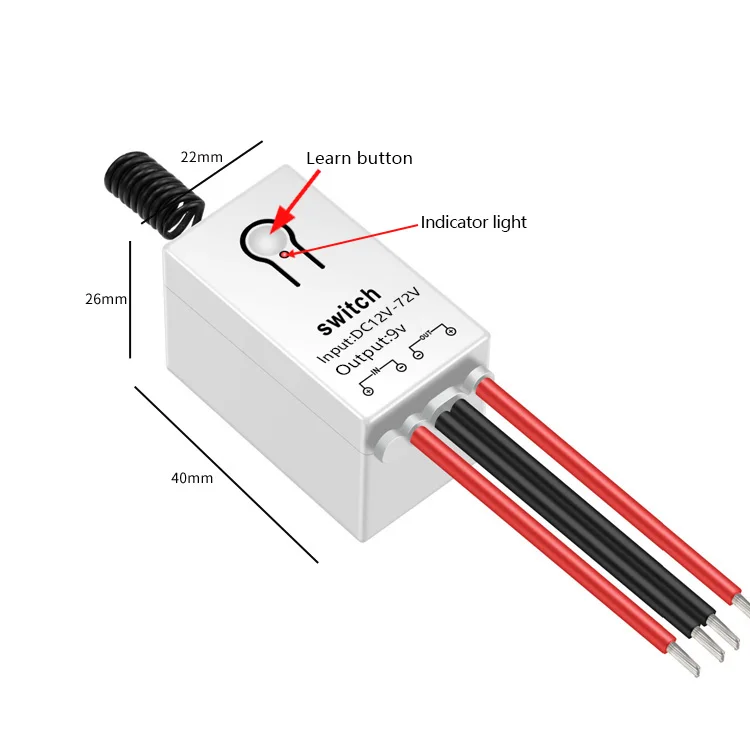

Self-lock: the controller is powered on, hold down the learning button and wait for 3 seconds, the indicator light will flash once, release your hand, press the button of the remote control, the indicator light will flash 3 times, indicating the success of code
Interlock: the controller is powered ON, hold down the learning button and wait for 5 seconds, the indicator flashes twice,
release your hand, press the ON/ ON button of the remote control, the indicator flashes for 3 times and then it is in the light state, and then press OFF/ key of the remote control, the indicator flashes twice, indicating success in code checking
Code clearing: the controller is powered on, hold down the learning button and wait for 8 seconds, and the indicator light flashes 4 times, indicating the code clearing is successful
Manual switch: the learning button on the controller can control the output on and off, press that open, then press that off
Interlock: the controller is powered ON, hold down the learning button and wait for 5 seconds, the indicator flashes twice,
release your hand, press the ON/ ON button of the remote control, the indicator flashes for 3 times and then it is in the light state, and then press OFF/ key of the remote control, the indicator flashes twice, indicating success in code checking
Code clearing: the controller is powered on, hold down the learning button and wait for 8 seconds, and the indicator light flashes 4 times, indicating the code clearing is successful
Manual switch: the learning button on the controller can control the output on and off, press that open, then press that off
