UV LED Curing System for Coating Painting Varnish Adhesive with 365 395nm wavelength air cooling
- Category: >>>
- Supplier: Zhongshan Enbo Optoelectronics Co. Ltd.
Share on (1600769225366):
Product Overview
Description

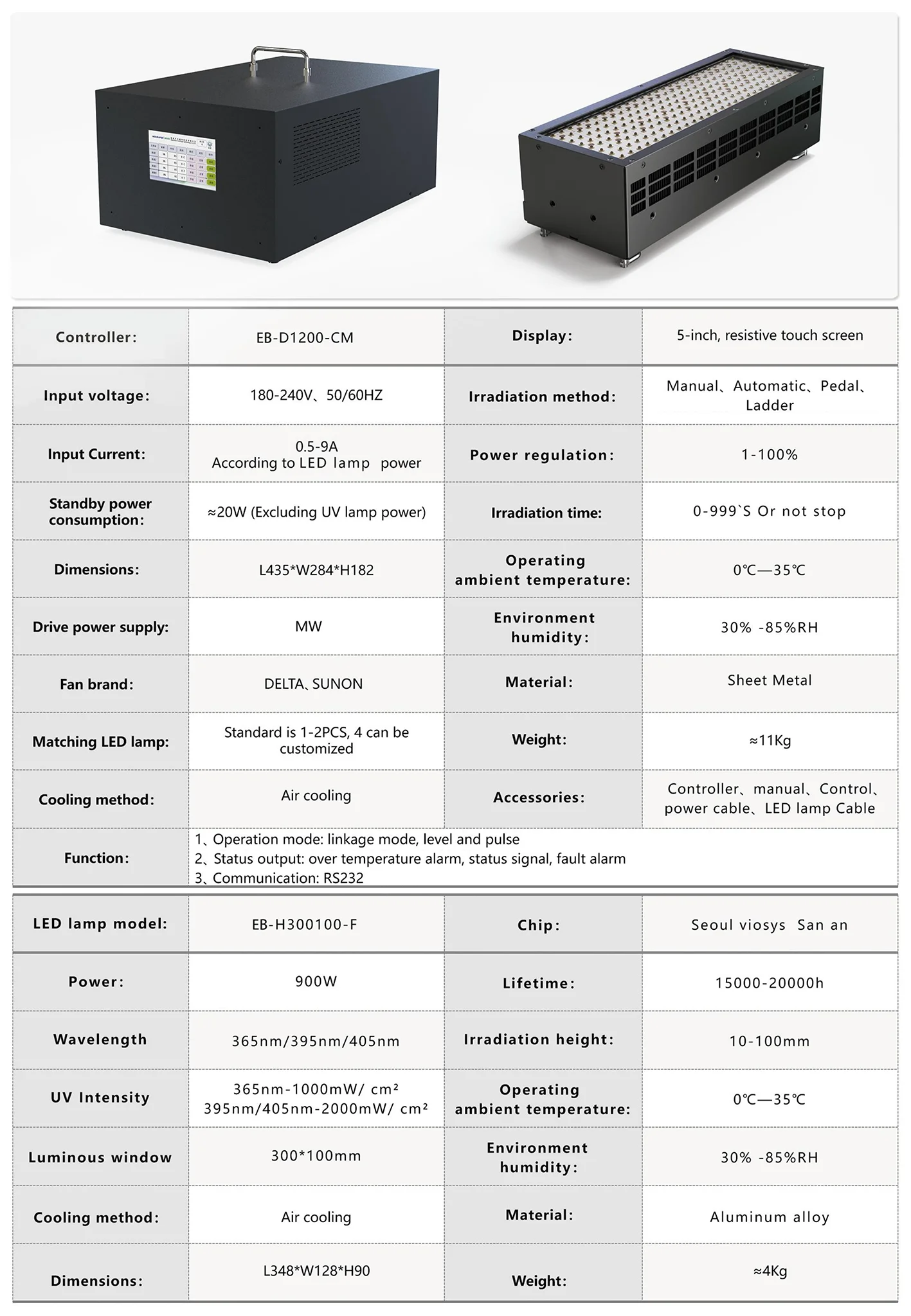

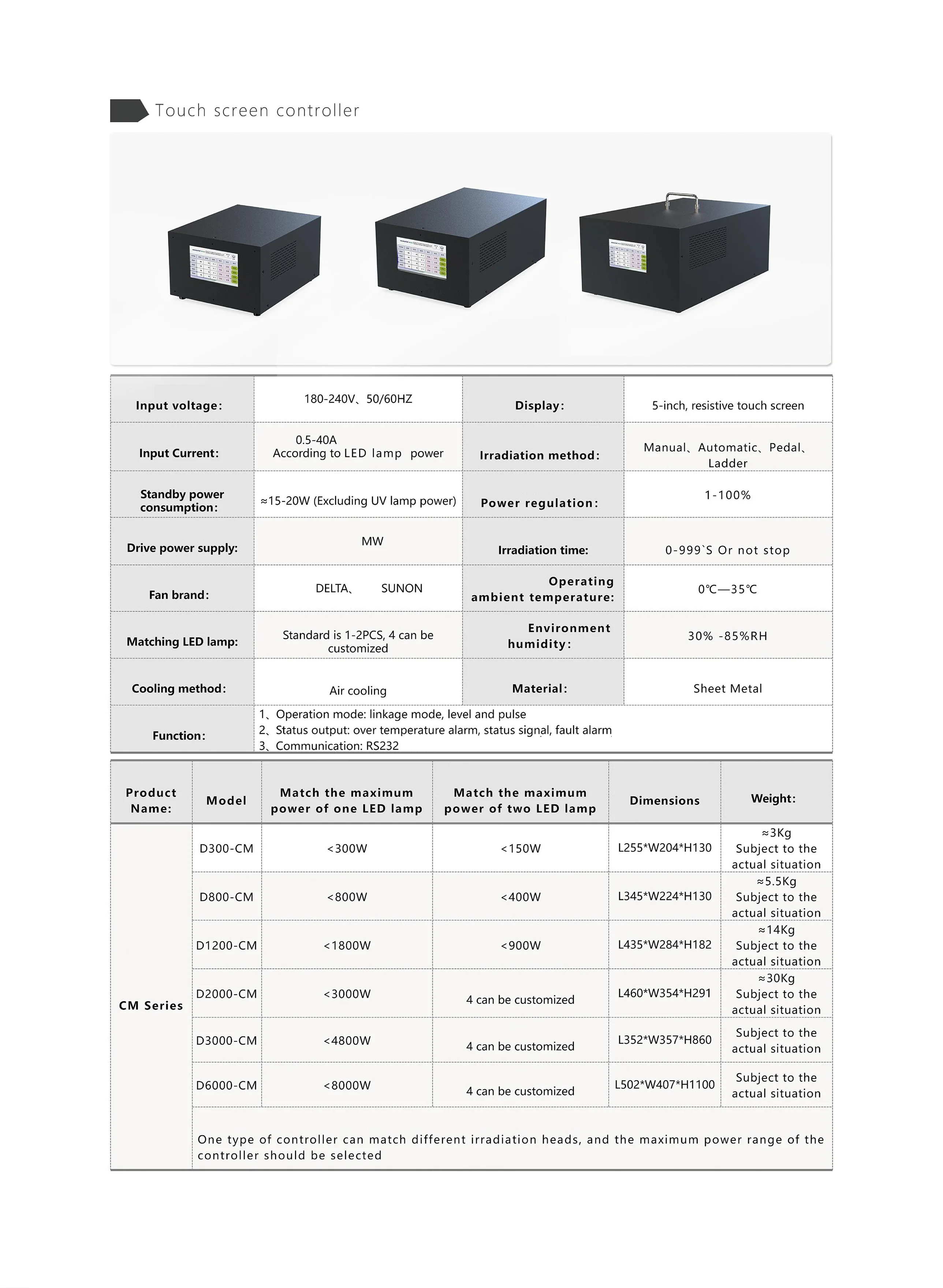

Specification
Products Description
Application scenarios
Attentions
1. General precautions
In the attached connection cable, the LED irradiation head connection cable can be used to be bent.
Under the standard test conditions, the bending performance of the cable is satisfied.
However, its performance under any conditions of actual use cannot be guaranteed.
Do not disassemble, modify or set up inside.
Breakdown, modification and use caused by failure, damage and other circumstances, will not be within the scope of warranty.
2. Install the environment
● Installation and use of ambient temperature and humidity 0℃ -+ 45℃, ≤85%RH (no condensation, freezing)
● Temperature and humidity of storage environment -10℃ -+ 60℃, ≤85%RH (non-condensation, freezing)
● Dust, soot, conductive dust, corrosive, flammable gas, salt, iron, etc
● No contact with water, oil, medicine and other places
● No severe temperature change and vibration, impact of the place without direct sunlight, no strong magnetic field, strong electric field
3. About power supply and wiring
● Please supply single-phase 200V-240V (frequency 50Hz-60Hz) power supply voltage, and grounding.
● Do not use the same power cord with the motor and the induction machinery or the high-power device.

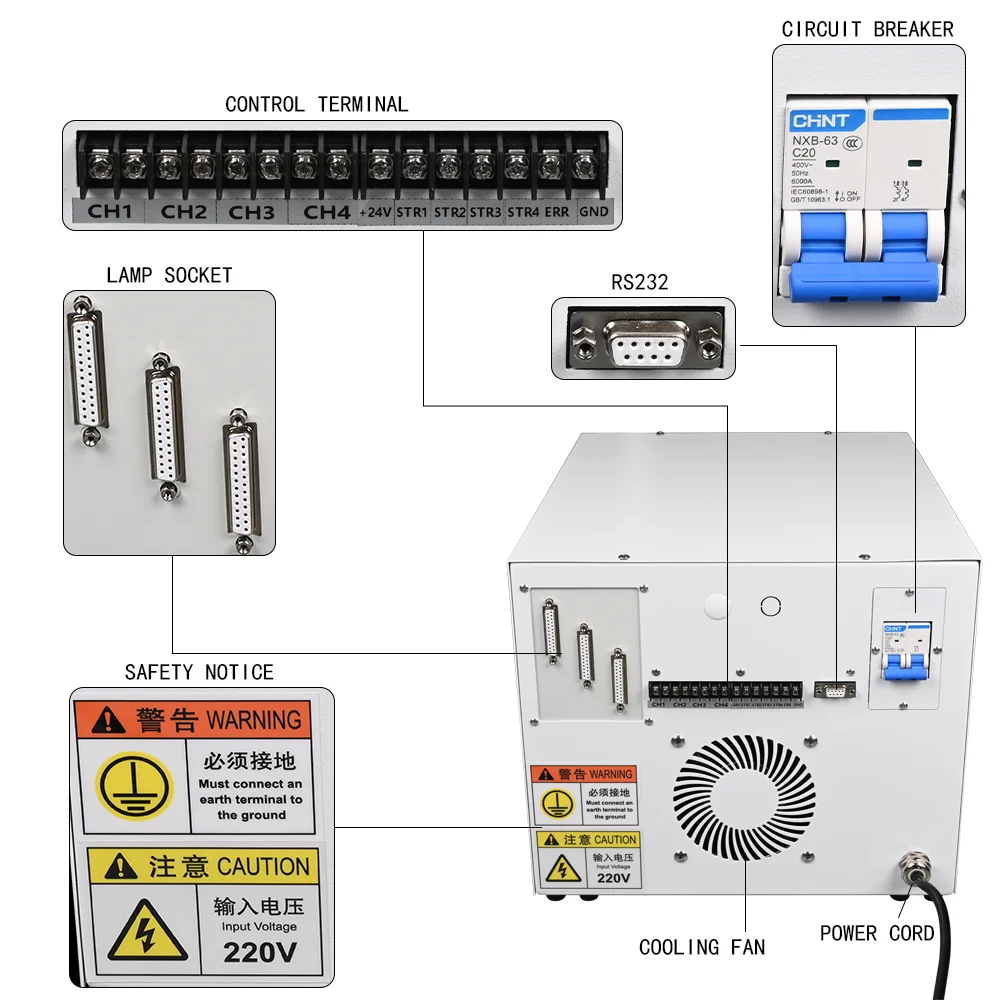

● For the wiring between the controller and the LED irradiation head, please use the attached cable and connect. In the attached connection cable, the LED irradiation head connection cable can be used to be bent.
● When used in bending, as a minimum bending radius greater than 110mm, please execute the design of the system. Bending with radius less than recommended, there is a possibility of rupture occurring in a very short time period.
4. About installation
● When installing the controller and irradiation head, keep it level. Do not tilt, tip or reverse install. Otherwise, it may lead to fever and damage.
● Do not install in a confined space. Do not block the radiator vents.
5. Precautions for power connection
● Before switching on the power supply, please confirm all connections are correct.
In the attached connection cable, the LED irradiation head connection cable can be used to be bent.
Under the standard test conditions, the bending performance of the cable is satisfied.
However, its performance under any conditions of actual use cannot be guaranteed.
Do not disassemble, modify or set up inside.
Breakdown, modification and use caused by failure, damage and other circumstances, will not be within the scope of warranty.
2. Install the environment
● Installation and use of ambient temperature and humidity 0℃ -+ 45℃, ≤85%RH (no condensation, freezing)
● Temperature and humidity of storage environment -10℃ -+ 60℃, ≤85%RH (non-condensation, freezing)
● Dust, soot, conductive dust, corrosive, flammable gas, salt, iron, etc
● No contact with water, oil, medicine and other places
● No severe temperature change and vibration, impact of the place without direct sunlight, no strong magnetic field, strong electric field
3. About power supply and wiring
● Please supply single-phase 200V-240V (frequency 50Hz-60Hz) power supply voltage, and grounding.
● Do not use the same power cord with the motor and the induction machinery or the high-power device.
● For the wiring between the controller and the LED irradiation head, please use the attached cable and connect. In the attached connection cable, the LED irradiation head connection cable can be used to be bent.
● When used in bending, as a minimum bending radius greater than 110mm, please execute the design of the system. Bending with radius less than recommended, there is a possibility of rupture occurring in a very short time period.
4. About installation
● When installing the controller and irradiation head, keep it level. Do not tilt, tip or reverse install. Otherwise, it may lead to fever and damage.
● Do not install in a confined space. Do not block the radiator vents.
5. Precautions for power connection
● Before switching on the power supply, please confirm all connections are correct.
Company Profile
Zhongshan Enbo Optoelectronics Co., Ltd. is a manufacturer specializing in the production of LED UV system used in professional equipments, and also is a trader of general lighting fixtures, electronic components and wires. We have more than 20 years of LED production and 10 years of foreign trade experience, and have been actively recognized and trusted by many partners.
Our company has been focused on the UV LED curing technology, is the pioneer of UV LED curing industry. We provide UV curing solutions suitable for UV inks,UV coatings, uv adhesives and many other commercial and industrial fields, and continue to optimize and innovate products.Our products are all CE and ROHS certificated , some are UL compliant, we strictly follow EU electrical safety standard. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
FAQ
1. What's the whole UV LED curing system including?
The whole UV LED curing system including UV LED lamp+ UV LED driver+ electric cabinet and control system+water chiller
2. Can I use my own PLC and Electric cabinet?
2. Can I use my own PLC and Electric cabinet?
Yes, of coures. Our UV LED driver provide RS485 communication.
3.How to proceed an order for UV LED curing system?
3.How to proceed an order for UV LED curing system?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
4. Is it OK to print my logo on UV LED curing system?
Fourthly We arrange the production.
4. Is it OK to print my logo on UV LED curing system?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
5. Do you offer guarantee and installation service for the products?
5. Do you offer guarantee and installation service for the products?
Yes, we offer 20000HRS service and 1 year free warranty. The installation service can provided but should be payed according different country and different system.
6. why should you buy from us not from other suppliers?
1. High quality
6. why should you buy from us not from other suppliers?
1. High quality
2. Short delivery
3. Fast Parts supply
4. Competitive price
7. what services can we provide?
Accepted Delivery Terms: FOB,EXW,DES；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
7. what services can we provide?
Accepted Delivery Terms: FOB,EXW,DES；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
