AOT Oil free Sulfide SO2 Sulfur Dioxide Nitric Oxide Gas Compressor Industrial Compressor Machines
- Category: >>>
- Supplier: Bengbu AOT Compressor Co. Ltd.
Share on (1600769405609):
Product Overview
Description
Product Description

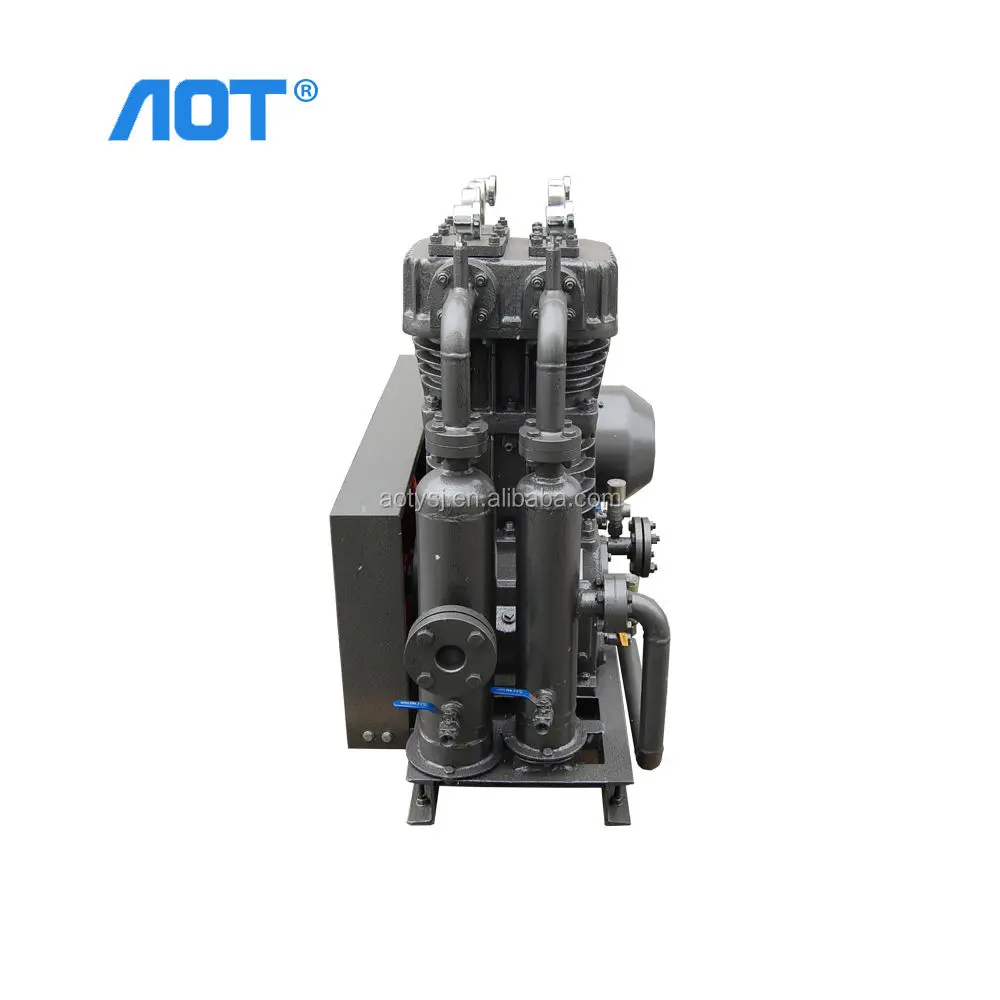

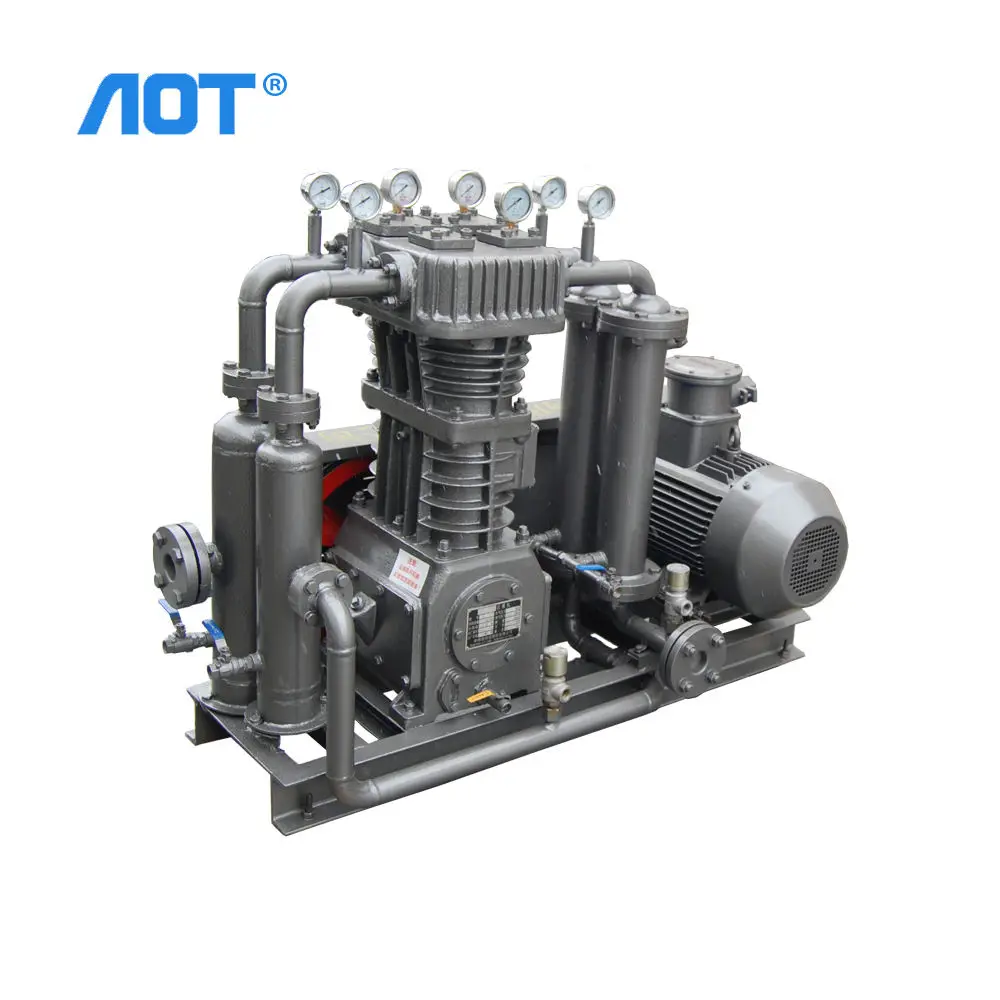

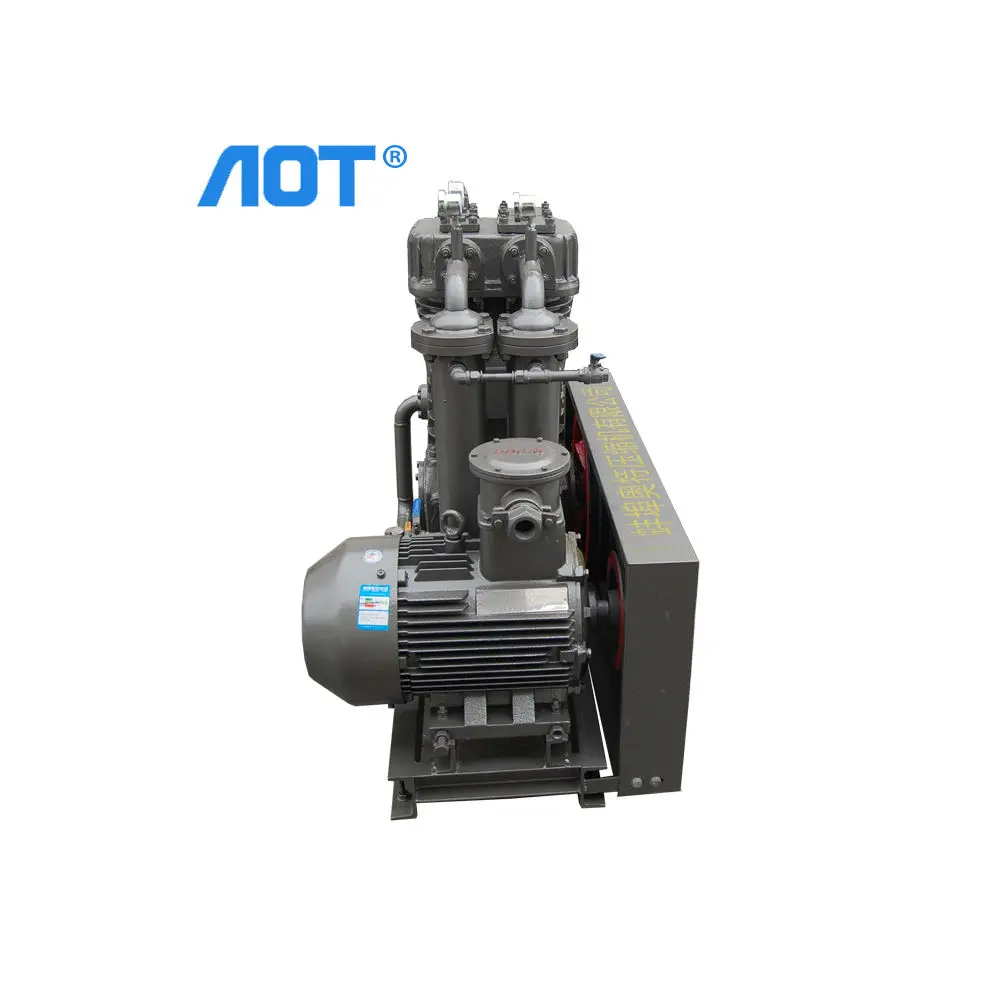

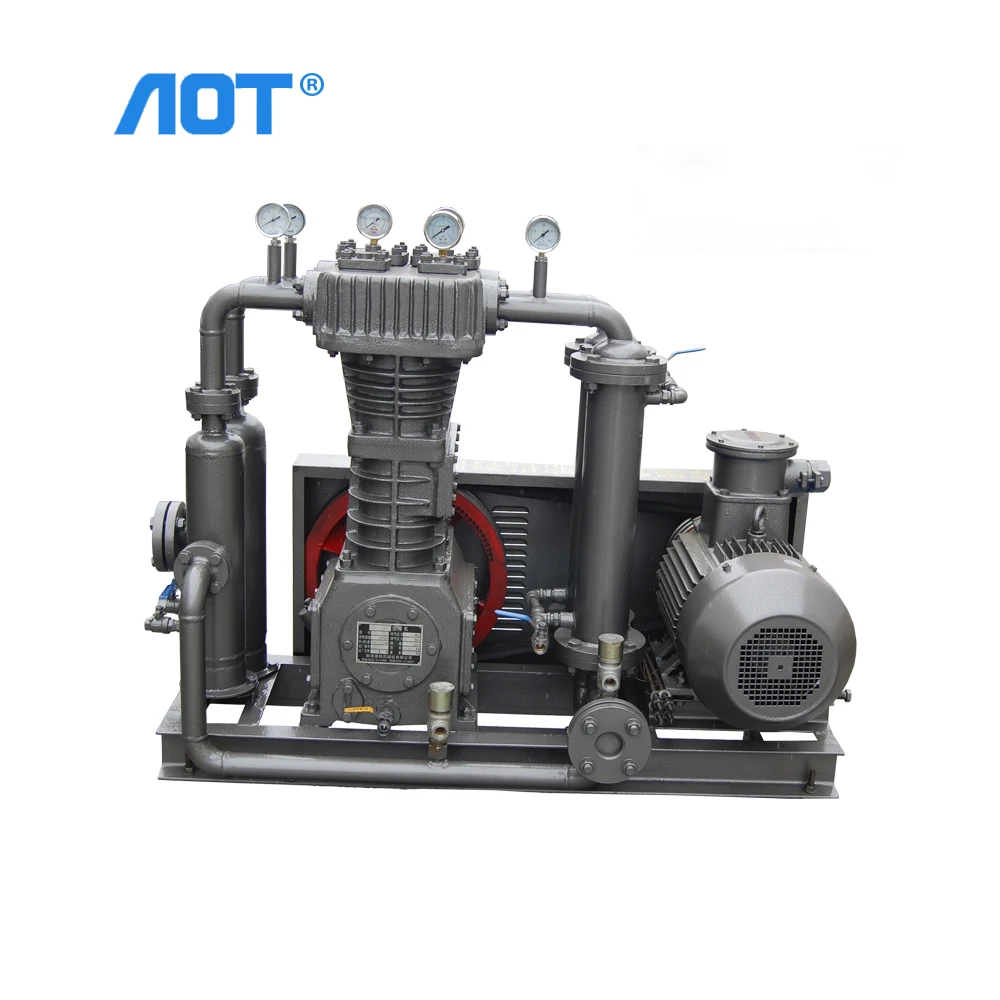

ZW-0.7/0.2-7 SO2 Booster Compressor
The compressor adopts oil-free lubrication structure and can run continuously for a long time. Meet the process requirements, suitable for all kinds of gases. All oil-free lubrication compressors with various parameters and requirements can be customized according to customer requirements.
Product Overview:
✿ Product Overview:
✔ Our company has a unique professional and technical level of carbon dioxide compressor, cost- effective products.
✔AOT carbon dioxide compressors consist of various types that are mainly Z-type, D-type,V-type and other forms.
✿ Features: The machine has the characteristics of low noise, high stability, safe and reliable products, convenient maintenance and so on.
✿ Application: Widely used in various gas production systems: Co2 recovery and utilization in hydrogen production from natural gas, Co2 treatment in biogas station, and food and pharmaceutical industries.
✿ Application: Widely used in various gas production systems: Co2 recovery and utilization in hydrogen production from natural gas, Co2 treatment in biogas station, and food and pharmaceutical industries.
Detailed Images
Technical Parameters
Compressor | Product Model | ZW-1.8/8 | |||
Type | Z Type | ||||
Compressed medium | SO2 | ||||
Nominal volume flow(ton/year) | 100 | ||||
Compression stage | 2 | ||||
Cylinder number | 2 | ||||
Driving mode | Belt | ||||
Noise (sound pressure level) dB(A) | ≤85 | ||||
Cooling mode | Water cooling | ||||
Rotational speed (r/min) | 550★ | ||||
Suction pressure (bar g) | 0 | ||||
Discharge Pressure (bar g) | 8 | ||||
Suction temperature (℃) | ≤40 | ||||
Discharge temperature (℃) | ≤150 after cooling≤40 | ||||
Lubrication type | Crankshaft, connecting rod, cross head | Oil lubrication | |||
Cylinder, Packing | Oil-free lubrication | ||||
Motor | Model | YBX3-160L-4 | |||
Rotational speed (r/min) | 1460★ | ||||
Rated voltage (V) | 380 | ||||
Rated frequency(Hz) | 50 | ||||
Rated current (A) | 28.9 | ||||
Rated power (Kw) | 15 | ||||
Compressor size (L×W×H) mm | 1600*1200*1200★ | ||||
Weight(kg) | ≈650★ | ||||
Note:With the parameters of the logo will be subject to leave the factory
Scope of supply
No. | Name | Number |
1 | Compressor host | 1 Anti corrosion treatment |
2 | Explosion-proof motor | 1 |
3 | Water cooler | 2 set |
4 | Inlet gas-liquid separator | 2 |
5 | The relief valve | 2 |
6 | Shared chassis | 1 |
7 | Gearing | 1 set |
8 | Piping components | 1 set |
9 | Random spare parts | 1 set |
10 | The technical documentation | 1 set |
11 | Refrigeration unit | 1 set |
12 | Control cabinet | High outlet pressure, automatic alarm shutdown Automatic alarm and shutdown for high liquid level |
Our Company
Certifications
Why Choose Us
Packing & Delivery
FAQ
Q1: Why choose us?
A: Bengbu AOT Compressor Co., Ltd., is specialized in Special Gas Compressor. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Anhui, China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 30 to 60 days, if urgently order, please contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 15 years.
Q6: What's payment term?
A: T/T, L/C, Western Union, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours online service available. 48hours problem solved promise.
A: Bengbu AOT Compressor Co., Ltd., is specialized in Special Gas Compressor. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Anhui, China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 30 to 60 days, if urgently order, please contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 15 years.
Q6: What's payment term?
A: T/T, L/C, Western Union, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours online service available. 48hours problem solved promise.
Q8: How about your after-sales service?
A: Installation Services and online instructions. Well-trained engineers available to overseas service.
A: Installation Services and online instructions. Well-trained engineers available to overseas service.
