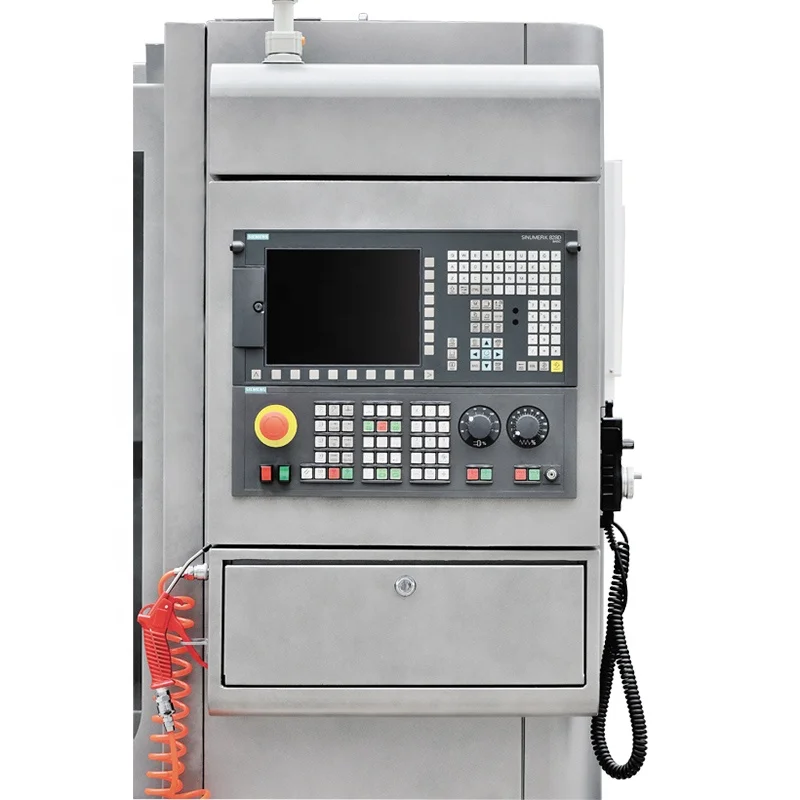

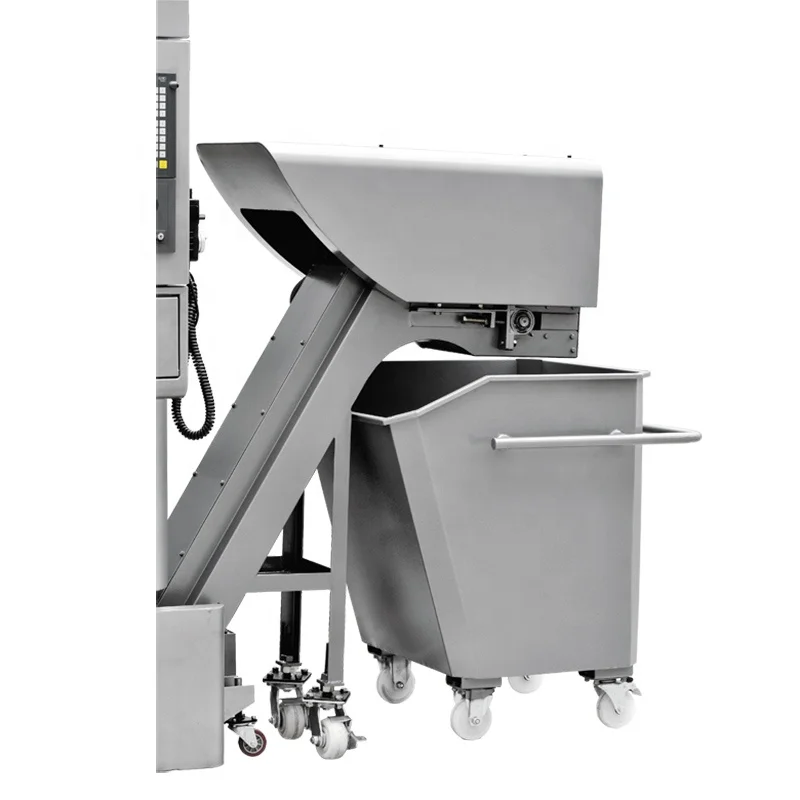

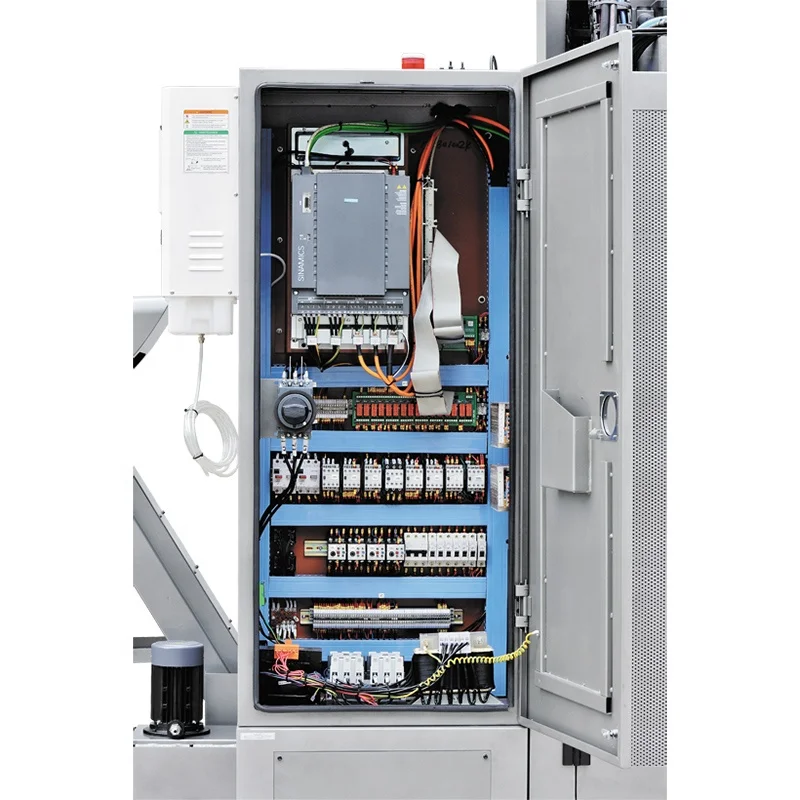

Product Overview
Description
BRIEF INTRODUCTION
▪ Aseismatic capability, high strength and good quality cast iron.
▪ Wide base and Y-type column structure.
▪ Taiwan high precision linear guide ways.
▪ Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.
▪ Adopting Japan NSK special screws angular contact ball bearing group.
▪ Wide base and Y-type column structure.
▪ Taiwan high precision linear guide ways.
▪ Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.
▪ Adopting Japan NSK special screws angular contact ball bearing group.

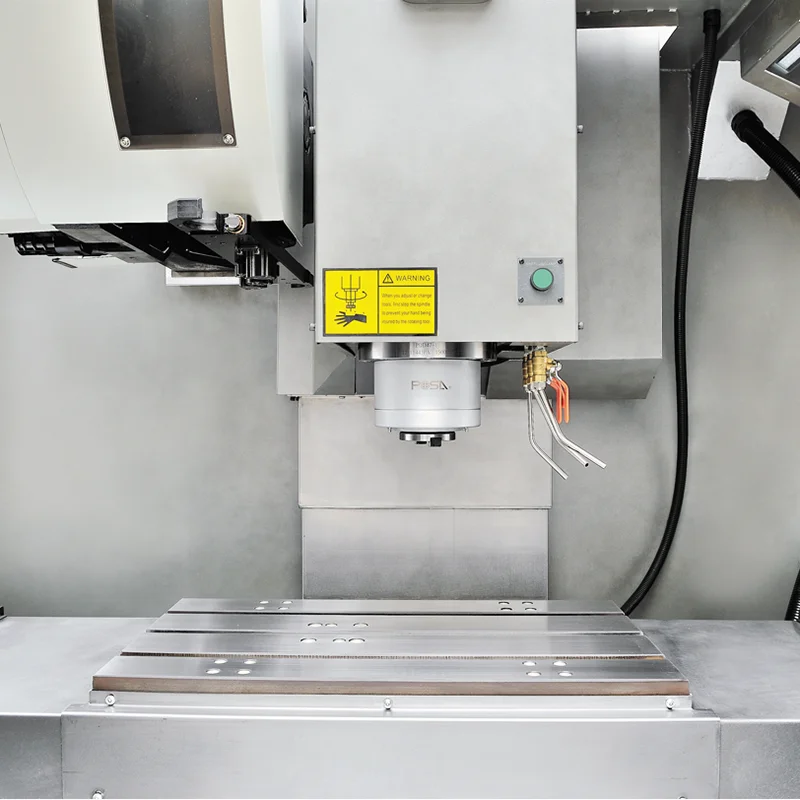

Spindle BT40/BT50

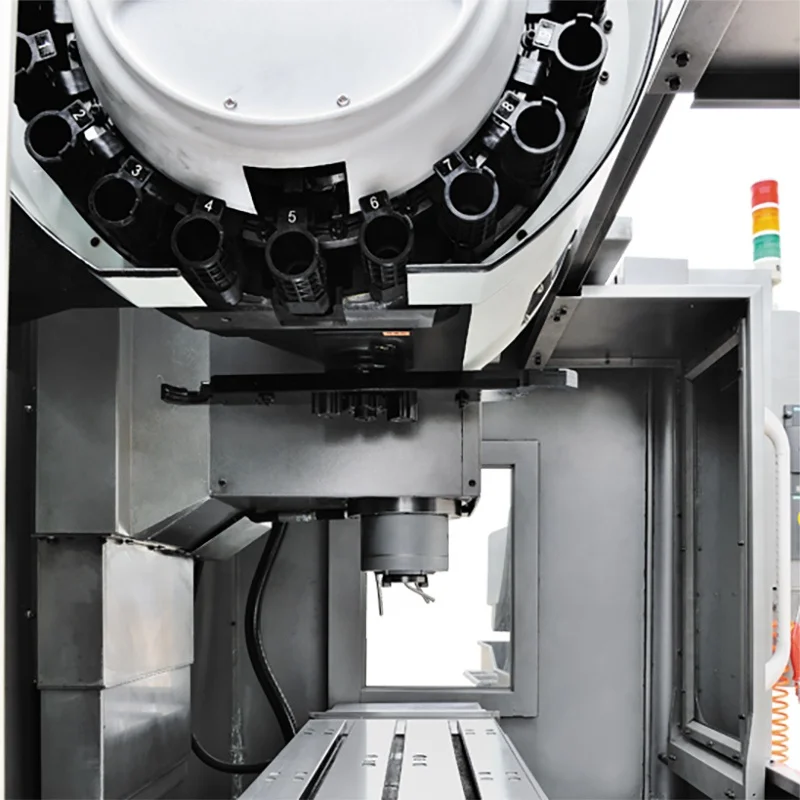

Auto Tool Changer
4th/5th-axis Rotary Table

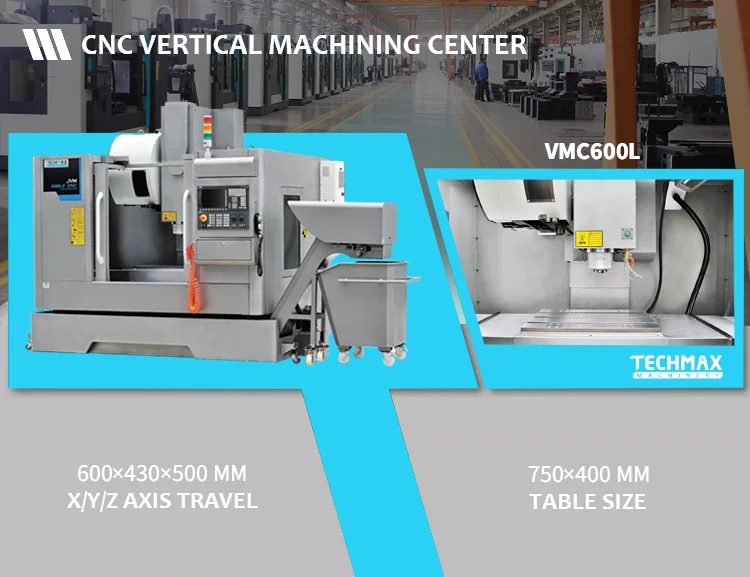

TECHNICAL PARAMETERS
Model | VMC600L | VMC800L | VMC850L |
CAPACITY: | |||
Table size | 750×400 mm | 930×510 mm | 1000×550 mm |
T-slot (Q.t.y/Width/Distance) | 3/18/110 mm | 5/18/100 mm | 5/18/90 mm |
Distance spindle nose to table | 90-590 mm | 145-675 mm | 120-670 mm |
Distance spindle center to column | 484 mm | 550 mm | 595 mm |
ROTARY TABLE - 4th (OPTION): | |||
Rotary table dia. | Φ250 mm | Φ250 mm | Φ250 mm |
Rotary axis motor power | 1.2 kw | 1.2 kw | 1.2 kw |
Max. rotation rate of table | 44.4 rpm | 44.4 rpm | 44.4 rpm |
TRAVEL: | |||
X/Y/Z axis travel | 600×430×500 mm | 800×530×530 mm | 800×550×500 mm |
Guide rails type | rolling | rolling | rolling |
X/Z-axis ball screw dia. × thread pitch. accuracy class | Φ40×12. 3 mm | Φ40×12. 3 mm | Φ40×16 mm |
SPINDLE: | |||
Spindle speed | 6000-15000 rpm | 6000-15000 rpm | 10000 rpm |
Spindle taper | BT40 | BT40 | BT40 |
TOOL: | |||
Tool magazine type | Arm type | Arm type | Arm type |
Tool magazine capacity | 20 pcs | 24; 30 pcs | 24 pcs |
Max. tool weight | 8 kg | 8 kg | 8 kg |
Max. tool size | Φ76-150/300 mm | Φ76-150/300 mm | Φ78-120/300 mm |
Tool change time | 2 sec | 2 sec | 1.8 sec |
ACCURACY: | |||
Positioning accuracy | ±0.005 mm | ±0.005 mm | ±0.005 mm |
Repeatability | ±0.003 mm | ±0.003 mm | ±0.003 mm |
SPEED: | |||
X/Y/Z-axis rapid traverse | 24; 30; 36; 48 m/min | 24; 30; 36; 48 m/min | 30; 36; 48 m/min |
COOLANT: | |||
Coolant tank capacity | 150 L | 150 L | 150 L |
Coolant pump power | 0.96 kw | 0.96 kw | 0.96 kw |
Coolant pressure | 3-4; 30 bar | 3-4; 30 bar | 3-4; 30 bar |
Lubrication tank capacity | 2 L | 2 L | 2 L |
POWER: | |||
Main motor power | 7.5/11 kw | 11/15 kw | 7.5/11 kw |
DIMENSIONS: | |||
Overall dimensions (L×W×H) | 3550×2100×2400 mm | 3750×2300×2700 mm | 4020×2290×2890 mm |
Weight approx. | 3900 kg | 5000 kg | 5500 kg |

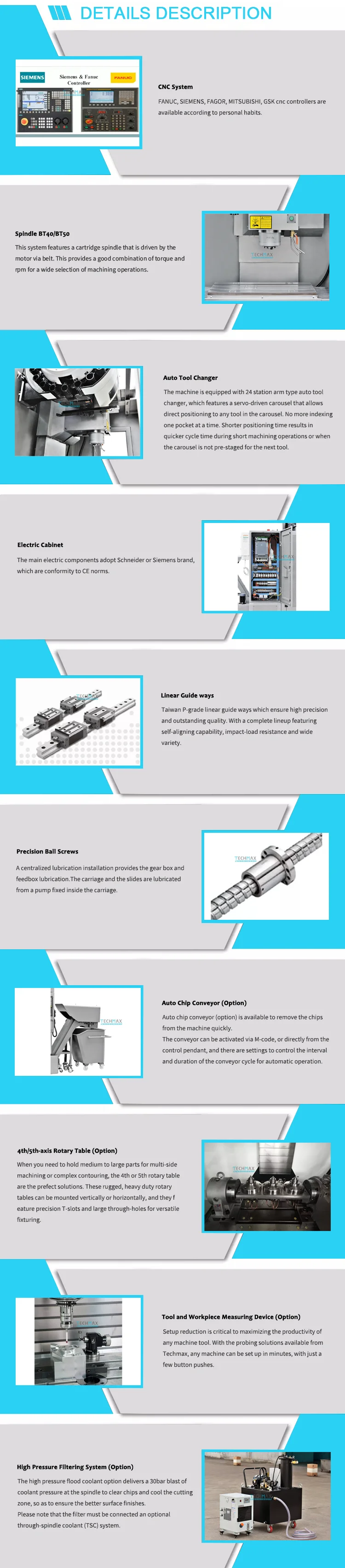

DETAILED DESCRIPTION
COMPANY PROFILE
FAQ
1. How can I choose the most suitable machines ?
Re: Please tell us your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
You can also send us the products drawing ,we will choose the most suitable machines for you.
2. What's your main products of your company?
Re: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3. What kinds of inspection you will do for each machine?
Re: For each assembly procedure, there is geometric accuracy test. After assembly, spindle accuracy will be tested by dynamical balance testing instrument; 3 axes accuracy will be tested by Ball bar. And laser interferometer to inspect positioning and repositioning accuracy. Then the inspection team will make full test before delivery and test piece will be done on each machine. Each workpiece will be inspected by CMM, so each machine performance can be checked and kept in record.
4. Can you supply turn-key solution?
Re: Of course, we have professional team of technical service & after sale service department, who can give you the perfect solution and meet your processing requirement. Besides, we also cooperated with professional fixture company and support with us.
5. What is the warranty time of machine?
Re: We have 14 months warranty after delivery. Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts from free. Even beyond the period, we will still supply the replacing parts with cost price.
6. What is the delivery time, and what is the package?
Re: Normally the delivery time is about 45-60 days. All our machines are packed with the seaworthy wooden case/pallet, also applied with anti rust measures in advance. View drawing together if any parts disassembled.
