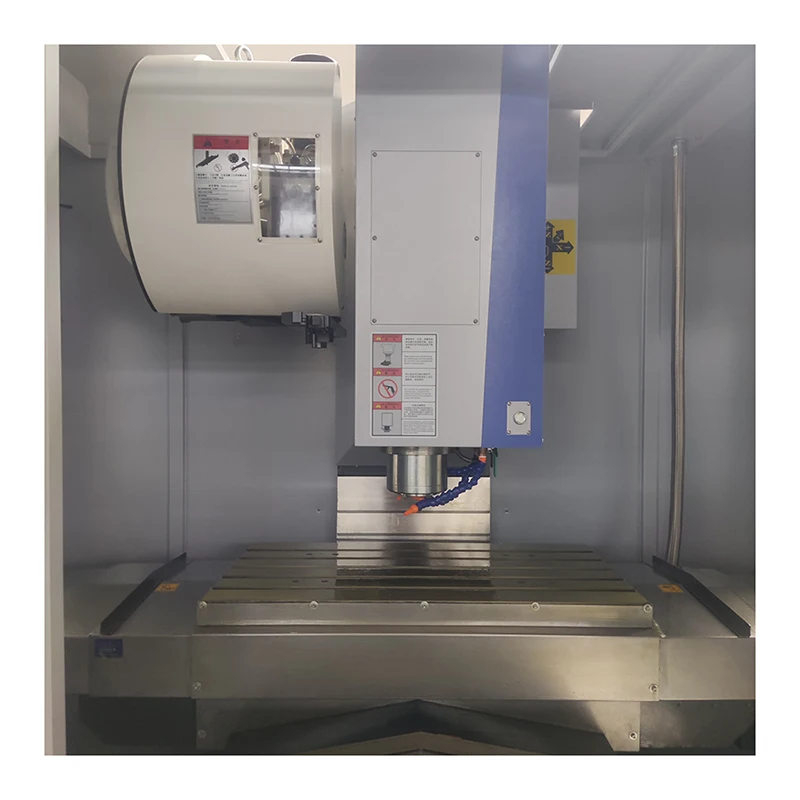

JINN FA YJM 650 Vertical Milling Center Cnc Milling Machine 5 Axis Cnc 5 Axis Machining Center
- Category: >>>
- Supplier: Xiongyi Intelligent Machinery (changzhou) Co. Ltd.
Share on (1600770146598):
Product Overview
Description
Product Description
Mechanical parameters of YJM-650L machining center
Left and right travel ( X axis) mm | 650 |
Front and rear travel ( Y axis) mm | 400 |
Up and down travel ( Z axis) mm | 450 |
Distance from spindle nose to worktable mm | 100-600 |
The distance between the spindle center and the column mm | 450 |
Feed rate | |
Rapid feed ( X&Y ) mm/min | 48000 |
Rapid feed ( Z axis) mm/min | 48000 |
Cutting speedmm/min | 1-10000 |
Positioning accuracy mm/300mm | ±0.005/300 |
Repeat positioning accuracy mm | ±0.004 |
workbench | |
Table size mm | 800*400 |
T -slot size mm | 3*14*100 |
Maximum load kg | 450 |

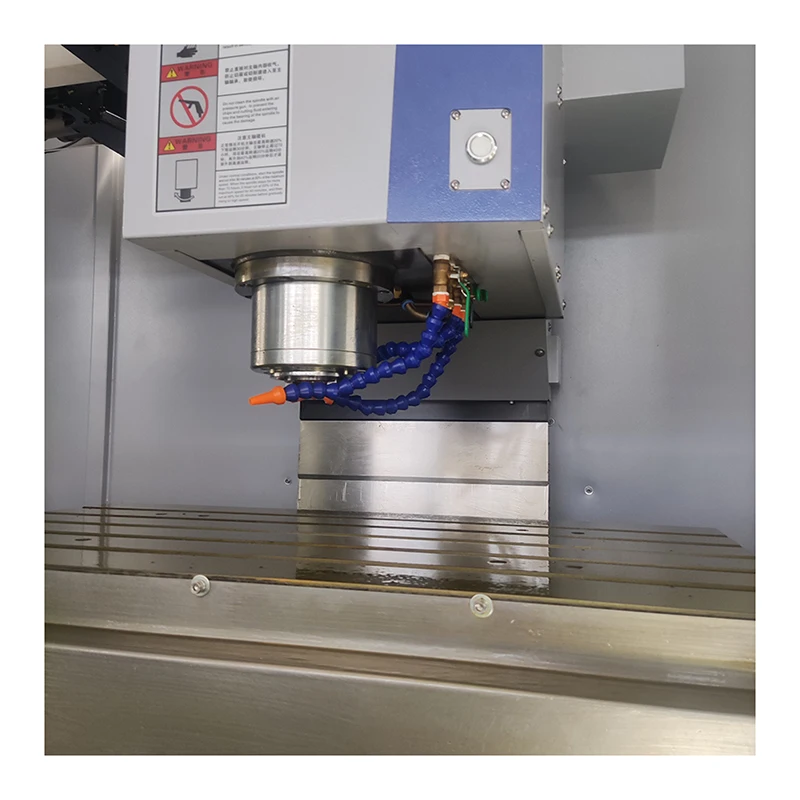

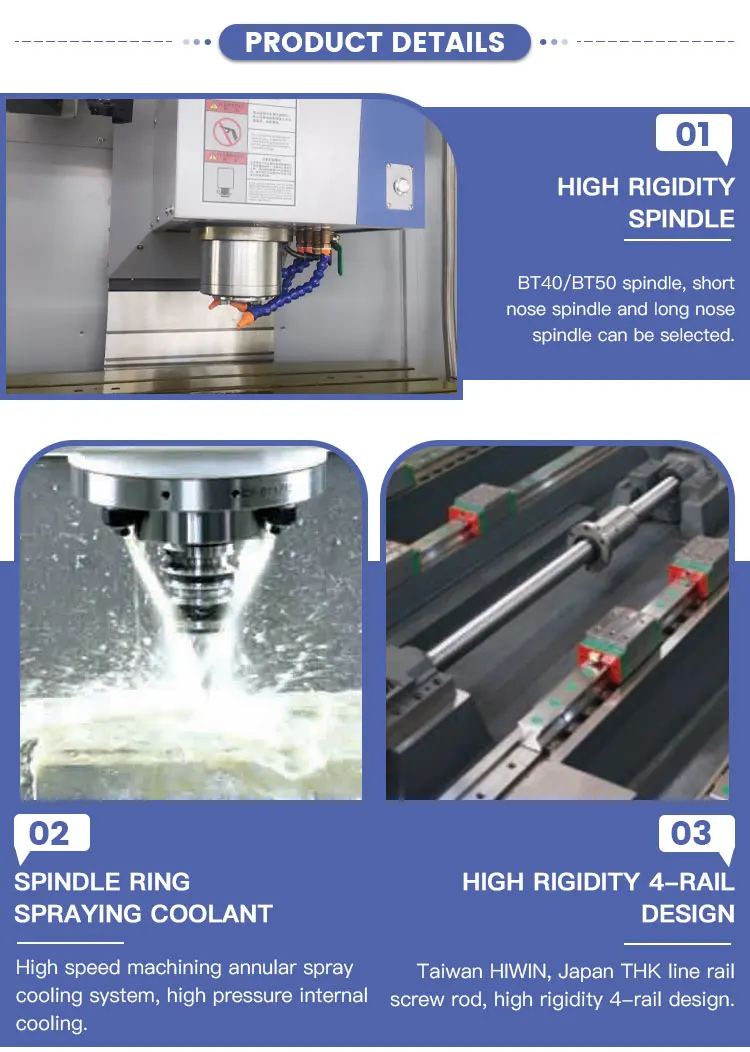

Spindle | |
Spindle speed rpm (belt type) | 8000/10000/12000 (optional) |
Spindle power | 5.5/7.5KW , 7.5/11KW |
Spindle specification | BT- 40 ISO 7;24 |
Tool magazine |
|
Robot Tool Magazine Specifications | 16T |
Tool change speed | 1.8 s |
tool weight | 8KG |
Maximum tool diameter (full tool) | 78 |
Maximum tool diameter (adjacent empty tool) | 120 |
Tool magazine handle specification | BT-40 ISO 7;24 |
General Specifications | |
Cutting pump KW | 1.5 |
Required horsepower KW | 15 |
Air pressure specification kg/cm 2 | 5-8 |
Machine weight kg | 3600 |

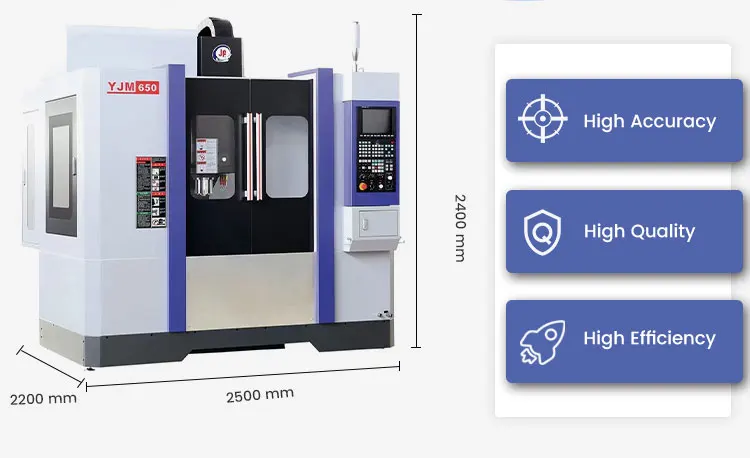

Floor area mm | 2500*2200*2400 |
Company Information
FAQ
1.What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.

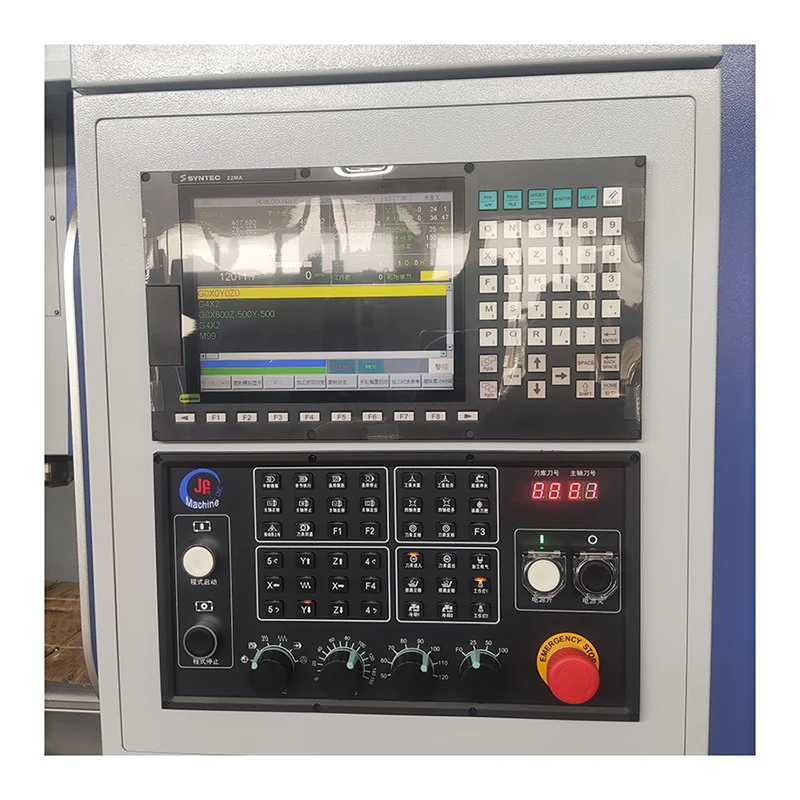

2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK,SYNTEC. It depends on your choice.
3:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
4: What's your main products of your company?
A: We specialize in selling all kinds of machine tools, such as CNC lathes, CNC milling machines, vertical machining centers, lathes, Swiss-type lathes, grinding machines and special fixtures for machine tools, tools, non-standard fixtures, tools
5: Where is our factory located? How can I visit there?
A :Our company is located at C307, Block C, Boyunhui, No. 18, Xingao Road, Niutang Town, Wujin District, Changzhou City, Jiangsu Province, China. You are warmly welcomed to visit us.
6. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
7: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
