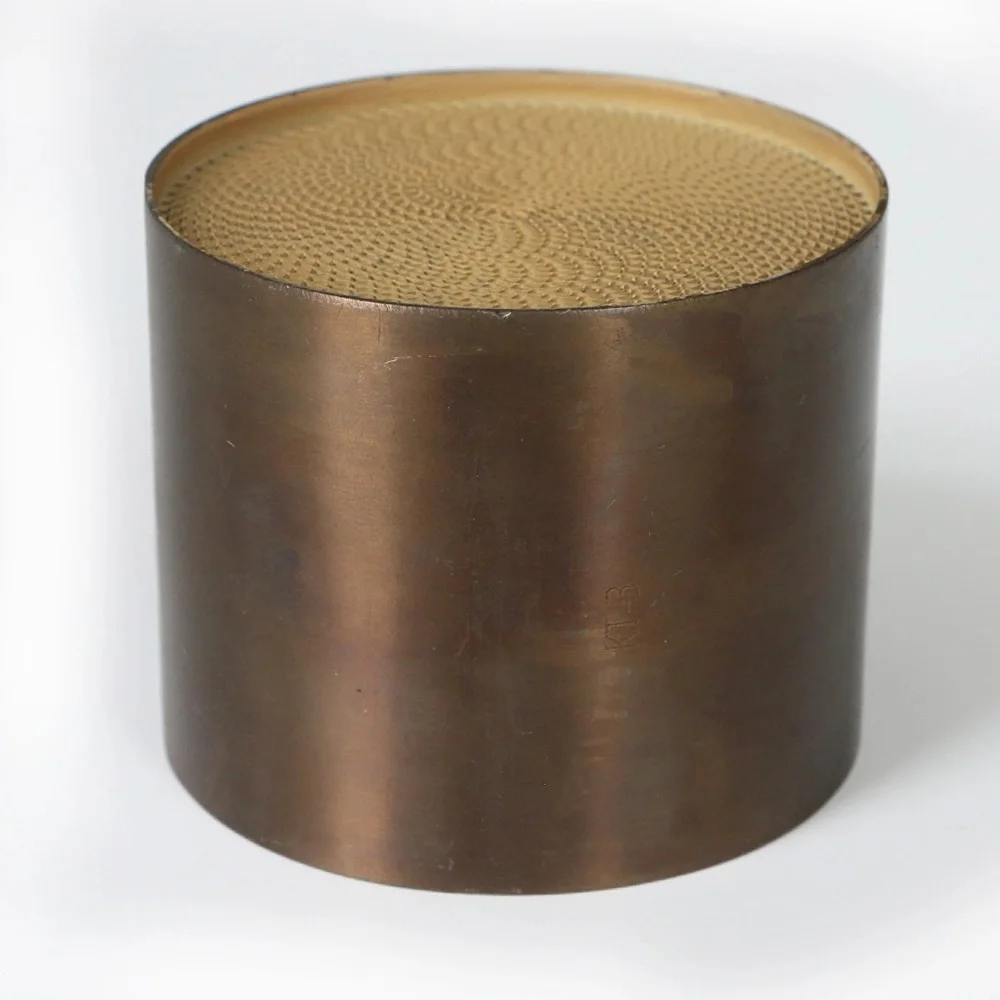

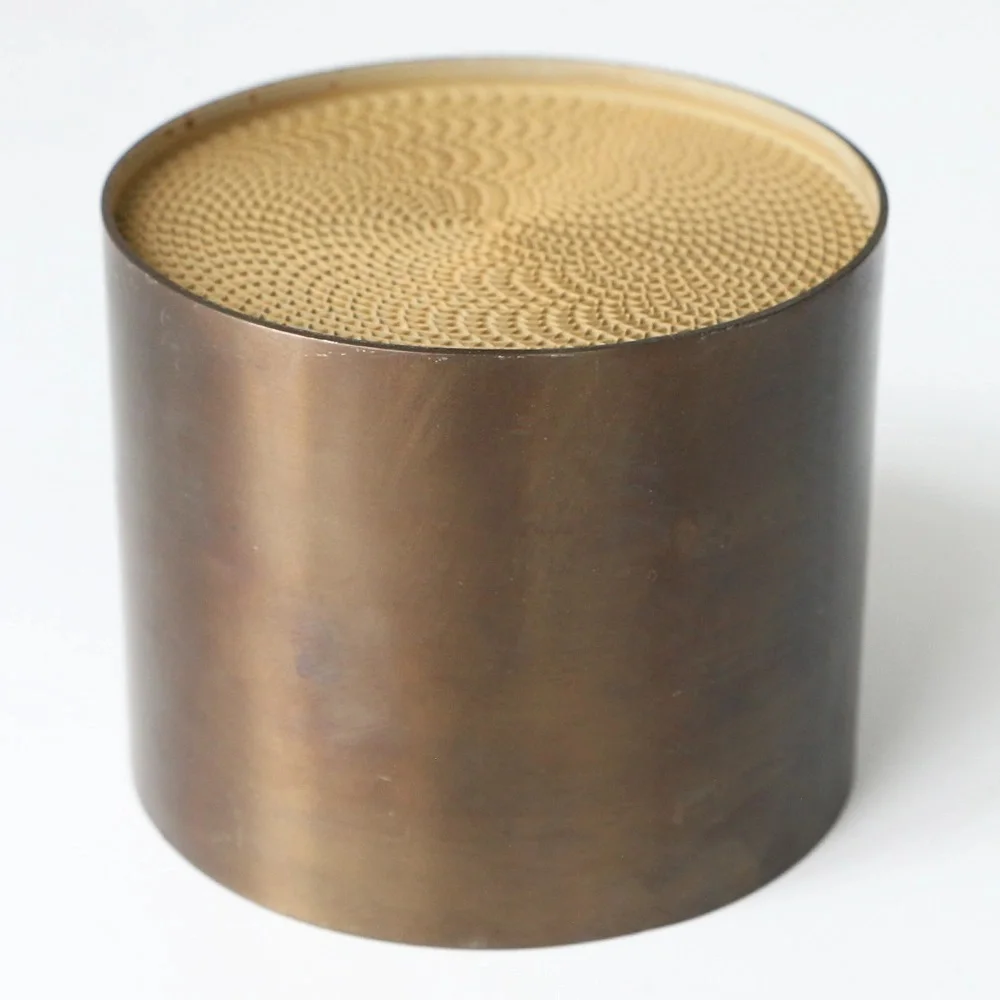

Diesel Engine Catalyst Honeycomb Metal Substrate Metallic Substrate
- Category: >>>
- Supplier: Pingxiang Jiu Zhou Industrial Co. Ltd.
Share on (1600770154495):
Product Overview
Description
Metallic Car Catalyst
The utility model relates to the technical field of a ternary catalytic conversion device for motor vehicle tail gas purification, in particular to a metal carrier of a ternary catalytic converter. It solves the technical problems such as unreasonable design of existing technology.

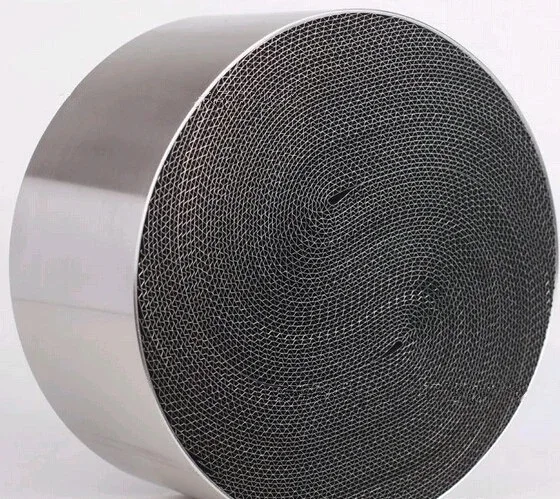

The metal carrier of the ternary catalytic converter comprises a shell of a cylinder and a core arranged in the shell, characterized in that the core comprises
A plurality of plates arranged parallel to each other and at equal spacing, and a bending plate in wavy shape is arranged between two adjacent plates.
Compared with the existing technology, the advantages of the metal carrier of the ternary catalytic converter are as follows:
The design is reasonable, the structure is simple, the service life is long, the manufacturing cost is low, the work stability is good.
The metal carrier of the ternary catalytic converter comprises a shell of a cylinder and a core arranged in the shell, characterized in that the core comprises
A plurality of plates arranged parallel to each other and at equal spacing, and a bending plate in wavy shape is arranged between two adjacent plates.
Compared with the existing technology, the advantages of the metal carrier of the ternary catalytic converter are as follows:
The design is reasonable, the structure is simple, the service life is long, the manufacturing cost is low, the work stability is good.
We can supply both metallic substrate coated with noble metals of Pt, Pd, Rh and without noble metals, and can meet the emission standard Euro II, Euro III, Euro IV, Euro V, EPA and CARB.
Advantages of metal ternary catalytic carrier:
1. Compressive, seismic and thermal shock resistance；
2. It has good thermal conductivity；
3. Small air resistance because the material wall thickness is several times thinner can reduce the exhaust back pressure of the engine；
4. Large specific surface area can improve catalyst efficiency；
5. Reduced volume of catalytic converter for easy installation；
6. The use of specific brazing materials and vacuum brazing welding process, special brazing materials with a wide range of point-shooting mode, to improve the overall brazing area.
2. It has good thermal conductivity；
3. Small air resistance because the material wall thickness is several times thinner can reduce the exhaust back pressure of the engine；
4. Large specific surface area can improve catalyst efficiency；
5. Reduced volume of catalytic converter for easy installation；
6. The use of specific brazing materials and vacuum brazing welding process, special brazing materials with a wide range of point-shooting mode, to improve the overall brazing area.
Application
1. Round & Oval metallic substrate for On-road vehicle.
2. Metallic substrate for small engine.3. Metallic substrate for Off-road vehicle.
4. Metallic substrate for industrial catalyst.
5. Specific structure metallic substrate for other application.

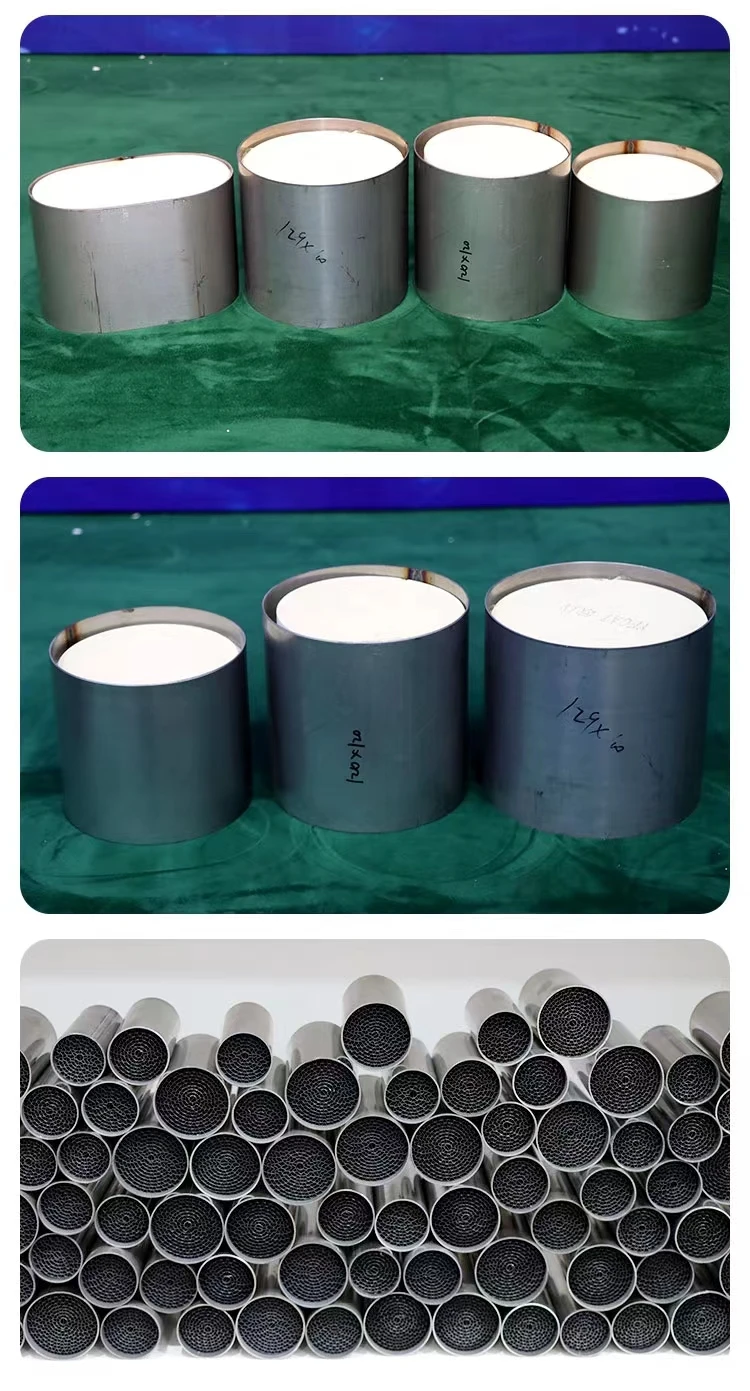

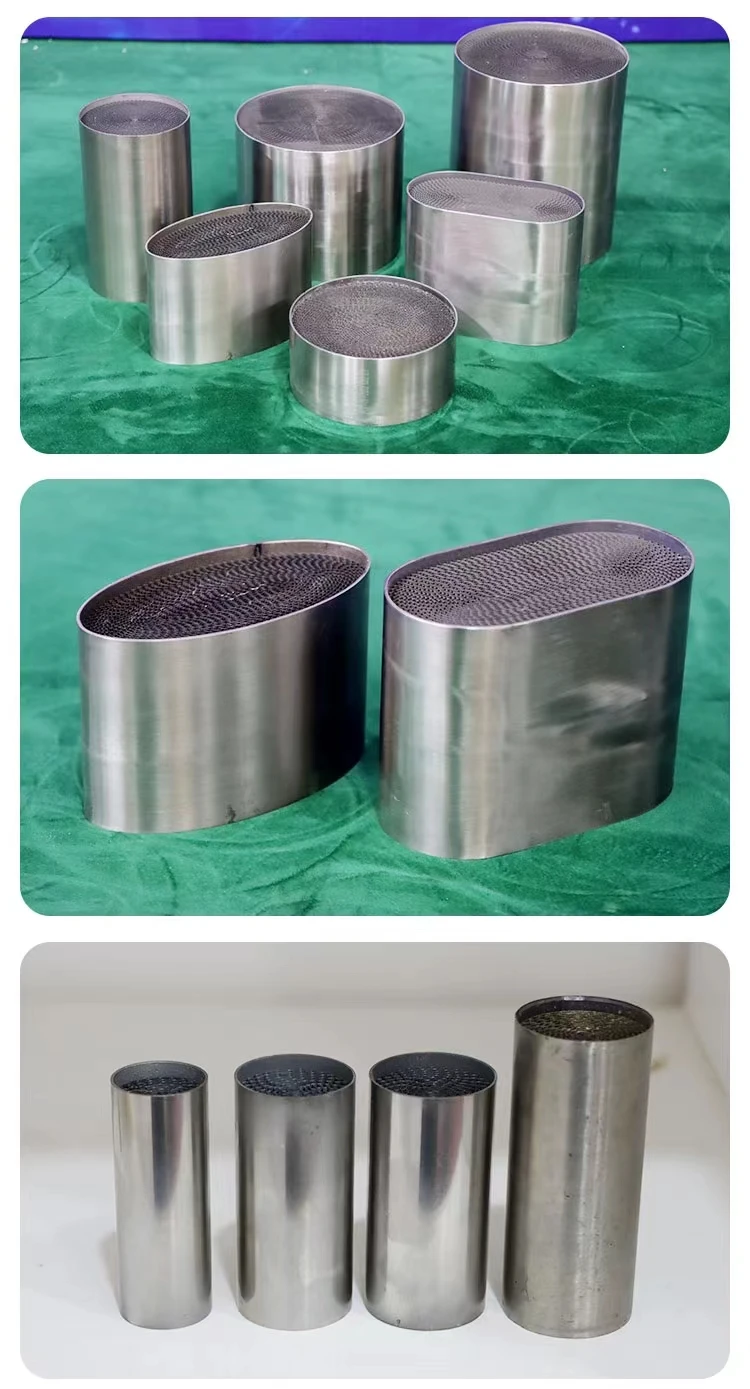

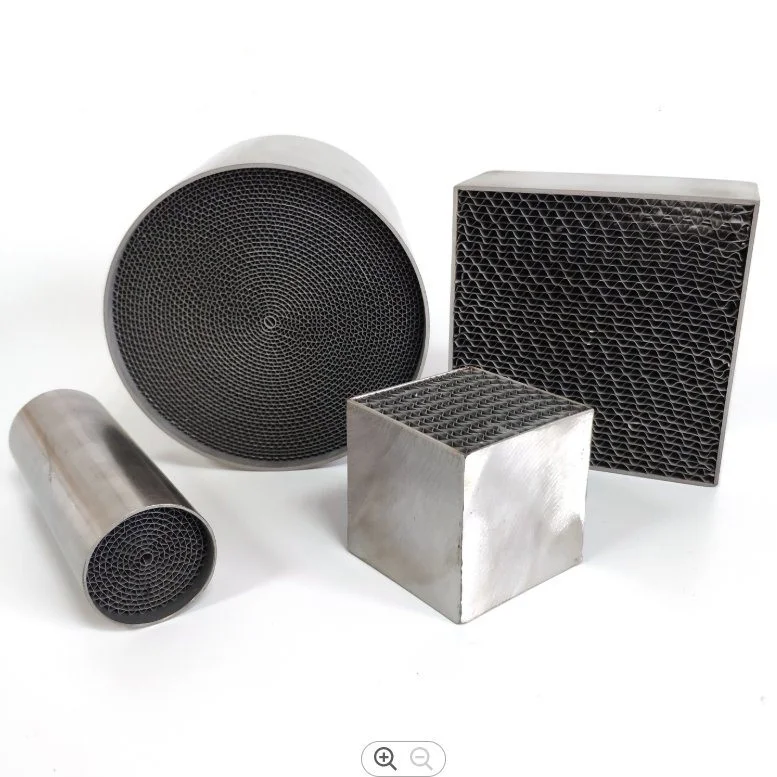

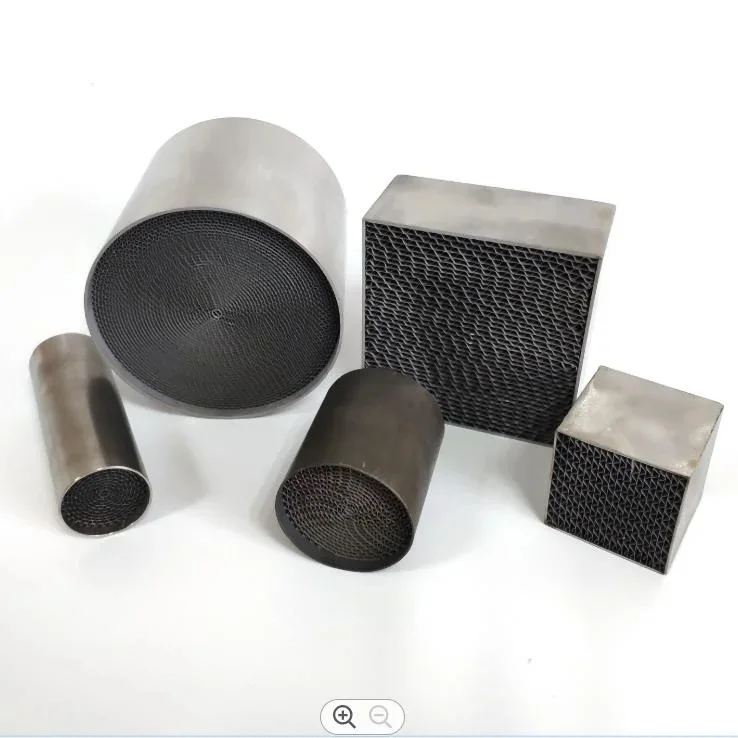

Shape: Round, oval, racetrack, rectangle and other especial shape according to the design of client.
Product Model Number | Highly/MM | Inner diameter/MM | Precious metal | Material |
330 | 260 | 335 | Fe/Cr/Al | Pd/Pt/Rh |
305 | 260 | 312 | Fe/Cr/Al | Pd/Pt/Rh |
286 | 260 | 294 | Fe/Cr/Al | Pd/Pt/Rh |
267 | 260 | 275 | Fe/Cr/Al | Pd/Pt/Rh |
240 | 260 | 248 | Fe/Cr/Al | Pd/Pt/Rh |
228 | 260 | 235 | Fe/Cr/Al | Pd/Pt/Rh |
190 | 260 | 197 | Fe/Cr/Al | Pd/Pt/Rh |
170 | 260 | 178 | Fe/Cr/Al | Pd/Pt/Rh |
143 | 180 | 146 | Fe/Cr/Al | Pd/Pt/Rh |
Our profile.
•We are an industrial engineering company integrating R&D, design, production, manufacturing and equipment installation.
•Our company was established in 2005,we have more than ten years of production experience.
•Our company covers an area of nearly 100,000 square meters, with a construction area of about 50,000 square meters, and has more
than one hundred sets of various machinery manufacturing and production equipment.
•We have several senior engineers and intermediate technical professional team, ready to provide technical consulting services.
•Our company was established in 2005,we have more than ten years of production experience.
•Our company covers an area of nearly 100,000 square meters, with a construction area of about 50,000 square meters, and has more
than one hundred sets of various machinery manufacturing and production equipment.
•We have several senior engineers and intermediate technical professional team, ready to provide technical consulting services.
Our services
1. 24 hours service will be always available.
2. We can customize the product according to your design.
3. We follow the principle – be honest, professional and efficient.
4. Perfect after-sales service.
5. If you are interested in our products or related products, please contact us.
2. We can customize the product according to your design.
3. We follow the principle – be honest, professional and efficient.
4. Perfect after-sales service.
5. If you are interested in our products or related products, please contact us.
