13mm 8 ohm 0.7w 1w micro flat-panel dynamic sound smd buzzer speaker
Product Name | 13mm 8 ohm 0.7w 1w micro flat-panel dynamic sound smd buzzer speaker |
Type | Dynamic speaker |
Rated Voltage(square wave) | 0.7W /1W |
Sensitivity(S.P.L.) | 88dB ±3dB |
Operating Temperature | - 30℃ ～ +65℃ |
Storage Temperature | - 40℃ ～ +65℃ |
Frequency Range | 0Hz ~20kHz |
Resonance Frequency | 850±20% Hz at 2.0V Sine wave |

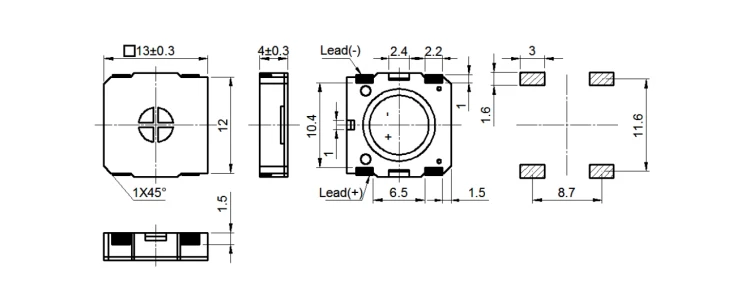

1. Speaker Dimensions

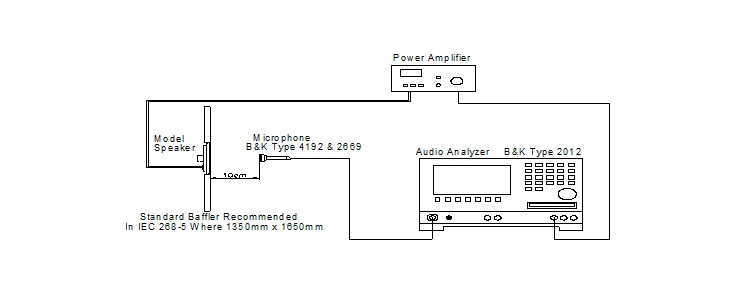

2. Speaker Test Circuit

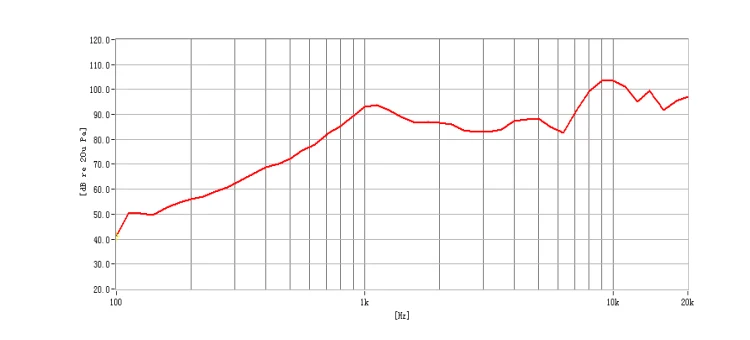

3. Speaker Frequency Response

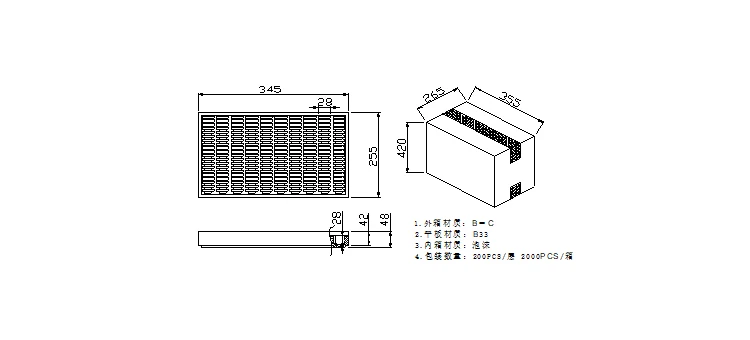

4. Speaker Packing
