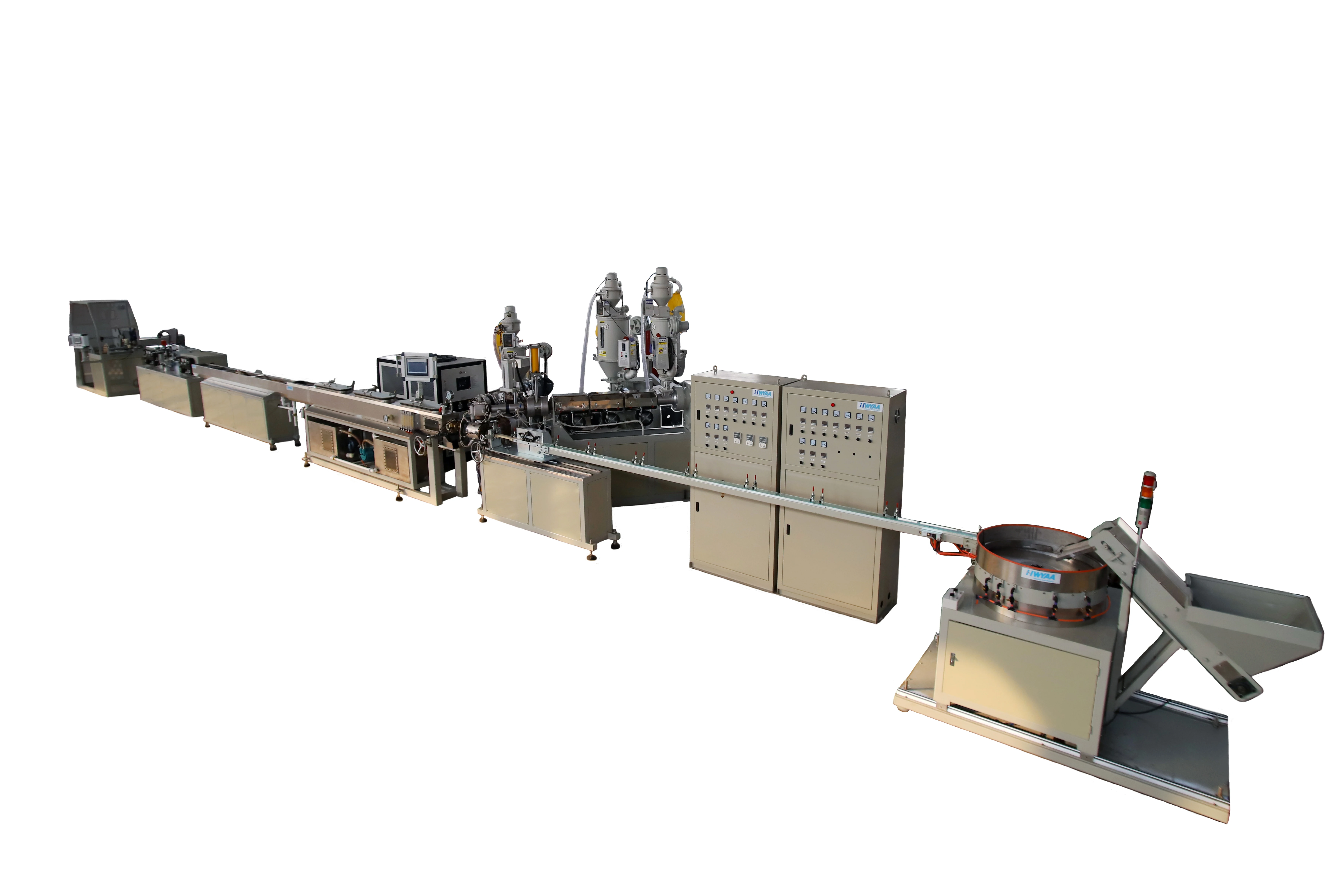

Inlaid Flat Emitter Drip Irrigation Pipe/Tape Making machine drip irrigation pipe production line
- Category: >>>
- Supplier: Laiwu Huaya Polymer Sci. & Tech. Co. Ltd.
Share on (1600770296990):
Product Overview
Description
Product Description
With reference to advanced technology both in domestic and abroad, this new generation high-speed thin-wall inline flat drip irrigatiopn pipe production was developed by our company based on many years experience and market research. The design production speed is 120m/min. And the wall thickness is 0.15-0.6mm.
Technical Parameters
No. | Drip Pipe Diameter | 12mm, 16mm, 20mm, 22mm |
1 | Drip Pipe Wall Thickness | 0.15-0.6mm |
2 | Design Speed | 120/min ( 300mm dripper space) |
3 | Drpper Sapce | 100-1000mm |
4 | Central Line Height | 1000mm |
5 | Punching Method | Mechanical |
6 | Roll Length | 500-2500mm |
7 | Installation Power | Around 75KW |
8 | Extrusion Capacity | Around 100kg/h |
9 | Dimensions （LXWXH） | 28mx4xx3m |
10 | Weight | Around 5800Kg |

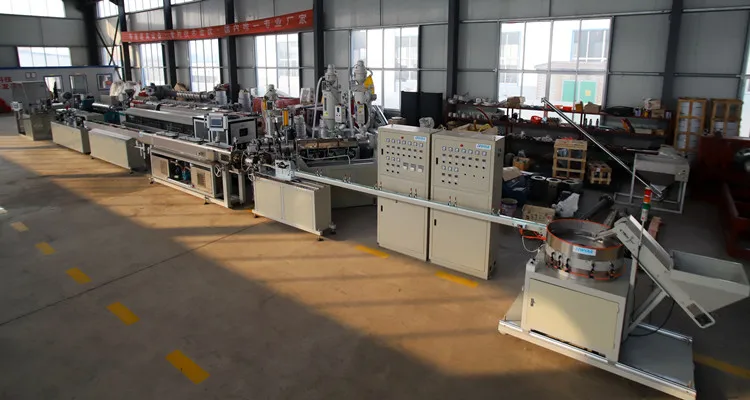

Machine Compositions

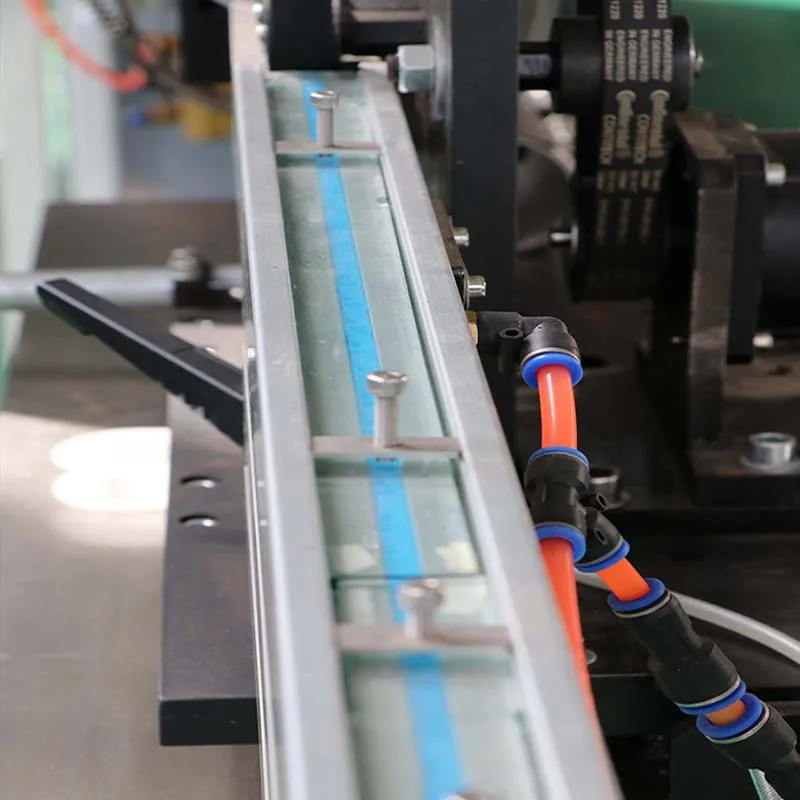

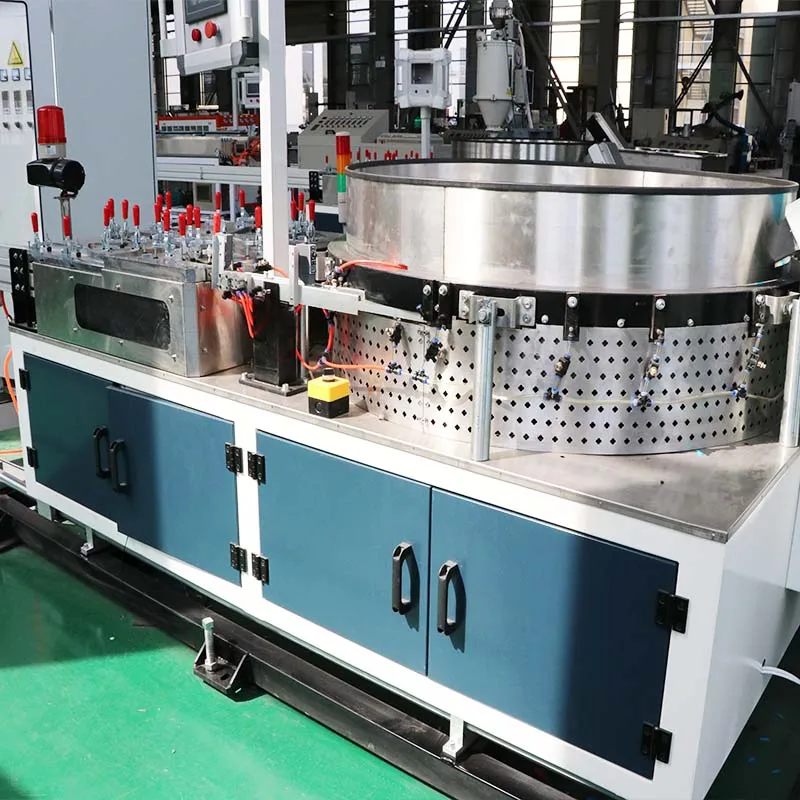

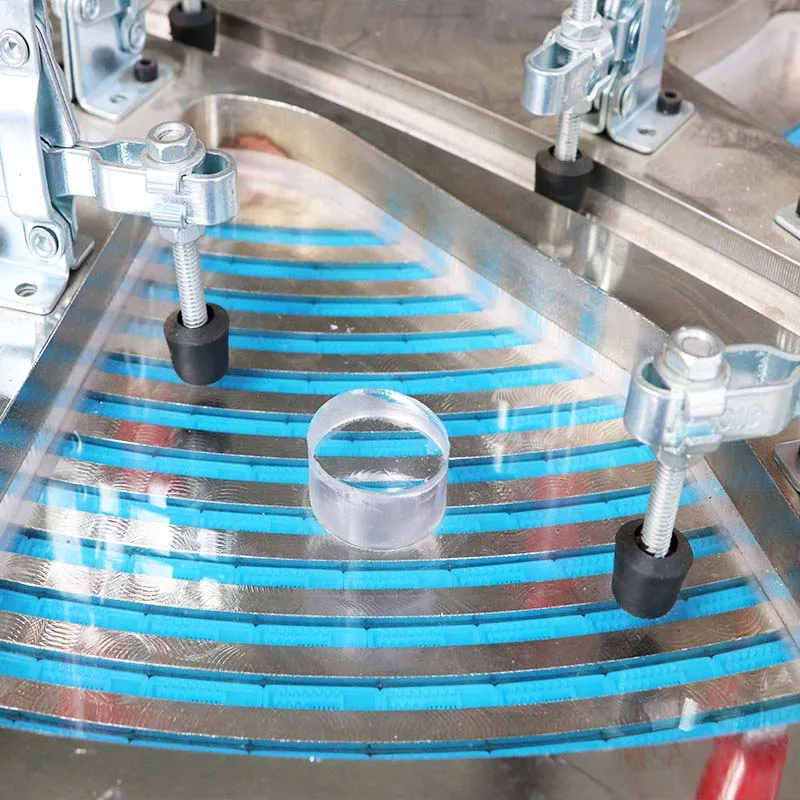

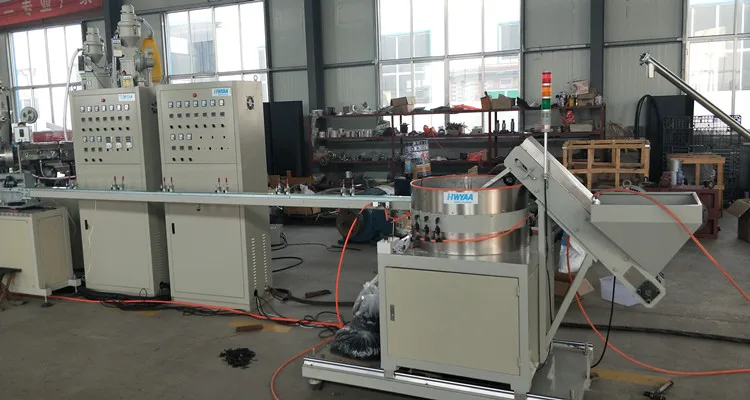

Emitter automatic identification device and automatic conveyor device

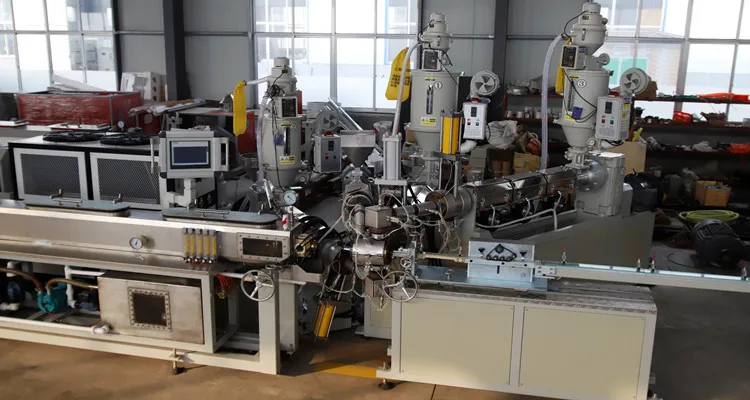

Extruders with hydraulic filters and automatic feeders
SJ-75/33 extruder with 45kw motor , die head

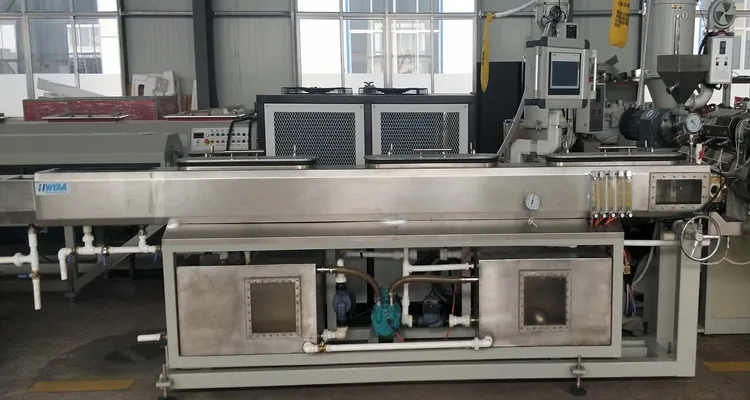

Vacuum sizing tank
The length is 4000mm

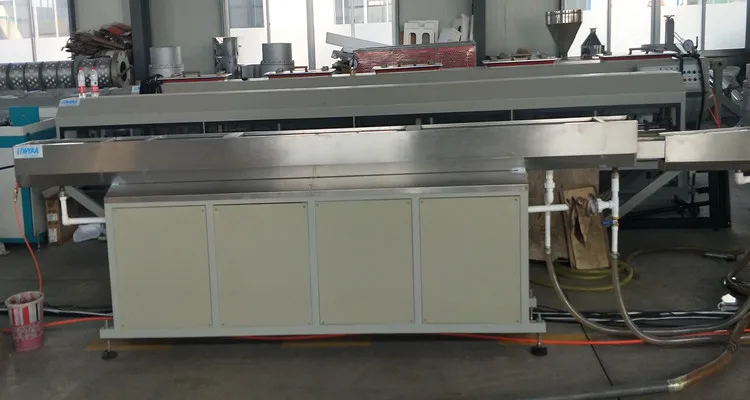

Cooling tank
The length is 3000mm.

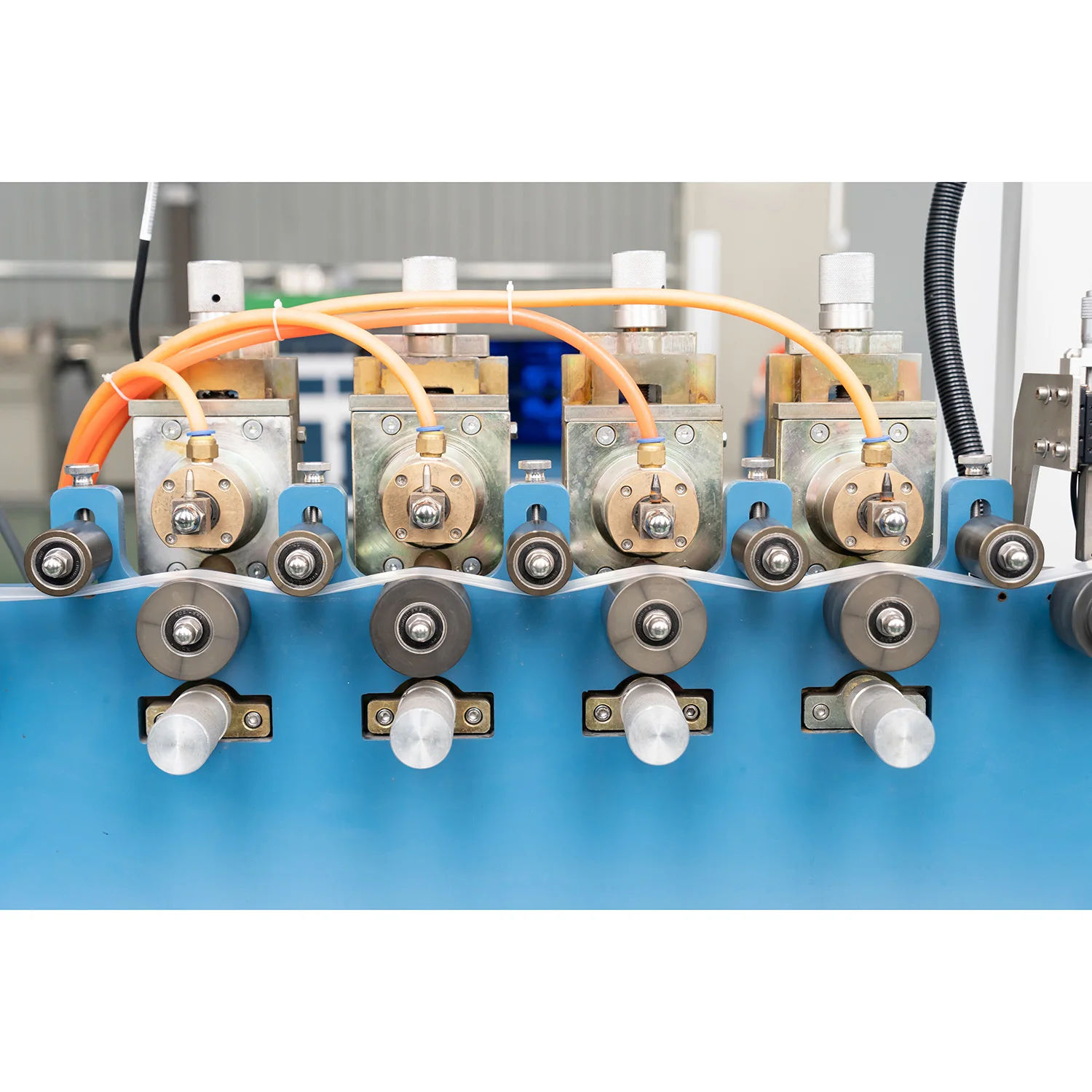

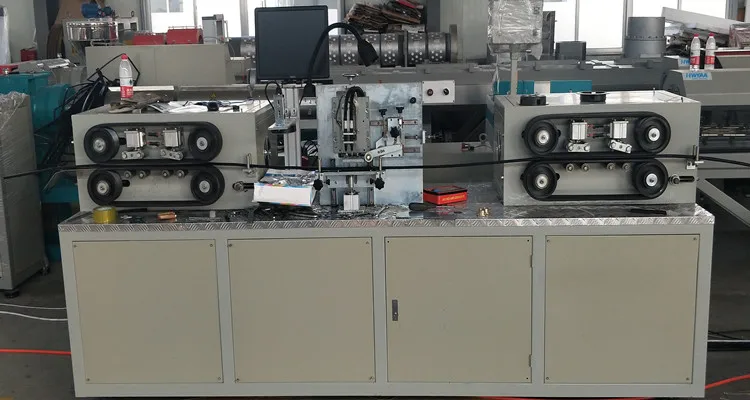

Tractors and punching device, servo motor control,
Traction speed 120m/min. Punching metold Siemens PLC control.

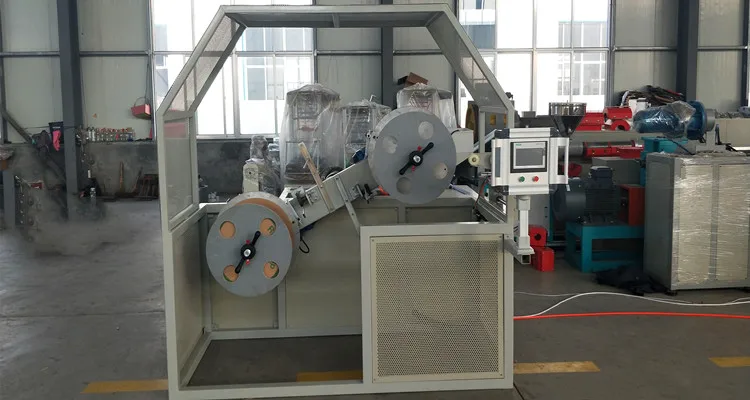

Double station coiling machine
Siemens PLC control
Machine Advantages
1. It adopts PLC centralized control, stable production, easy operation, can efficiently and continuously produce the irrigation drip tape.
2. The emitters feeding, screening, transportation, storage, rationing and embedding are completed automatically. The delivery rate can be adjusted according to the production speed of irrigation drip tape, to ensure accurately the delivery and installation of dripper.
3. The extruded materials are uniformly plasticized, the pipe surface is smooth and the sizing is accurate.
4. The vacuum water tank and cooling water tank are made of stainless steel, the vacuum degree in the water tank can be accurately and flexibly adjusted according to production needs while maintaining stability.
5. Using two servo-driven tractor, pulling speed can be adjusted synchronously according to production needs, smooth traction speed.
6. Using mechanical drilling method controlled by PLC to make the drip tape hole, fast drilling speed.

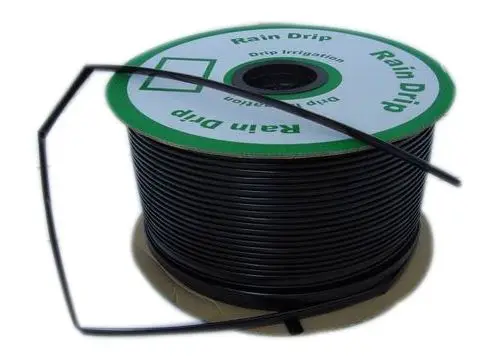

7. Double station, coil changing without stopping. The winding length can be set freely.
2. The emitters feeding, screening, transportation, storage, rationing and embedding are completed automatically. The delivery rate can be adjusted according to the production speed of irrigation drip tape, to ensure accurately the delivery and installation of dripper.
3. The extruded materials are uniformly plasticized, the pipe surface is smooth and the sizing is accurate.
4. The vacuum water tank and cooling water tank are made of stainless steel, the vacuum degree in the water tank can be accurately and flexibly adjusted according to production needs while maintaining stability.
5. Using two servo-driven tractor, pulling speed can be adjusted synchronously according to production needs, smooth traction speed.
6. Using mechanical drilling method controlled by PLC to make the drip tape hole, fast drilling speed.
7. Double station, coil changing without stopping. The winding length can be set freely.
Flat drip pipe Applications

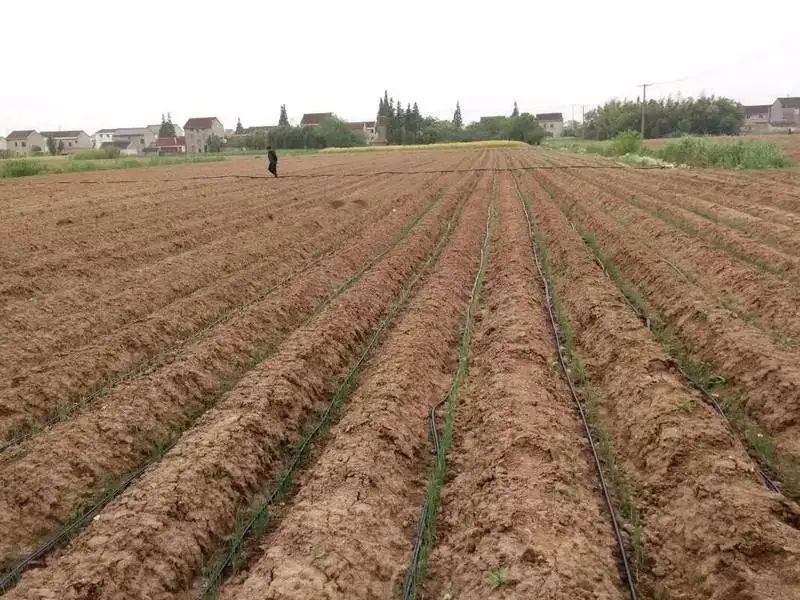

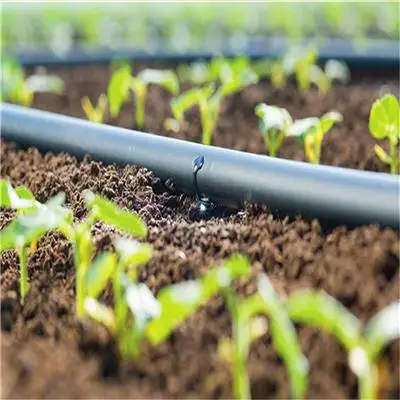

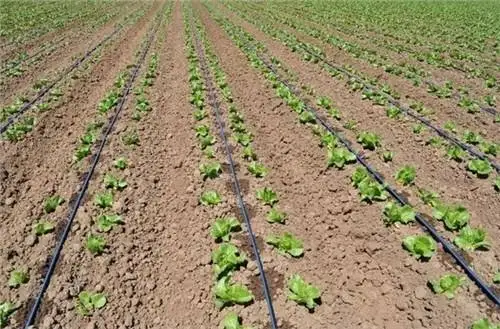

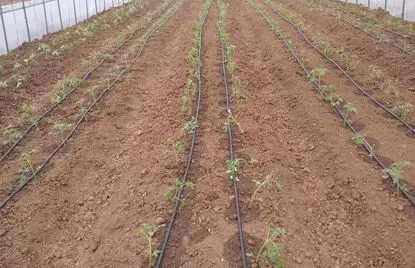

Flat drip irrigation pipes are widely used to grow field crops (such as cotton), fruits, vegetables, trees, flowers and more.

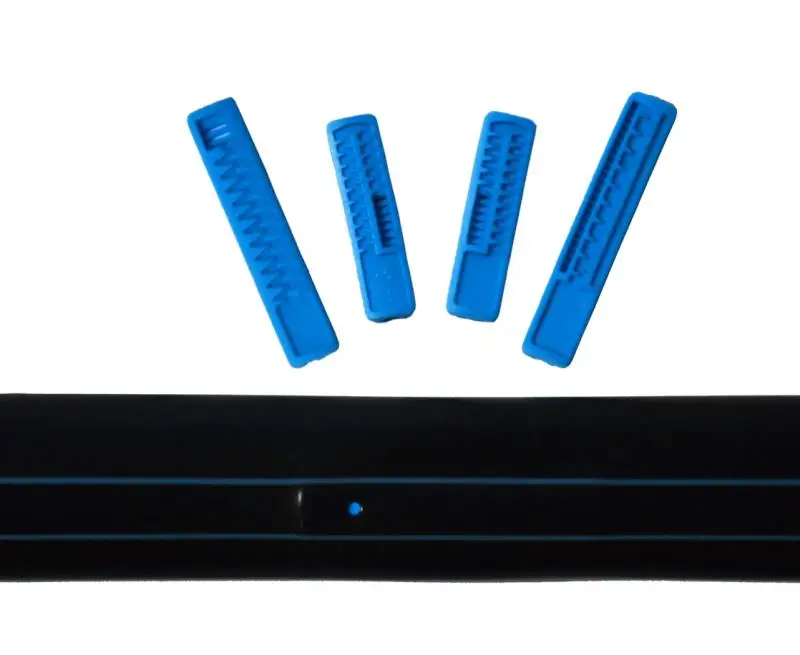

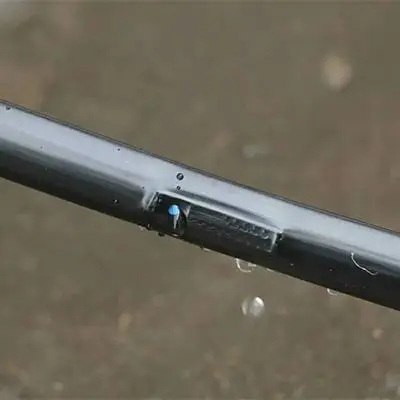

Features of flat drip tape：
1. Integration with tape and emitter, easy installation, low cost, low investment.
2. Adjustable dripper spacing, to meet the irrigation demands of different crops, and satisfy the requirements of water saving and production increasing.
3. The emitter with multi-windowed intake improve its anti-blocking performance.
2. Adjustable dripper spacing, to meet the irrigation demands of different crops, and satisfy the requirements of water saving and production increasing.
3. The emitter with multi-windowed intake improve its anti-blocking performance.
Exhibition
Company Profile
HUAYA Company
Welcome to HUAYA company , a well-established professional manufacturer of plastic extrusion machines based in Laiwu City,Shandong Province,China. We specialize in many kinds of drip tape machines,blown film machines, UHMWPE extrusion machines ,PE&PVC pipe machines and more.Having worked in extrusion equipment industry for many years, we have unrivalled experience in understanding our clientsrequirements. Therefore, we provide not only performance plastic extrusion machines, but also technical supports such as the material formula and production technique improvement.We now offer thoughtful services such as training and installation guides overseas.
Due to these, our products, including drip irrigation tape lines, blown film machines, UHMWPEextrusion line, have been exported to many countries and regions around the world, such as like Europe (Russia, Poland, Kazakhstan, ect), Southeast Asia(India,Vietnam,Malaysia,ect),Africa(South Africa, Botswana , Algeria,Tunisia , ect), Korea, Brazil , Mexico, Yemen, etc.
HUAYA has attained ISO9001:2000 certificate and more than 10 national patent certificates.Our company regards “reasonable prices,efficient production time and good after-sales service” as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
Due to these, our products, including drip irrigation tape lines, blown film machines, UHMWPEextrusion line, have been exported to many countries and regions around the world, such as like Europe (Russia, Poland, Kazakhstan, ect), Southeast Asia(India,Vietnam,Malaysia,ect),Africa(South Africa, Botswana , Algeria,Tunisia , ect), Korea, Brazil , Mexico, Yemen, etc.
HUAYA has attained ISO9001:2000 certificate and more than 10 national patent certificates.Our company regards “reasonable prices,efficient production time and good after-sales service” as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
