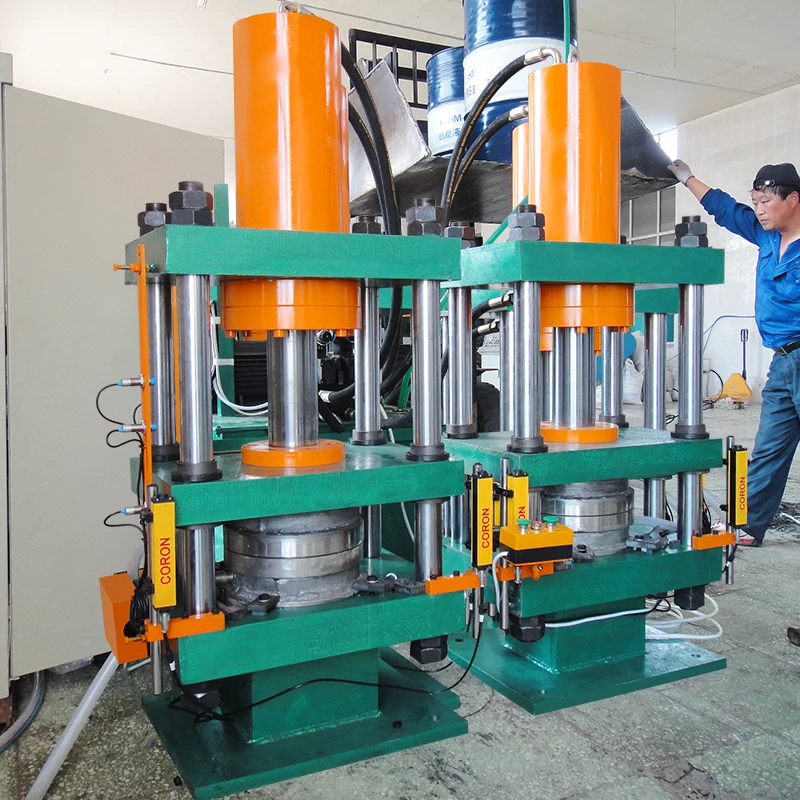

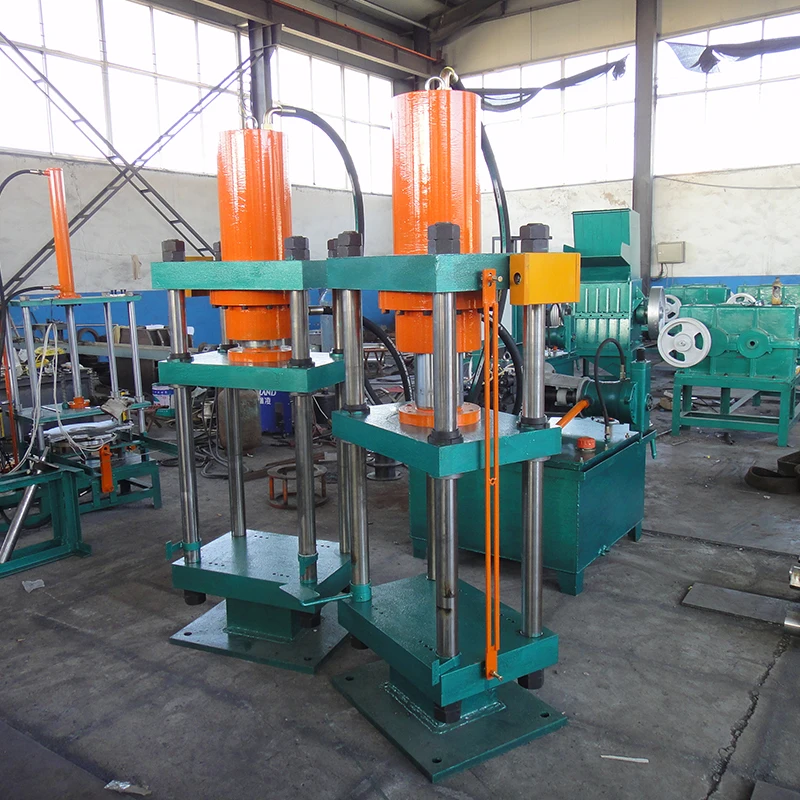

Four column hydraulic press waste plastic recycling processing and forming hydraulic press scallop plate press
- Category: >>>
- Supplier: Laizhou Fengde Plastic Machinery Co. Ltd.
Share on (1600770347899):
Product Overview
Description
Product Description

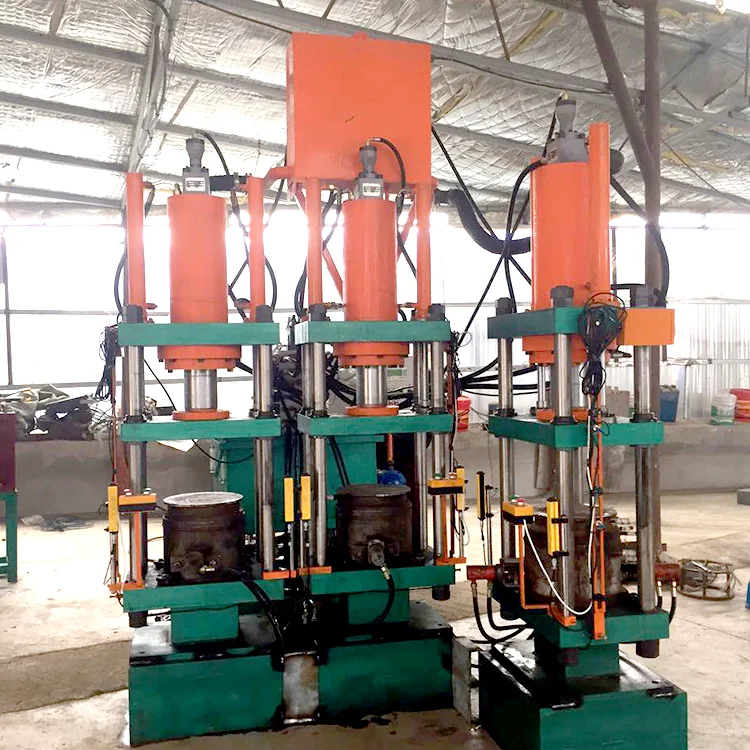

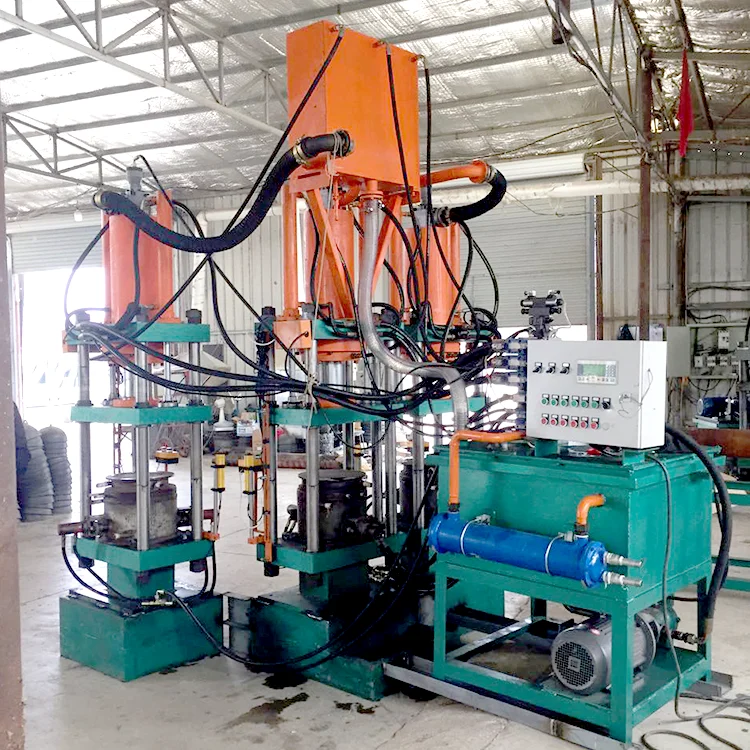

Hydraulic Hydraulic forming presses

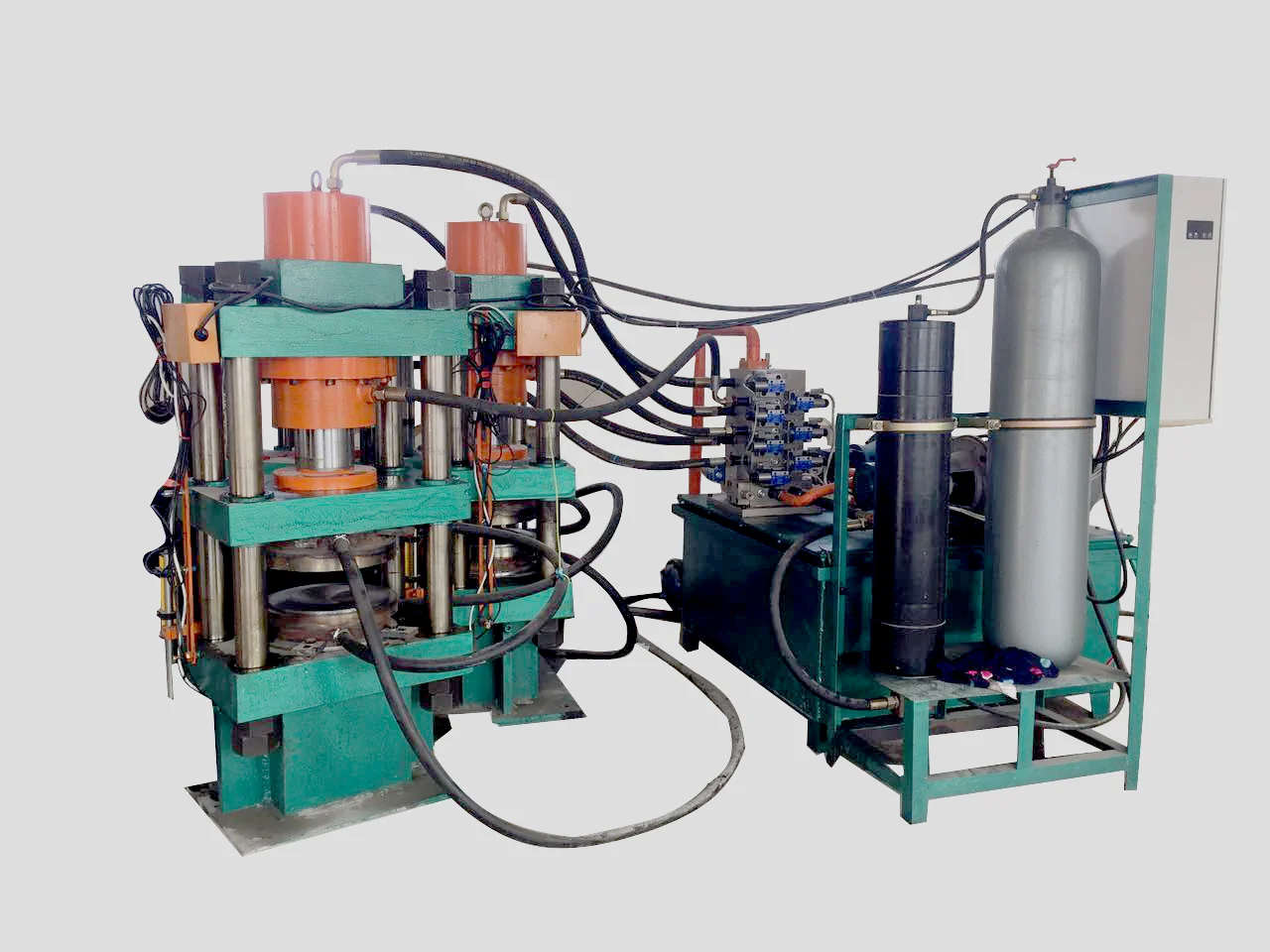

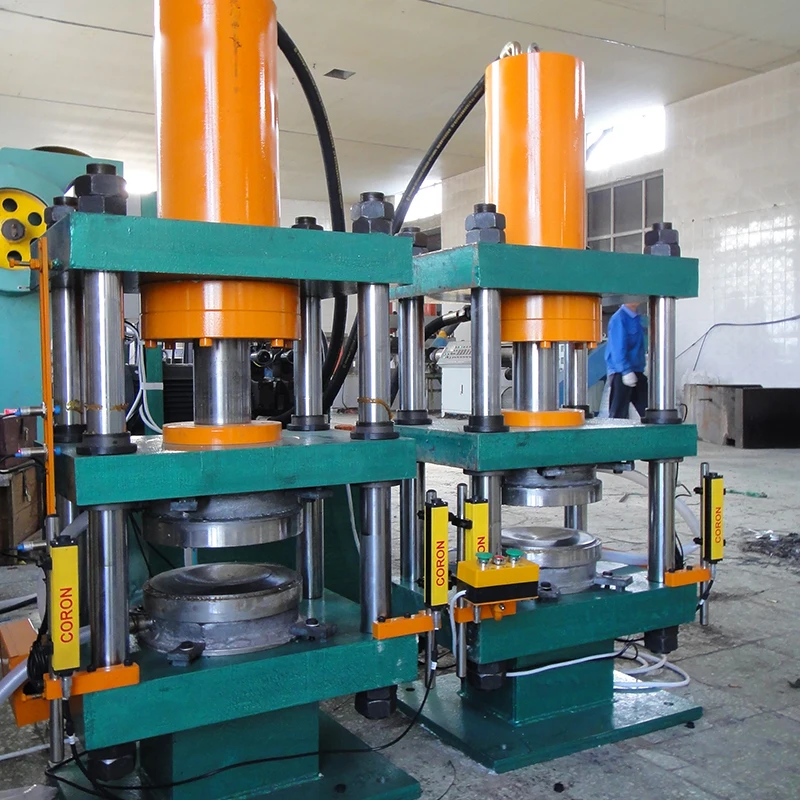

The hydraulic press is mainly composed of frame, hydraulic system, cooling system, pressurizing cylinder, upper die and lower die,
the pressurizing cylinder is installed in the upper end of the frame and connected with the upper die, the cooling system is
connected with the upper die and lower die. The lower part of the frame is equipped with a moving table and a moving cylinder
connected with the moving table, and the lower die is placed on top of the moving table.
the pressurizing cylinder is installed in the upper end of the frame and connected with the upper die, the cooling system is
connected with the upper die and lower die. The lower part of the frame is equipped with a moving table and a moving cylinder
connected with the moving table, and the lower die is placed on top of the moving table.

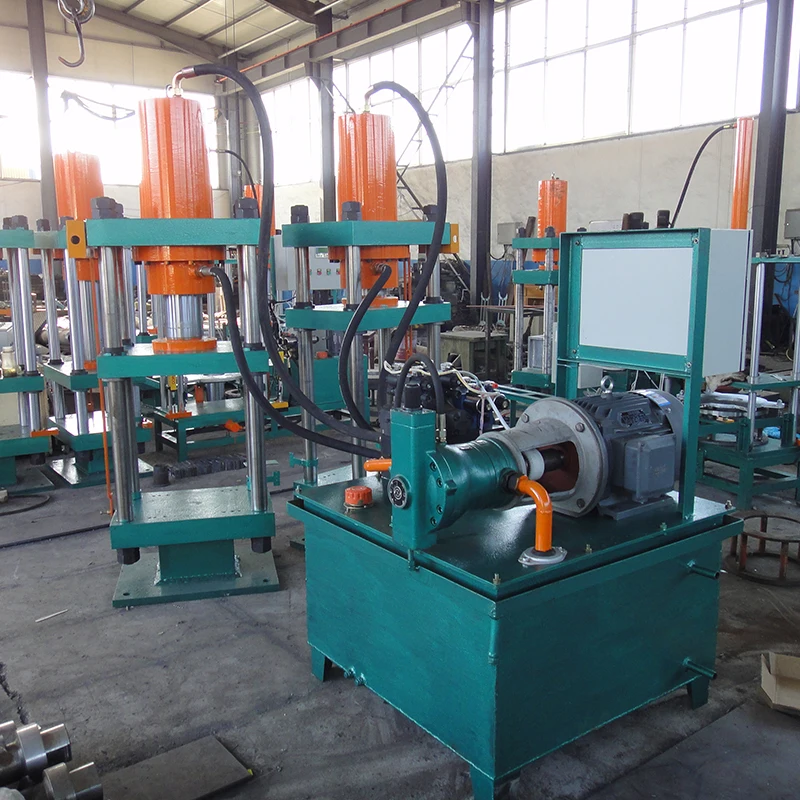

The machine adopts hydraulic drive, highly professional integrated valve block, large flow diameter, so that the system has less pressure loss and good sealing performance. The cartridge valve, electro-hydraulic proportional valve and unique oil circuit design make the hydraulic system perfect, even in the case of long-term heavy load work, the system will not appear to be unable to cope with the phenomenon. Advanced quick device, to ensure your shift production. The electric part is controlled by PC, which is anti-interference, high automaticity and simple operation. The oil cylinder adopts tandem oil cylinder, which improves the movement speed and production efficiency.
Note:For more information, please consult customer service or call for consultation
Hydraulic forming presses | ||
Model | YLJ-120 | |
Hydraulic station | cylinder diameter 220mm | |
Oil pumps | 40YCY axial piston pump | |
Maximum working pressure | 1176KN | |
Forming Machine | ffective working table area 510X450mm | |
The column siz | 80mm | |
Motor | 7.5kw | |
PLC control | ||
Company Introduction
Laizhou Fengde Plastic Machinery Co., LTD., whose office is located in Nanwangjia Village, Shahe Town, Laizhou City, Shandong Province, an important port city in Bohai Rim, mainly engaged in processing and production: mechanical parts, plastic machinery, chemical machinery. The products cover single double three screw extruder, feeding, cutting, water cutting and auxiliary equipment.
The company has many engineers engaged in research and production in the field of plastic machinery for many years, and has many years of experience in field commissioning engineers. Good technology, stable equipment, strict management is the company to continue to develop and grow, products can get users rely on the fundamental. According to the specific process requirements of customers, we can provide equipment technical design, complete machine production and assembly, customer field commissioning, after-sales technical services and other services. With the enterprise management mode, strong technical force, as well as the stable performance and quality of equipment, we have won widespread trust and praise from customers.
The company adheres to the business principle of "high quality and low price", so that our customers can purchase at ease. The company will, as always, wholeheartedly provide good service for the majority of users. The company with integrity, strength and product quality to obtain the industry's recognition. Welcome friends from all walks of life to visit, guidance and business negotiations.
Packing&Shipping
Related Products
FAQ
1) Are you a trading company or a manufacturer? A: We are factories.
2)How is the delivery time determined?
A: Time can negotiate with each other
3)Why choose you?
A: We have rich export experience. The exporting countries include Russia, India, Myanmar, Malaysia, etc.
2)How is the delivery time determined?
A: Time can negotiate with each other
3)Why choose you?
A: We have rich export experience. The exporting countries include Russia, India, Myanmar, Malaysia, etc.
