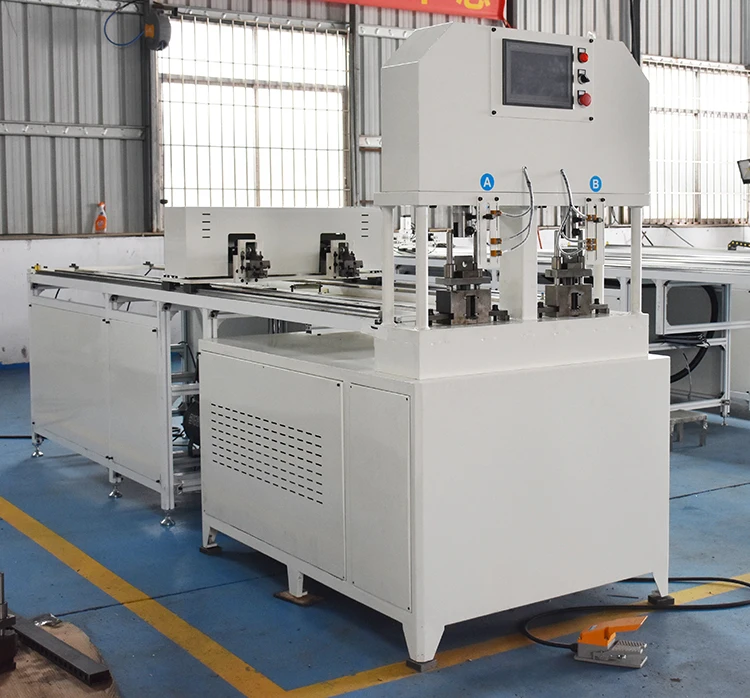

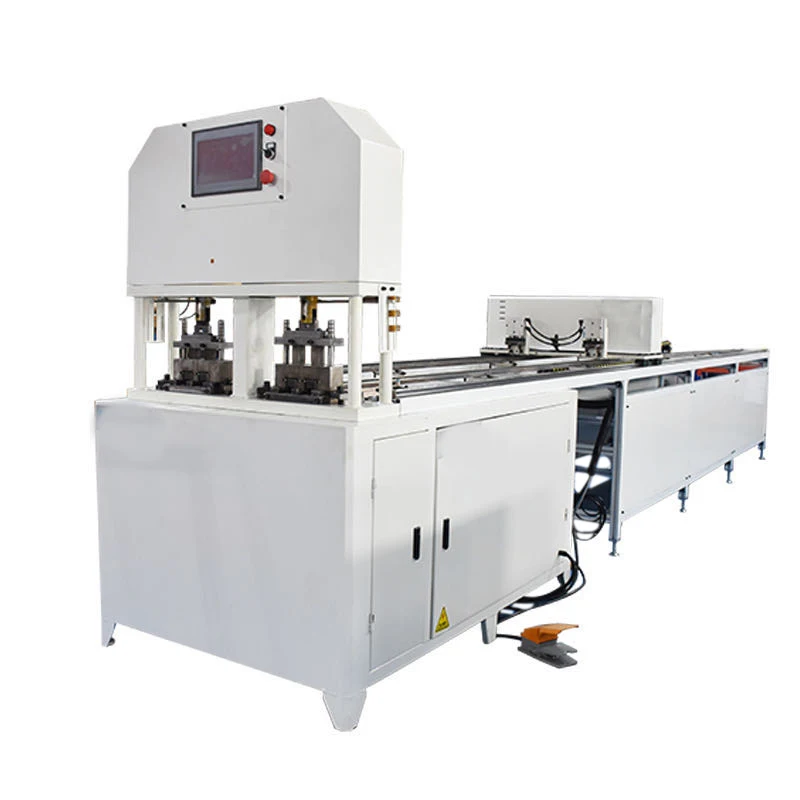

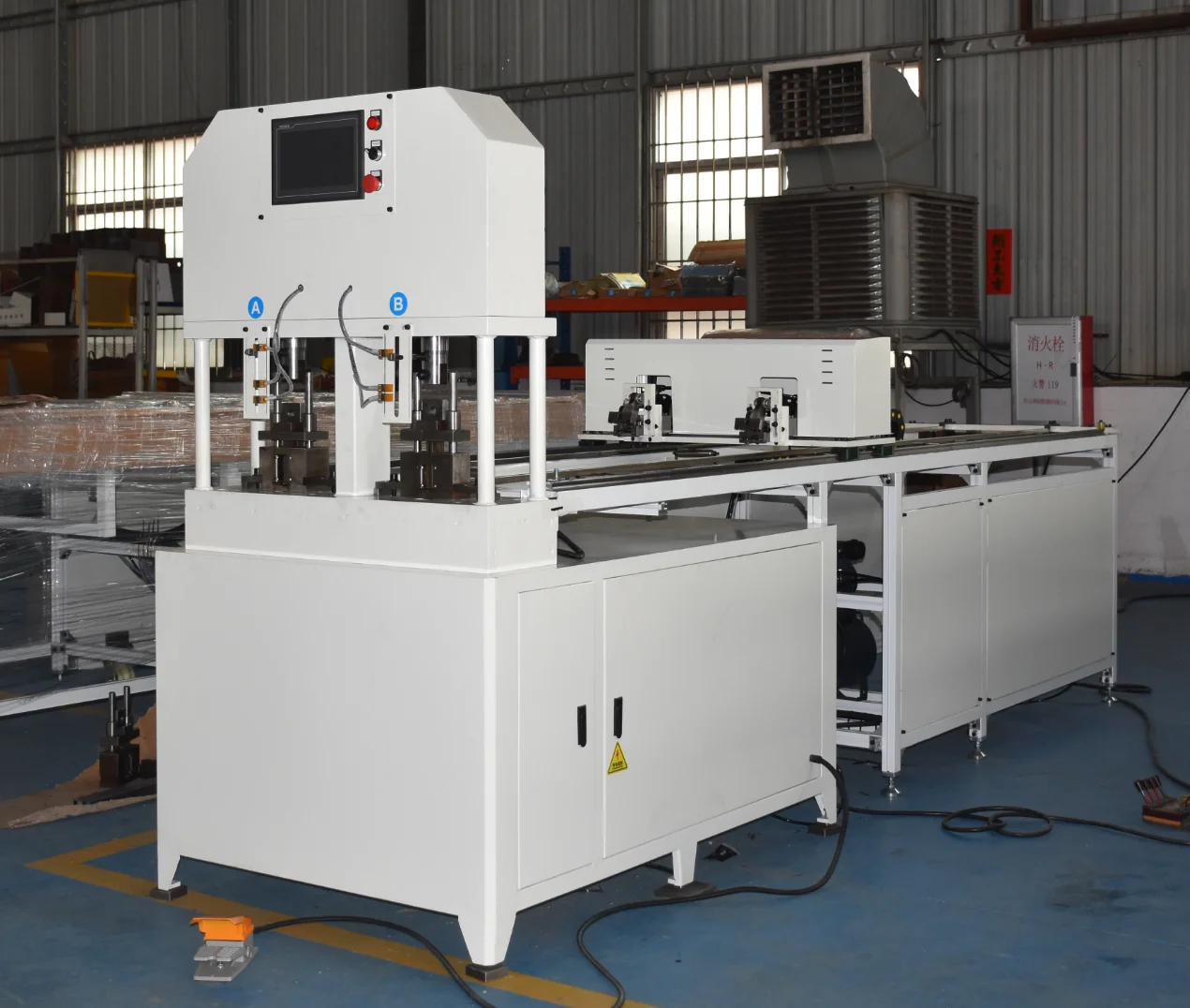

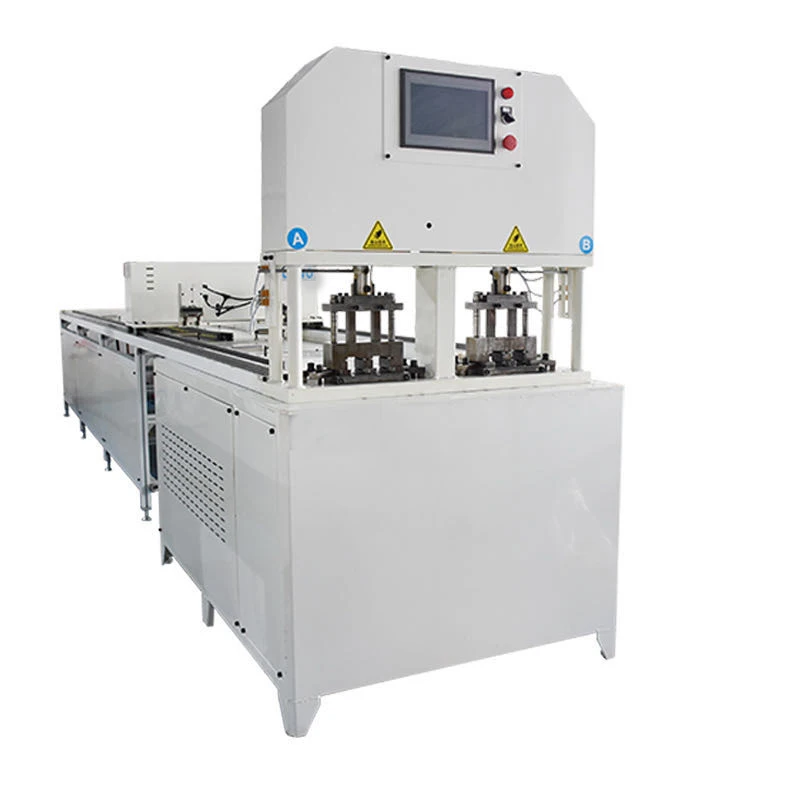

Automatic CNC 15 ton Double 3m Line Square Round Metal Stamping Press Pipe Tube Hole Punching Machine
Automatic CNC 15 ton Double 3m Line Square Round Metal Stamping Press Pipe Tube Hole Punching Machine
Automatic CNC 15 ton Double 3m Line Square Round Metal Stamping Press Pipe Tube Hole Punching Machine
Automatic CNC 15 ton Double 3m Line Square Round Metal Stamping Press Pipe Tube Hole Punching Machine
Automatic CNC 15 ton Double 3m Line Square Round Metal Stamping Press Pipe Tube Hole Punching Machine
Automatic CNC 15 ton Double 3m Line Square Round Metal Stamping Press Pipe Tube Hole Punching Machine

Automatic CNC 15 ton Double 3m Line Square Round Metal Stamping Press Pipe Tube Hole Punching Machine

Share on (1600770517469):


Price:$8,620.00 - $8,670.00

Quantity:


Product Overview

Description



Product Overview



Product feature:
1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.
2. Structure: Steel plate welded structure
3. Mould replacement: change the dies easily without adjusting the dies to reduce mould damage rate , Skilled workers can change the mould within 10 minutes.

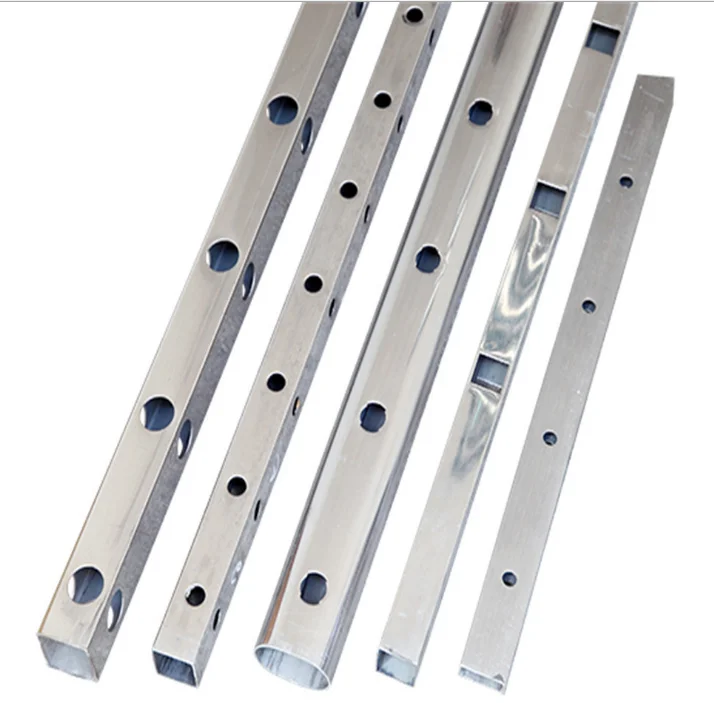

4. Punching Category: (1).single hole punching; (2).double hole punching; (3).Isometric hole punching; (4). none- Isometric hole punching,(5) rotary punching(only for round pipe).(6) punch from upward side and horizontal two sides
5. Hydraulic ,pneumatic and Servo System.
6. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.
7. double punching heads machine can punch hole with two hydraulic cylinders, or only one cylinder punch separately.
Note: A mean single machine head, B mean double machine heads
The above data is standard configuration, it can be customized in feed length, oil pressure, operation system langue and so on ,also with cutting function or not. Just let us know what you need


Products Description


Model
15TA
15TB
20TA
20TB
Feed length
3000
6000
3000
6000
Nominal force
150kn
250kn
Stroke
120mm
150mm
Max punch Thickness
SS 2.4mm,MS:3mm
SS 4mm,MS:5mm
Motor power
5.5kw
7kw
Punching capacity（metal thickness）
≤3mm
≤5mm
Fit to material
Fiberglass Carbon steel, stainless , copper, aluminum, iron, and so on
Fit to shape
Round, square, rectangle ,oval, angle steel
Tube and hole size
Moulds can be customized as different requirement
Depend on tube material and thickness, also hole size,
Punching hole accuracy
0.01mm
Feed accuracy
0.1mm
Color
white , or customized
Feed way
Slideway and servo motor
Control way
PLC, 10 inch Touch Screen

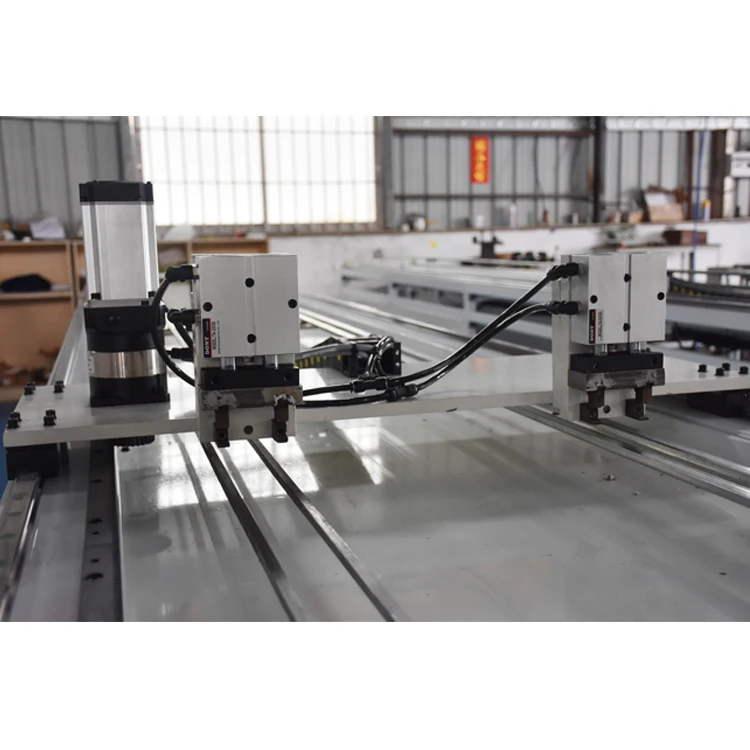

Clamping way
Pneumatic(air compressor is with machine)
programs stored
200 sets, each program store different processing message
Operation language
Chinese and English， or customized
Voltage
220V,380V,415V,440v, customized as requirement

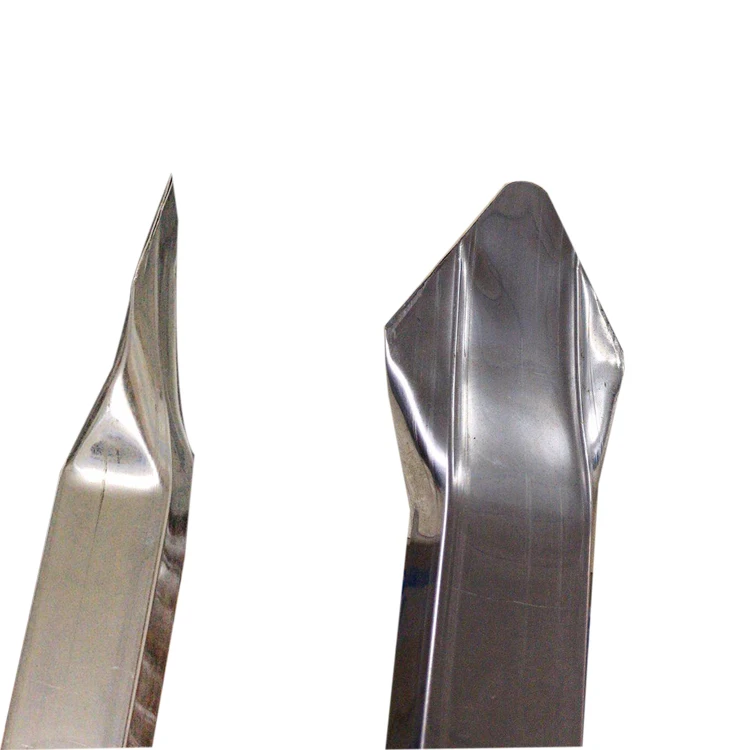

Cutting method(option )
Saw blade ,or hydraulic punch cutting


Measure
Machine head
1500x1000x1700mm

Feed frame
3500x600x12500mm(single，3m feed)
3500x900x12500mm(double，3m feed)
6500x600x12500mm(single，6m feed)
6500x900x12500mm(double，6m feed)













Product packaging


Inner package foamed plastic or stretch film,outpackage:iorn frame or wooden case.
Delivery shipped in 7-25days after payment






SALES AND SERVICE NETWORK

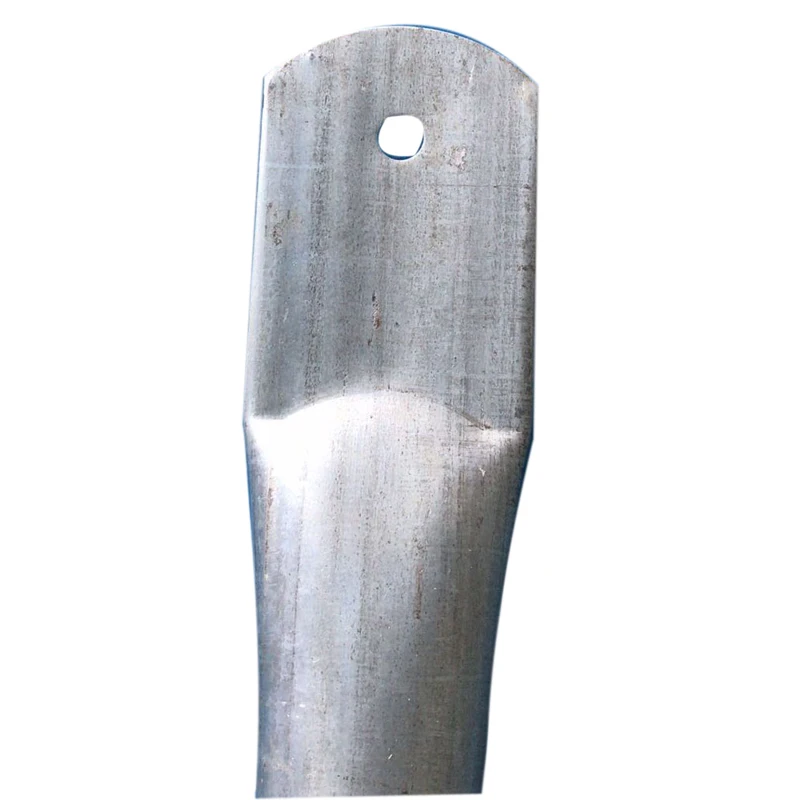

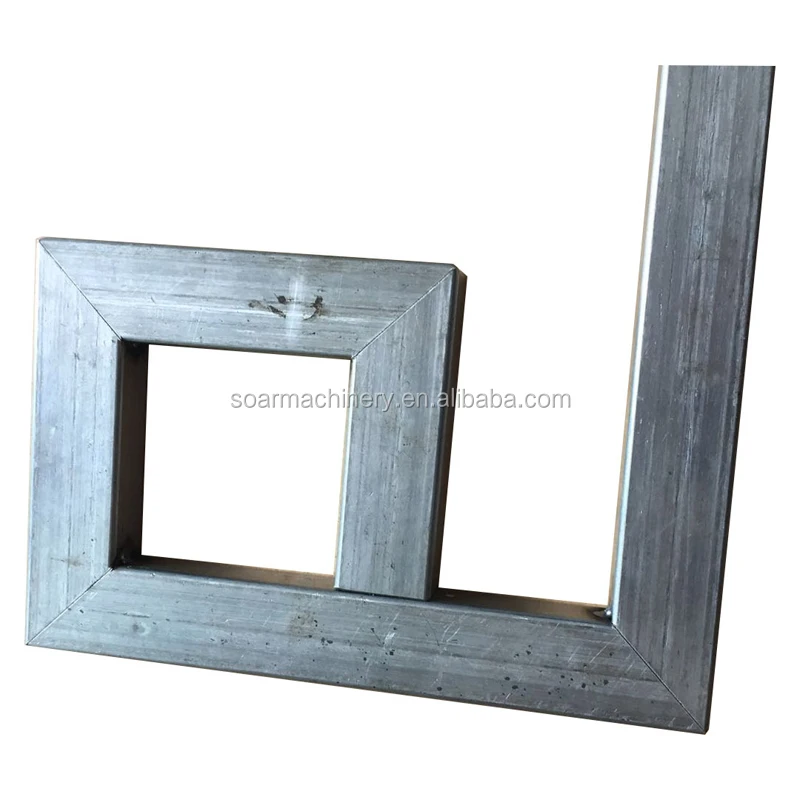

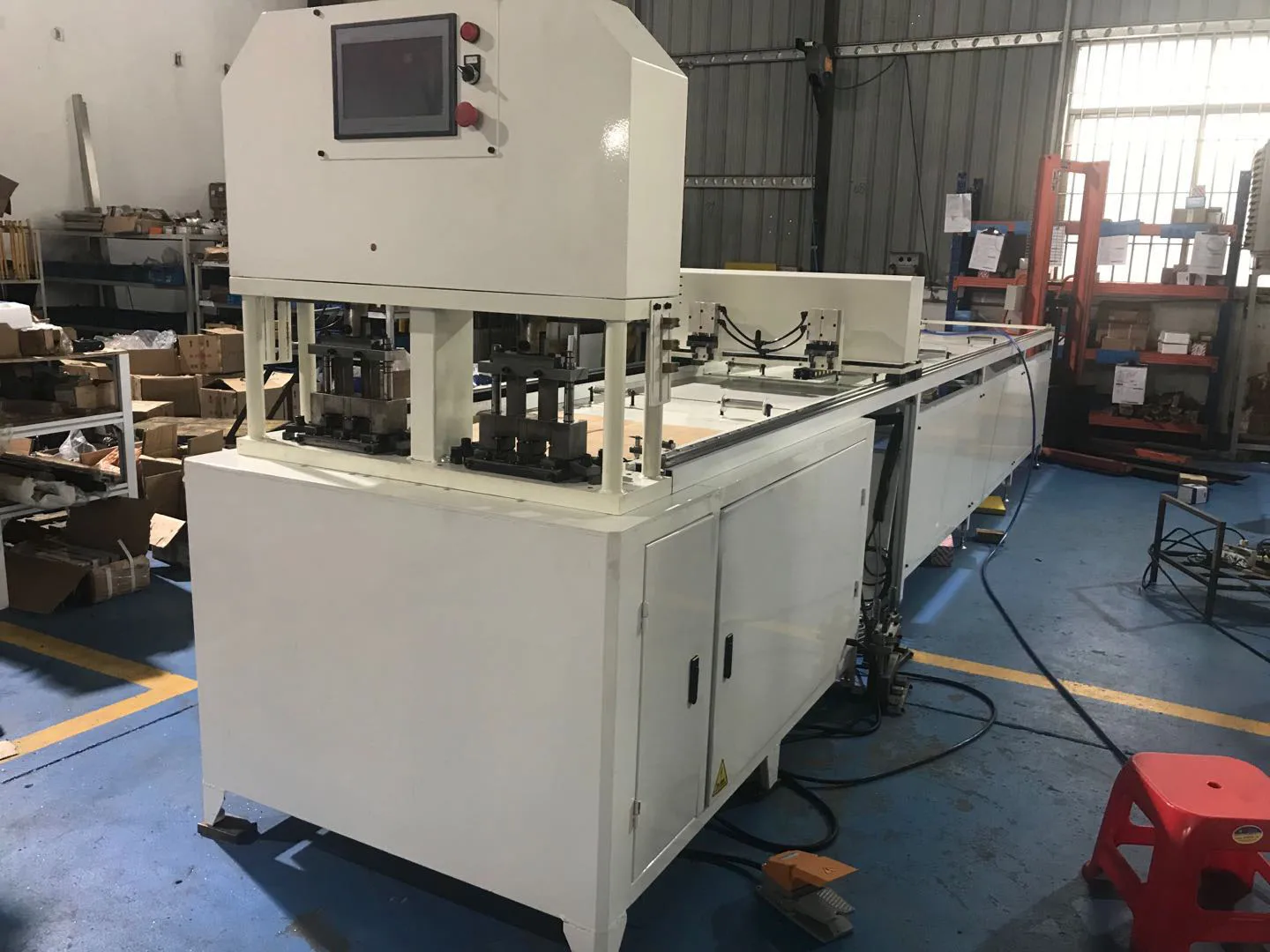

Customer Photos




Certifications




recommend products




FAQ


1 how lony have you been in this filed?
we have been in this filed for more than 15 years
2 Do you have any Certification with product or your factory?
yes, we have passed TUV certification with our product and factory
3 where is your factory?
we are in shandong province,it is about 150KM far from Qingdao port
4 Can we be as yor anget in our country?
yes, if you have this idea, welcome to visit our factory and talk about this, or we fly to visit you
