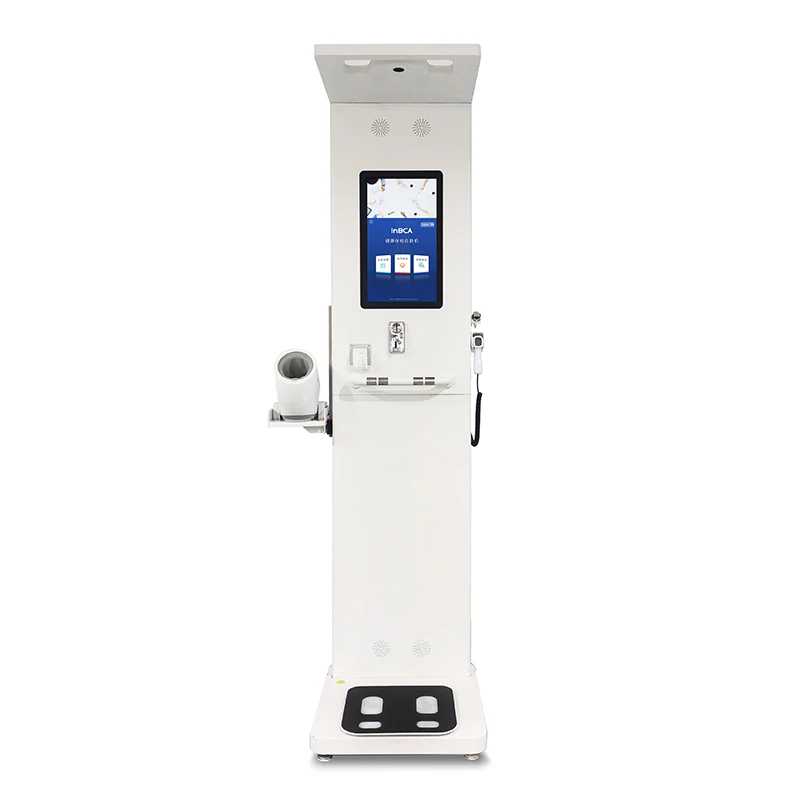

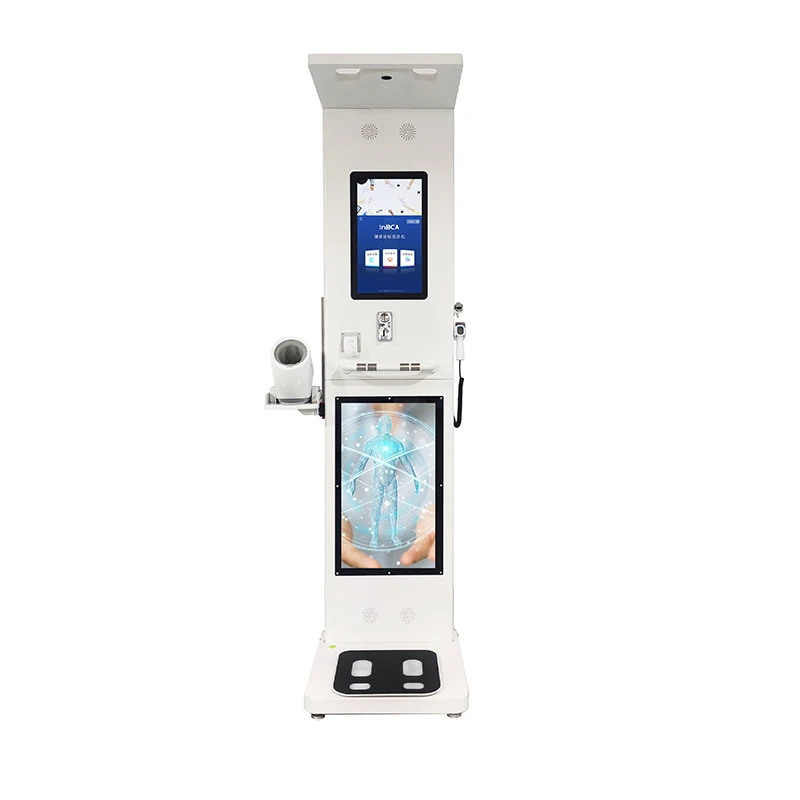

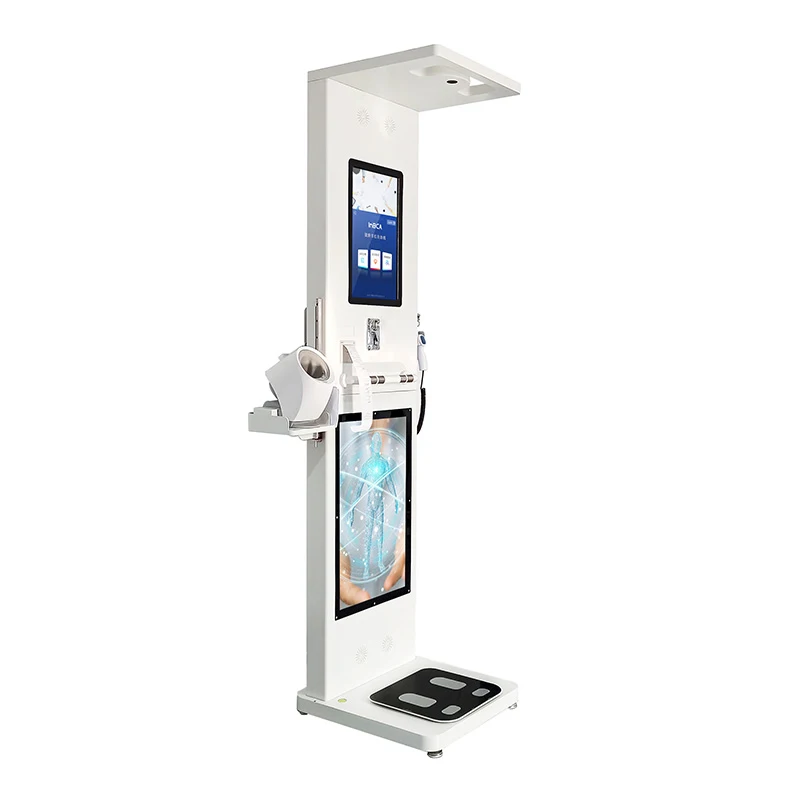

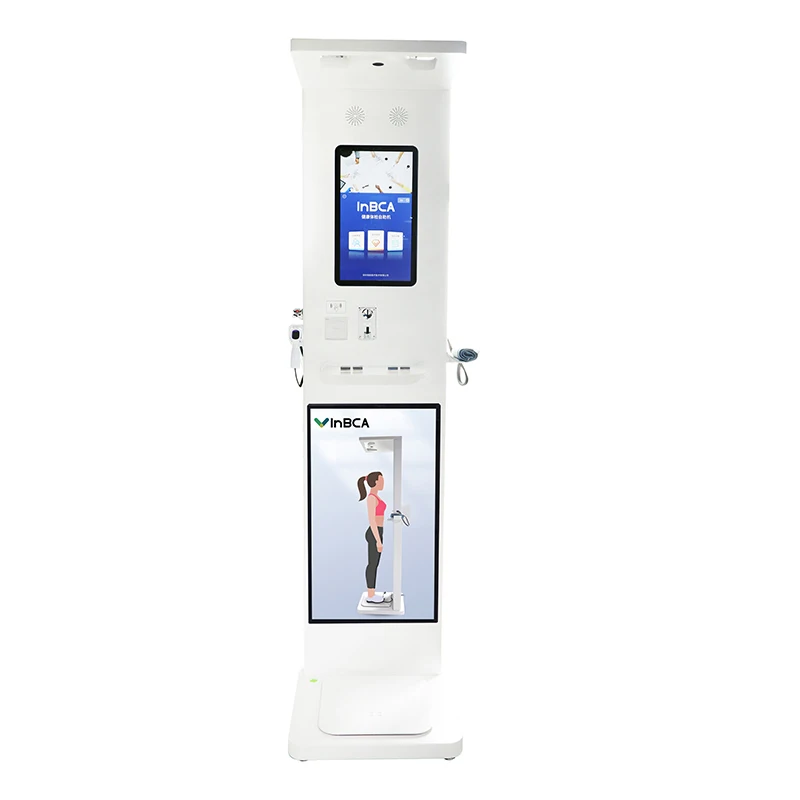

Ultrasonic With Rs232 Computer Interface Weighing Balance Of Blood Acs System Electronic Scale Ce

Product Overview

Description

Product Description

Ultrasonic With Rs232 Computer Interface Weighing Balance Of Blood Acs System Electronic Scale Ce
A comprehensive type of integrated system, including a variety of medical examination equipment and unified information processing software, can provide customers with more then ten kinds of normal medical examinations,and can collect data from various testing instruments together for unified processing and reporting to the cloud platform, widely used in chain of medical examination centers, health management institutions,health cabin equipment integration.

Specification



Body weight measurement	Measuring system	Resistance strain gauge
	Body weight index	Automatic intelligent calculation of body mass index
	Range of measurement	500kg
Height measurement	Verified precision	±0.1kg

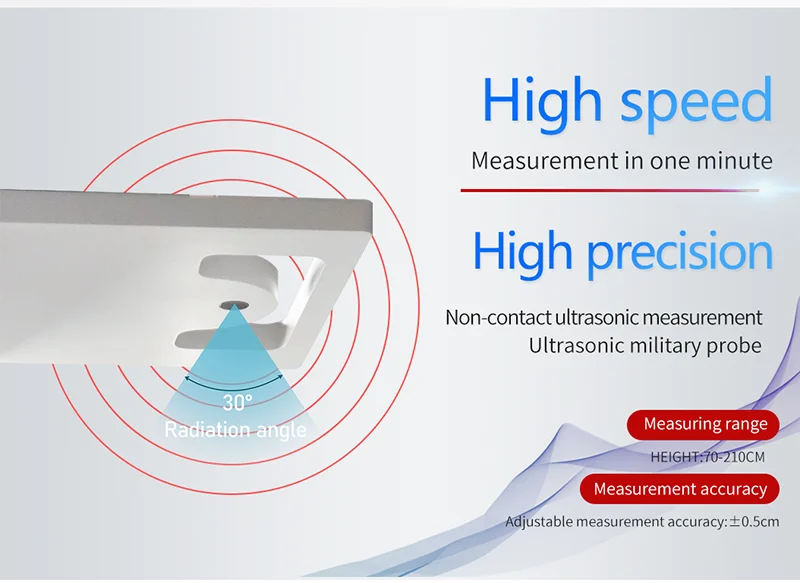

	Measuring system	Ultrosonic probe
	Range of measurement	70.0~200cm
	Verified precision	0.1cm

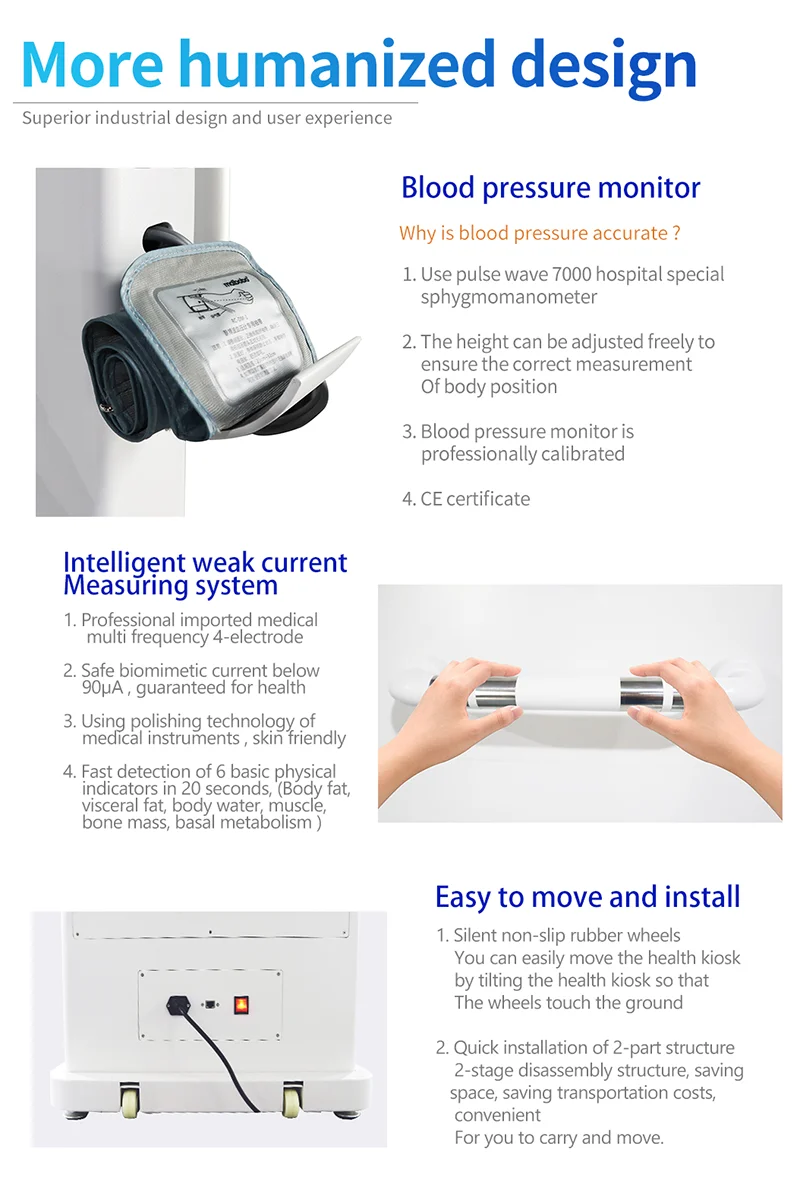

Blood pressure measurement	Model	Panasonic EW3153 Arm cuff
	Display	LCD Digital Display
	Measurement Method	Oscillometric method
	Measurement Range	Pressure: 0 mmHg to 299 mmHg, Pulse: 40 to 180/min.
	Accuracy	Pressure: ±3 mmHg, Pulse: ± 5%
	Inflation	Electric pump
	Deflation	Automatic pressure release valve
	Pressure Detection	Capacitive pressure sensor
	Memory	84 Measurements with date and time for each user
		(A and B)
	Power Source	AC/DC adapter (Included; Input 100-240V 50Hz/60Hz,
	AC/DC adapter (Included; Input 100-240V	Output 6V/9.6W)
	50Hz/60Hz,Output 6V/9.6W)	10°C to 40°C/30 to 85% RH
	Storage temperature/Humidity/Air Pressure	-20°C to 60°C/10 to 95% RH700 - 1060 hPa
	Console Weight	Approximately 2600 g
	Outer Dimensions	Approximately 286 (l) mm * 294 (w) mm * 271 (h) mm
	Arm Circumference	22 to 42 cm
Measurement of fat	Measuring system	Multi-frequency 4- Electrode
	Measurement frequency	5kHz/50kHz/250kHz/500kHz
	Measurement category	Body fat, Muscle, Visceral fat, Body water, Basal metabolism, Body Type
	Material	Electroplating material
	Current for measurement	90μA or below
	Range of measurement	75.0~1,500.00Ω(0.1ΩUnit)
	Body parts of surveyor	Body, right leg, left leg, right arm, left arm
Measurement of blood oxygen	Blood oxygen probe	CREATIVE KS-CM01
	Sensor	Dual wavelength LED
	Wavelength	"Visible light( Max):663nm
		Invisible Light:890nm"
	Measurement range	35%~100%
	Average output power(Max)	≤2mW
	Measurement error	In the range of 70% to 100% < ±2%
	Accuracy	In the range of 70% to 100% < ±3%
	Pulse rate measurement error	30~250bpm
		Monitoring error is ±2bpm or ±%2, whichever is the
		largest
	Working humidity	5℃~40℃
	Relative humidity	15%~95%(Non-condensing)
	Atmospheric pressure	70kpa~106kpa
	Power supply mode	Powered by ancillary equipment
	Range of measurement	95-99%(±2%normal status,±3% motion or weak perfusion,less than 95% undefined)
Body temperature	Infrared thermometer	Calibeur DT-8836
	Accuracy	0.1 ℃
	Operating Temperature	10~40℃
	Storage temperature	0~50℃
	Relative humidity	≤85%
	Power supply	DC 9V(6F22:a layer-built battery)
	Specification	150*75*40mm
	Weight	Gross weight:400g, Net weight:172g
	Body temperature range	32.0~42.5℃
	Object temperature range	0~100℃
	Accuracy	≤±0.3℃
	Power dissipation	≤120mw
	Measurement distance	5-8cm
	Auto power off	About 15 seconds

Detailed Image



Advantage



A.Human data model (body composition model)

B.DSM-BIA technology

C.Lot intelligent networking technology

D.AI deep learning and algorithm optimization technology

E.High-performance intelligent gateway technology

F.Face image identification technology

G.HDR data optimization acquisition technology

H.Multi-language selection, free switching between bilingual screens
DSM-BIA Technology

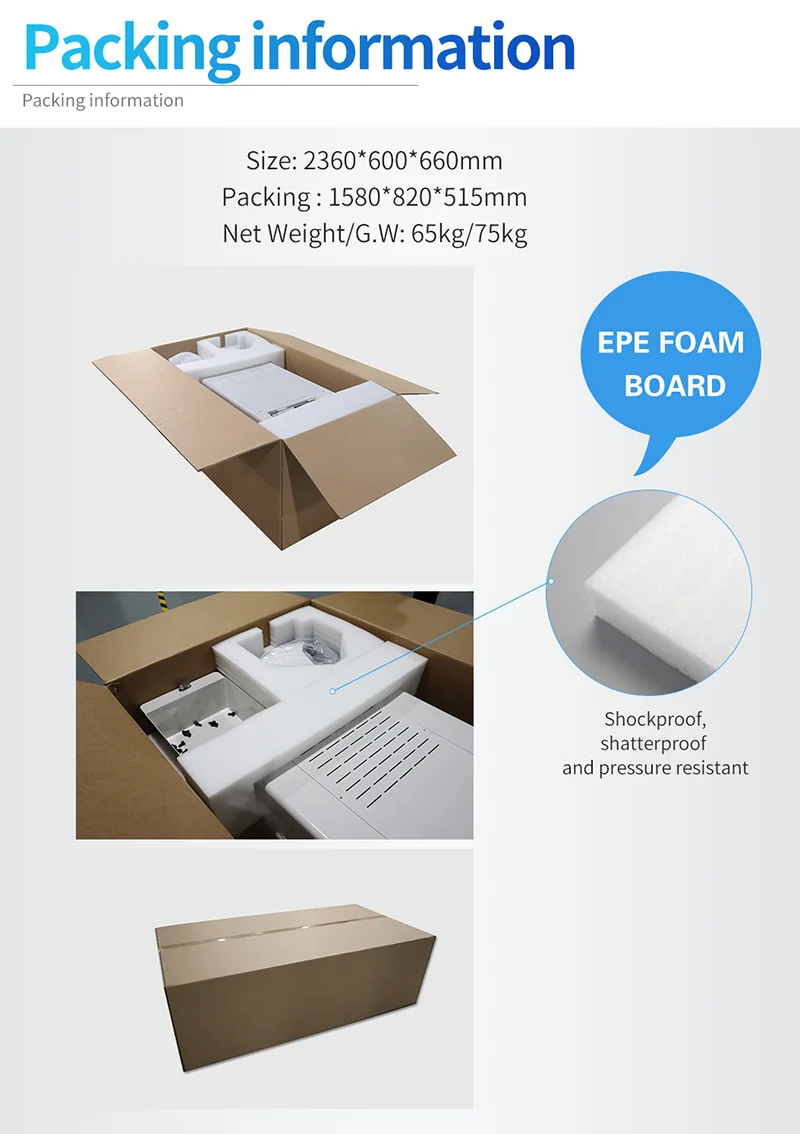

Product Packing





Usage Notice







Certificates
