Product Overview

Description

Wood Plywood

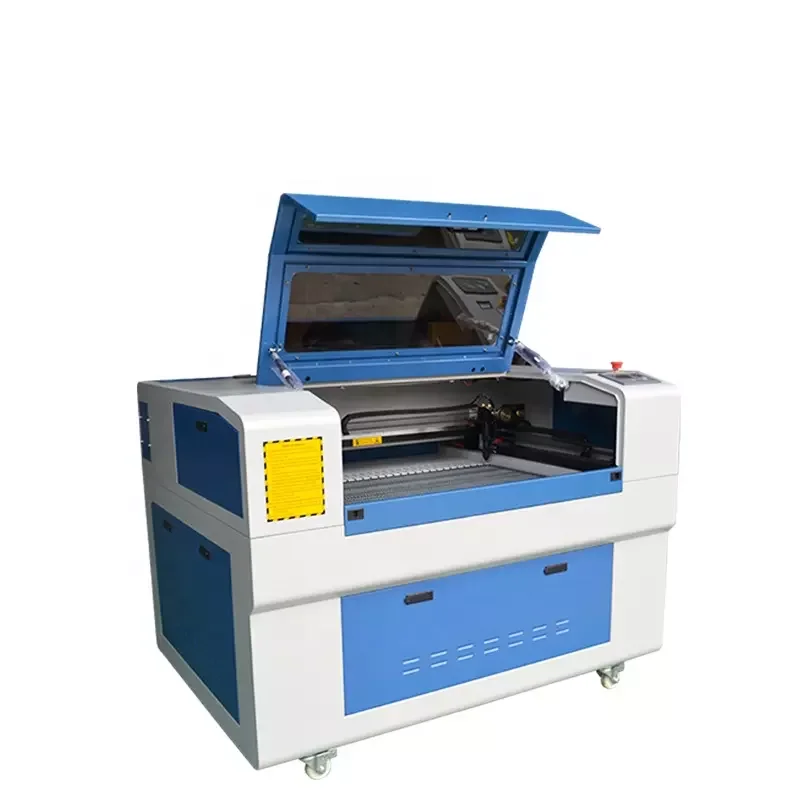

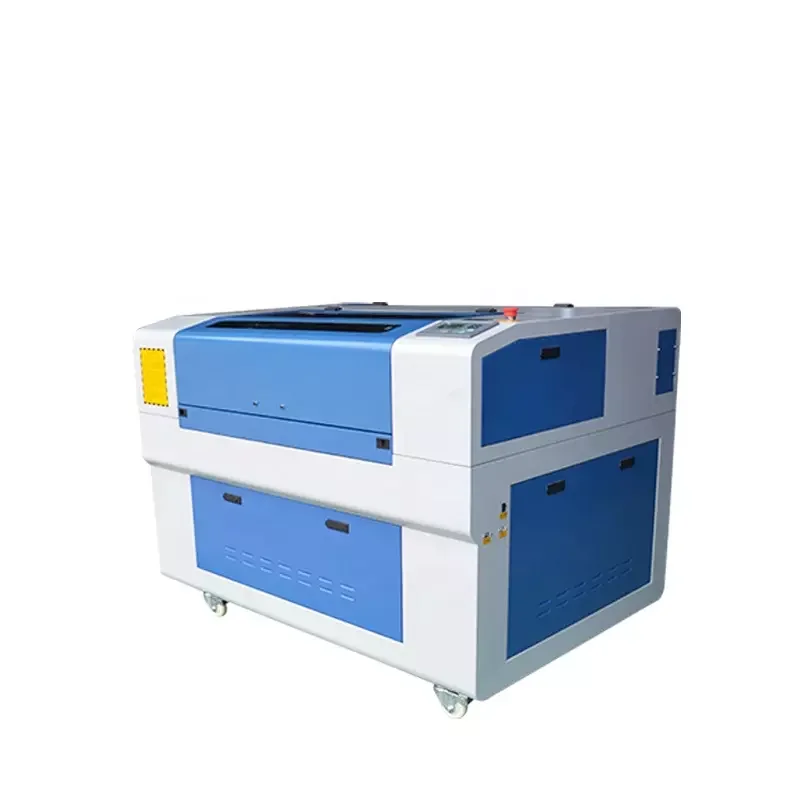

Glass Acrylic Plastic Paper Co2 Laser Cutting Machine

Appliaction

Applied to cloth,leather,toys,computer embroidery cutting, mould ,crafts ,bamboo and wood ,advertising and building decoration ,packaging and printing ,paper products industries.

1.Lathe bed structure ensures the stable operation while carving and cutting at high speed

2.Taiwan HIWIN square linear guide rail installed on X&Y axis, make sure the works stably and precisely.

3.Laser unit served by special radiator and protected without water makes it stable and safe with a longer life span

4. Adopt the super fine cutting technology, which has features of extensive material processing, smooth cutting edge and burr -free;

5.Laminated Safety Glass;

6.Original Singapore imported lens with molybdenum base, making the equipment produce smaller facula and stronger cutting force;

7.Advanced RD control system, with professional motion control chip, has the function of consecutively high-speed curve cutting and the shortest path selection, which largely improves your working efficiency.

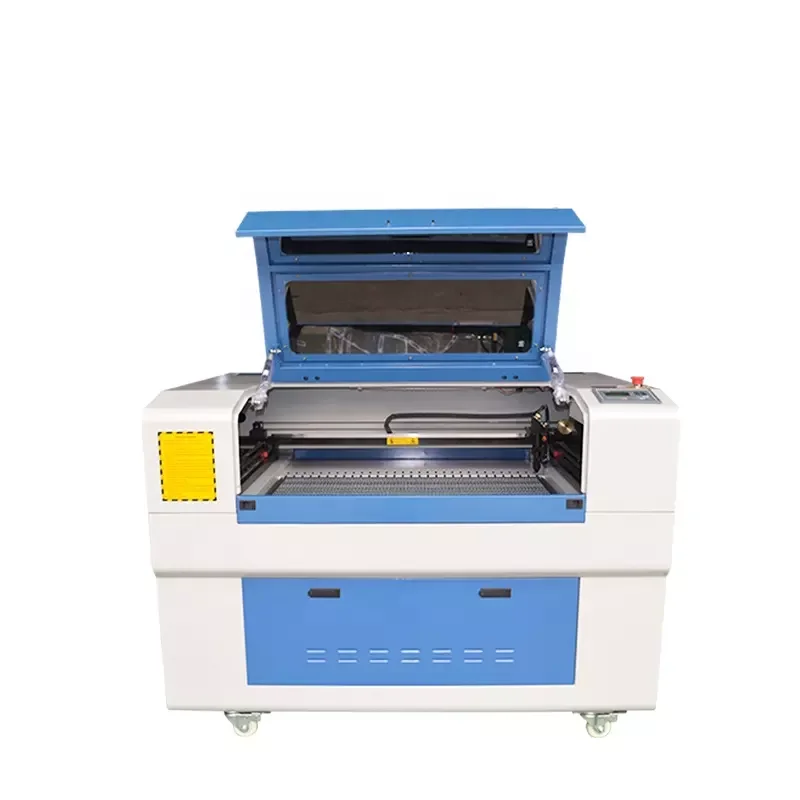

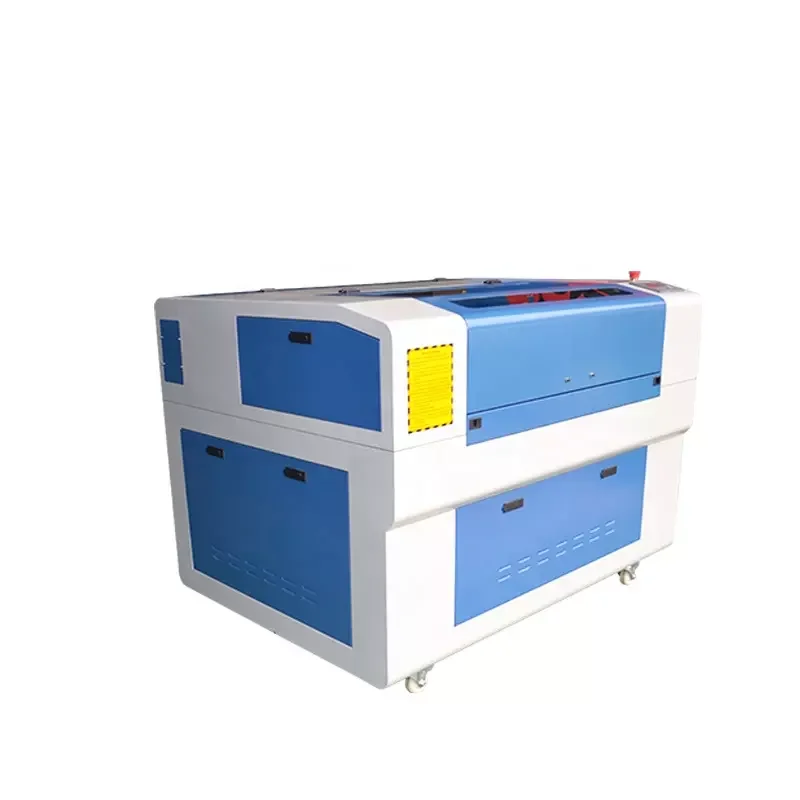

CO2 80w Laser Tube Laser Cutter Engraver Laser Cutting Machine China Sale
Model	4060.6090.9012.customized
Working Size	400*600mm,600*900mm,900*1200mm,customized
Laser Type	CO2 Sealed Laser Tube,wavelength 10.6μm (In accodance with GB11748-89 standard)(Optional frequence metal tube)
Laser Power	60W,80w,100W,150W
Engraving Speed	0-1200mm/s
Cutting Speed	0-600mm/s (the speed is varied due different thickess of materials)
Energy Adjusment	0-100% stepless control, inside software 0-100% adjust
Control System	Digital Offline Control System
Cutting Thickness	0.2-16mm
Whole Machine Power	≤2500W
Position Accuracy	<±0.05mm
Minimum Letter Size	Chinese:1.5mm  English:1mm

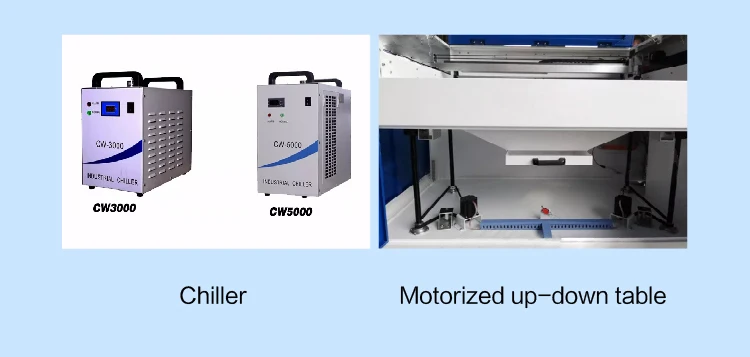

Cooling System	Industrial Water Cooling System
Driving System	Japan YASKAWA Servo motor and drivers
Working Voltage	AC220V/110V±10% 50Hz/60Hz
Working Environment	Temperature:0-45℃,humidity:5%-95% non-condensate
Supported Format	PLT,DST,DXF,BMP,AI, support AutoCAD,CorelDraw output directly.

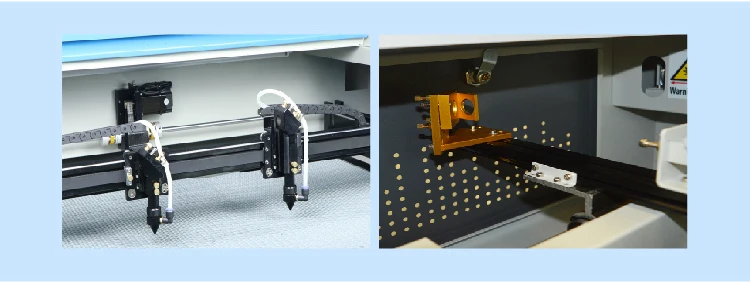

Industrial laser head

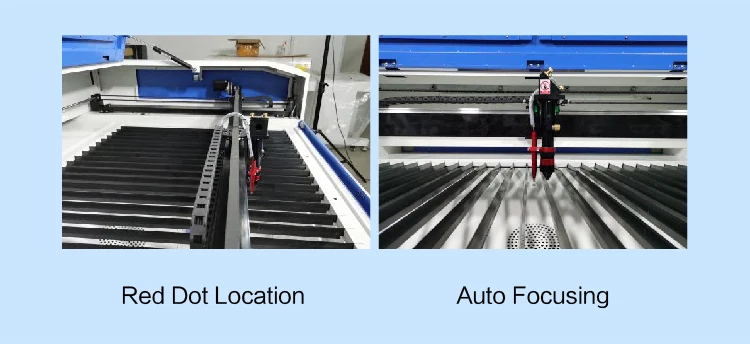

Can be adjust focal length,light beam vertical,high speed and high precision.Auto blowing to protect laser head.Select the number of laser heads according to the production demand

Mirror frame.Mirror frame for cutting machine (outside sliding type) (internal sliding type)Mirror frame for stamping machine.

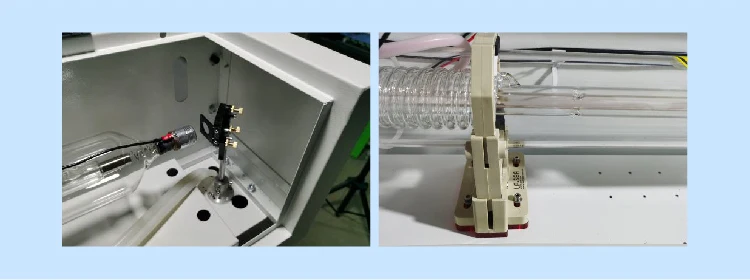

Laser tube

CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, service time over 8500~10000 working hours.

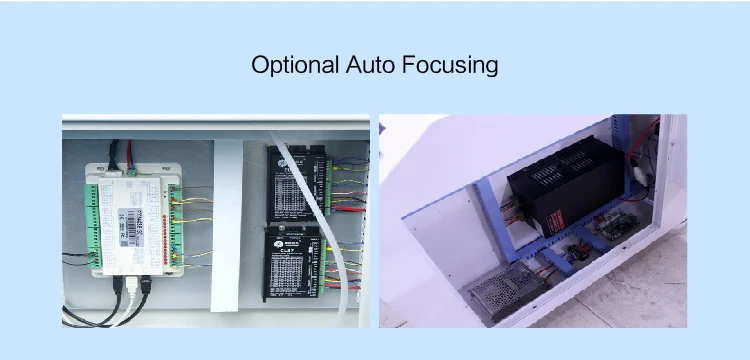

Controller

Digltal offlline control system,USB avallable,RD and Lettro alternative.

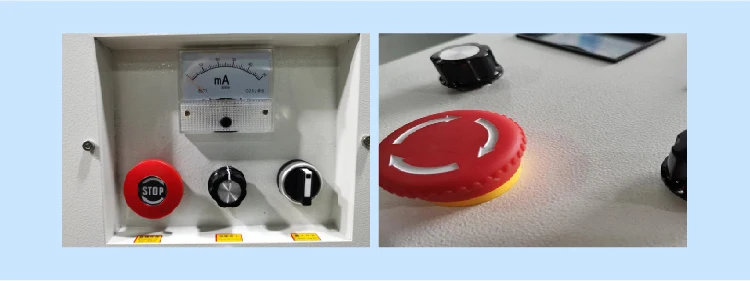

Emergency stop switch.When the machine is in a dangerous state, cut off the power supply through the emergency stop switch to stop the operation of the equipment to protect the safety of people and equipment.

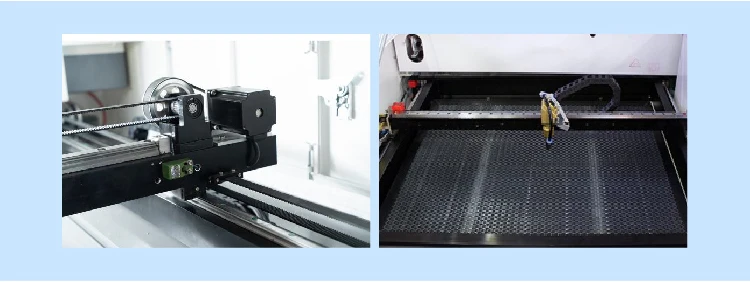

High-torque motor and high-quality linear guide.

Taiwan Hiwin rail guide and Shanghai Fulong belt make the engraving and cutting smooth.
