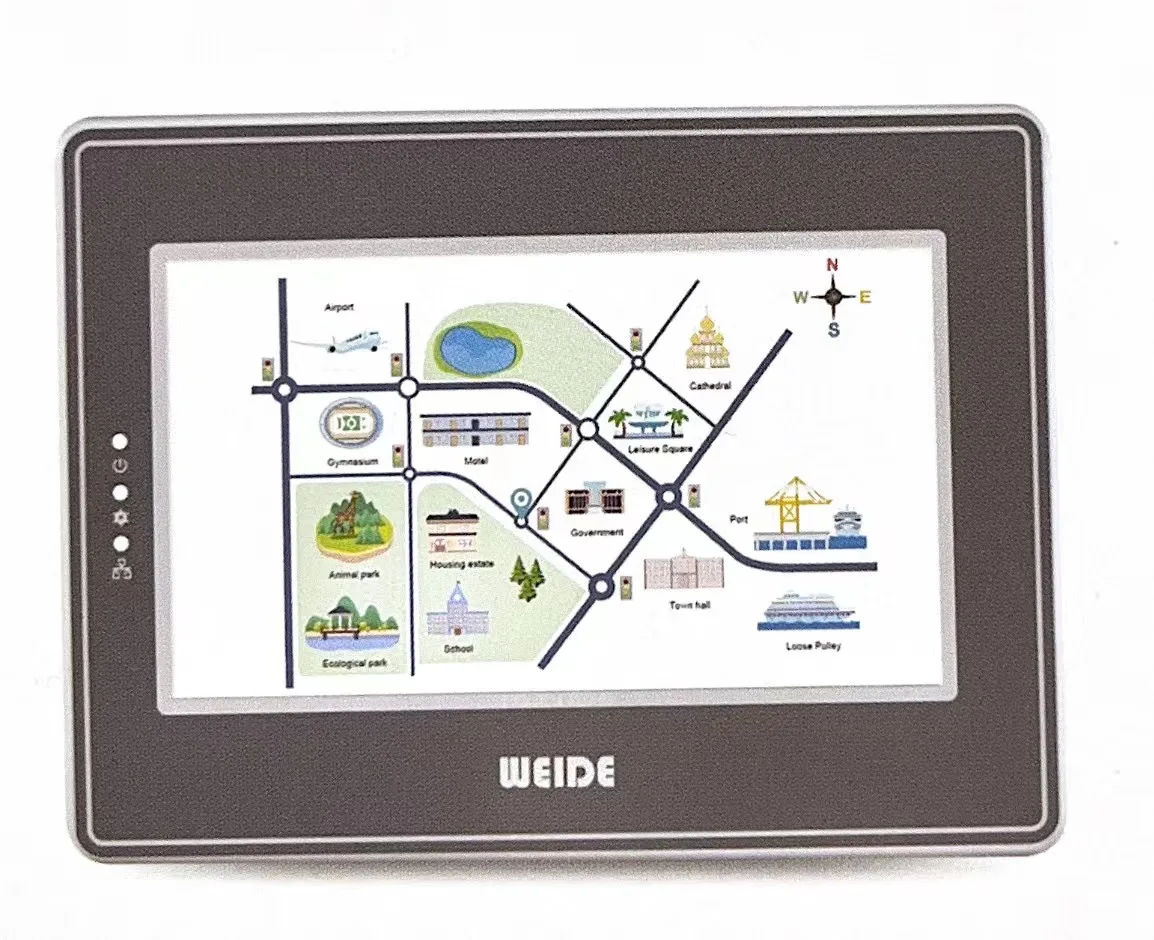

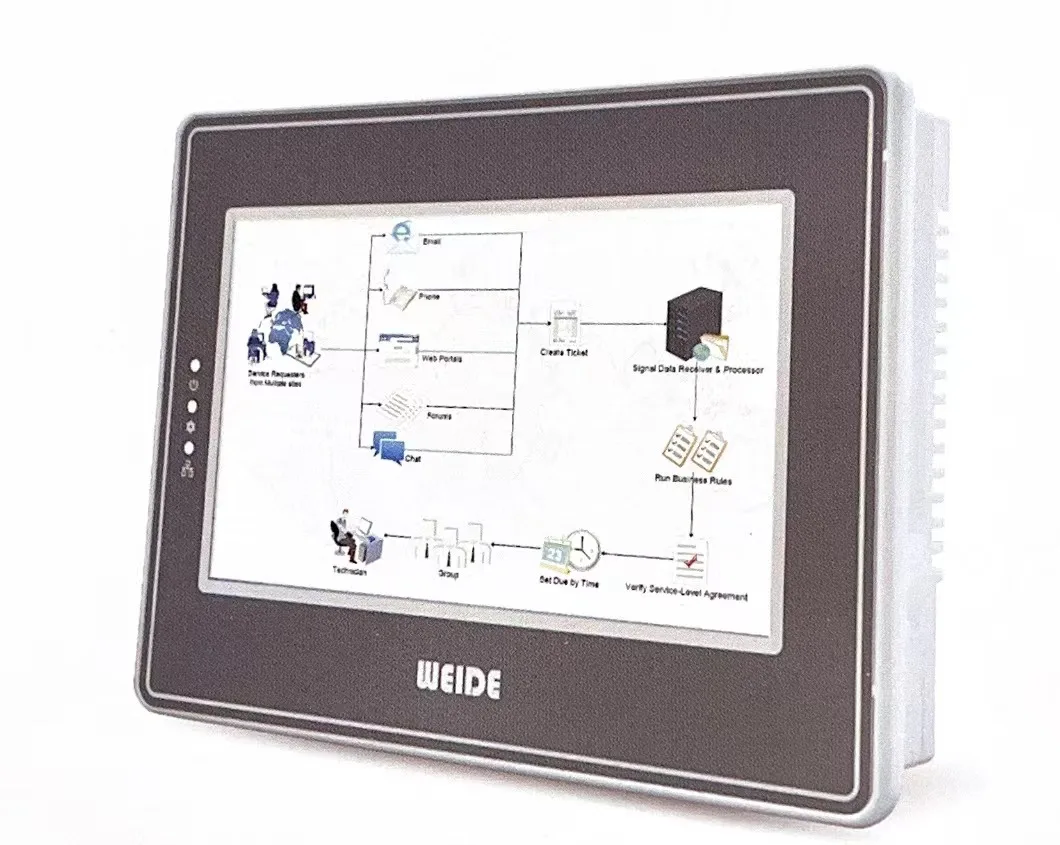

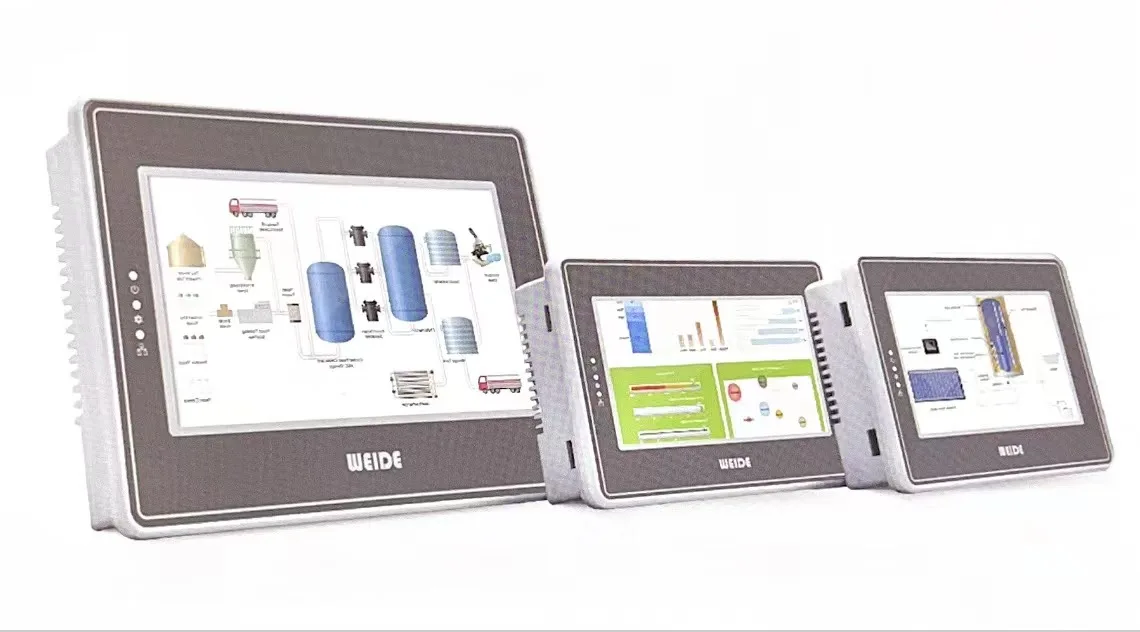

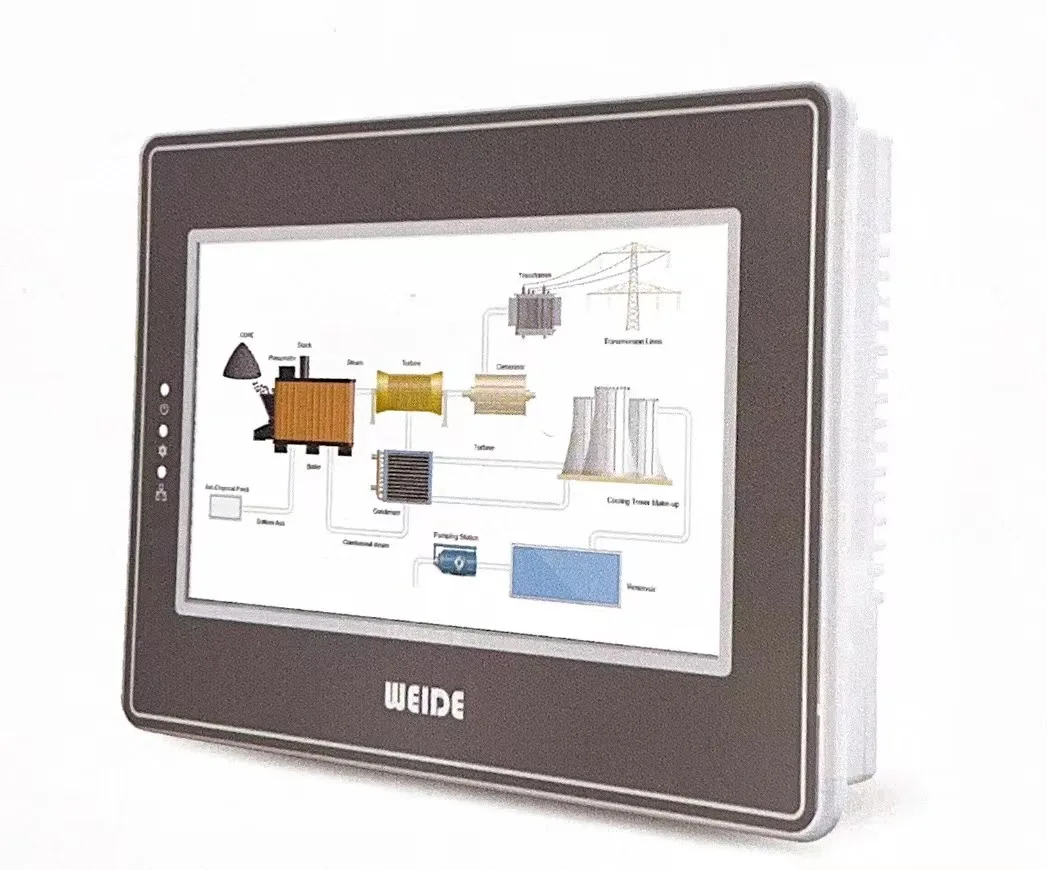

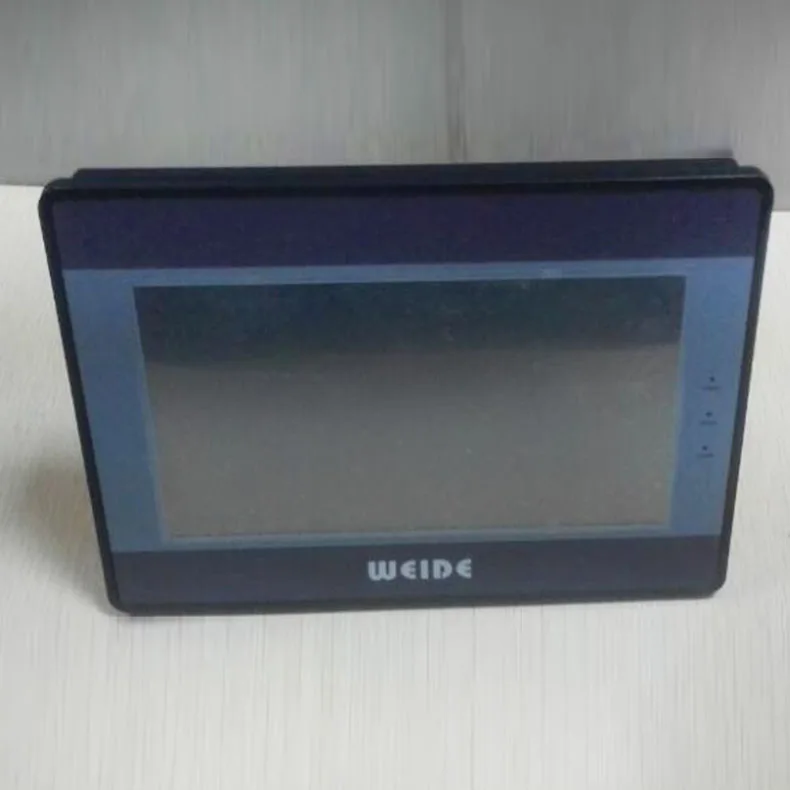

WEIDE WD070 7inch human machine interface touch screen for cnc machine hmi touch screen
- Category: >>>
- Supplier: Guangzhou Weide Electric Machinery Co. Ltd.
Share on (1600770526995):
Product Overview
Description
Model | WDK070B | WDK070N | WDK070B2 |
Display screen | 7" TFT LCD | 7" TFT LCD | 7" TFT LCD |
Resolution | 800*480 | 800*480 | 800*480 |
Color | 56000 | 56000 | 56000 |
Brightness | 500cd/m2 | 500cd/m2 | 500cd/m2 |
Backlight | LED | LED | LED |
Power supply | DC 24V (±20%） | DC 24V (±20%） | DC 24V (±20%） |
Power dissipation | 5W | 5W | 5W |
Touch Screen | 4 wire industrial resistance touch screen(Surface hardness 4H) | 4 wire industrial resistance touch screen(Surface hardness 4H) | 4 wire industrial resistance touch screen(Surface hardness 4H) |
CPU | ARM926ej-s RISC | ARM926ej-s RISC | ARM926ej-s RISC |
Storage | 128MB | 128MB | 128MB |
RTC | Embedded real-time clock | Embedded real-time clock | Embedded real-time clock |
Ethernet | 0 | 1 | 0 |
USB port | one USB Host2.0 port | one USB Host2.0 port | |
Communication Port | COM1(RS232/RS485/RS422) | COM1(RS232/RS485/RS422) | COM1(RS232/RS485/RS422) COM2(RS232/RS485/RS422) |
Dimension(mm) | 205*150*33 | 205*150*33 | 205*150*33 |
Weight | 1.5kg | 1.5kg |
