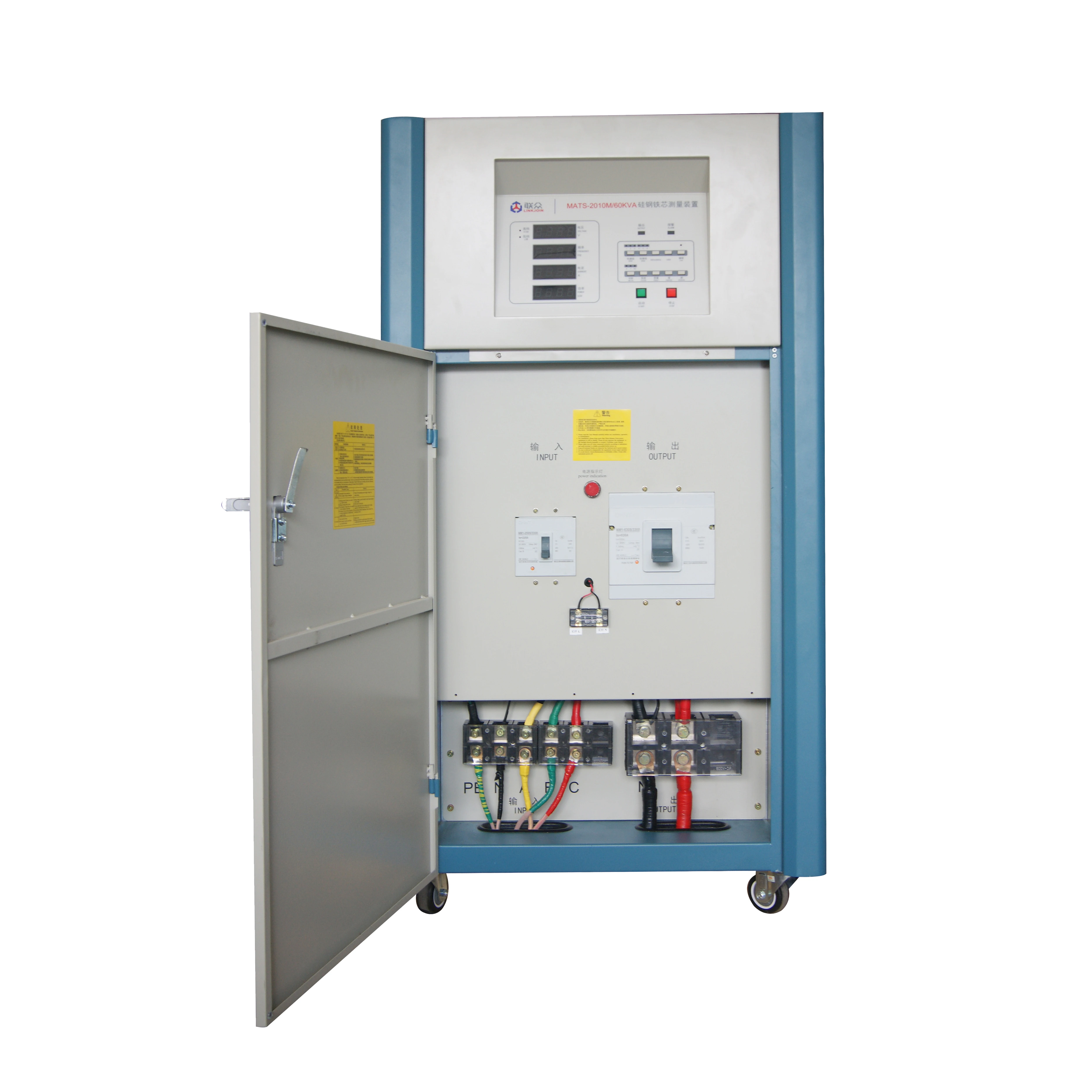

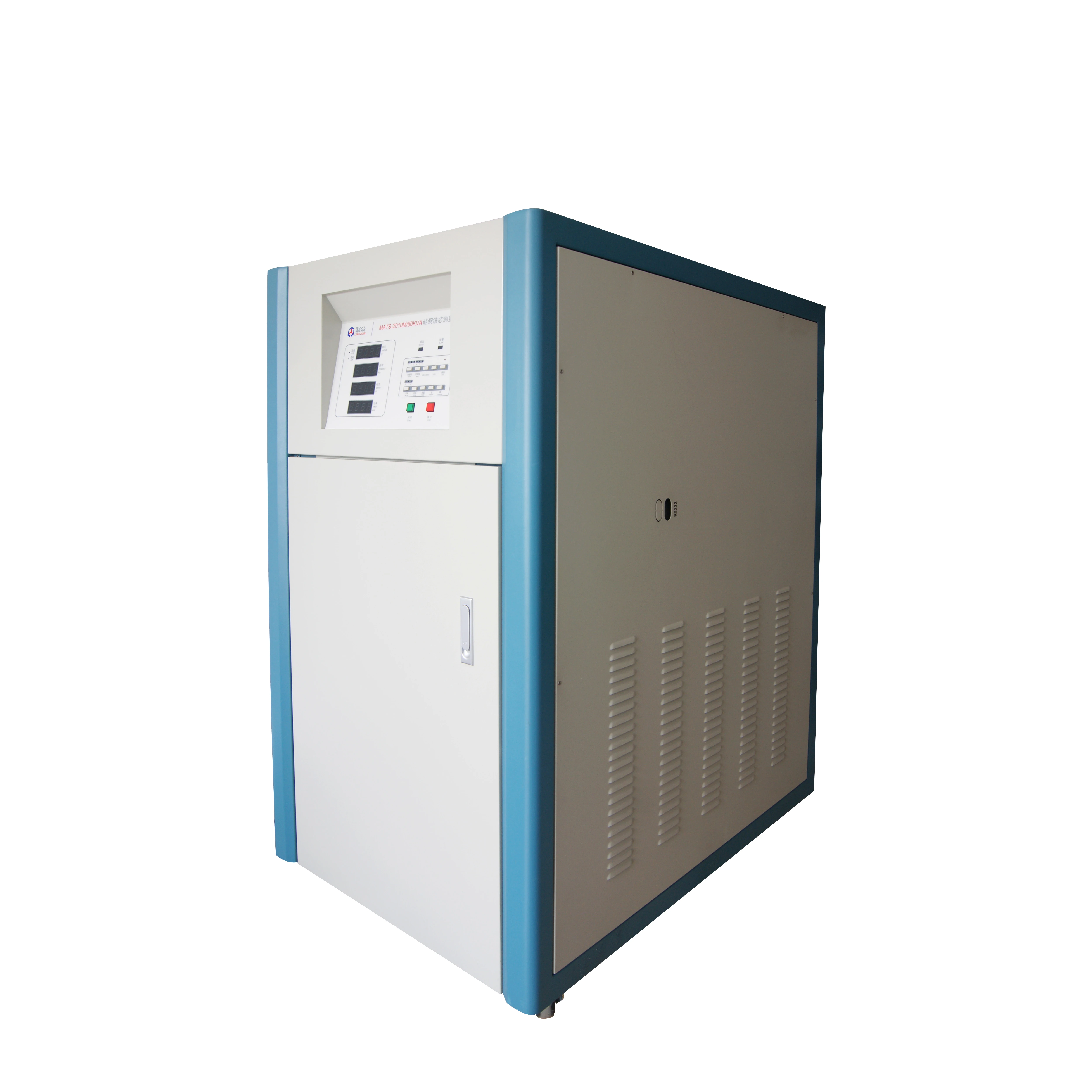

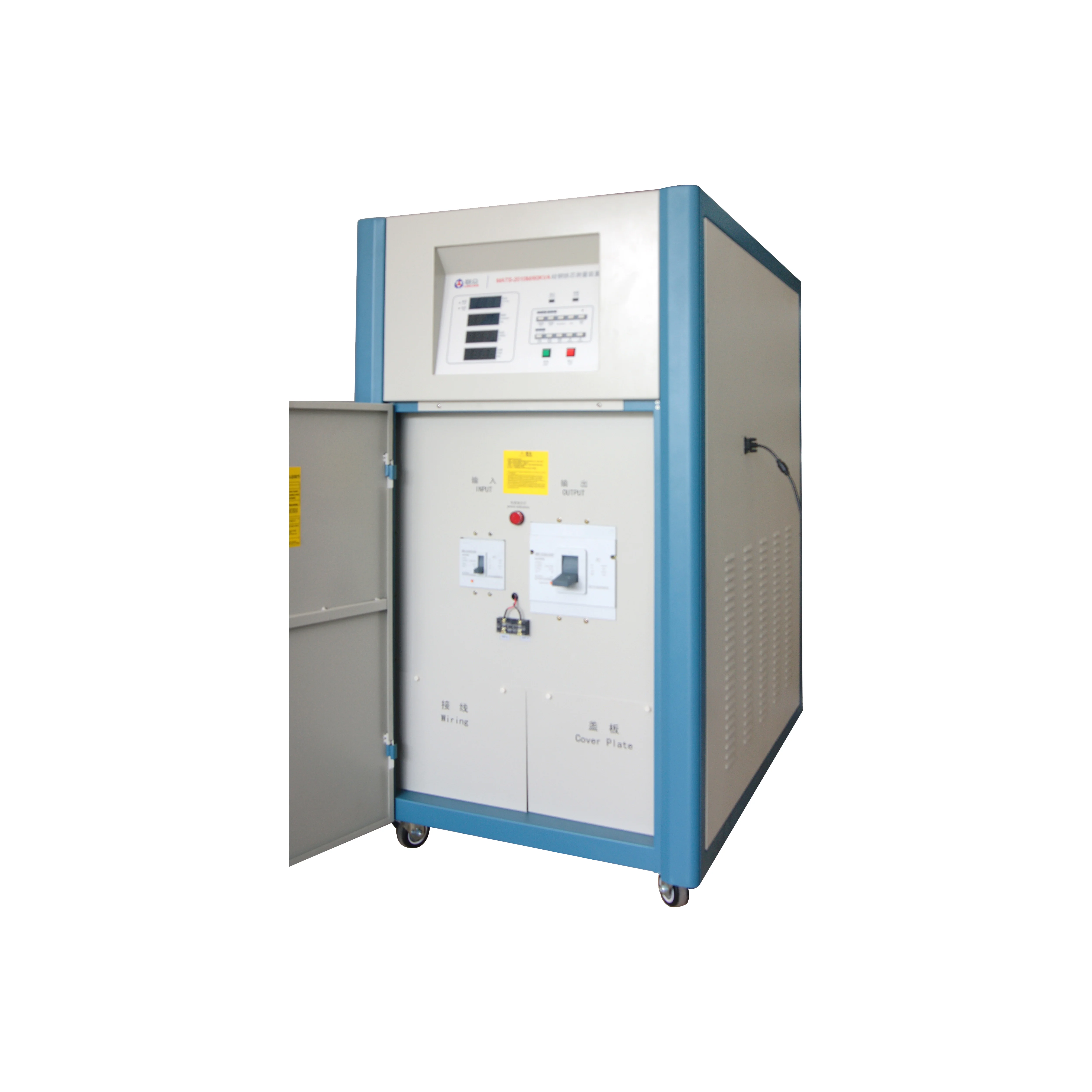

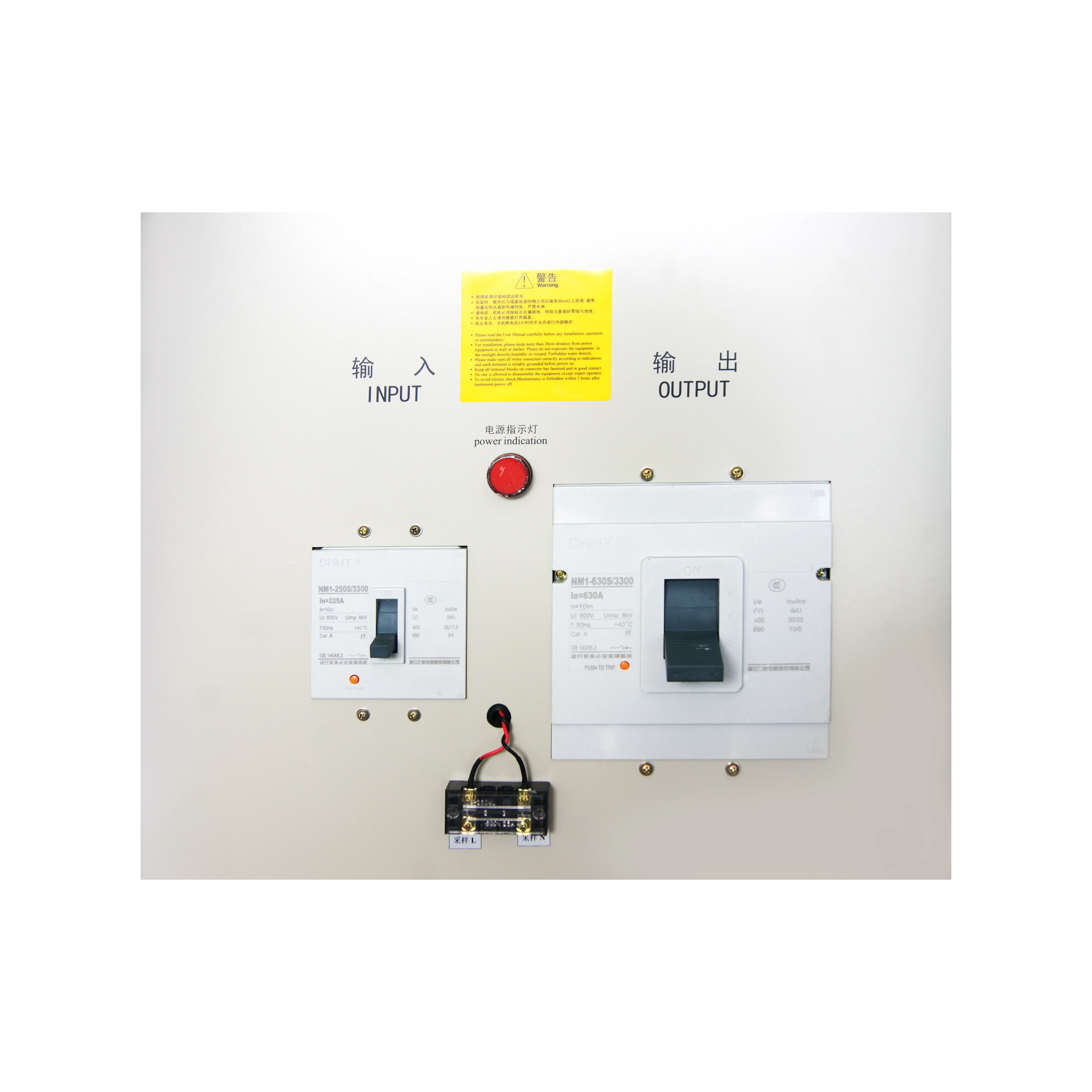

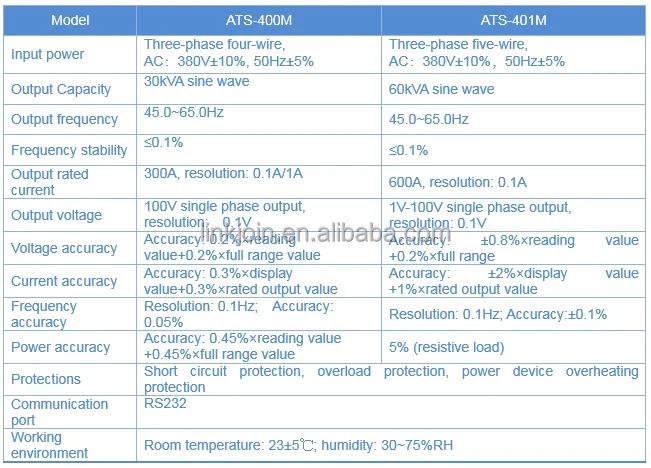

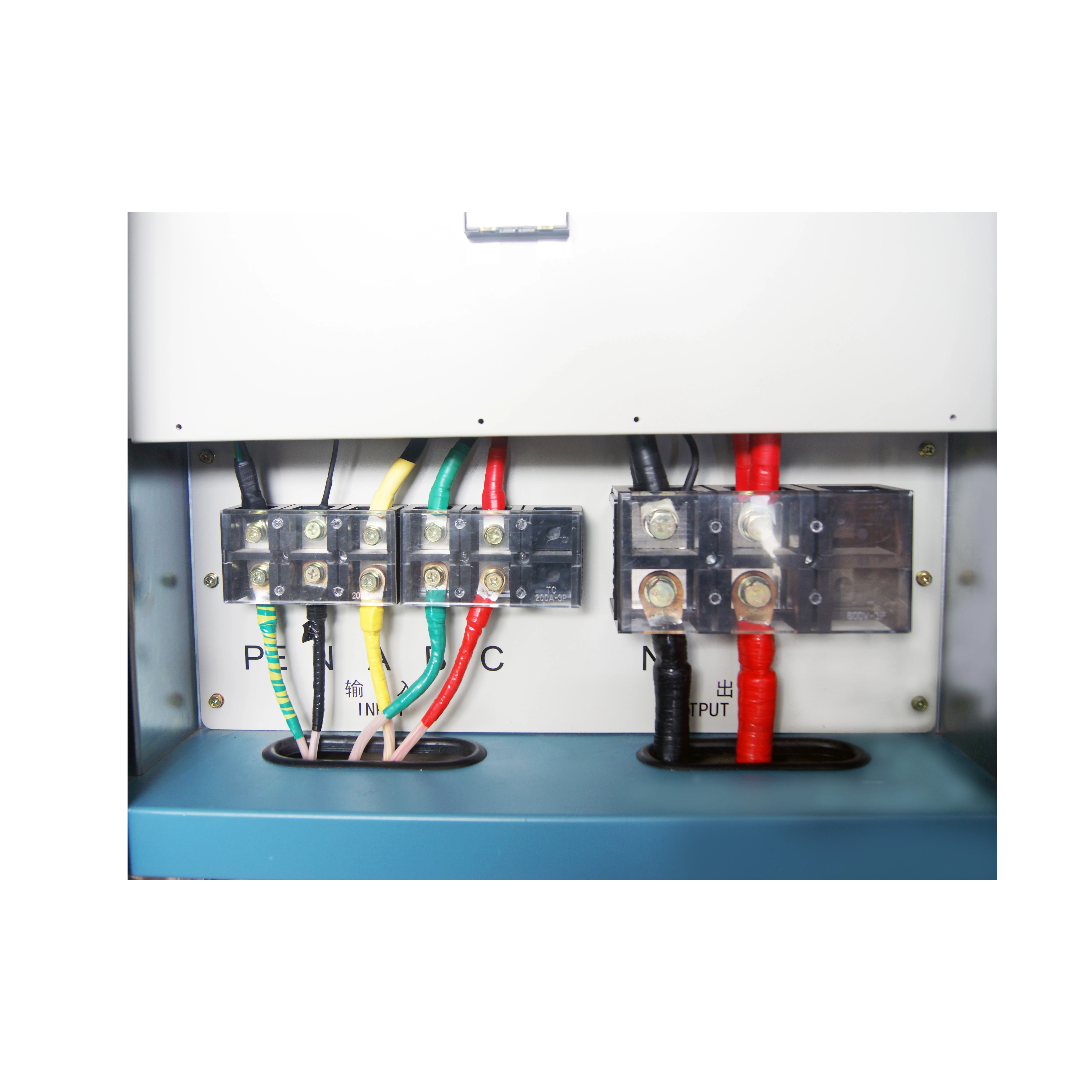

ATS 40XM Silicon Steel Core Test System core loss tester electrical silicon core loss detector

1. The software runs in Windows 7 operating system, easy to operate.

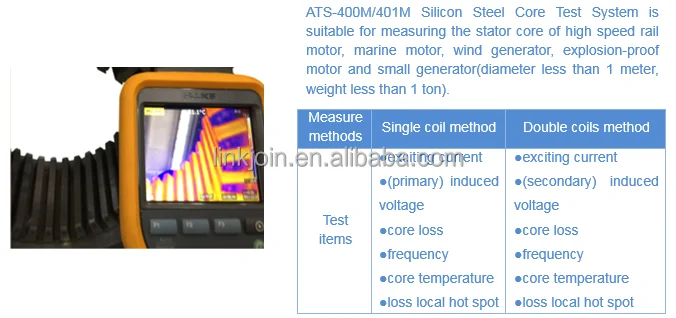

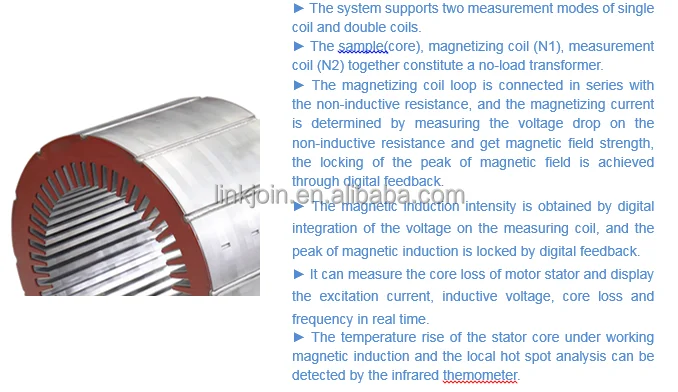

2. The system supports two test modes of single coil to lock primary voltage and double coils to lock secondary voltage.

3. Display the test waveform of current, voltage and frequency in real time.

4.  Input information of sample No., product batch number, sample name, tester and remarks.

5.  Preset test scheme according to test requirements of different samples and save to “Test scheme’, When it is needed to test sample, only need to select the test scheme from “Test scheme”list to load the preset parameters, it does not need to repeat the setting.

6.   The system automatically calculate the voltage and turns of sample after input the sample parameters.

7.  According to parameters of Ae, Le, magnetic field strength and magnetic flux density to automatically calculate the winding turns of sample.

8.  The system automatically pop-up window prompt, cooperate with the infrared themometer to record the temperature of core, and can generate the data report of core temperature and the corresponding core loss.

9.  File system adopts data base, it can directly print or output test results into Excel.

10.  Test results contains date, S/N, output voltage, output current, exciting power and core loss and can judge test results are “PASS” or “NO” according to set loss upper limit and temperature upper limit.

11.  The system automatically generates test reports.

12.  File management with powerful functions, it can automatic save data, delete data and delete all data.

13. Support all types of printers, test report and printer pater match perfectly. Directly print test report, or generate the test report into Excel file.

14. User logo and name can be added into test report.
