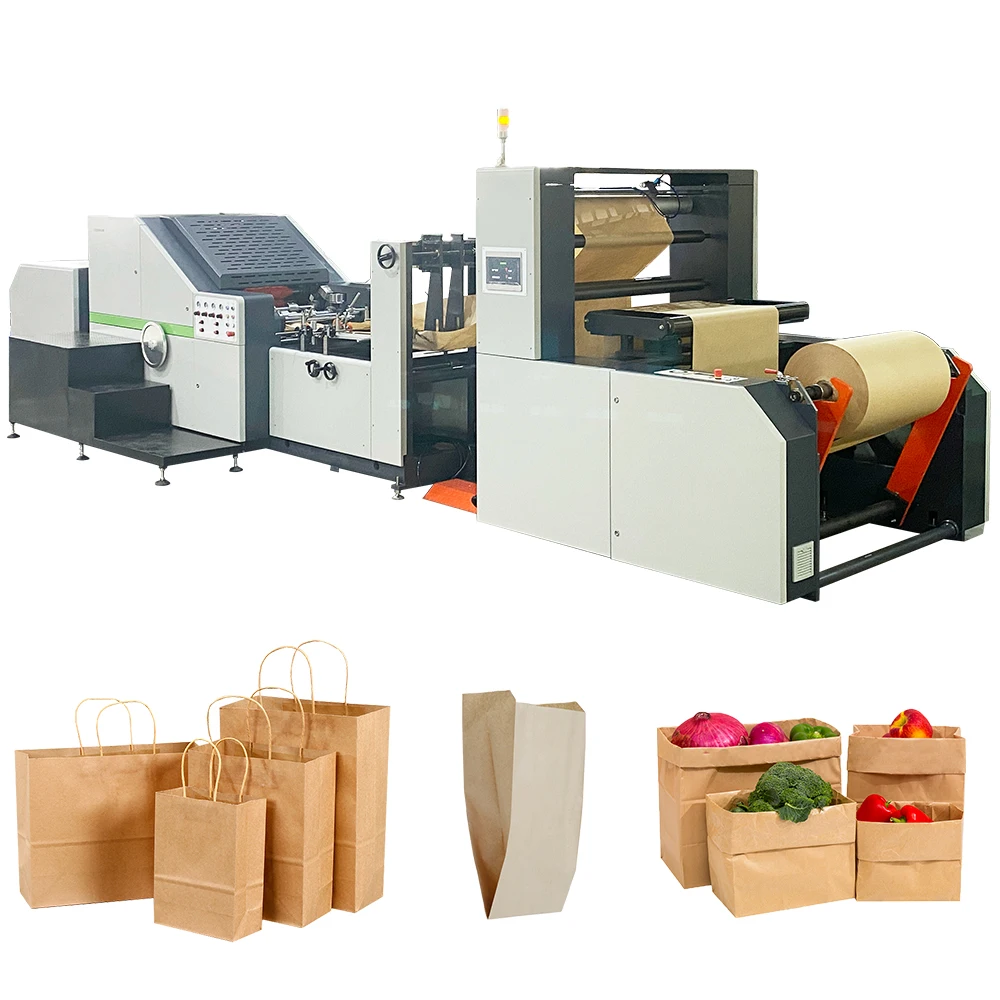

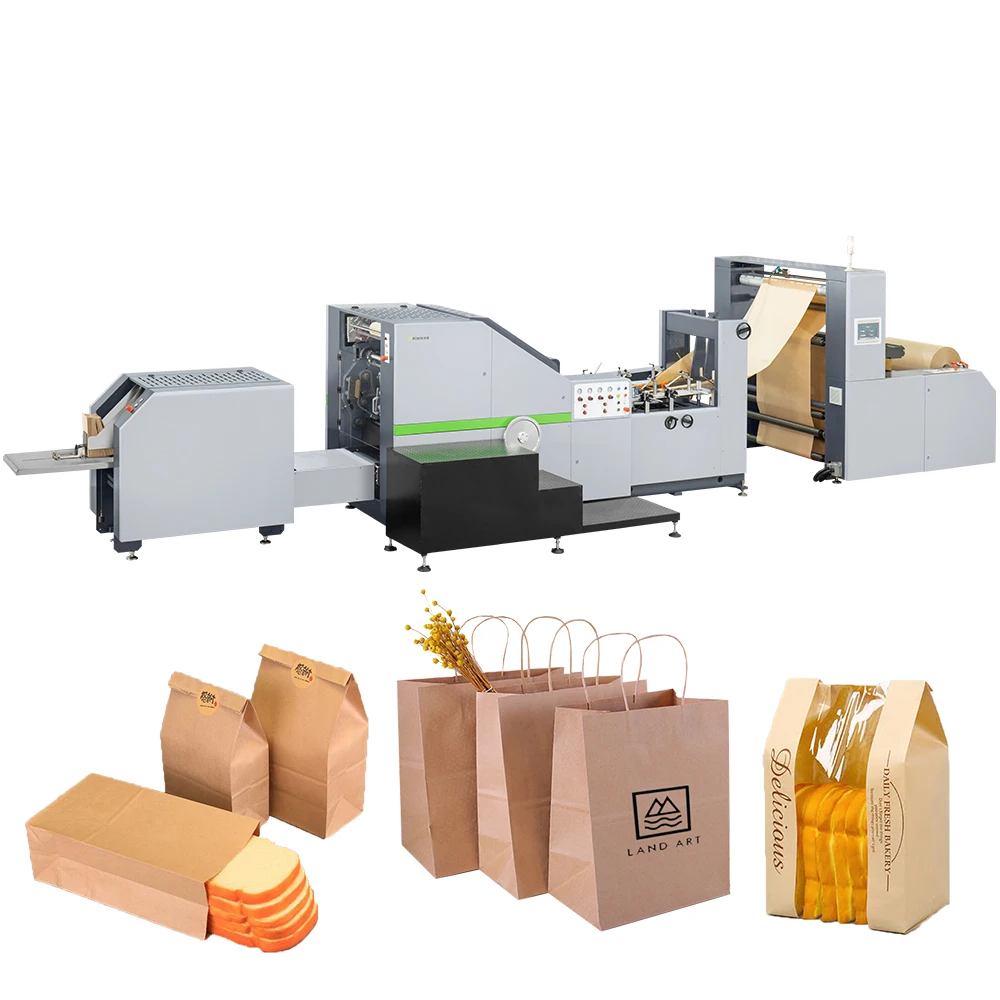

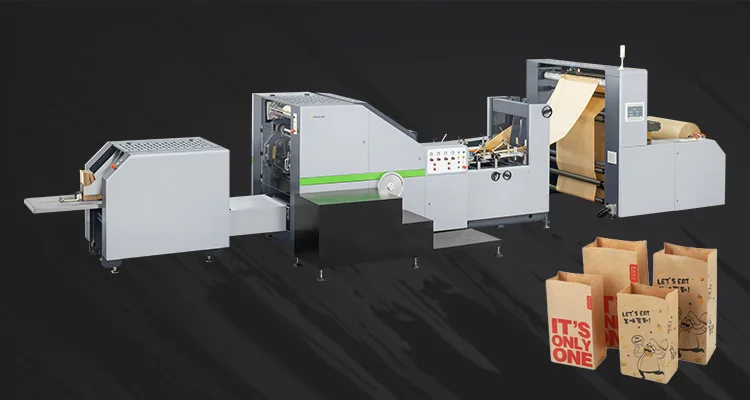

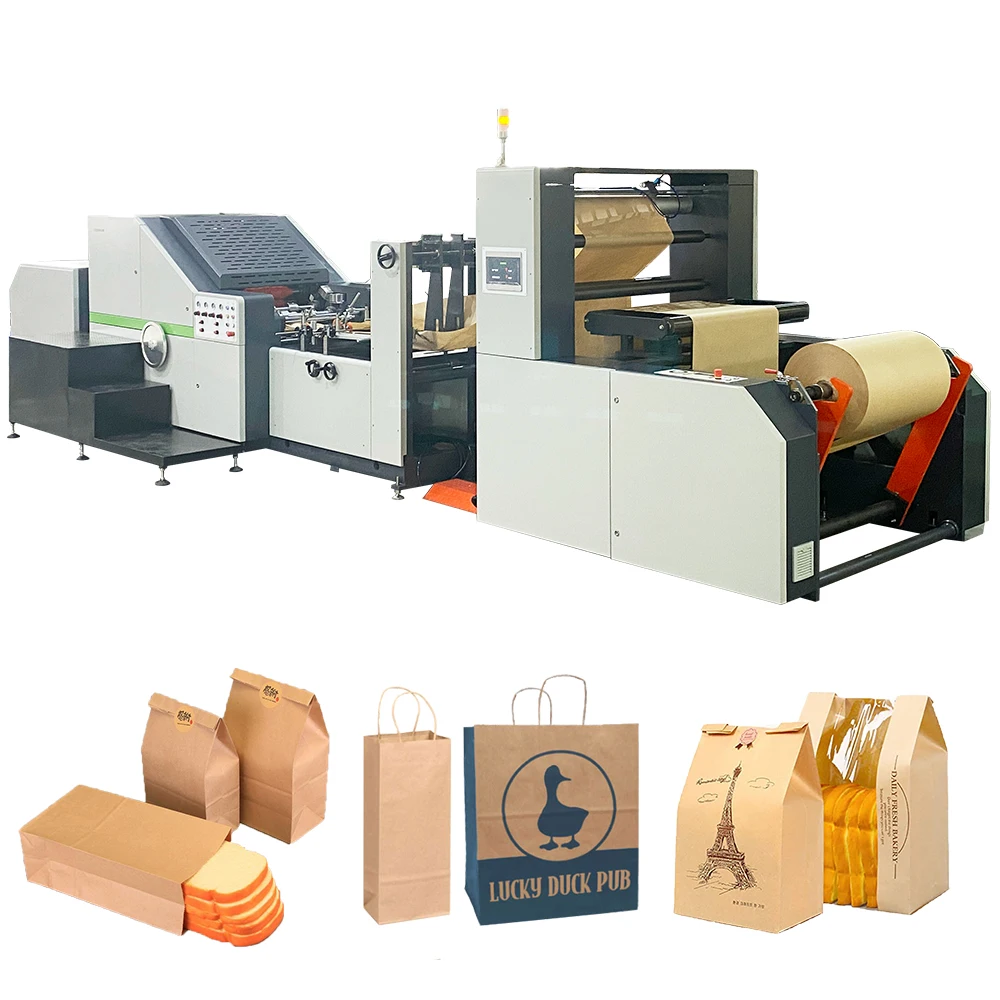

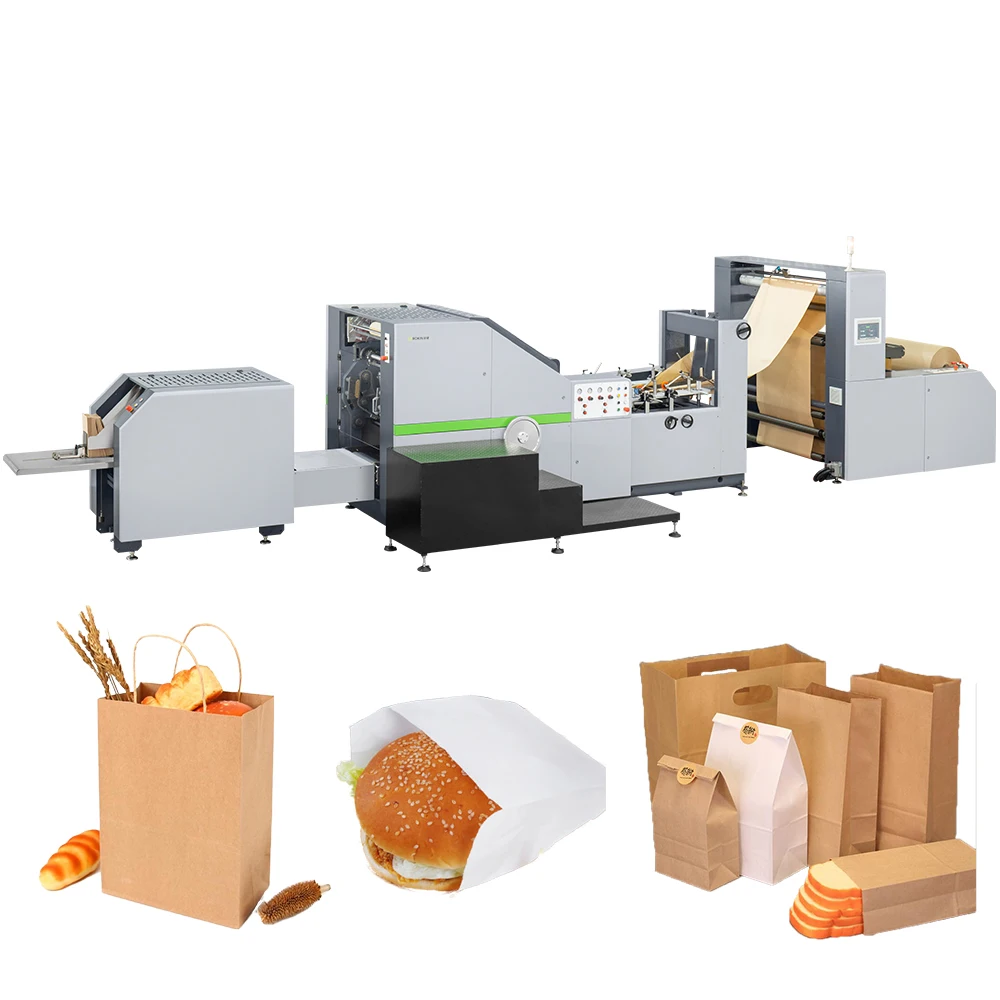

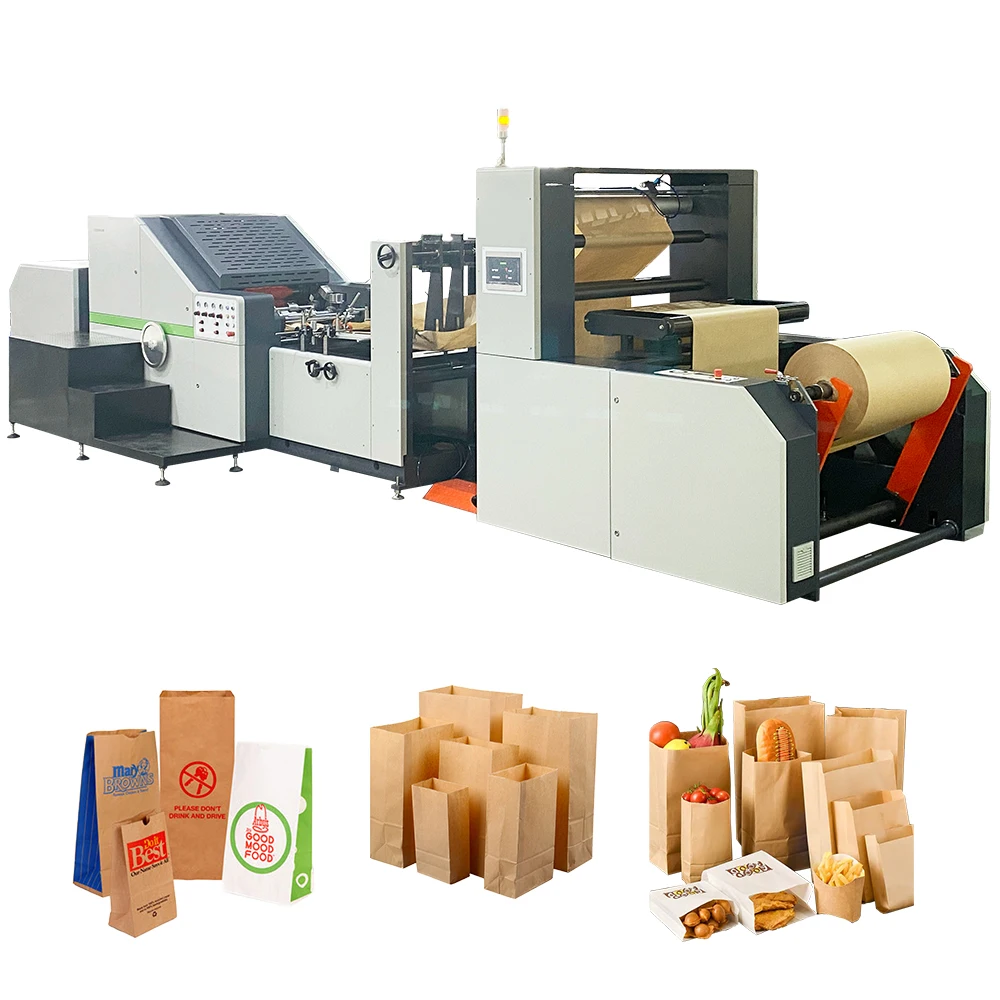

ROKIN BRAND Fully Automatic Twisted Handle Square Bottom Kraft Paper Bag Making Machine
- Category: >>>
- Supplier: Wenzhou Rokin Machinery Co. Ltd.
Share on (1600770537809):
Product Overview
Description
PRODUCTS DESCRIPTION
Paper bag machine series is applied to produce many types of paper bags without handles, such as food paper bag, shopping bags and so on.

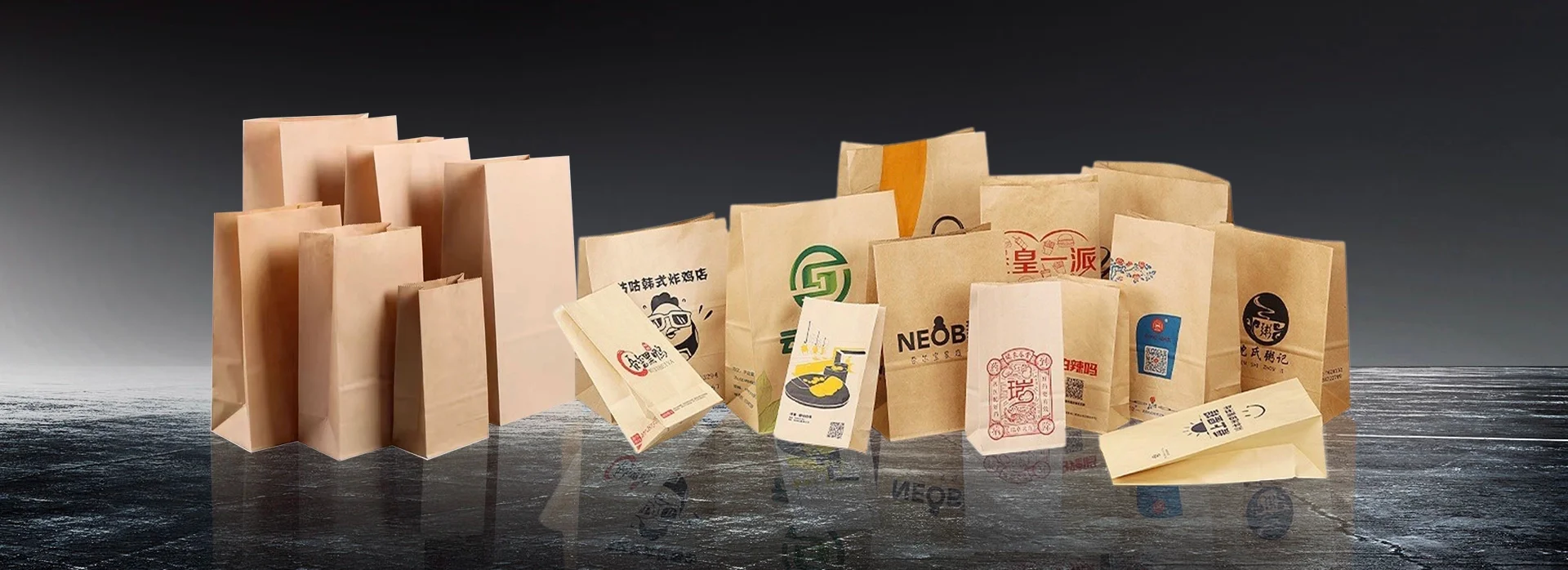

SAMPLES
PARAMETER
Model | RKFD-190 | RKFD-330 | RKFD-450 | RKFD-450B | RKFD-550 | ||||
Paper bag cutting length | 190-370mm | 260-530mm | 260-530mm | 360-800mm | 360-800mm | ||||
Paper bag width | 80-190mm | 130-330mm | 180-475mm | 220-450mm | 220-550mm | ||||
Paper bag bottom width | 50-100mm | 70-180mm | 70-180mm | 100-250mm | 100-250mm | ||||
Paper thickness | 45-120g/m2 | 60-160g/m2 | 60-160g/m2 | 80-160g/m2 | 80-160g/m2 | ||||
Max. Paper bag speed | 30-200pcs/min | 60-200pcs/min | 60-180pcs/min | 30-120pcs/min | 30-100pcs/min | ||||
Paper roll width | 290-610mm | 430-1050mm | 570-1290mm | 670-1430mm | 670-1630mm | ||||
Air supply | >0.12m3/min 0.6MPA | ||||||||
Power | 8KW | 8KW | 8KW | 15KW | 15KW | ||||
Weight | 5000 KGS | 8500 KGS | 10000 KGS | 12000KGS | 14000KGS | ||||
Dimension | L9.2*W1.6*H1.8m | L9.2*W2.1*H2m | L9.2*W2.45*H2m | L11*W3.2*H2.4m | L11W3.4*H2m | ||||

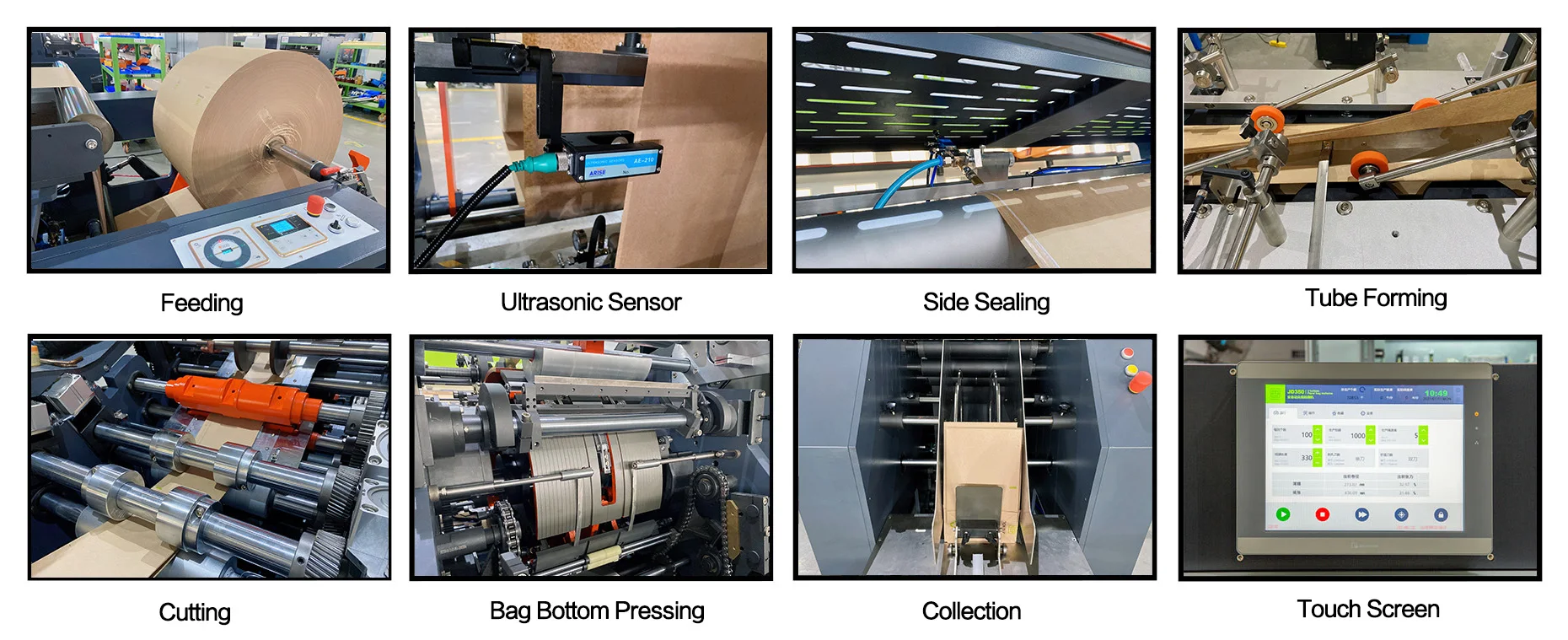

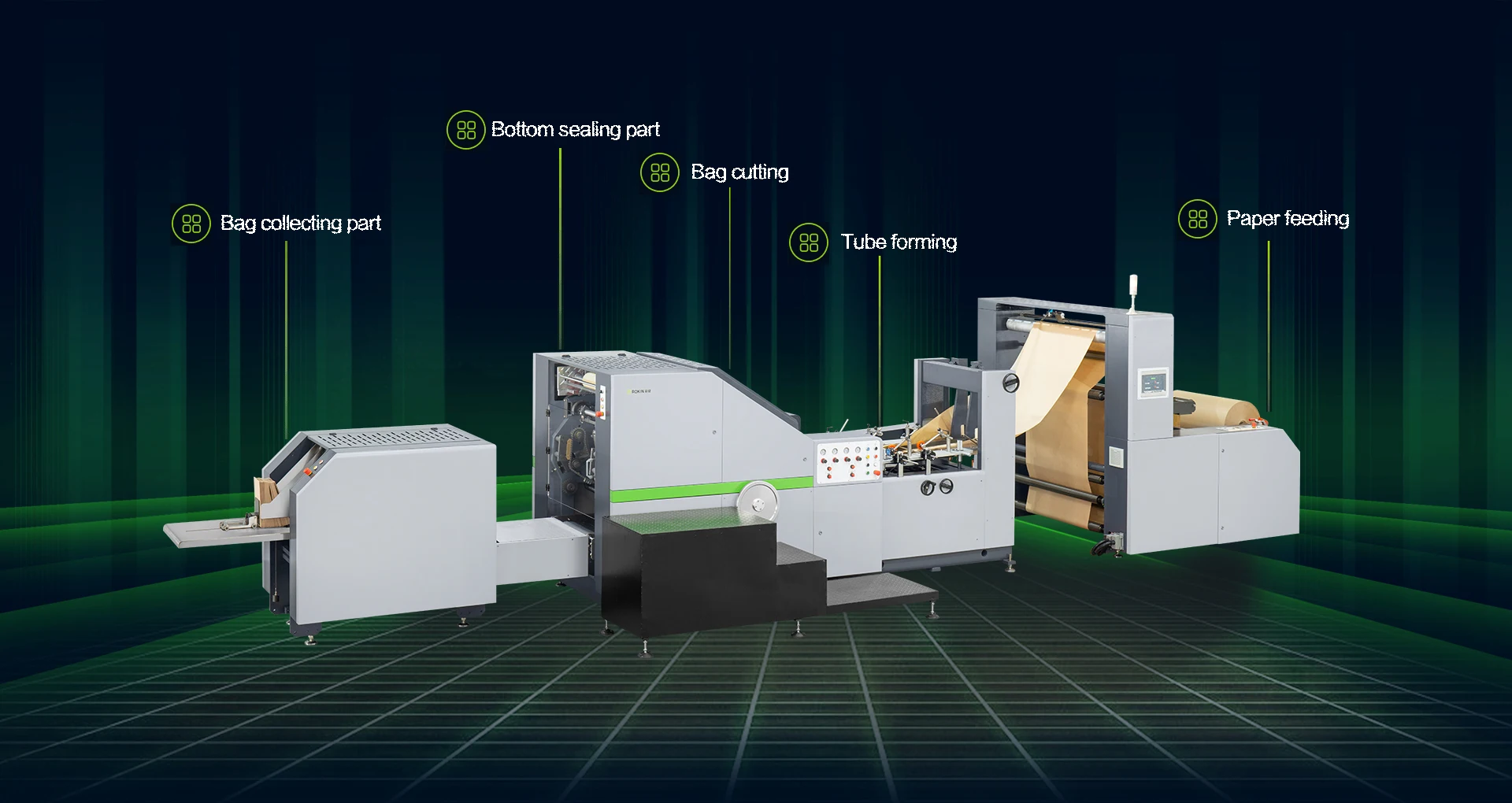

PRODUCT DETAIL

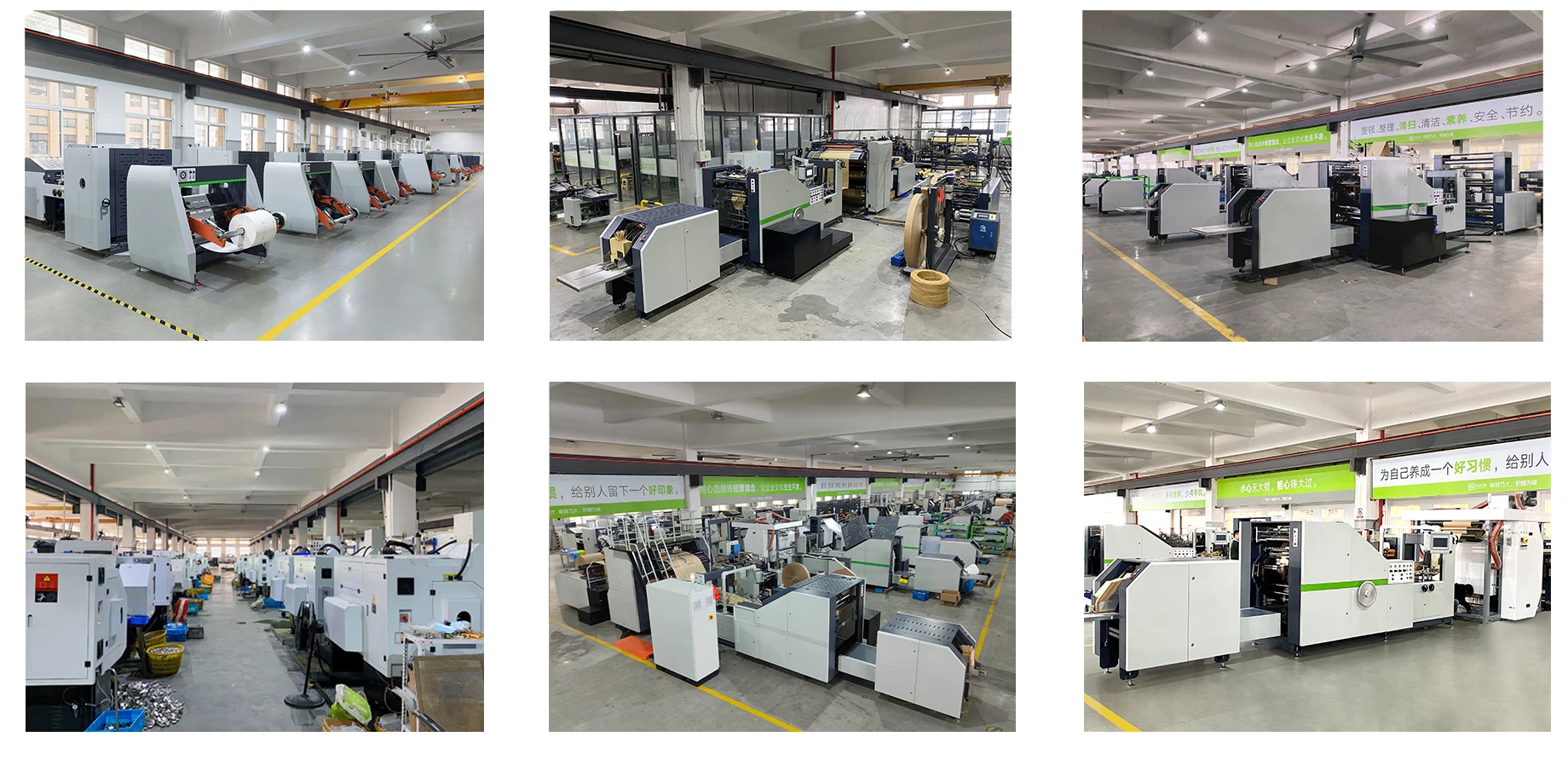

COMPANY PROFILE
Wenzhou Rokin Machinery CO. Ltd is the manufacturer of full automatic paper bag machine, square bottom paper bag machine, v bottom paper bag machine, case making machine, cardboard slitting machine and related auxiliary equipment, etc.

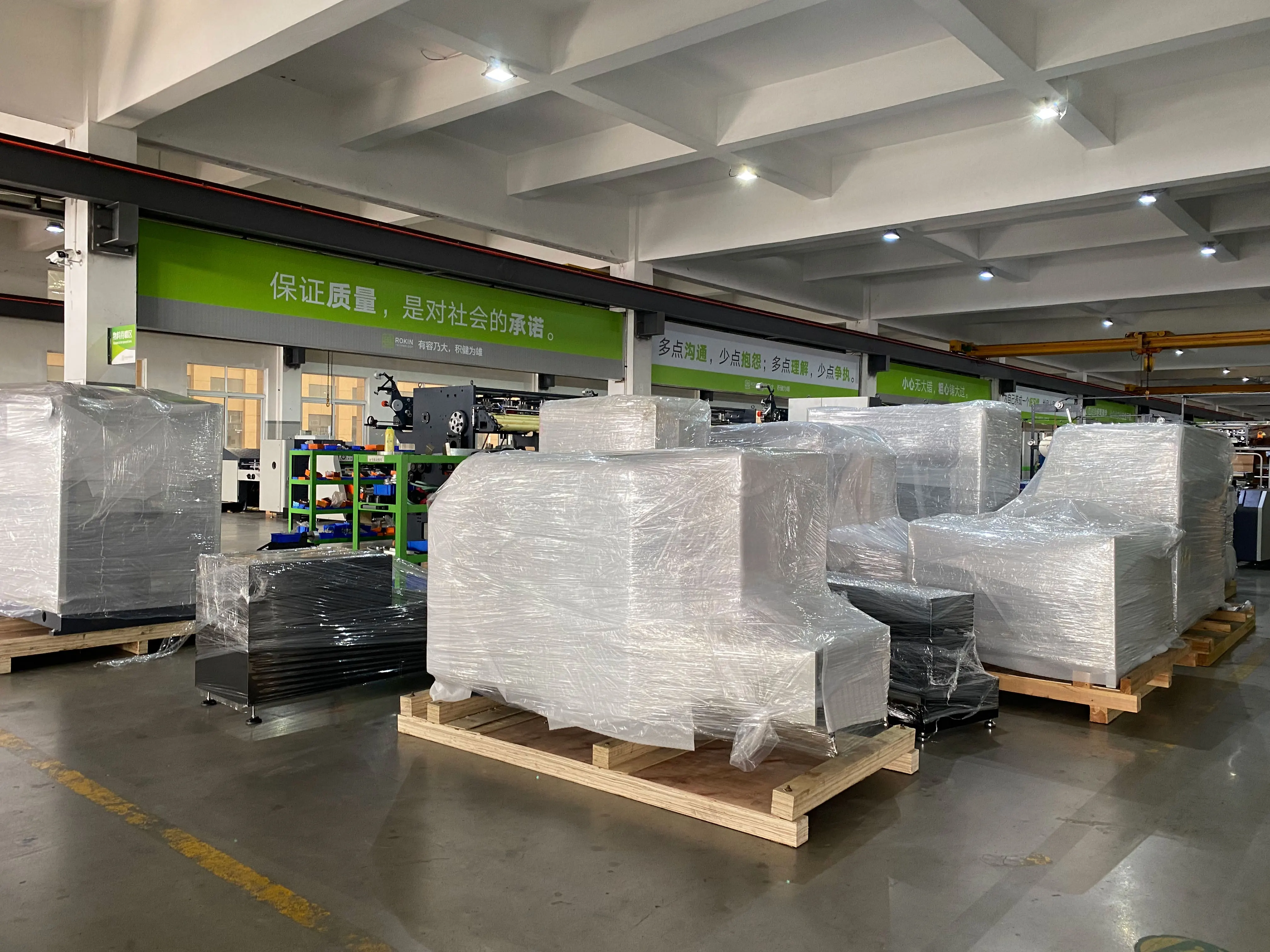

PRODUCT PACKAGING
PRODUCTS GUIDE
CONTACT US
