Product Overview

Description

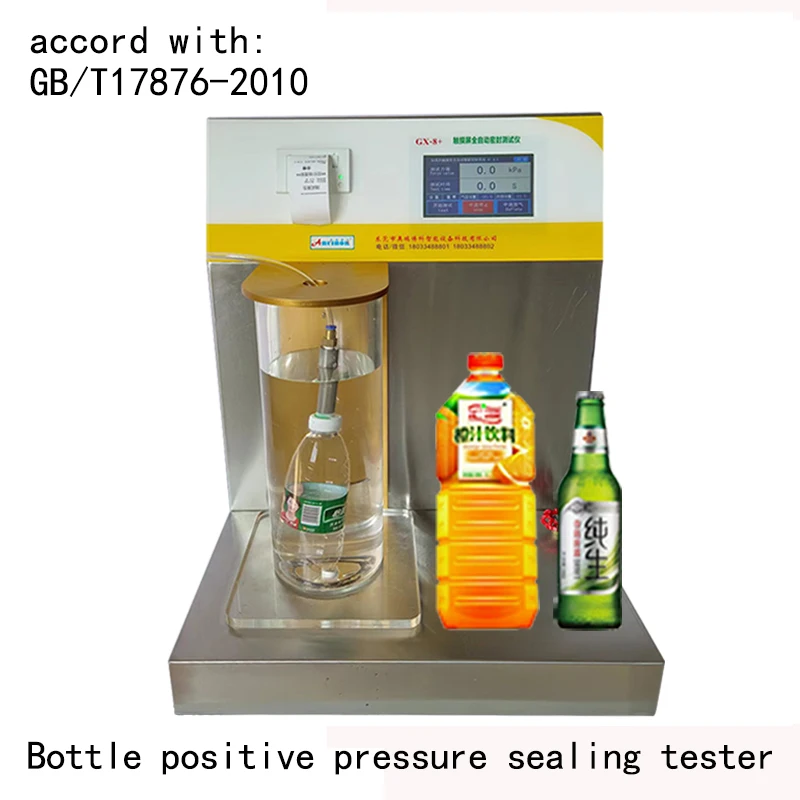

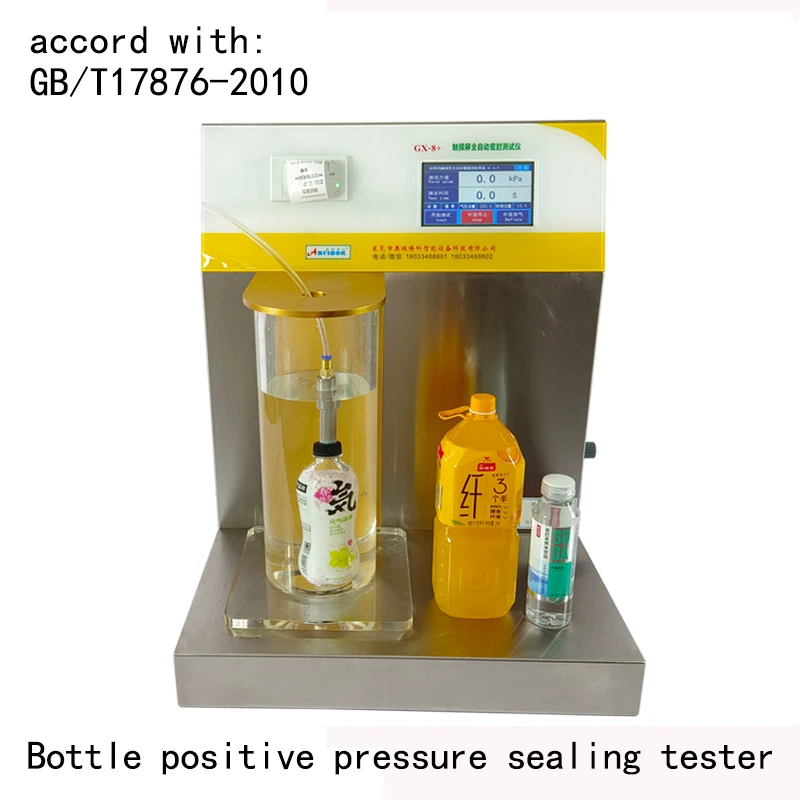

GX-8+touch screen cover leakage performance tester (multipurpose)



GX-8+touch screen positive pressure sealing performance tester is a large seven-inch touch screen, high-end sealing instrument with printing and drainage/water filling. It is a professional instrument developed by our factory to measure the positive pressure sealing performance test and sealing quality test of products such as bottles - cans - barrels - tubes - gas seals - aluminum foil. It is a sealing performance tester with excellent performance and high cost performance. The overall appearance of the machine is beautiful, and the shell is made of high-quality stainless steel, All the air-sealed on-off parts are made of domestic high-quality or imported parts. The indicator control meter and timing controller are made of imported joint venture brands, with high accuracy and excellent performance. The product design conforms to national and international standards, and is an ideal professional testing instrument. Professional acupuncture, improved by the company for many times, is specially designed for our company. Comply with national standards. GB/T17876-2010, GB10440-89, ASTM, ISO and other standards



GB/T17876-2010 Sealing Performance Standard



The non-carbonated cap (water/fruit juice/oil, etc.) does not leak at 200kPa, does not take off the cap at 350kPa, does not leak at 690kPa, and does not take off the cap at 1207kPa





Technical parameters: professional puncture probe pressure gauge range: 0-1.6MPa pressure value resolution: 0.01MPa, accuracy: 1%. Timing function: set arbitrarily, and add timing function according to national standards. Test barrel: 160 * 420mm standard configuration, optional Φ 300*600mm , Φ 400 * 1000mm, etc. (large oil barrel, paint barrel, etc.) Overall size: 320 * 420 * 650mm exhaust pipe: Φ 8mm Taiwan imported high-quality polyester TPU pipe configuration: host, test barrel, sealing ring, waterproof sticker, wire, rubber cup, instructions Certificate of conformity, warranty certificate, one for each of the above Two air pipes Professional puncture probe, specially designed needle, no air leakage, the company's first.
