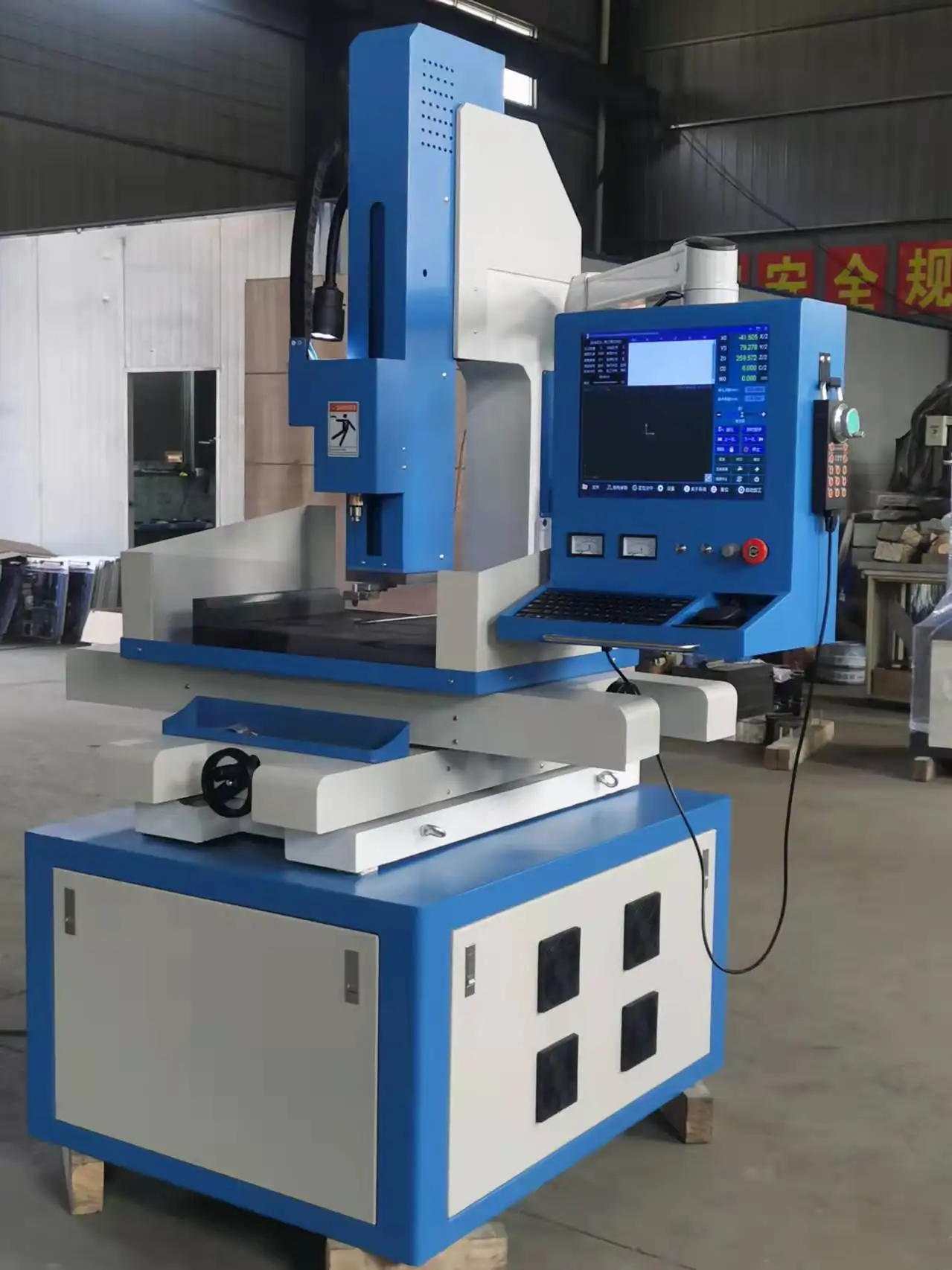

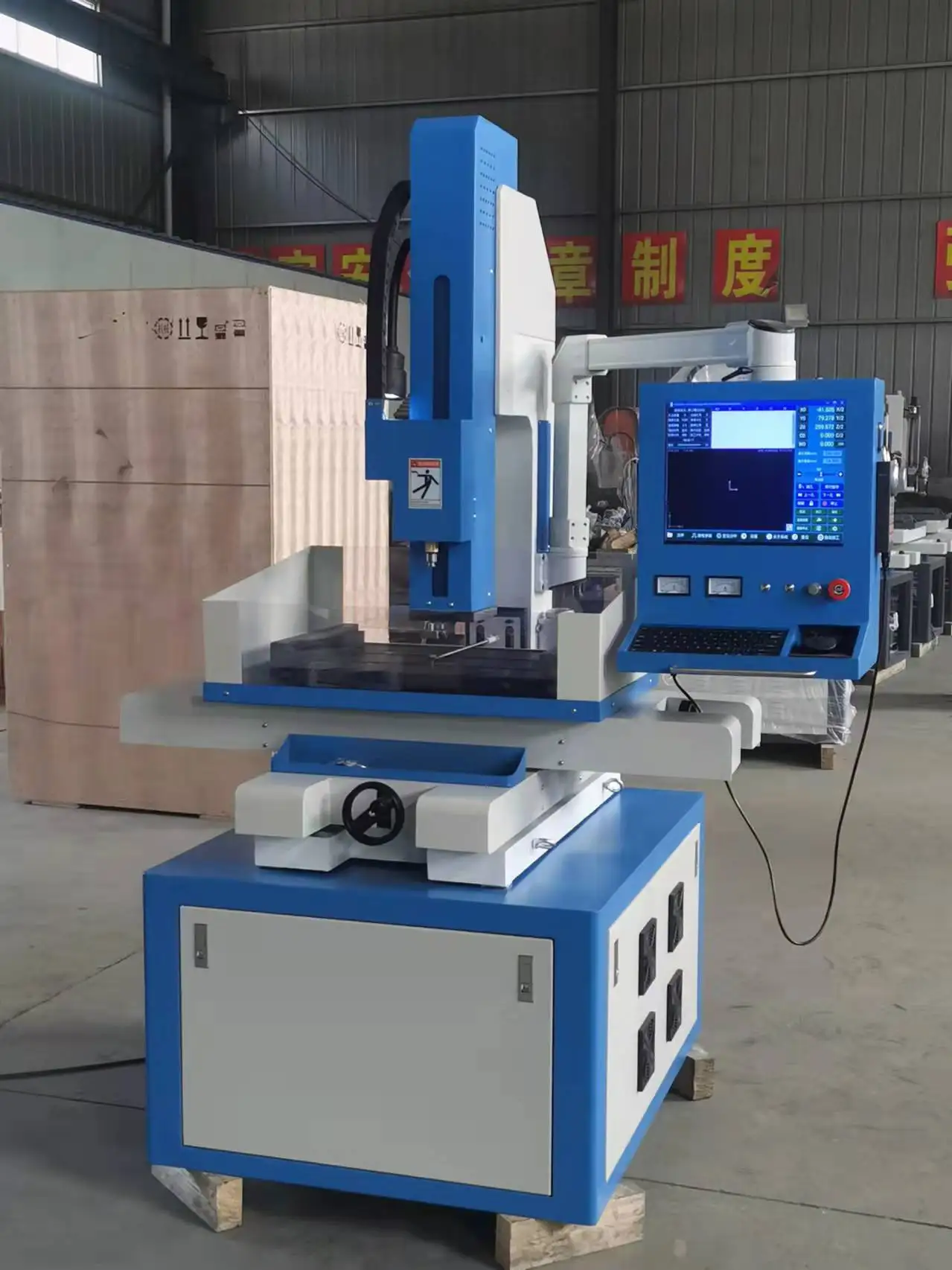

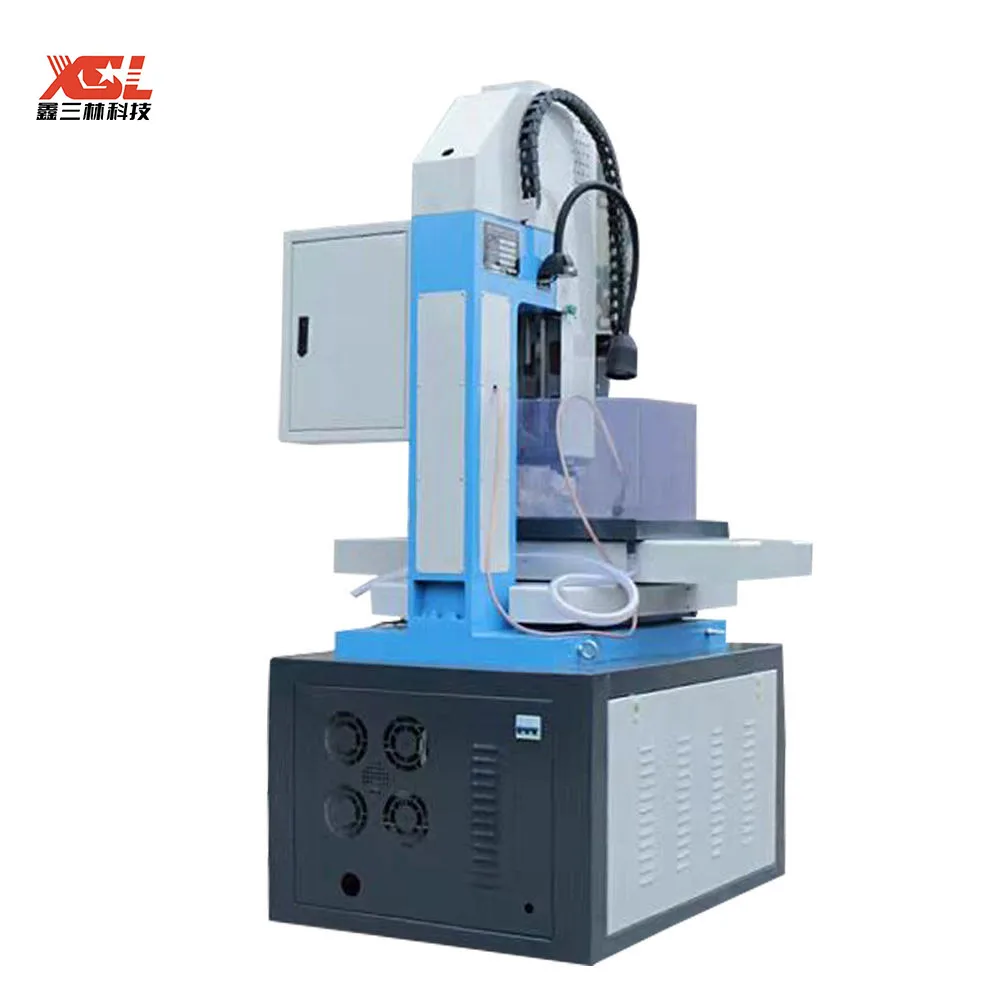

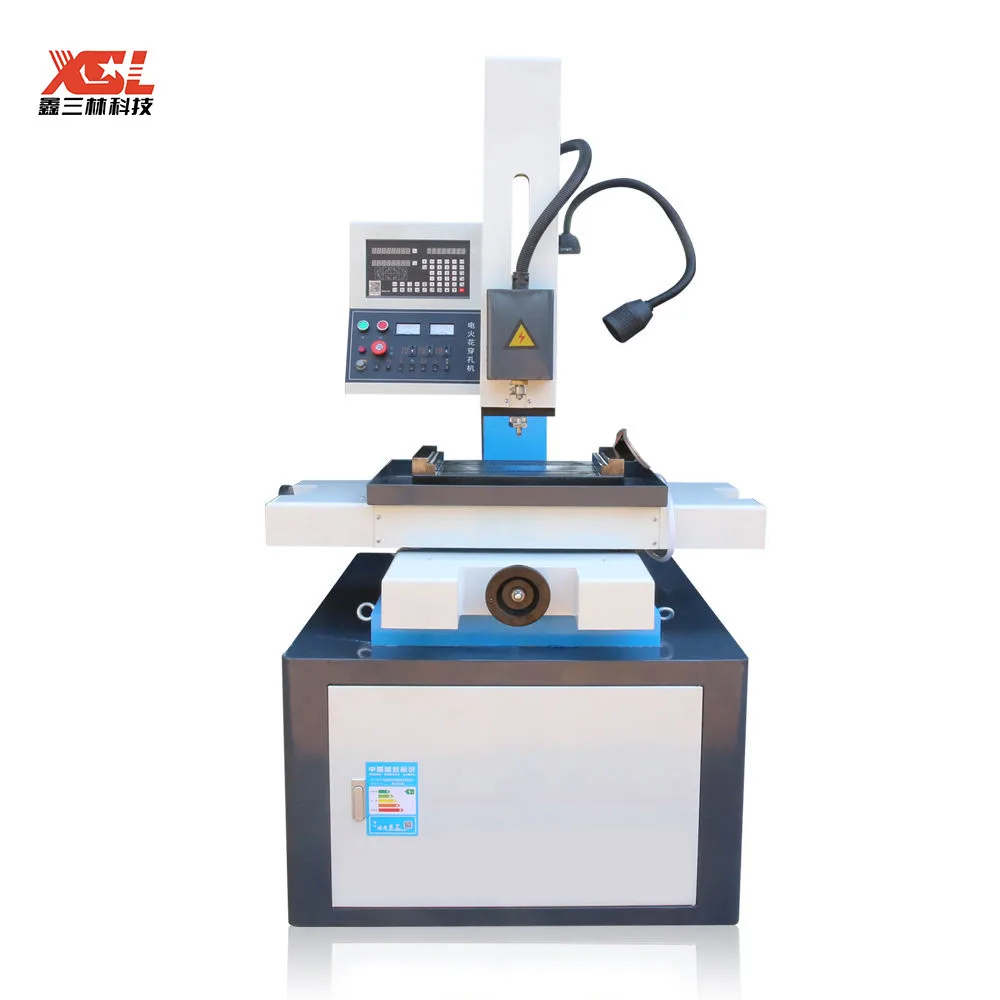

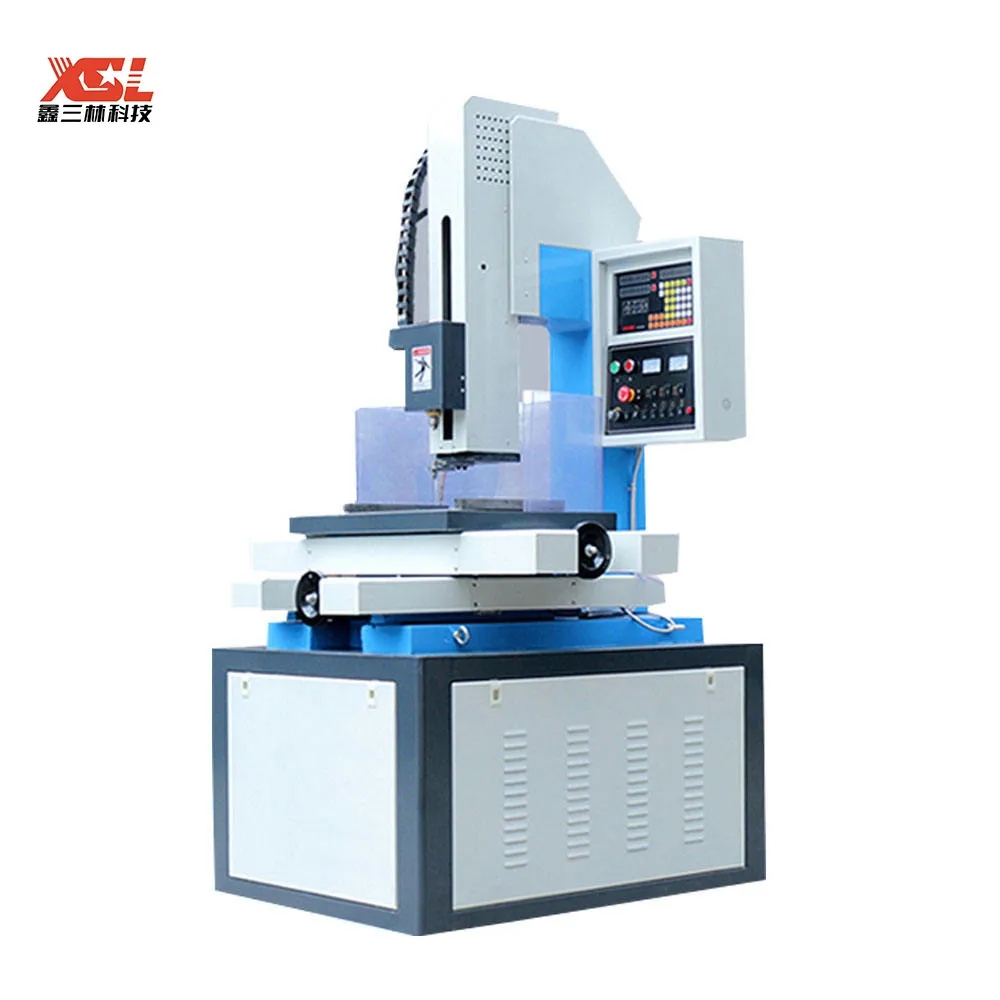

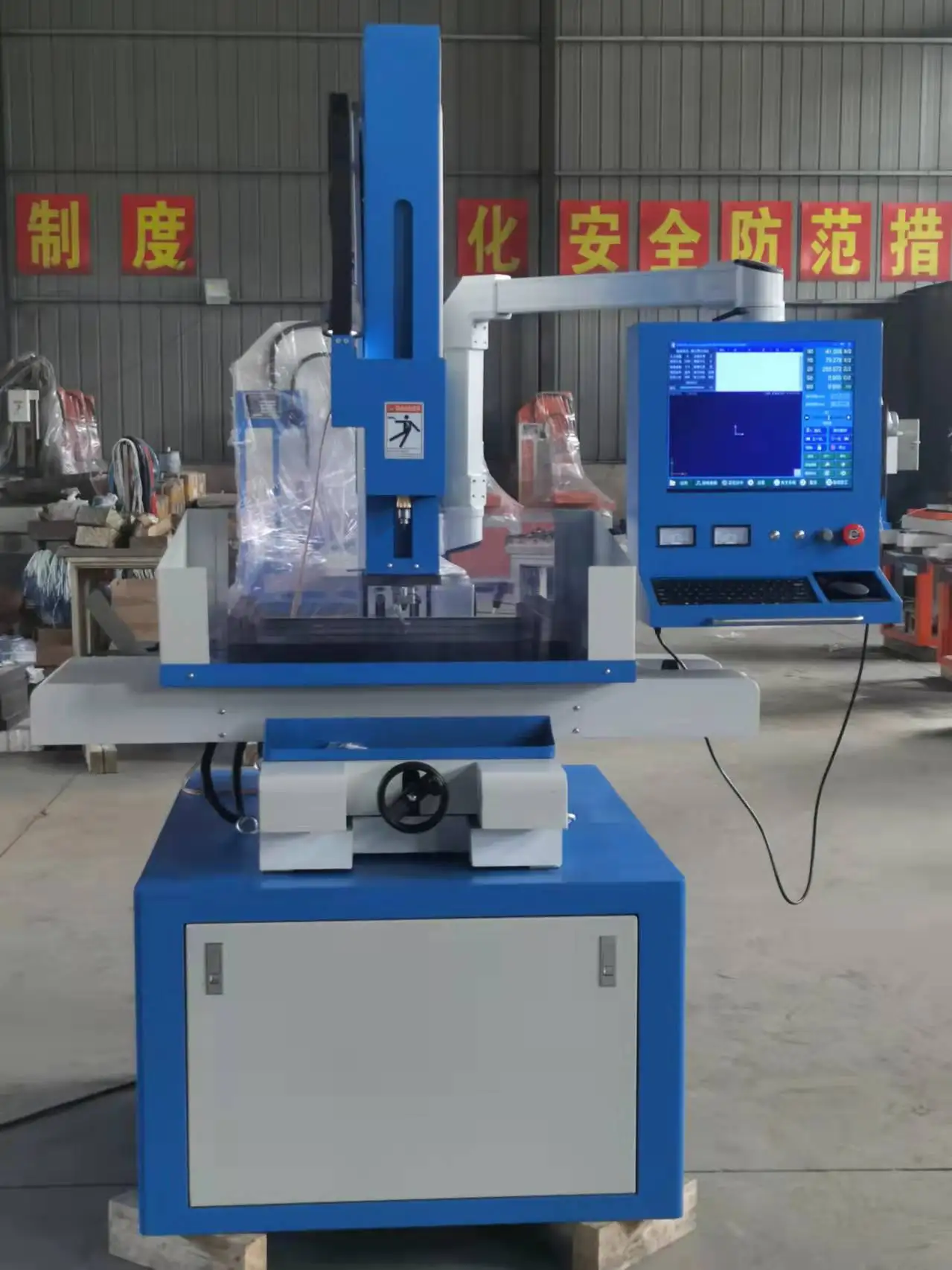

Sanlin DD703 CNC Small Hole EDM Drilling Machine Manufacturer Supply
- Category: >>>
- Supplier: Jiangsu Sanlin Technology Equipment Co. Ltd.
Share on (1600770588581):
Product Overview
Description
Product Display
Products Description
Model | DD703.30 | DD703.40 | DD703.50 | ||
Working table size (mm) | 360×480 | 540×780 | 650×1000 | ||
Stroke X-Y (mm) | 300×400 | 400×500 | 500×630 | ||
Electrode diameter (mm) | Φ0.3-Φ3.0 | Φ0.3-Φ3.0 | Φ0.3-Φ3.0 | ||
Working stroke Z axis (mm) | 300 | 300 | 500 | ||
Spindle stroke W axis (mm) | 300 | 400 | 600 | ||
Turn head (C axis）speed (mm/min) | 20-120 | 20-120 | 20-120 | ||
Distance between working table & guider (mm) | 300 | 350 | 500 | ||
Power (V/Hz) | 3 Phase 220, 230, 380, 415V /50, 60HZ | ||||
Max. working current (A) | 30 | 30 | 30 | ||
Capacity of working fluid (L) | 25 | 25 | 25 | ||
Max.pressure of working fluid (MPa) | 7 | 7 | 7 | ||
Dimension (L×W×H）(mm) | 1060×750×1700 | 1600×1300×1800 | 1950×1500×2100 | ||
Weight (kg) | 600 | 1400 | 1800 | ||
JIANGSU SANLIN SCIENCE AND TECHNOLOGY EQUIPMENT CO.. LTD
Jiangsu Sanlin Science and Technology Equipment Co, Ltd is a high-tech enterprise integrating the production,R&D and sales of numerical control mechanical equipment. Since its establishment, the company has alwaysadhered to the corporate values of "achieving employees, developing enterprises, serving customers and repayingsociety "and has been committed to the mechanical equipment industry for decades.
The companys main products include vertical machining centers , high-speed machines , gantry machining centersdrilling and tapping centers , carving and milling machines , gantry carving and milling machines , medium wire cuttingmachines , fast wire cutting machines , small hole machines , sanding machines , etc . The companys products arewidely used in the manufacturing fields of key industries such as automobile , aerospace , national defense andmilitary industry , medical food machinery , rail transit , hardware mold , etc . The companys products are sold all overthe country and dozens of countries in Southeast Asia , Europe , America , Africa , etc . In line with the principle ofcustomer first , there are after-sales service points in all key regions of the country and overseas , which providetechnical training for users free of charge
Q:Are you manufacturer?
A:Yes,we are manufacturer all models ofCNC wire EDM cutting machine. Welcome to visit us!
Q:What payment term do you accept?
A:We are flexible on payment tems,please contact us for details!
Q:What information do you need before making quotation?
A:Worktable size or table travel size you required. Surface roughness and cutting speed requirements,max working thickness.
Q:What should l do that start a new business in EDM wire cutting machine area?
A:Please contact us immediately,we provide free Pre sales consultant service of CNC wire EDM cutting machines.
Q:Why choose you? What is the difference between you and other Chinese suppliers?
A:We have specialized in this area for over 17 years. Our EDM wire cutting machines are exported to India,Mexico
Turkey,Canada,Vietnam,Thailand and etc.
A:We have specialized in this area for over 17 years. Our EDM wire cutting machines are exported to India,Mexico
Turkey,Canada,Vietnam,Thailand and etc.
can get higher quality product & better professional service from our company with same price.
Q:I'mworried about after-sales service.
A:Warranty is one year. Any parts damaged during warranty will be replaced for free!
we provide spare parts for life time at cost price.
Electrical parts such as boards and servo drives,we'll provide them for life time as well at cost price.
A:Warranty is one year. Any parts damaged during warranty will be replaced for free!
we provide spare parts for life time at cost price.
Electrical parts such as boards and servo drives,we'll provide them for life time as well at cost price.
Q:How do l contact with you?
Wechat/Whatsapp:+86 13815922677
Wechat/Whatsapp:+86 13815922677
