submersible liquid level transmitter sensor probe 4 20ma output static pressure water level controller
- Category: >>>
- Supplier: Shanghai,Jeoro,Precision,Instruments,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

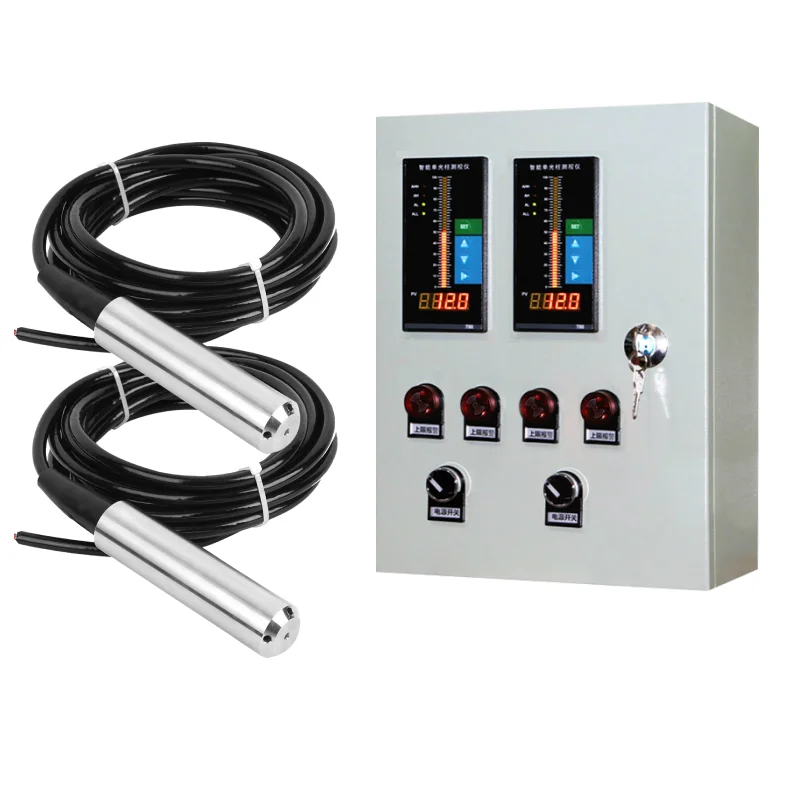

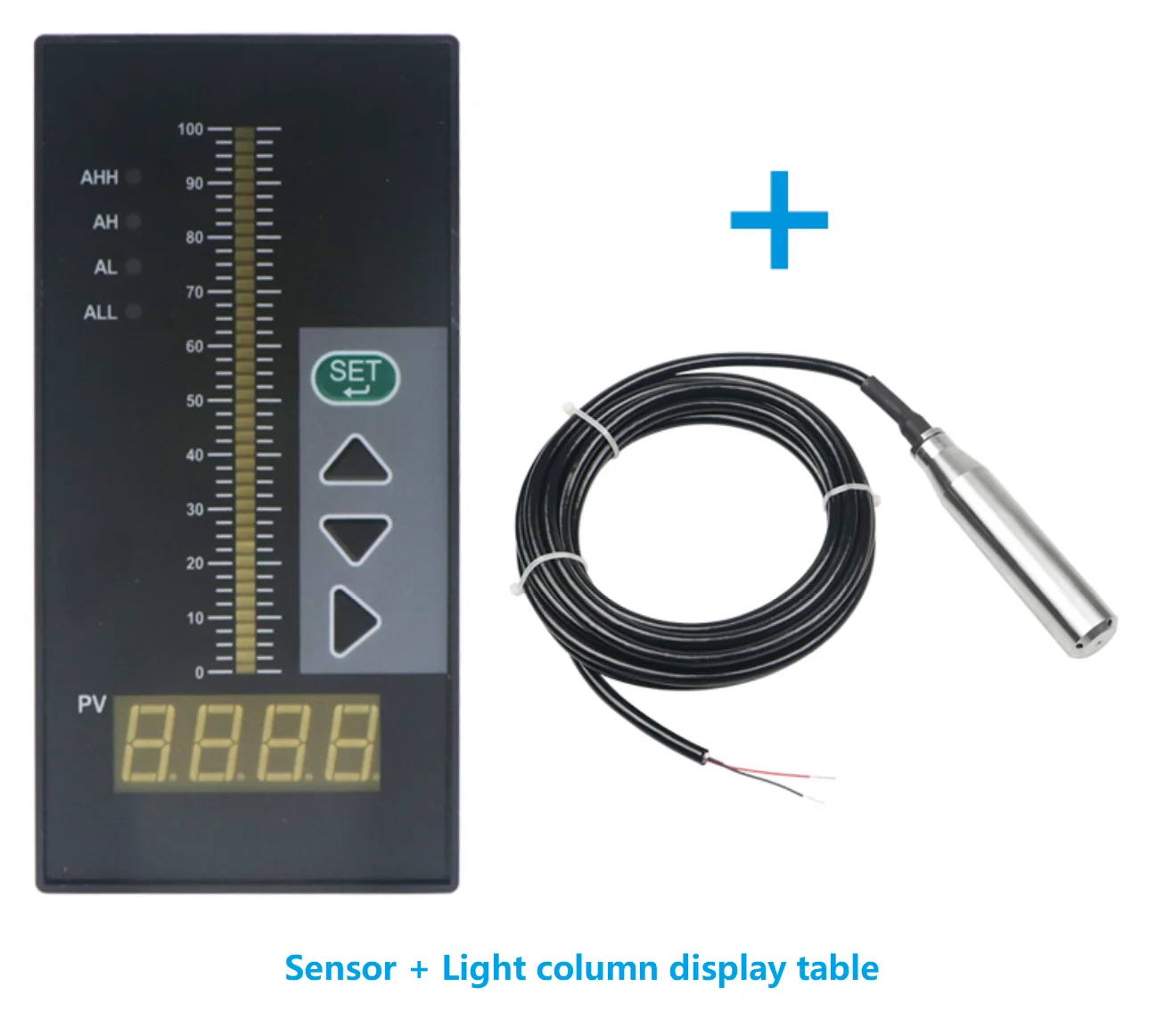

submersible liquid level transmitter sensor probe
4-20mA output static pressure water level controller
Technical Parameters | ||
Medium | Non-corrosive liquid | |
Measuring Range | 0-1m;0-2m;0-5m;0-10m; customized | |
Medium Temperature | -20~+40℃ | |
Power Supply | Sensor: 24VDC Display: 220VAC | |
Measuring Accuracy | 1% | |
Probe Material | Stainless steel 316L | |
Output | 4-20mA; Relay | |
Protection Class | IP68 | |
Overview
JEL-300 series submersible level transmitter is a highly stable, reliable, and fully sealed submersible level transmitter. JEL-300 series level transmitter comes in a compact size and is lightweight and stable. It can be used to measure liquid levels for many applications in metallurgy, mining, chemicals, water supply, and waste management.
Features
* Level range 0-5 meters
* Sensor housing IP68
* Isolated construction, enable to measure various media
* Stainless steel/ PTFE
Application
* Industrial process control
* Liquid level measurement
* Chemical industries
* Water and Waste Management
* Mining
JEL-300 series submersible level transmitter is a highly stable, reliable, and fully sealed submersible level transmitter. JEL-300 series level transmitter comes in a compact size and is lightweight and stable. It can be used to measure liquid levels for many applications in metallurgy, mining, chemicals, water supply, and waste management.
Features
* Level range 0-5 meters
* Sensor housing IP68
* Isolated construction, enable to measure various media
* Stainless steel/ PTFE
Application
* Industrial process control
* Liquid level measurement
* Chemical industries
* Water and Waste Management
* Mining
