Oem Camera Module 0.3 MP HD 120Fps Mipi Camera Module GC0308 Sensor Low Power Camera Module

Product Overview

Description

Product name	0.3MP mini built-in macro infrared camera module

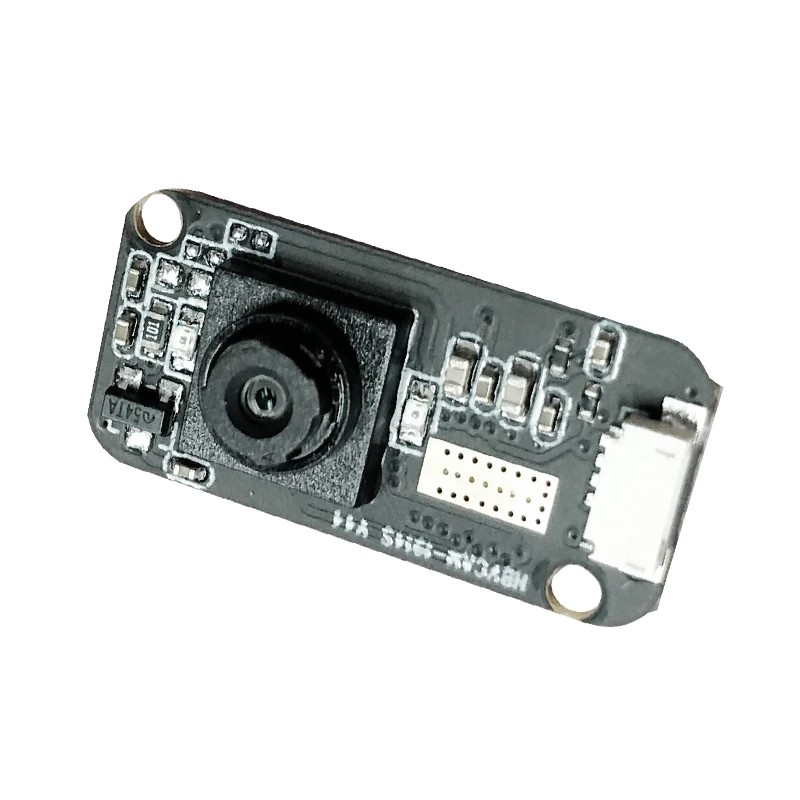

Module No.	HBVCAM-1914S V44

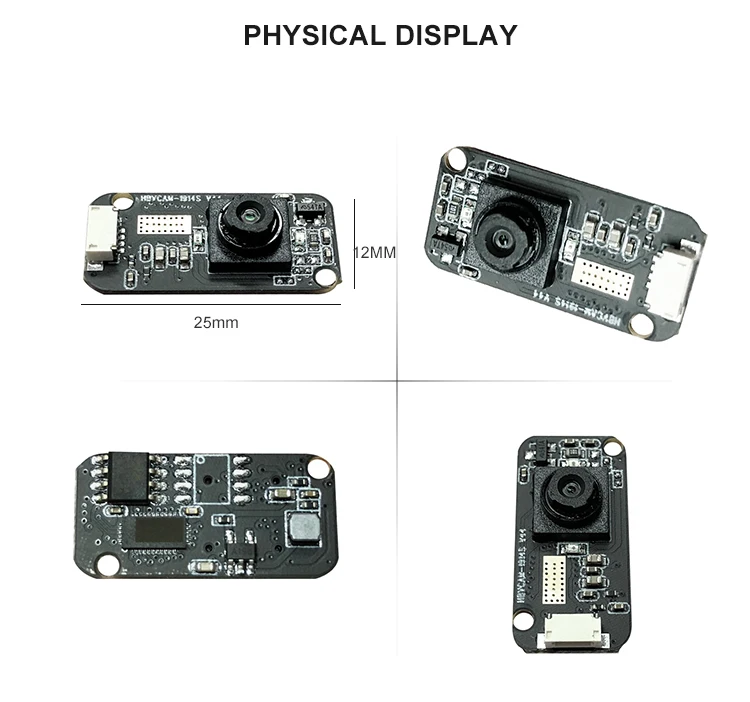

Module Size	25mm × 12mm × 6.3mm±0.2MM
Features	1. Small size, with YUV/MJPEG format, high frame rate 320x240-120fps 2. Macro infrared 850nm (regular delivery all-pass NO-IR film, black and white) 3. Can be made into color low frame, high frame non-infrared night vision 4. Small-angle magnification, large-angle field of view optional
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	500mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	GC0308 (1/6.5” )
Seneor Package	CSP,Bare Die
Maximum resolution	640*480
Sensitivity	3.0mv /(lux-sec)
Pixel Size	3.4µm x 3.4µm
Maximum Image Transfer Rate	MJPEG 160x120 30FPS / YUY2 160x120 30FPS   MJPEG 320x240 128FPS / YUY2 320x240 128FPS   MJPEG 640x480 30FPS / YUY2 640x480 30FPS
S/N Ratio	42 db
Max Dynamic Range	58 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4P
F/No	2.4
EFL	2.4mm
FOV	80°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	850±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

1.Are you camera module manufaurer?

Yes, we are a professional usb camera module manufacturer and our compnay was established in 2013

year



2. Do you supply OEM/ODM service?

Yes, we can supply OEM/ODM service, we also can customize the camera module according to your

requirement.



3. Do you provide samples?What's the MOQ?

Samples are provided, but not free.Some of our products provide a drop shipping service, and some

products have a minimum order of 100 /500pieces



4. How to guarantee quality?

Always a pre-production sample before mass production,and final inspection and test before shipment



5: How to pay for order ?

you can pay by TT, Paypal, Escrow, Western Union



6. Does the camera module can work with Windows/Android/Linux system?

Usually the camera can work with Windows system with free driver, it is a play and plug camera

module, it can also work with some Andorid and Linux system with standard UVC protocol, it need to

be tested whether work with Android and Linux system.



7.Does the camera support OTG?

Most of our usb cameras support OTG function



8.Which software your usb camera module support?

Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer,

ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
