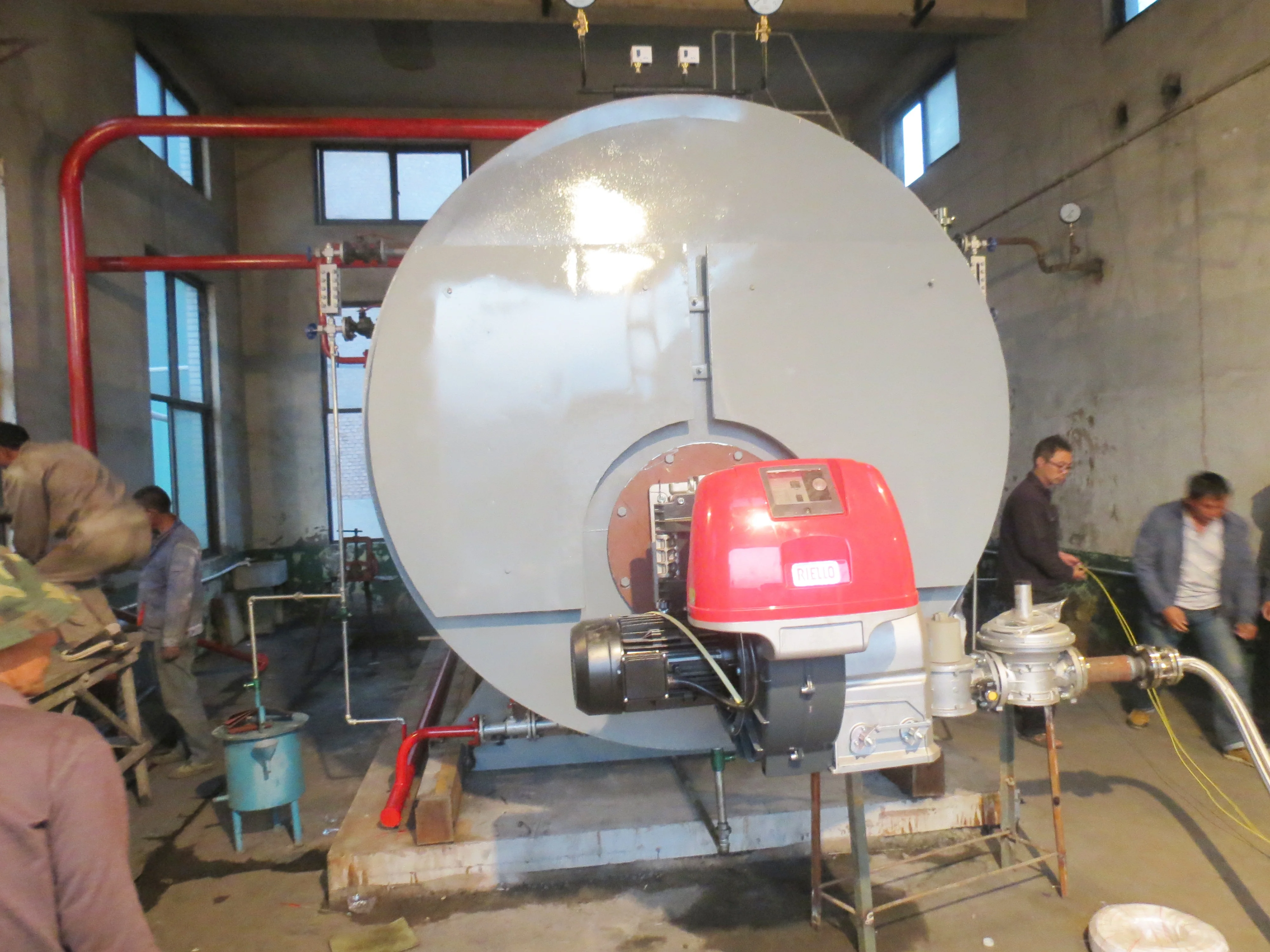

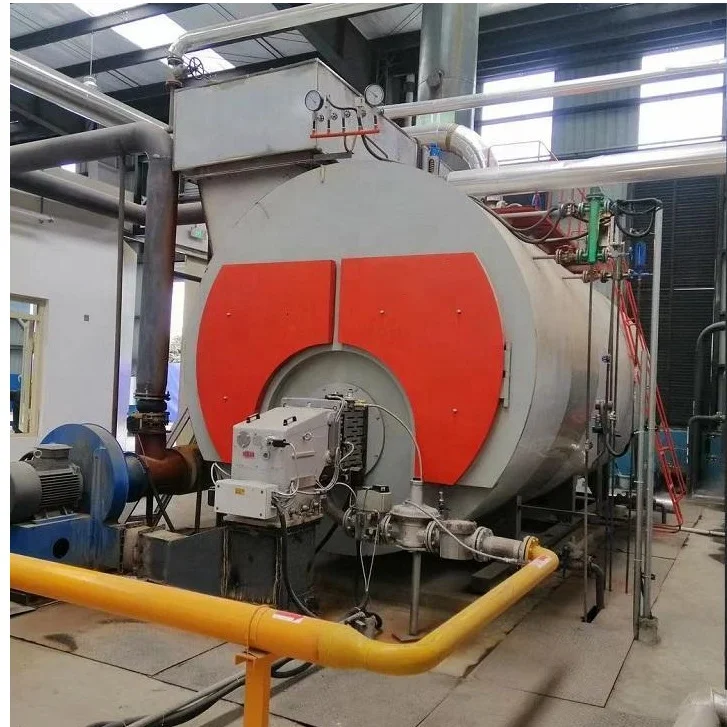

High Efficiency Diesel Methane Gas Propane Gas Steam Boiler For Forms

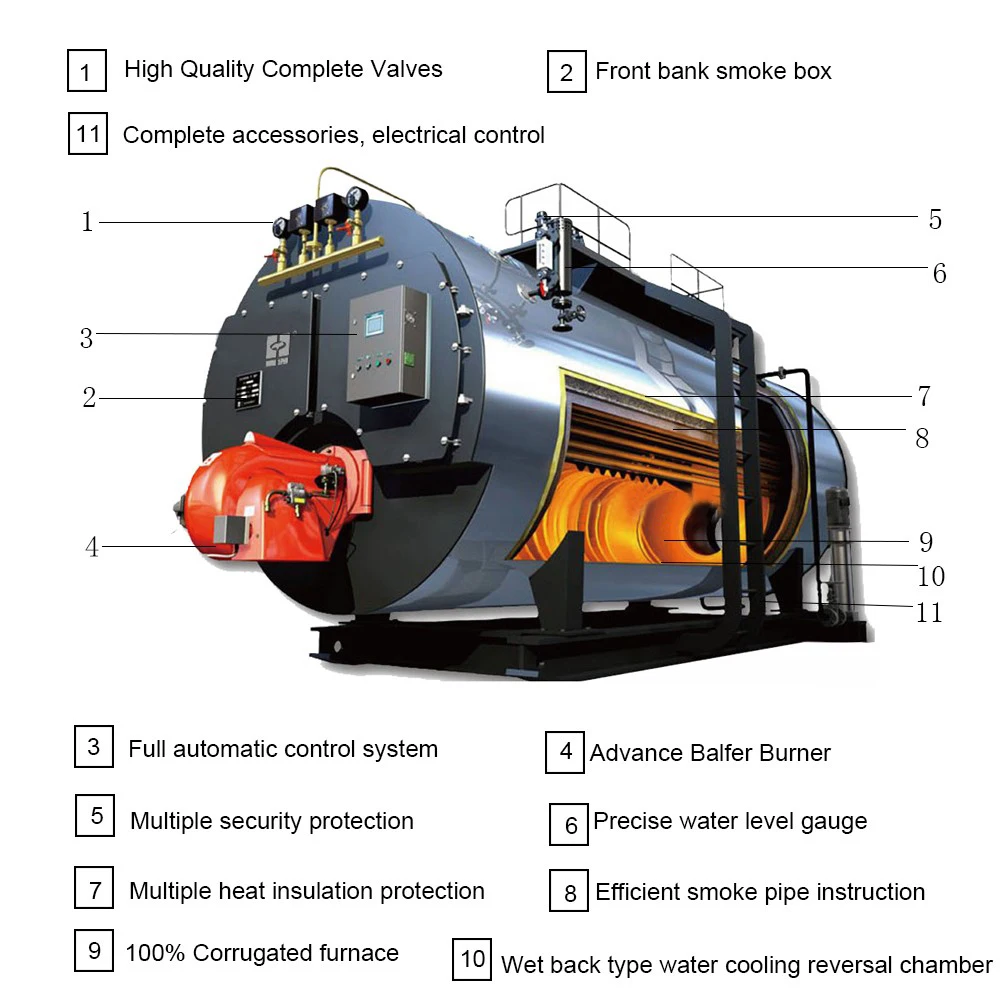

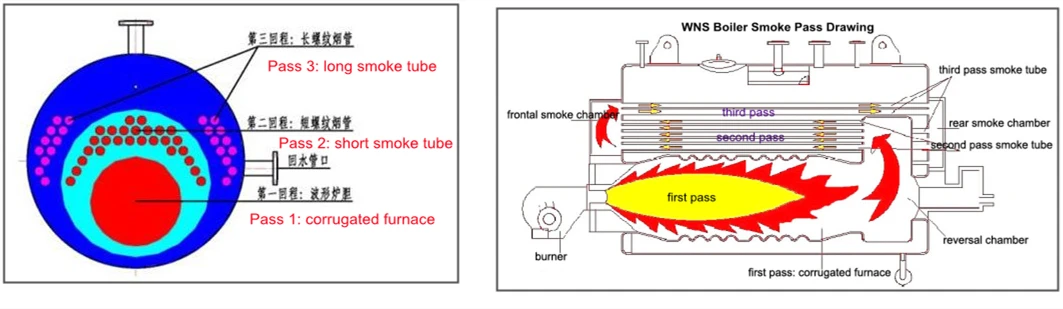

Brief introduction: WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.
Available Fuel: Natural gas, LPG, CNG, LNG, hydrogen, biogas, city gas, diesel oil, heavy oil, dual fuel, etc.
Rated Steam Capacity: 0.5t/h~20t/h (Skid-Mounted Type Steam Boiler)
Rated Steam Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
Available Fuel: Natural gas, LPG, CNG, LNG, hydrogen, biogas, city gas, diesel oil, heavy oil, dual fuel, etc.
Rated Steam Capacity: 0.5t/h~20t/h (Skid-Mounted Type Steam Boiler)
Rated Steam Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)

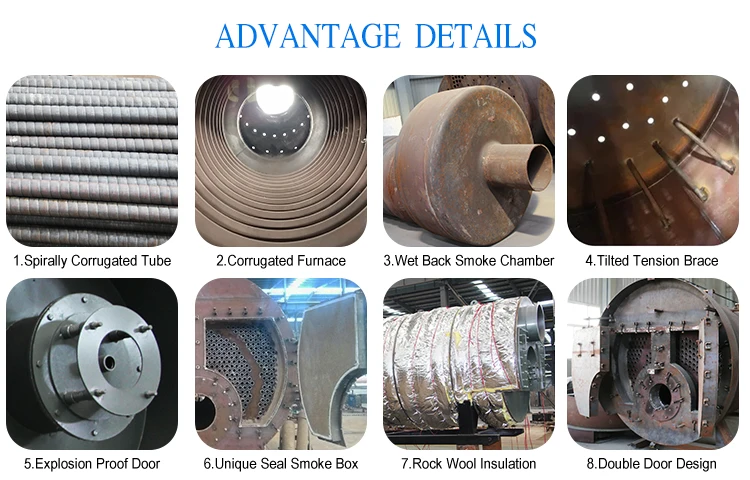

Wns oil gas steam boiler feature:
Unique design of structure of big combustion chamber; 3-stroke all wet-back structure; super radiation heat- exchange and low-temperature burning to improve thermal efficiency, reduce NOX emission and protect environment;
Unique design of structure of big combustion chamber; 3-stroke all wet-back structure; super radiation heat- exchange and low-temperature burning to improve thermal efficiency, reduce NOX emission and protect environment;
Adoption of thread smoke tube improves heat transmission and thermal efficiency;
Large steam space leads to better steam quality;
Multiple- sealing of front and back smoke boxes prevent smoke leakage;
Mutiple measures like protection of water level, steam pressure and smoke -discharging temperature make boilers same and reliable;
Efficient thermal protection materials ensure low boiler surface temperature;
Muile-point pollutant discharging makes the heating surface of the boilers cleaner
Large steam space leads to better steam quality;
Multiple- sealing of front and back smoke boxes prevent smoke leakage;
Mutiple measures like protection of water level, steam pressure and smoke -discharging temperature make boilers same and reliable;
Efficient thermal protection materials ensure low boiler surface temperature;
Muile-point pollutant discharging makes the heating surface of the boilers cleaner
Type | Horizontal Fire Tube Automatic Oil/Gas Fired Steam Boiler | |||||||||||||||||
Model | WNS1 | WNS2 | WNS 3 | WNS4 | WNS5 | WNS6 | WNS8 | WNS10 | WNS20 | |||||||||
Rated Steam Capacity (t/h) | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 20 | |||||||||
Rated Steam Pressure(Mpa) | 0.7/1.0/1.25/1.6 | 1.25/1.6/2.5 | ||||||||||||||||
Rated Steam Temperature(C) | 170/184/194/204 | 194/204/225 | ||||||||||||||||
Feed Water Temperature(C) | 20 | |||||||||||||||||
Weight(T) | 6.8 | 8.2 | 9.9 | 12.7 | 14.2 | 17.5 | 21.3 | 22 | 45 | |||||||||
Note: Parameter is for reference only, we can design the boilers based on customers' needs. | ||||||||||||||||||

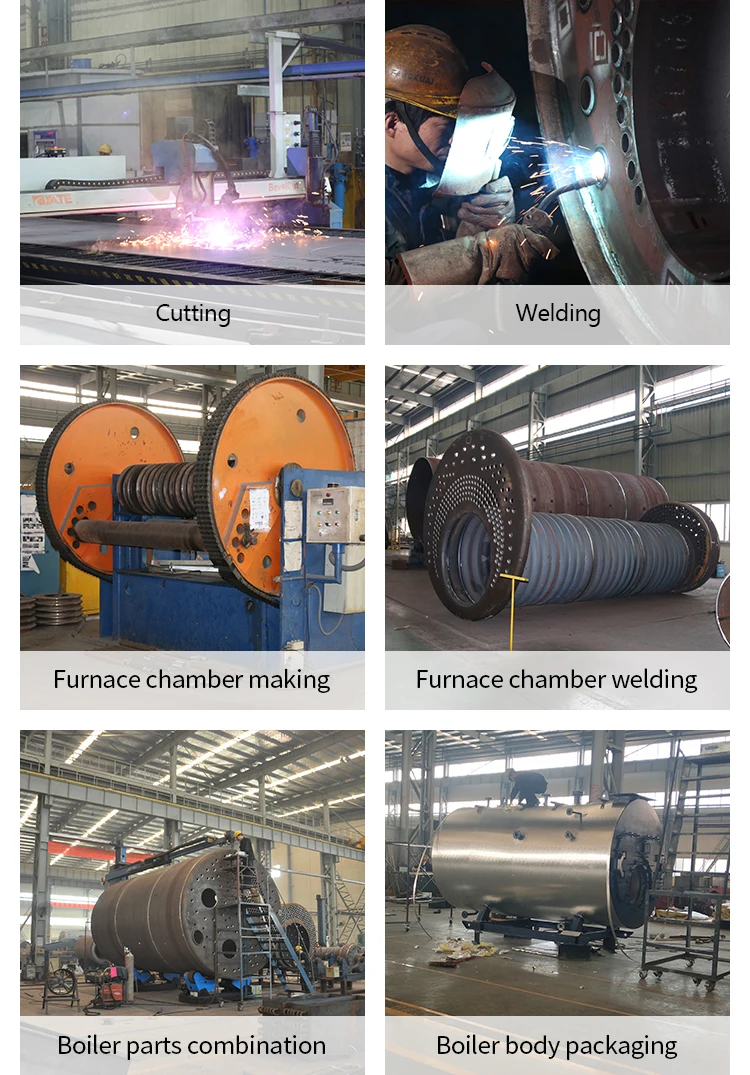

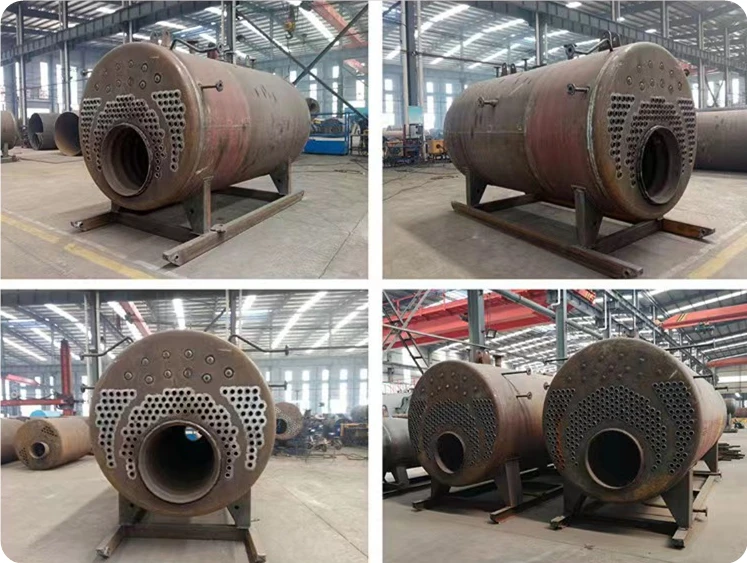

Productive Process
Application

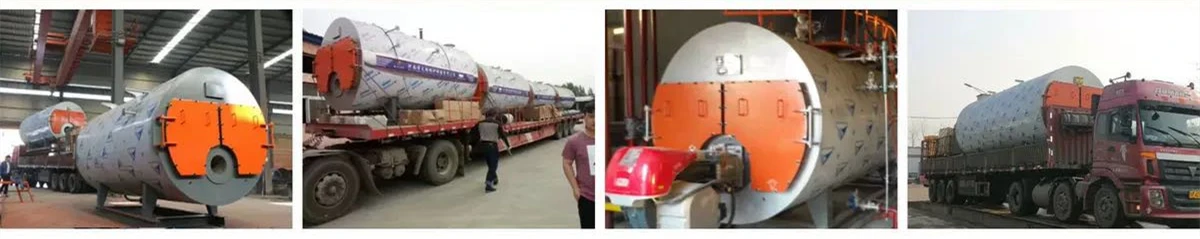

Packing&Shipping

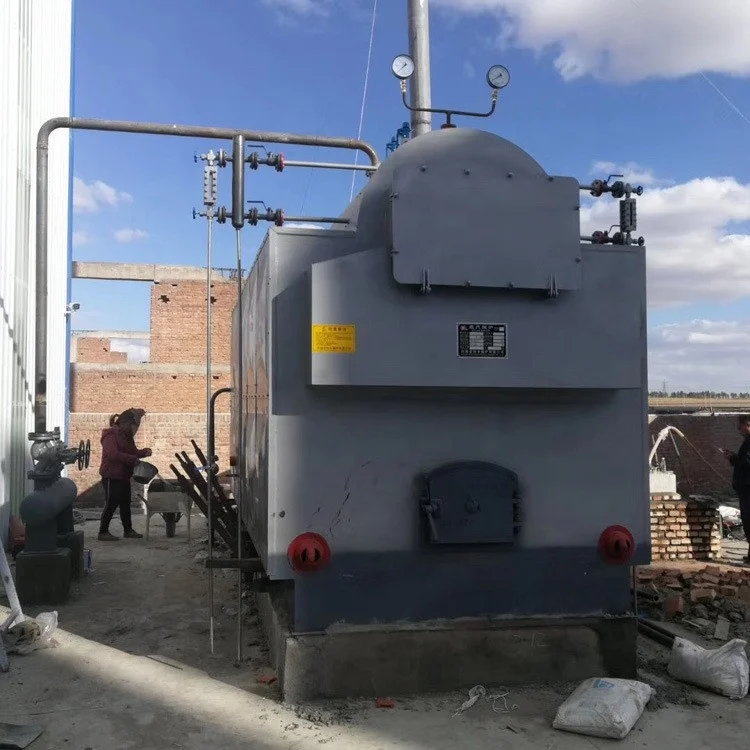

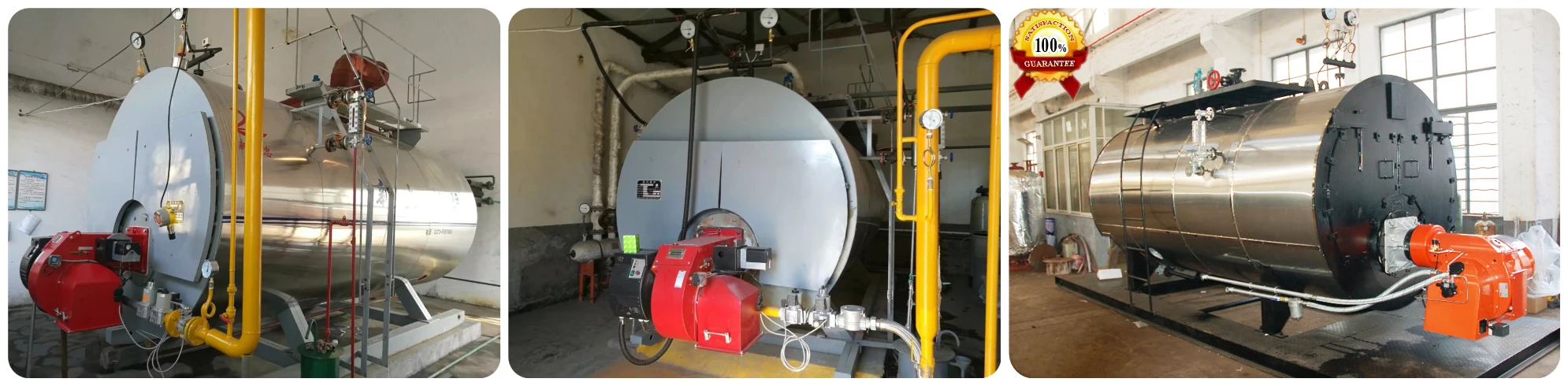

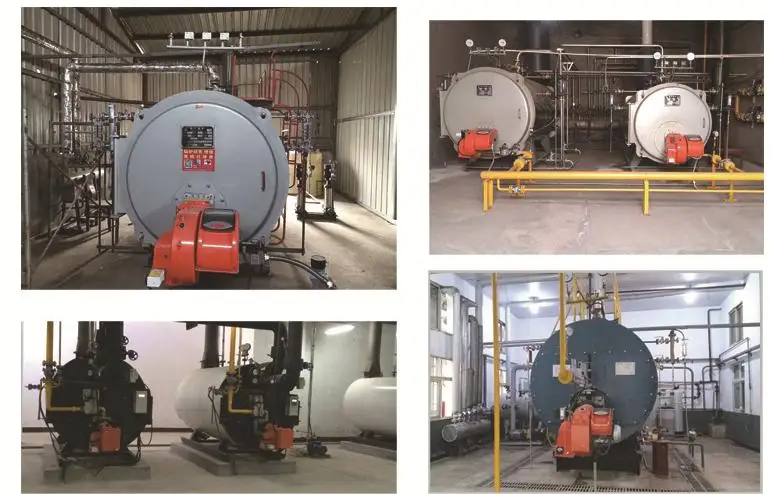

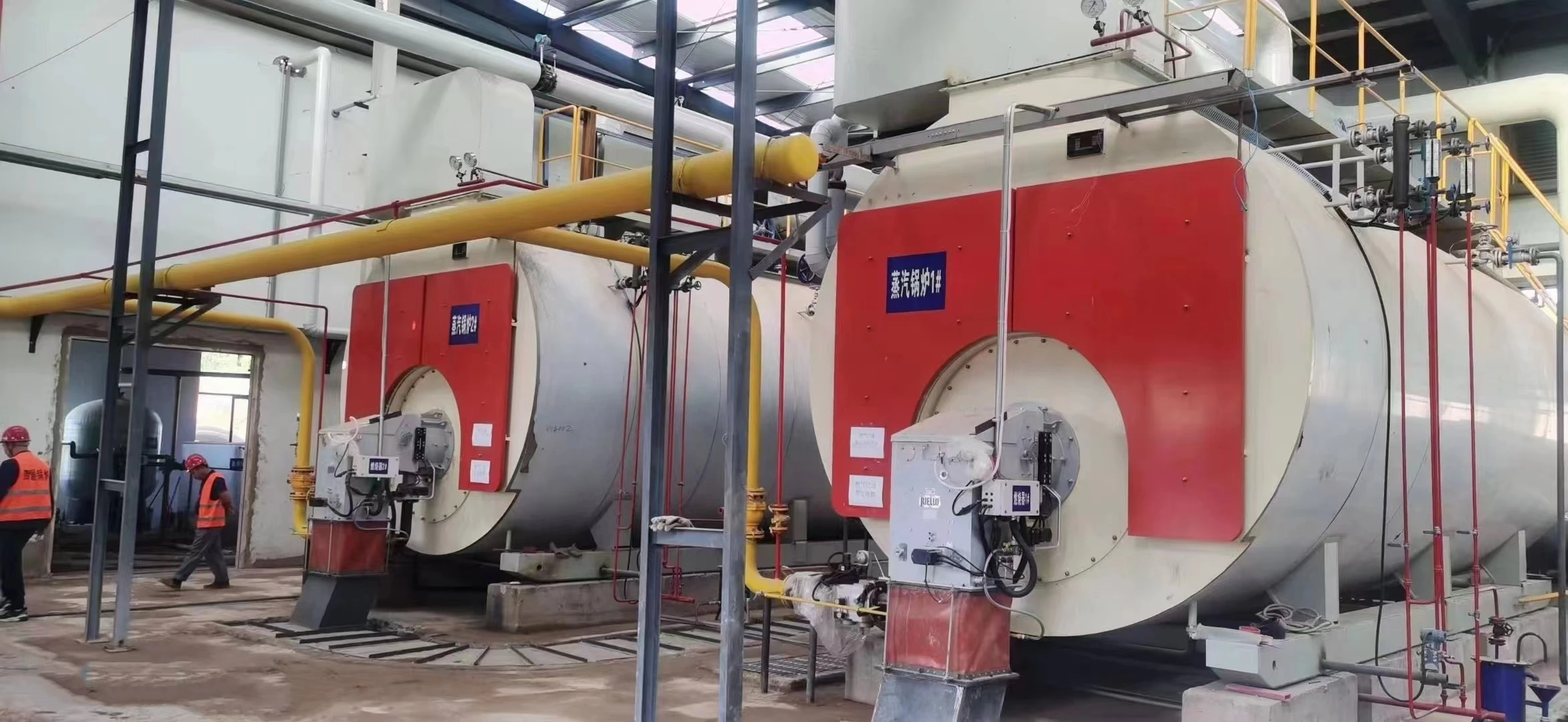

Successful Cases
