Price:$9.50 - $10.00

Quantity:


Product Overview

Description

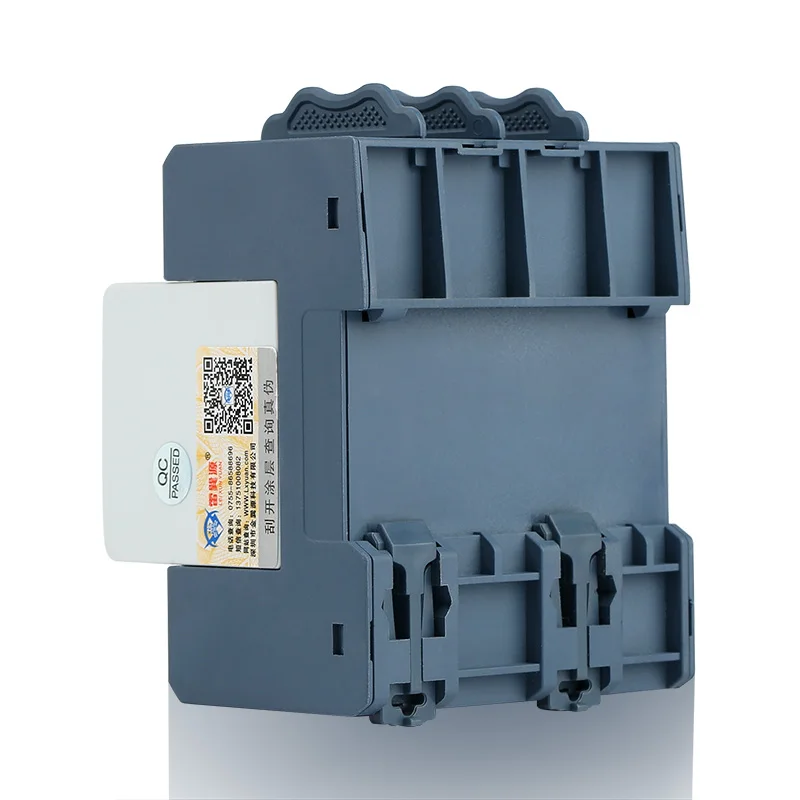

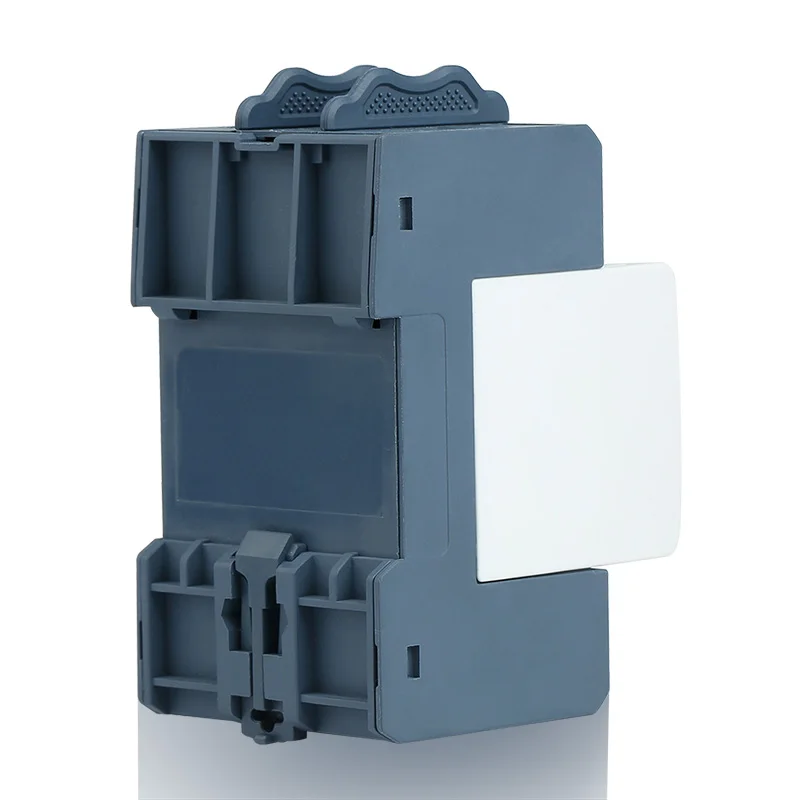

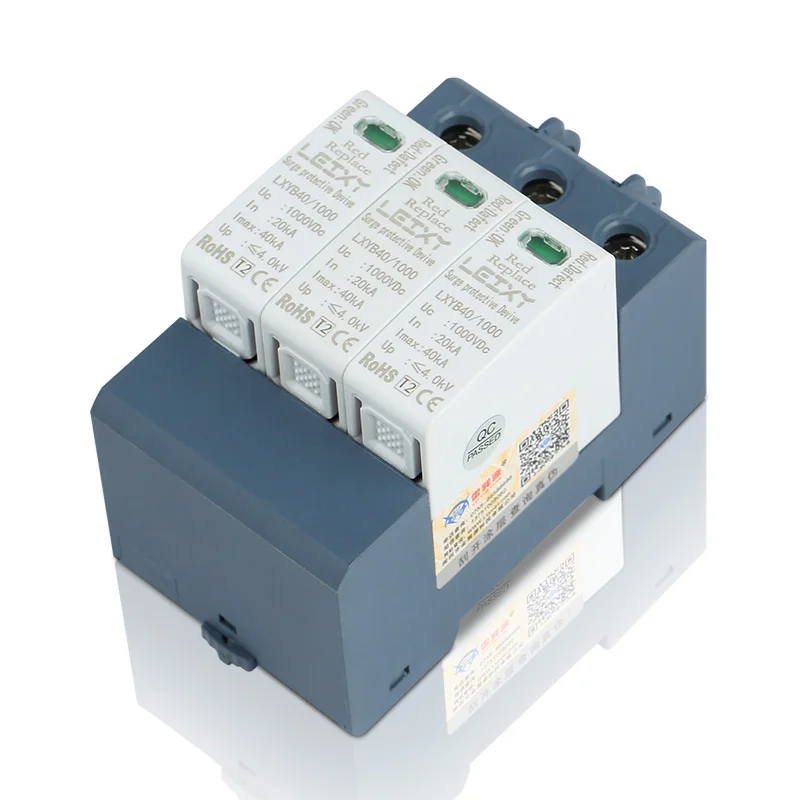

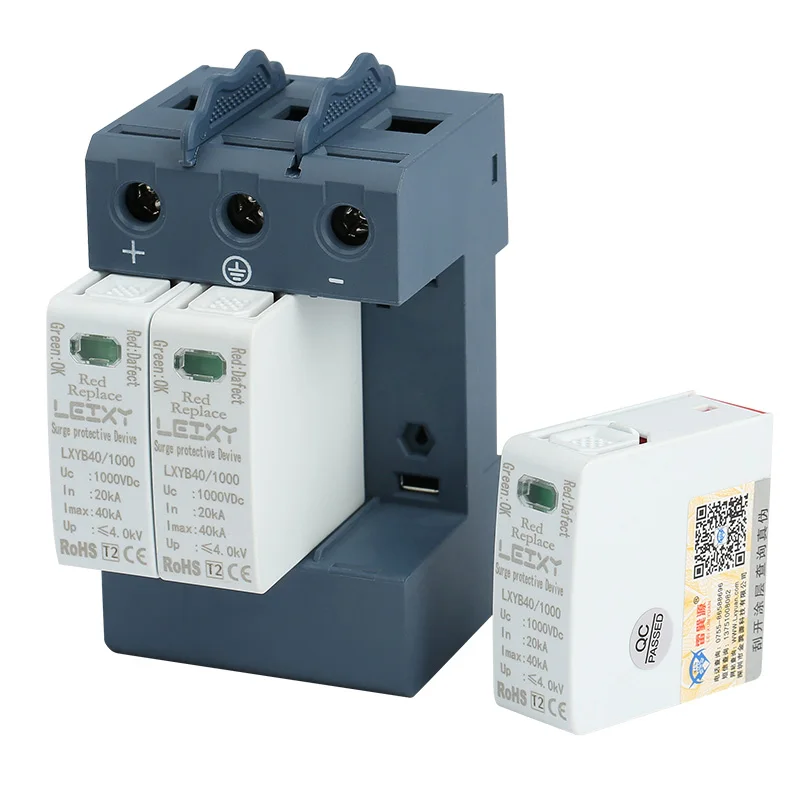

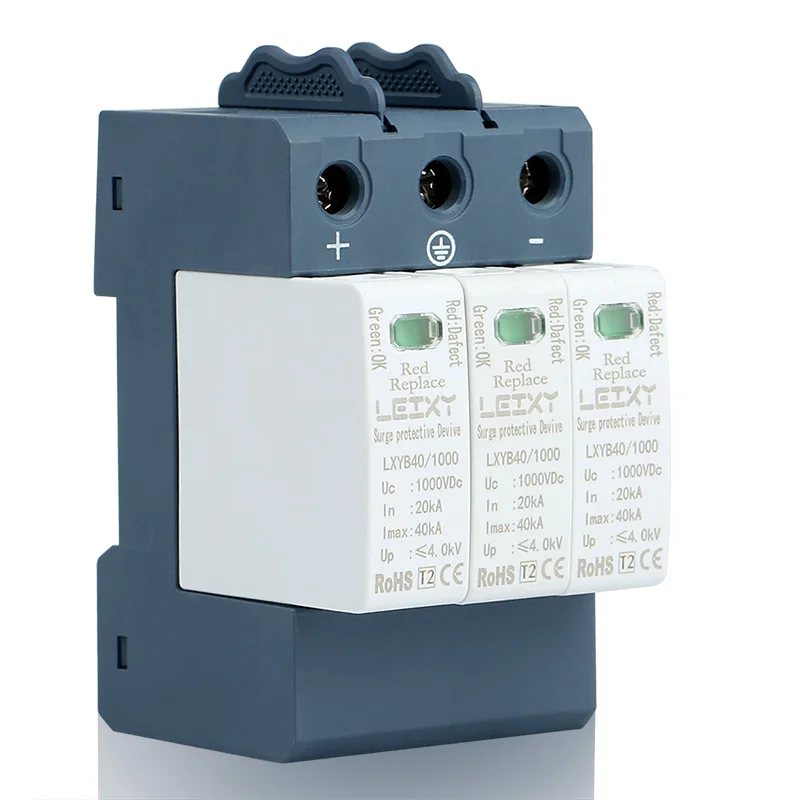

SPD Model
LXYB40-1000
Nominal operating voltageUnpv
1000Vdc
circuit voltageUc pv
1300Vdc
Nominaldischarge current(8/20μs)In
20kA
Maximum discharge current8/20μs)Imax
40kA
Voltage protection levelIn@Up
≤4.0kV
response timetA
≤25ns
Protection mode
+--、+-E、--E

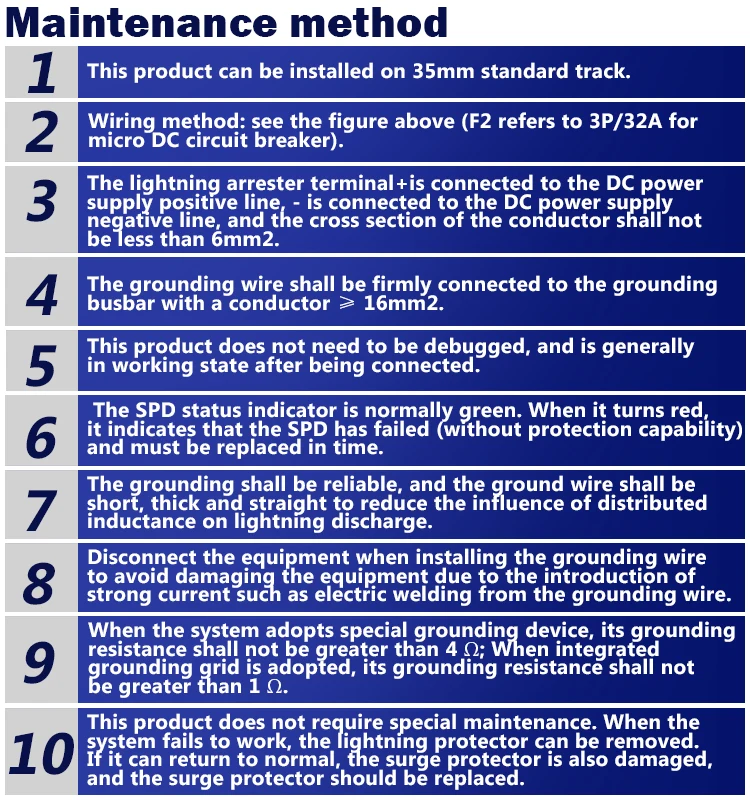

Installation method
DIN 35mm Guide
Screw torque
5N*m
Wiring sectional area
6mm2-32mm2
Product size
89.6mmx53.8mmx66.3mm
Shell material and flame retardant grade
Mineral nylon PA6，V0
Remote signaling contact type
Normally closed and normally open
capacity
125Vac/1A,125Vdc/0.2A
Enclosure protection grade
IP20
temperature range
-40℃…+80℃
Humidity range
Relative humidity ≤95%(max 40℃)
