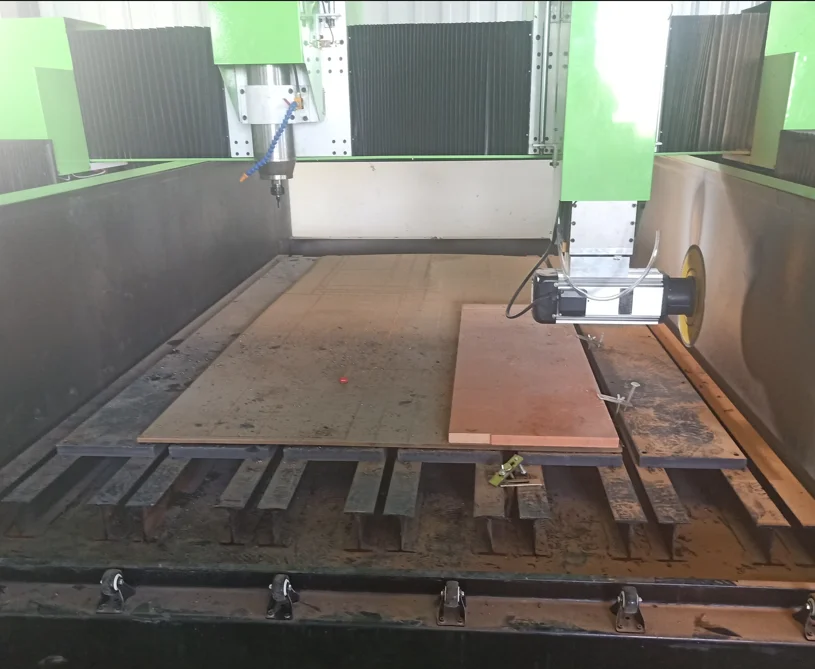

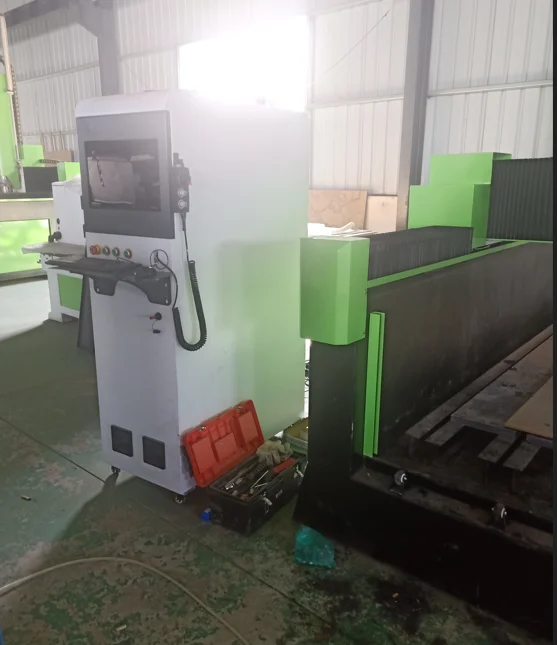

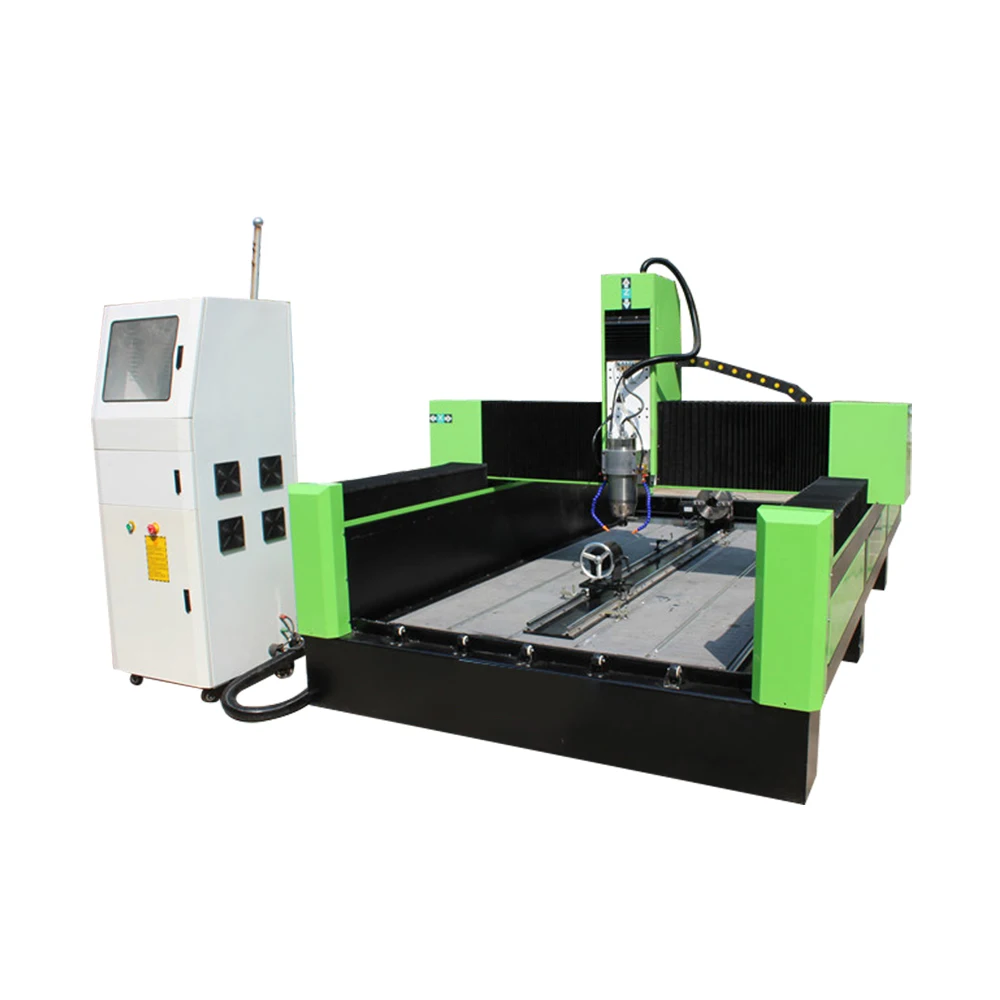

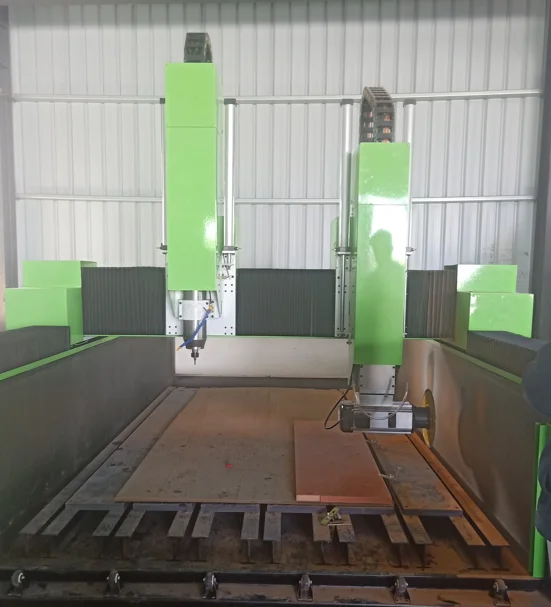

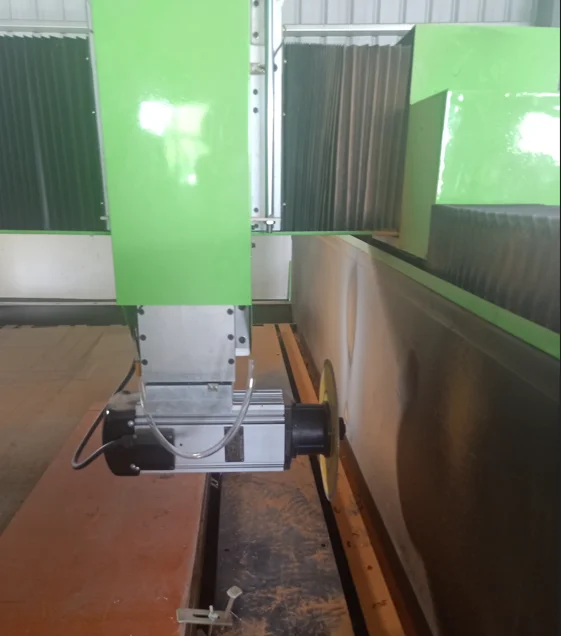

Heavy duty 3d 3 axis stone cnc router engraving machine for marble
- Category: >>>
- Supplier: Phoenix Technology Company Limited
Share on (1600770666263):
Product Overview
Description
Heavy duty 3d 3 axis stone cnc router engraving machine for marble
Granite, marble, bluestone, sandstone and other stone carving.
Stone carving: natural marble, granite, artificial stone, tombstone, milestone, ceramic tile, glass and other materials of three-digit relief, line carving, cutting, chamfering, drilling and other processes.
Crafts industry: various exquisite designs and characters can be carved on wood, bamboo, artificial marble, organic board, two-color board, crystal and other materials.
Model | STONE CNC ROUTER |
Working area | 1300*2500*300mm |
Guide rail | Hiwin high precision 25 square guide rail |
Transmission | X,Y-axis high precision helical gear rack, Z-axis TBI ball screw |

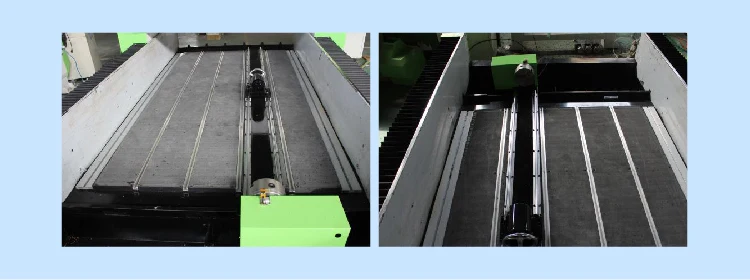

Working table | T-slot table with water channel for spindle and router bit cooling |
Control system | Beijing Rich Auto 4 axis linkage A18 control system |
Spindle motor | 5.5kw water-cooling 0-24000rpm/min,125mm diameter,ER25 collect diamter:3.175mm,4mm,6mm,8mm,10mm,12.7mm |
Inverter | Fuling brand |
Rotary axis | Diameter:200mm,length:2500mm |
Driver model | Leadshine easy servo motor 758 |
Dust collector | 3kw double bags with all tube and dust covers |
Working voltage | 1 phase 220V 50HZ-60HZ |
Software | Artcam/Type3/Castmate/Wentai/UG/Power Mill and so on |
Working command | HPGL.G code.U00.Plt.Eng |
Machine dimension | 3200*2200*1850mm |
Weight | 1500kg |
Packaging | Plywood packaging |
Warranty | 2 years |
Delivery time | Within 18 working days after receive the deposit |
Payment terms | TT with 30% as deposit ,balance paid before delivery |
Product Description

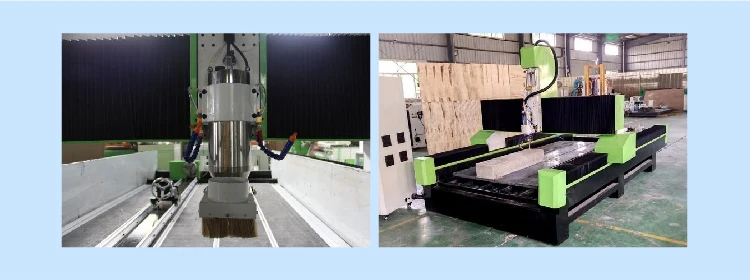

Constant power 5.5KW spindle motor, vector converter and constant power spindle, imported four-bearing low-noise spindle, constant torque at low speed ensure tool service life and working efficiency, cutting force is up to, and efficiency is high.
Side cutting and punching to meet higher and faster production requirements.

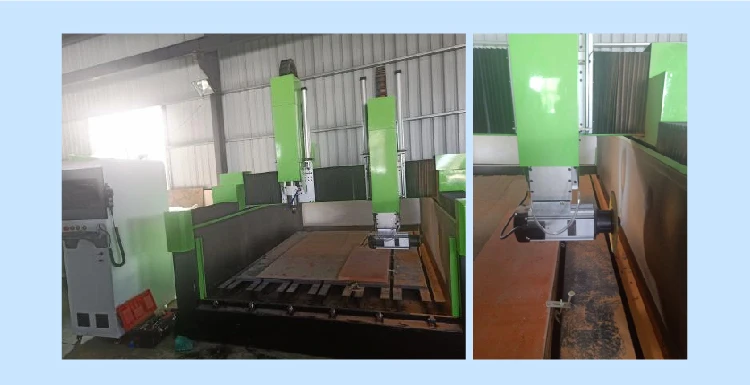

(Optional configuration) 3D rotation axis, no need to rotate the workpiece repeatedly; Complete the tool path calculation at one time. Reduce the finish machining allowance. The tool path can be rough machined in layers, realize local rotation processing, and set the angle range and length range.
Imported Brand&Top China brand electrical parts.

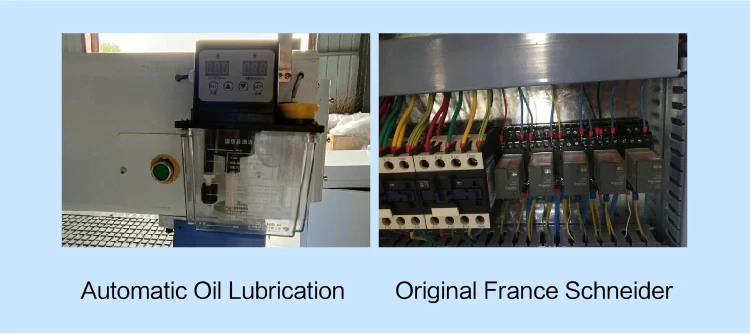

Original France Schneider,wold brand famous /long using life,good quality ,very lower consumption

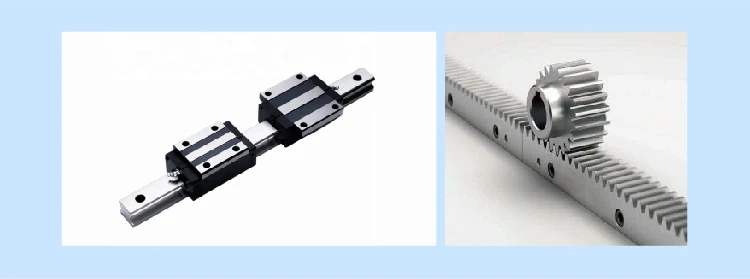

XY with helical rack,Z with ball screw.
Taiwan HIWIN/PMI,YYC.Stable running,strong bearing,won't deformed after long time working helical rack with 1.25M.Bigger working strength.
Our Services
Company Information
FAQ
Q:Can I visit your company?
A:You can come here whenever you want, we'll introduce our factory and product to you, if we've already frequently cooperated for a long time, we'll take care of your airfare and accommodation.
Q:How long is your delivery time?
A:Generally, it takes 2-7 days for sample order, maximum 40 days for bulk orderSpecific production time according to the quantity you required.
A:Generally, it takes 2-7 days for sample order, maximum 40 days for bulk orderSpecific production time according to the quantity you required.
Q:Can you send the goods to my warehouse in China?
A:Yes, we can deliver the goods to wherever you want, but we are only bear the freight cost that shows in the contract that we should responsible for.
Q:What is your term of payment?
A: T/T, L/C,PayPal, Western Union, Alibaba and other payment terms which is convenient for you
Q:Will you reply me in time even in your holidays?
A:Yes, we are online 24 hours in a day, 7 days in a week and 365 days in a year. Whenever you have enquiry or questions,
please don't hesitate to contact us.
please don't hesitate to contact us.
Q:Can I be your distributor in our country?
A:Yes, we welcome you to be our distributor, and we have favorable terms for the you. Please contact us to talk about details.
