Product Overview
Description
Product Description
Product Application
our rebar tying tools are extensively used in Concrete floors, Concrete foundations,Concrete walls, Precast Products, Swimming pool walls, Retaining walls, Underfloor heating.

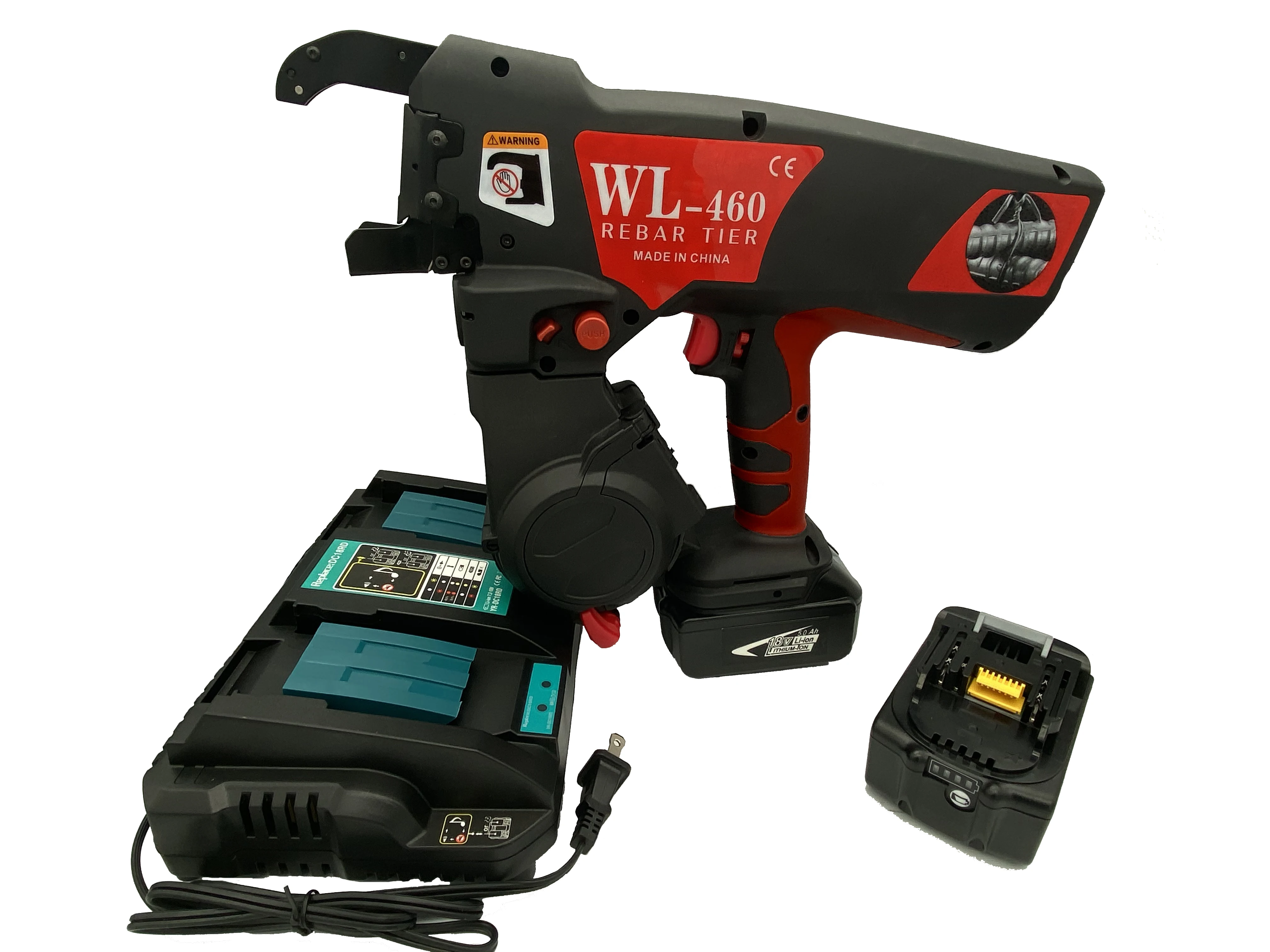

WL-460 TWINTIER
1.0MM TWIN WIRES
10-16MM/KNOT, ONLY 1 TURN
SHORTEN TIE HEIGHT
COST SAVINGS
WL-400B TYING MACHINE
0.8MM WIRE
65MM/KNOT FOR 2 TURNS
75MM/KNOT FOR 3 TURNS
WASTE WIRES
TYING KNOT BY WL-460 TWINTIER
TW1061T, TWIN WIRES, 1 TURN
TYING KNOT BY WL-400B TYING MACHINE
0.8MM WIRE, 2 TURNS/3TURNS
1.0MM TWIN WIRES
FOR WL-460 TWINTIER & MAX RB441T,611T TIERS
0.8MM WIRE SPOOLS
FOR WL-400B, MAX RB398S, MAKITA, TJEP TIERS
Main Features
1) One hand operation-easy to handle
2) Faster than normal tying machine, shorten tie height, cost savings
3) 18V Li-ion higher capacity battery
4) Brushless twisting motor-long service life
5) Light weight & compact body
6) 1.0mm twin wires
Automatic rebar tying machine | ||||
Model No. | WL-460(Li-ion) | WL-400B(Li-ion) | ||
Max Tying Diameter | 46mm | 40mm | ||
Voltage & Capacity | DC18V(5.0AH) | DC14.4V(4.4AH) | ||
Charge Time | Approx.70mins | Approx.70mins | ||
Tying speed per knot | 0.7 seconds | 0.75 seconds | ||
Ties per Charge | Over 4000ties | Over 3200 ties | ||
Ties per Coil | Approx. 250ties(1turn) | Approx.130ties(3turns) | ||
Turns per Tie | 1 turn | 2turns/3turns | ||
Length of Wire for Tying | 10-16mm/ turn | 650mm/2 turns 750mm/3 turns | ||
Wire Type | 1.0mm Black annealed wire or Galvanized wire | 0.8mm Black annealed wire or Galvanized wire | ||
Net Weight | 2.5kgs | 1.9kgs | ||
Dimension(L)X(W)X(H) | 350mmX120mmX300mm | 295mmX120mmX275mm | ||
One set including
1pc Rebar tier machine.
2pc Battery pack.
1pc Quick charger.
2pcs Steel wire rolls.
GW of one set:7.5kgs
1pc Specification
1pc Inner hexagon spanner
1pc Sharp nose pliers
Packing size:54×40×13cm
Detailed Images

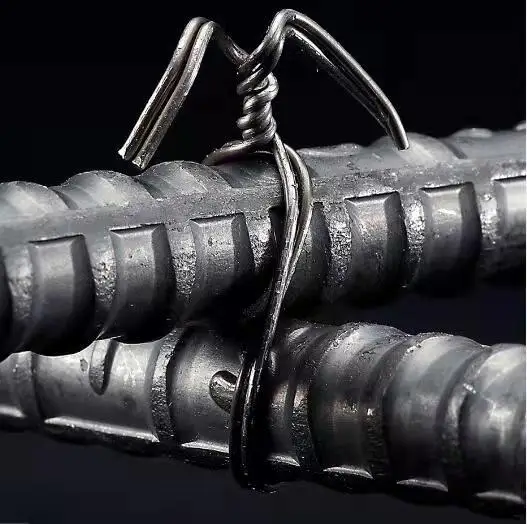

Name:TYING KNOT EFFECT
Features:SHORTEN TIE HEIGHT,
10-16MM/KNOT, COST SAVINGS
Name:Brushless twisting motor
Features:Long service life,fast speed

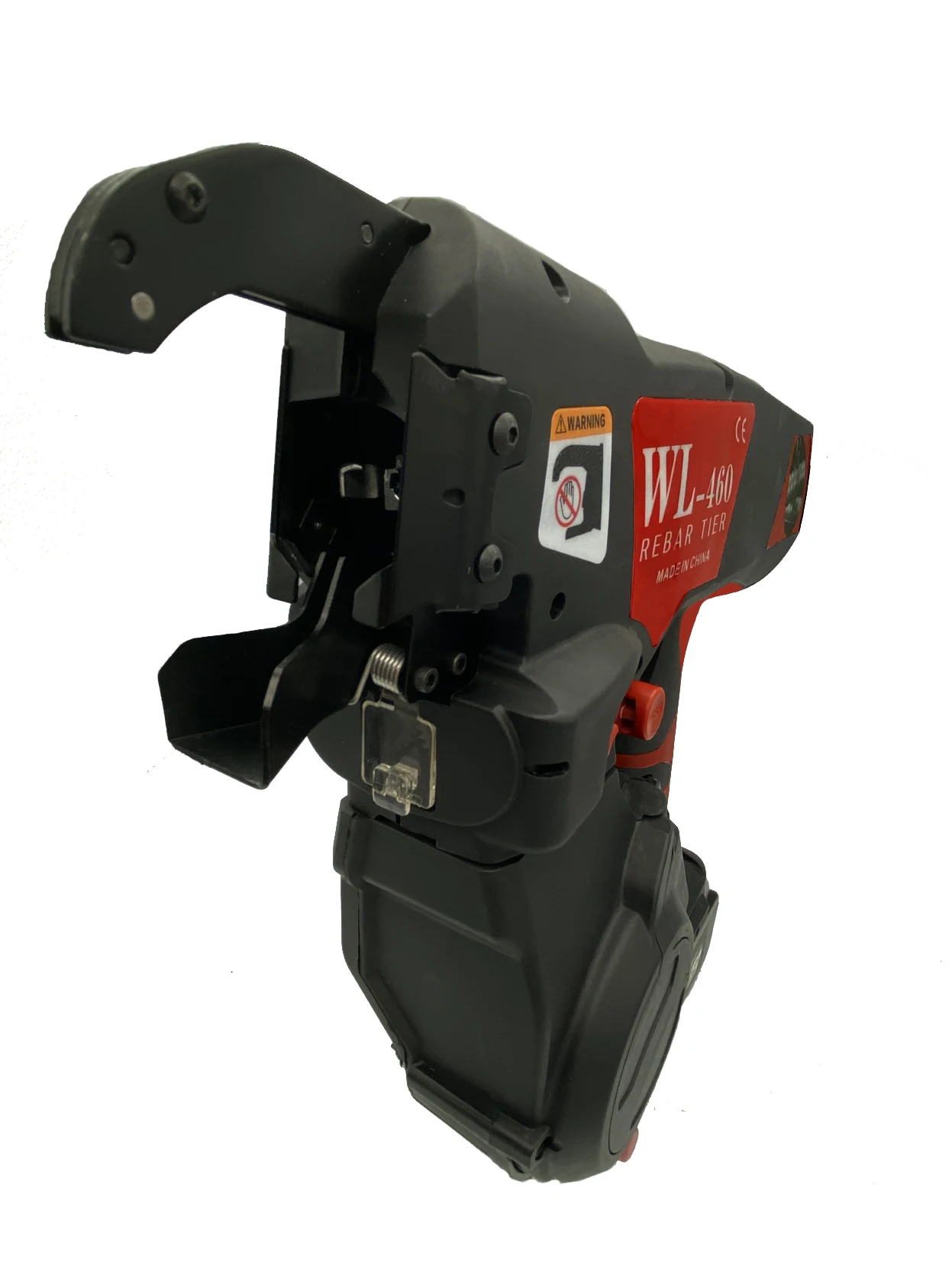

Name:ARM
Features:0-46MM TYING DIAMETER, SAME AS MAX RB441T FAST SPEED
Our Company
Fuzhou ZhuoYuan Machine Co. Ltd is located in Jiangxi province,which is a professional manufacturer and supplier of automatic rebar tying machine.Our company was founded in 2014,have a complete and scientific quality management system.
Packing
Packaging | ||
Size | 54×40×13cm | |
Weight | 7.5kgs | |
Packaging Details | The normal package is plastic box(inner packing),carton box(outer packing). 3sets/cartons. | |
FAQ
1.Q: Are you a trading company or factory?
A: We are a factory
2.Q: Can you provide samples ?
A:Yes,We offer paid samples and we will return the sample fee to you when we receive the payment for your large order.
3.Q:How should I pay the freight?
A:After you place the order,we will make a proforma invoice to you and list the detailed cost.
4.Q:What is the terms of payment?
A:Pay 100% in advance for any order,other special circumstances excepted.
5.Q:Do you have after-sale service?
A:Yes,most parts have maintenance period,free of charge within warranty.
